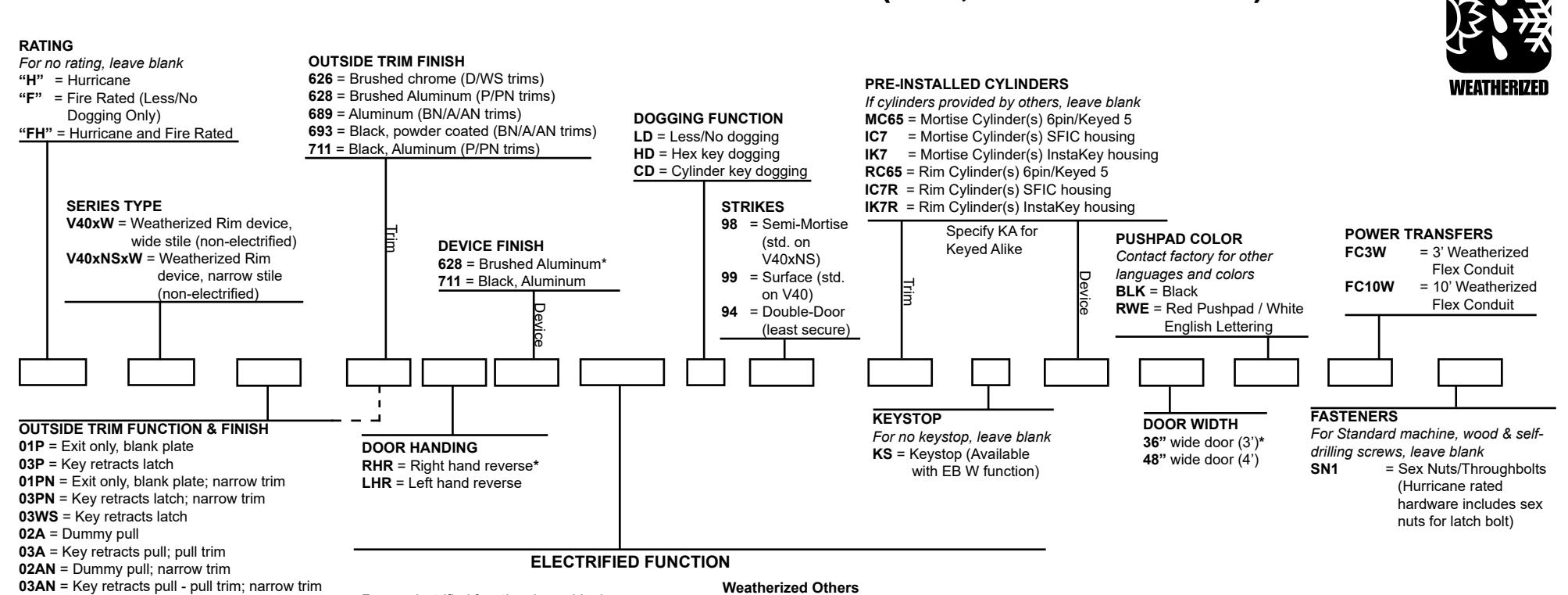

V40xW SERIES (RIM, WEATHERIZED)

For no electrified function, leave blank

Weatherized Alarms

Select Arming Time and Auto Rearm

EB W = Electric Battery Operated Exit Alarm Weatherized

Latch Retraction

ER EX W = Electric Latch Retraction

Weatherized with Request To Exit Switch (silencer standard)

Fire-rated trims must be Fail Safe (FSA) All fire-rated devices Less Dogging/fail safe

Latch Retraction Only (ER EX W)

(Sold Separately)

Single = 81-800 Pair = 82-800 2 Single = 83-800

Weatherized Others

ER EX W = Electric Latch Retraction

Weatherized with Request To Exit Switch (silencer standard)

EX W = Request To Exit (Signal)

Switch Weatherized

EXV W = Request To Exit (Current)

Switch Weatherized

WDE = Weatherized Delayed Egress (see EasyKits)

Detex products can expose you to chemicals including Chromium (hexavalent compounds) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.detex.com/prop65

CBK = Cylinder Bracket Kit, 03 only, plate & pull handle by others required

specify FSA

02BN = Dummy lever; narrow trim 08BN = Active lever, key locks/unlocks lever; narrow trim (handed) (classroom) 09BN = Lever trim active by key, locked when key removed; narrow trim (handed)

14BN = Active lever, no key cylinder; narrow trim

02D2W = Dummy lever; wide trim (two posts for use with narrow head device) 08D2W = Active lever, key locks/unlocks lever; wide trim (two posts for use with narrow

09D2W = Lever trim active by key, locked when key removed; wide trim (two posts for use with narrow head device)

14D2W = Active lever, no key cylinder; wide trim (two posts for use with narrow head

EU2W = Electric lock/unlock; wide trim (two posts for use with narrow head device) - 24VDC & Fail Secure (FSE) Std. - Specify handing (not field reversible). For 12VDC specify VDC. For Fail Safe

(storeroom)

(storeroom)

device) (passage)

(handed) (passage)

head device) (classroom)
