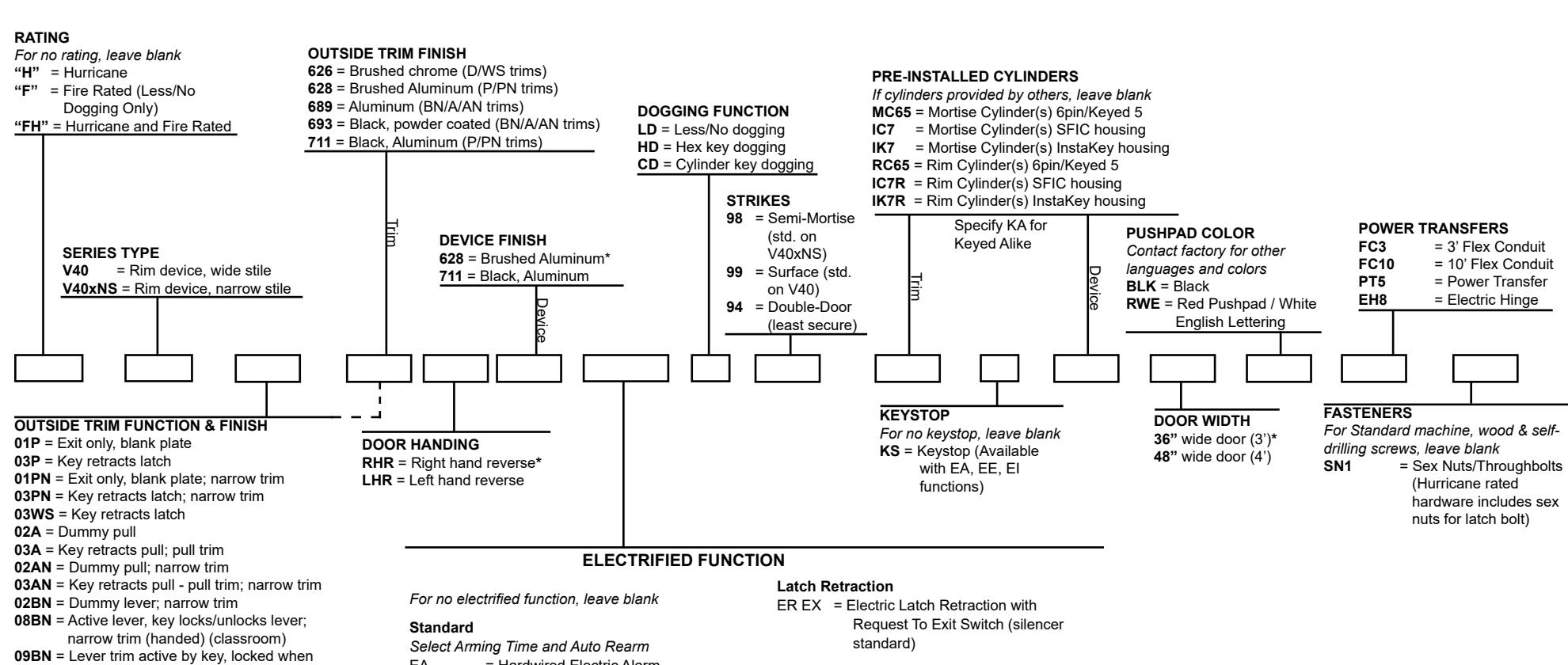

Detex ValueSeries V40xNS How To Order Page

V40 SERIES (RIM)

EA = Hardwired Electric Alarm (Formerly EH/EH R)

EB = Electric Alarm with Battery

ED = Electric Dogging

EX = Request To Exit (Signal) Switch EXV = Request To Exit (Current) Switch

EI = Electric Integration (logic controller

required)

ES = Electric Switching (dead latch & OKC switches)

Delayed Egress

Select Arming Delay, Delayed Egress Time and Silent Arming EE = Delayed Egress

All fire-rated devices Less Dogging/fail safe

Delayed Egress Only (EE) Comes standard with 90-800 power supply Single = (1) 90-800 w/o bat backup Pair = (1) 90-800 w/o bat backup

Latch Retraction Only (ER EX)

(Sold Separately) Single = 81-800 Pair = 82-800 2 Single = 83-800

Detex products can expose you to chemicals including Chromium (hexavalent compounds) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.detex.com/prop65

key removed; narrow trim (handed)

14BN = Active lever, no key cylinder; narrow trim

02D2W = Dummy lever; wide trim (two posts for use with narrow head device) 08D2W = Active lever, key locks/unlocks lever; wide trim (two posts for use with narrow

09D2W = Lever trim active by key, locked when key removed; wide trim (two posts for use with narrow head device)

14D2W = Active lever, no key cylinder; wide trim (two posts for use with narrow head

EU2W = Electric lock/unlock; wide trim (two posts for use with narrow head device) - 24VDC & Fail Secure (FSE) Std. - Specify handing (not field reversible). For 12VDC specify VDC. For Fail Safe

CBK = Cylinder Bracket Kit, 03 only, plate & pull

(storeroom)

(storeroom)

specify FSA

device) (passage)

(handed) (passage)

head device) (classroom)
