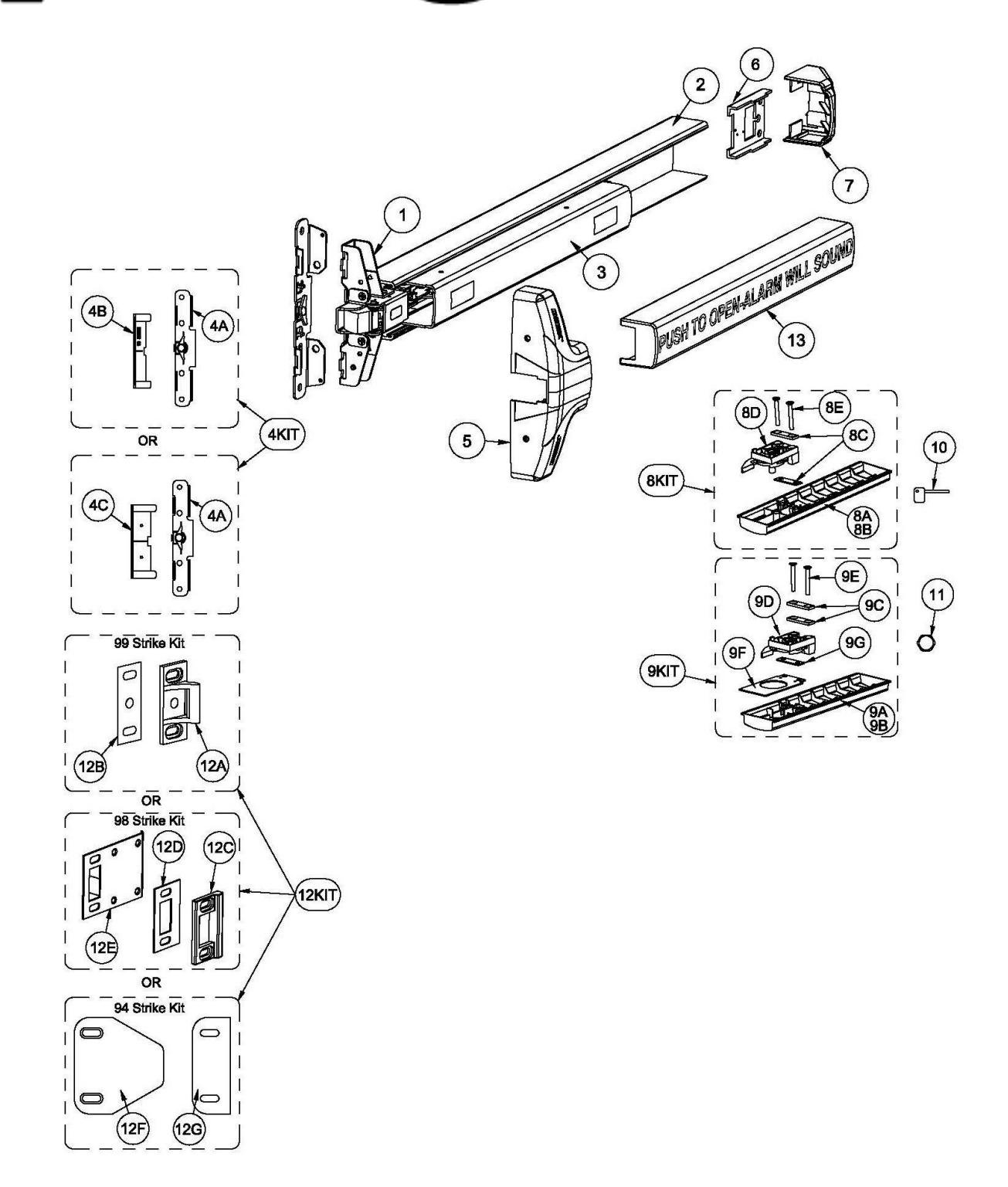

V40 Series Parts List
For Mechanical Devices Only
| Item |
Order
Part# |
Description | Price |
|---|---|---|---|
| 1 | 100698-5 | Centercase Assembly, Narrow Stile, V40 series | $156.07 |
| 2 | 106281 | Backplate Extrusion, 36", Silver | $46.05 |
| 106285 | Backplate Extrusion, 48", Silver | $74.20 | |
| 106289 | Backplate Extrusion, 36", Black | $46.68 | |
| 106290 | Backplate Extrusion, 48", Black | $99.36 | |
| 3 | 103065-1 | Pushpad Subassembly, 36" | $87.12 |
| 103065-2 | Pushpad Subassembly, 48" | $120.25 | |
| 4KIT | 103806-1 | Mounting Plate/Strike Locator Kit, Narrow Stile, 98 Strike BP2 (includes 4A & 4B) | $31.98 |
| 103806-3 | Mounting Plate/Strike Locator Kit, Narrow Stile, 99 Strike BP2 (includes 4A & 4C) | $25.59 | |
| 4A | 100696-1 | Mounting Plate, BP2, Narrow Stile | $23.03 |
| 4B | 101899 | Strike Locator 2" Glass Door (98) | $11.51 |
| 4C | 100212 | Strike Locator, Standard (99) | $5.12 |
| 5 | 101805-1 | Centercase Cover, V40 series | $10.89 |
| 6 | 101844-1 | Endcap bracket w/o battery holder | $8.64 |
| 101844 | Endcap bracket w/ battery holder | $11.52 | |
| 7 | 101822 | Endcap | $7.68 |
| 8KIT 101803-1 | Fillerplate, Subassembly, S&R, Hex Dogging, HD, V40 series, 36" (includes 8A or 8B through 8E) | $53.73 | |
| 8A | 101812-1 | Fillerplate, HD, 36" | $16.63 |
| 8B | 101812-2 | Fillerplate, HD, 48" | $17.97 |
| 8C | 100164 | Spacer, dogging bracket | $2.56 |
| 8D | 102216-4 | Die cast dogging assembly, HD | $36.72 |
| 8E PP-5802-124 | Screw, mach, 10-32 x 1-1/2" PFH | $0.39 | |
| 9KIT 102195-1 | Fillerplate, Subassembly, S&R, Cylinder Dogging, CD, V40 series, 36" (includes 9A or 9B through 9G) | $58.85 | |
| 9A | 102194-1 | Fillerplate, CD, 36" | $27.56 |
| 9B | 102194-2 | Fillerplate, CD, 48" | $29.30 |
| 9C | 100164 | Spacer, dogging bracket | $2.56 |
| 9D | 102216-3 | Die cast dogging assembly, CD | $15.35 |
| 9E PP-5802-124 | Screw, mach, 10-32 x 1-1/2" PFH | $0.39 | |
| 9F | 102196 | Bracket, fillerplate, V40, CD | $6.39 |
| 9G | 100938 | Spacer, dogging bracket, .060" thick | $1.29 |
| 10 | 100450 | Hex Key (for Hex Dogging) | $7.00 |
| 11 | 100783 | Cylinder Nut (for Cylinder Dogging) | $6.00 |
| 12KIT | 100855-2 | 99 Strike Kit (includes 12A & 12B) | $44.00 |
| 100855-1 | 98 Strike Kit (includes 12C, 12D & 12E) | $54.00 | |
| 12A 100234-1 | Strike, Non-roller | $20.47 | |
| 12B | 100088 | Strike Shim | $1.29 |
| 12C | 100480 | Strike, Mortise | $25.59 |
| 12D | 100482 | Shim, Mortise Strike | $5.12 |
| 12E | 100481 | Shield, Strike | $20.47 |
| 12F | 102211 | Double Door Strike Plate | $72.92 |
| 12G | 102214 | Shim, 94 strike | $2.56 |
| 105417-1 | Pushpad Wrap, 36", Red (English text) | $21.00 | |
| 13 | 105417-2 | Pushpad Wrap, 48", Red (English text) | $21.00 |
| 105417-3 | Pushpad Wrap, 36", Black | $21.00 | |
| 105417-4 | Pushpad Wrap, 48", Black | $21.00 |
