V40

Rim Exit Device

The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

ANSI 156.3 - 2008 Grade 1 Type 1

Standard V40 Rim Device accommodates wide stile doors, 4" or greater stile, and flush doors. For Narrow Stile doors, 2" to 2 1/2" stiles, specify V40xNS model which provides a 2" longer device and a lower profile strike.

Benefits

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Angled end cap deflects damage away from device

Features

• Covers a 161 door prep
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• Non-handed
• Field sizeable

• 1/8 turn hex key dogging
• Heavy-duty ribbed aluminum rail extrusion
• High impact ABS and anodized surfaces
• Withstands over 1400 pounds of static pull force for greater security
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options

• CD Cylinder Dogging
• HD Hex Dogging (Std.)
• LD Less Dogging
• 36 Fits 36" Door Width (Std.)
• 48 Fits 48" Door Width
• For Narrow Stile that fits 2" Narrow stile glass door see V40xNS
• F 3-Hour Fire Rated
• H Hurricane Rated
• 99 Surface Strike (Std.)

• 98 Semi Mortise Strike
• Available with 628 Base Rail Extrusion (Std.)
• Available with 711 Base Rail Extrusion
• FC3 Flexible 3' Conduit Kit, mounts to device end cap
• FC10 Flexible 10' Conduit Kit, mounts to device end cap

• PT5 Concealed mortise mount power transfer
• EH8 Five-knuckle energy transfer hinge - 8 wires

For full list of available mechanical options, see V40 Series How To Order page

Electrical Options

• Exit Alarm (EA)
• Exit Alarm with 9 volt Battery (EB)
• Electric Dogging (ED)
• Delayed Egress (EE)

• Electric Integration (EI)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Electric Switching (ES)
• Request to Exit (EX)

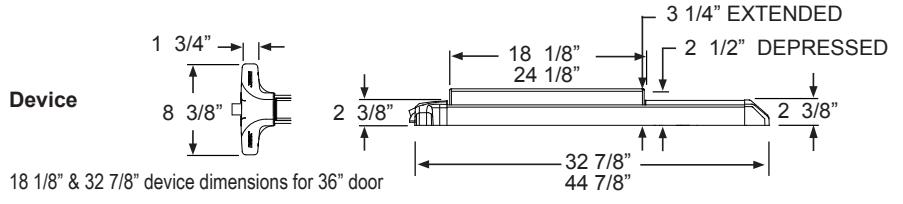

Dimensions

24 1/8" & 44 7/8" device dimensions for 48" door Add 2" for NS

Technical Information

Torx Screws available

Accessories

Trim Options)

• SN1 - Sex Nut Fasteners

• NSK- Narrow Kit - for 2"

narrow stile glass door applications that must be added in the field

• Outside Trim (see Value Series

• Optional Sex Nuts or Security

• GB2 - Glass Bead Kit

• Door Types Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness Fits standard 1-3/4" - 2-1/4"

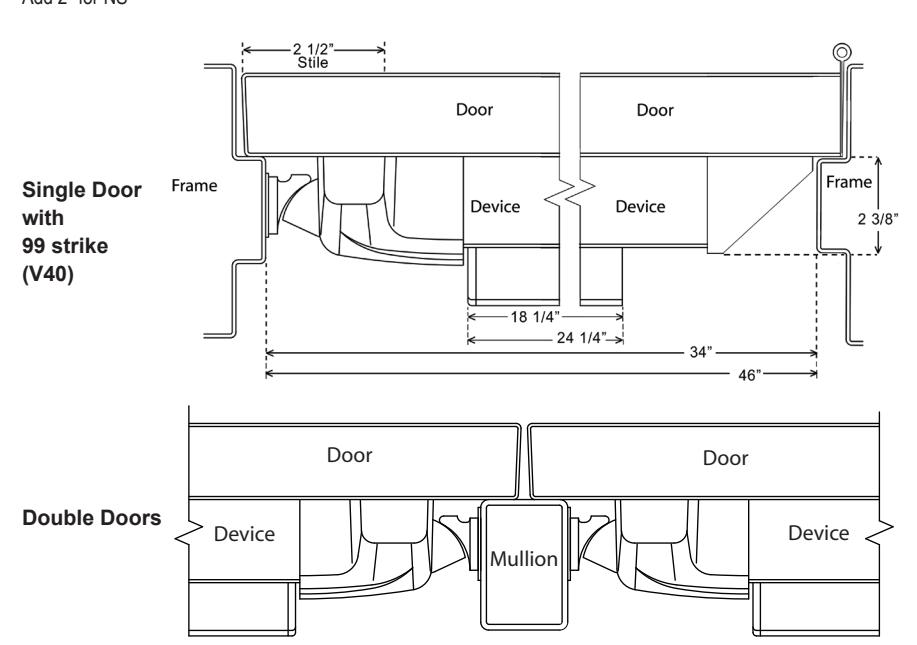

• Single Door Stile Fits 3-1/2" minimum stile doors with 99 surface strike (Std.)
• Pairs of Doors Stile Fits 4" minimum stile doors with 99 surface strike
• Door Stile Fits 2" narrow stile doors - specify NS
• Machine and Self-Drilling Screws (Std.)

Detex Limited Warranty

10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty

Listings and Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable mullion

Meets ADA requirements

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

Meets NFPA 80 & 101 for Life Safety

State of Florida Approval

Texas Department of Insurance

ANSI/BHMA certified A156.3

California State Fire Marshall

For detailed windstorm and fire listings, visit www.detex.com/PROVEN

Cancer & Reproductive Harm - www.detex.com/prop65
