LEVER TRIM DESIGNS

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. These trims can be used on V40 Series Rim and V50 Series Surface Vertical Rods. Detex uses the BHMA functions/descriptions for all trims.

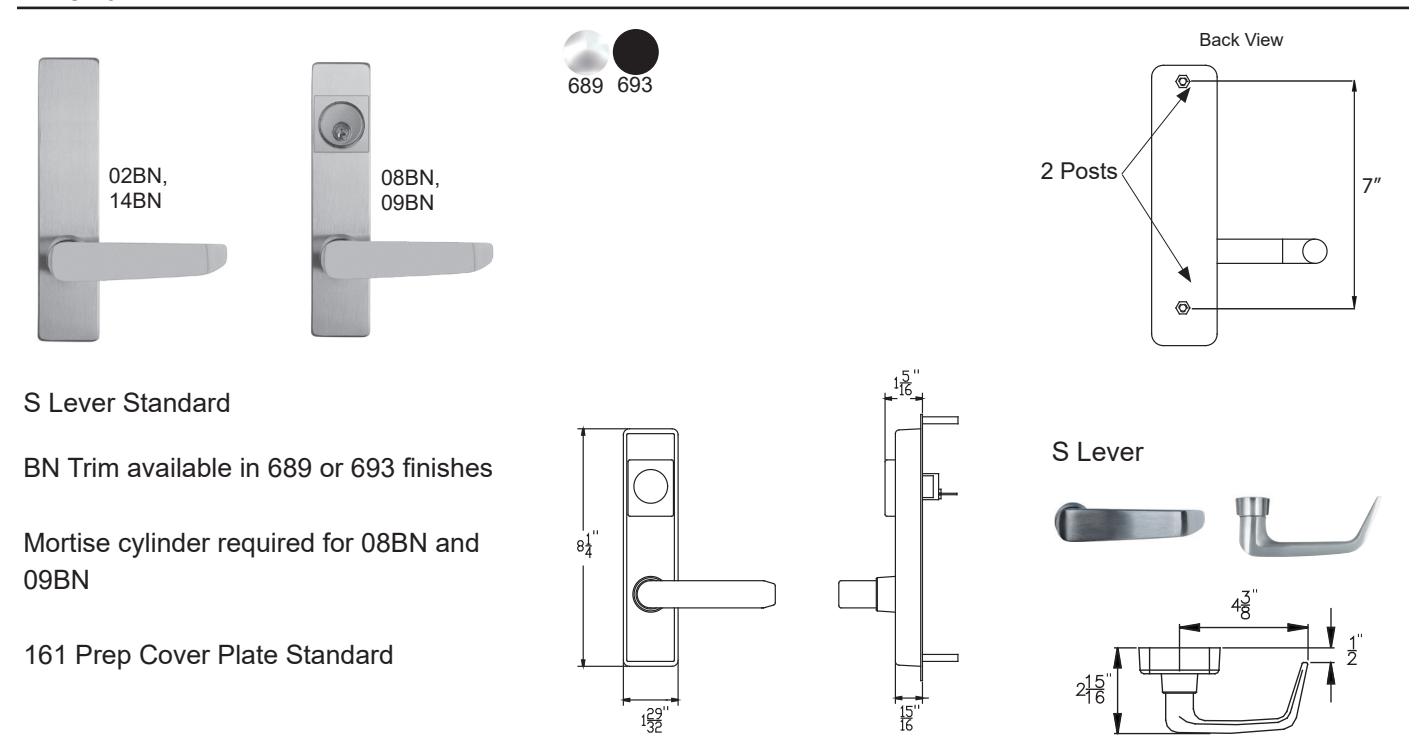

BN and MN Trim

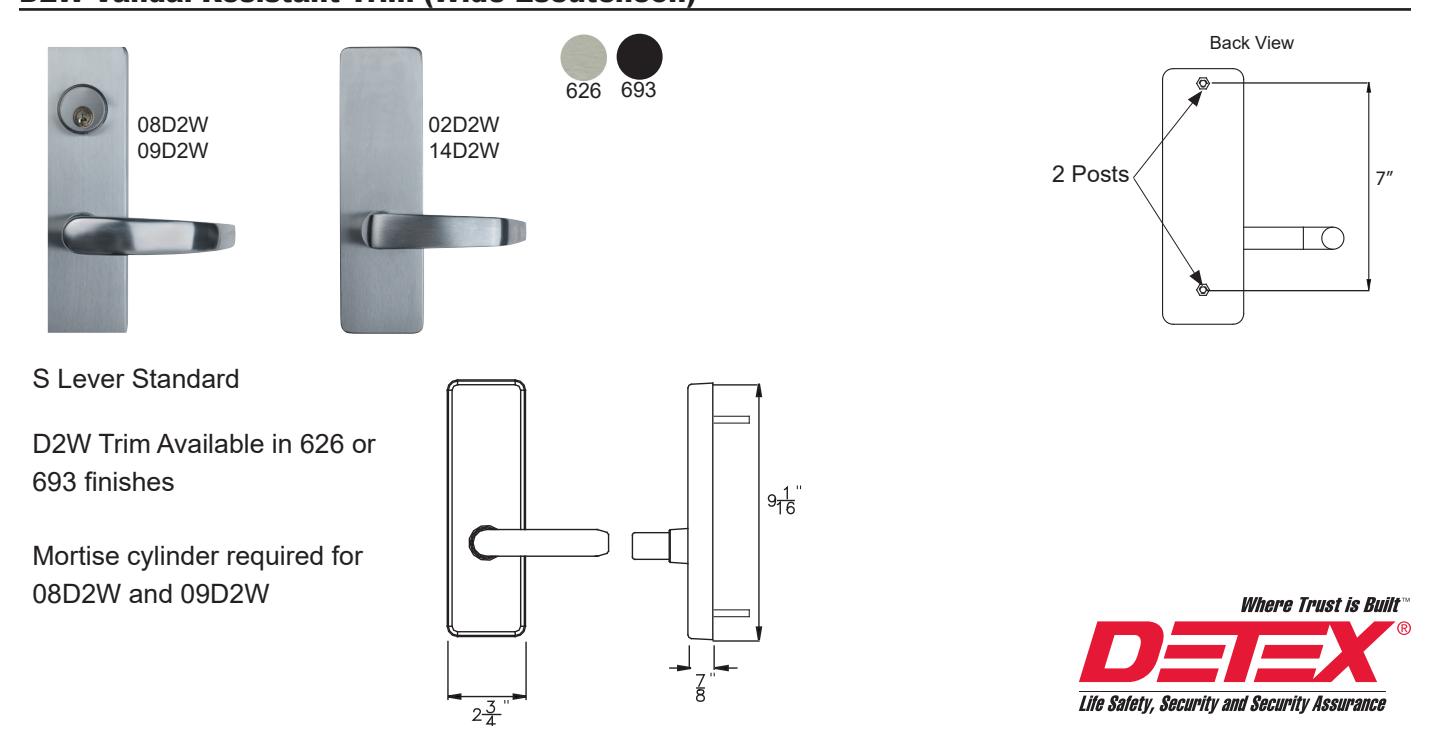

D2W Vandal Resistant Trim (Wide Escutcheon)

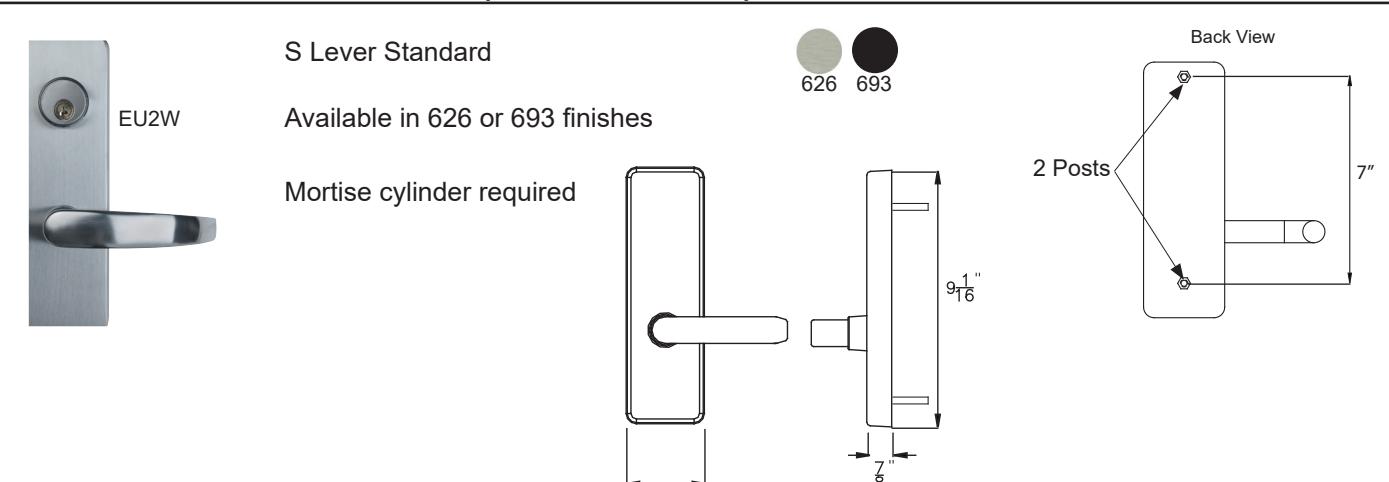

EU2W Electric Lock/Unlock Trim (Wide Escutcheon)

BHMA Function/Description

• 02 Entrance by trim when actuating bar is locked down (dummy trim)
• 08 Entrance by knob or lever. Key locks or unlocks knob or lever.
• 09 Entrance by knob or lever only when released by key. Key removable only when locked.
• 14 Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder.

Finishes

605 / US3 606 / US4	Polished Brass Brushed Brass	629 / US32	Polished Stainless Steel	689 / SP28 693 / SPBLK	Aluminum Painted Black Painted
611 / US9	Polished Bronze	630 / US32D	Brushed Stainless	695 / SP313	Dark Bronze Painted
612 / US10	Brushed Bronze		Steel	711 / DC35	Black Anodized
	613 / US10B Oil Rubbed Bronze

Technical Information

• BN Trims are Zinc Castings
• When ordered with device, trims will match mounting plate specified
• Value Series trims configured for use with BP2 and BP8 (standard)

• EU2W and D2W are forged Brass
