EU2W

ELECTRIC UNLOCK TRIM

Provides remote means of locking or unlocking a door for authorized entry, access control, security or safety needs when used in conjunction with any Detex 40/V40 Series rim or 50/51/V50/V51 Series surface vertical rod exit device on doors with a minimum stile width of 4". Perfect for use on fire-rated doors, such as stairwell doors, allowing emergency entry after fire alarm activates fail safe trim. Excellent source of security for access control systems used in installations in schools, universities, hospitals, retail, industrial, etc.

For use ONLY on wide stile glass doors, wood doors, and hollow metal doors (not for use with narrow stile doors)

For use with 40/V40 Series Rim, and 50/51/V50/V51 Series Surface Vertical Rod Exit Devices

Benefits

Clutching trim limits vandalism
Key override for emergency entrance during loss of power (FSE)

Features

• Cylinder override

Spring loaded tailpiece
Vandal resistant break-away type lever

Mechanical Options

EU2W Comes standard as D Trim, with S style Lever and Fail Secure (FSE), for use with Detex 40/V40 Series Rim or 50/51/V50/V51 Series Surface Vertical Rod Device
EU2W x DT or DU Comes with T style or U style lever, for use with Detex 40/V40 Series Rim or 50/51/V50/V51 Series Surface Vertical Rod Device
KN Knurling available on all levers
Not Field Reversible

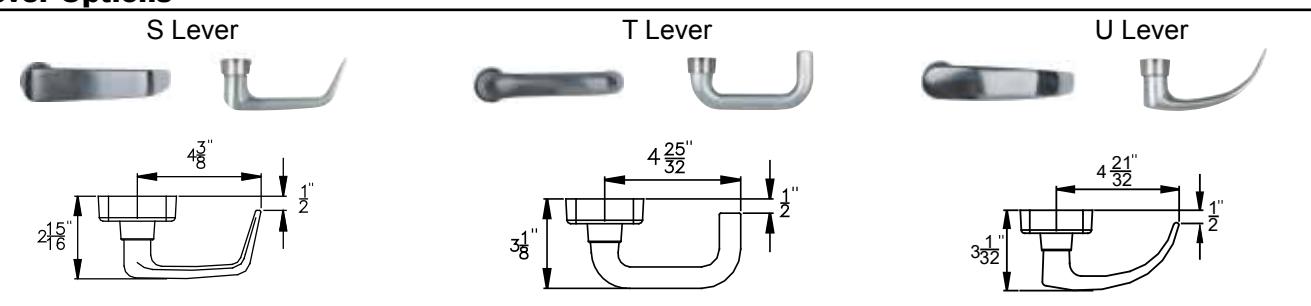

Lever Options

Electrical Options

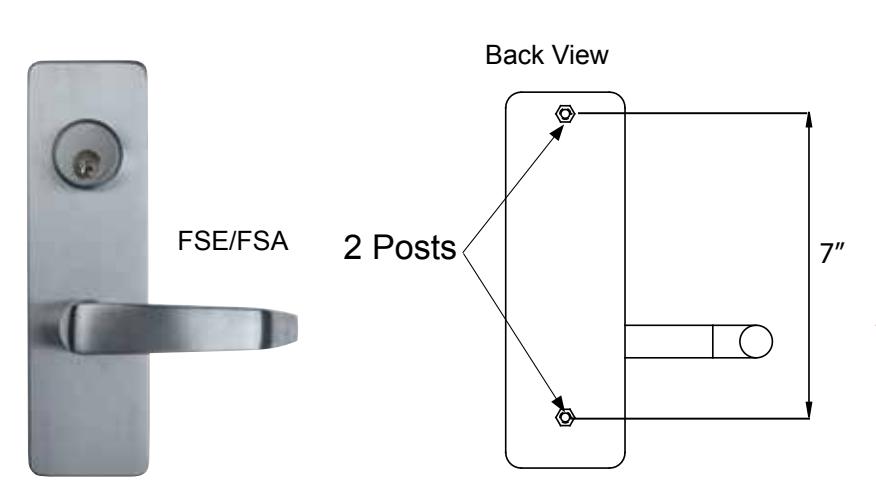

Fail Secure (FSE) During power failure, device will be locked (Security option) ex: EU x FSE
Not Field Selectable

Fail Safe (FSA) During power failure or fire alarm activation, the trim will always be unlocked. (Life Safety option) ex: EU x FSA
Not Field Selectable

Accessories

MC65 Mortise Cylinder
IC7 7-pin Mortise Cylinder Housing (Core not included)
80-800 24 VDC power supply with battery charging circuit
90-800 24 VDC power supply without battery charging circuit
CCL Long cyllinder collar (11/16")
SE-2 Shaft extension for 2 to 2 1/2" thick doors

Finishes

605 / US3 Polished Brass	613 / US10B Oil Rubbed Bronze	629 / US32 Polished Stainless
606 / US4 Brushed Brass	693 / SPBLK Painted Black	Steel
611 / US9 Polished Bronze	695 / SP313 Painted Dark Bronze	630 / US32D Brushed Stainless
612 / US10 Brushed Bronze		Steel
