Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 (830)629-2900 / 1-800-729-3839 / Fax (830)620-6711 E-MAIL: detex@detex.com INTERNET: www.detex.com

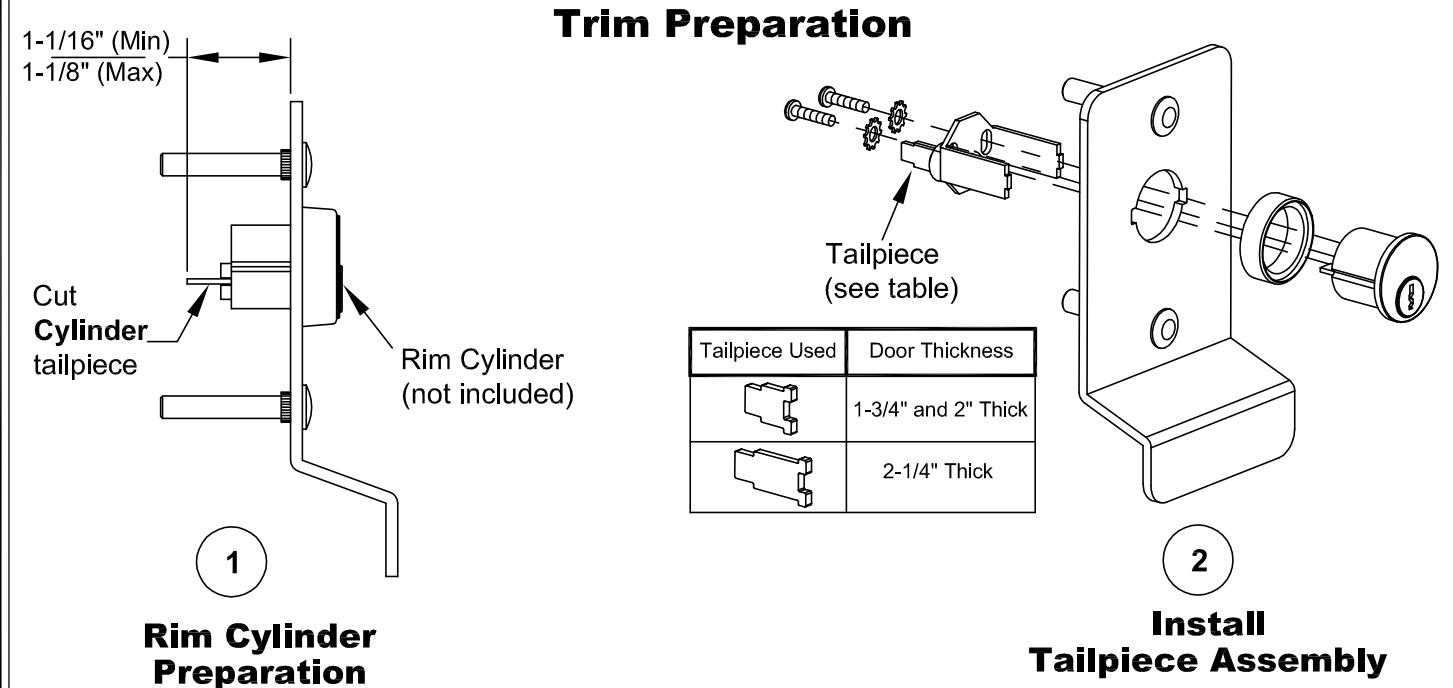

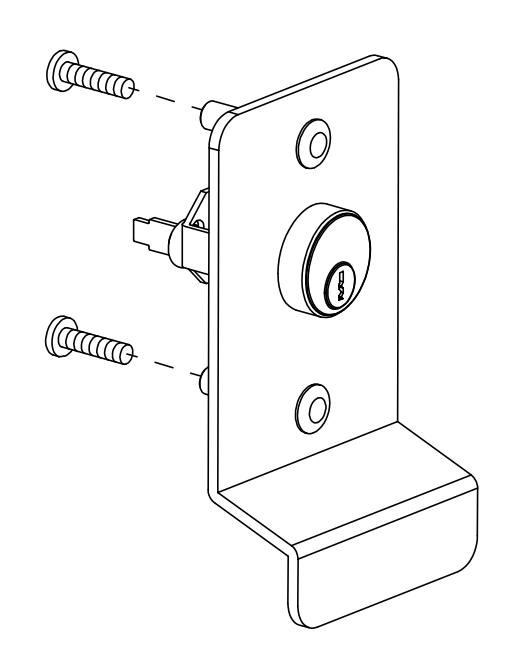

INSTALLATION INSTRUCTIONS FOR 03P/03PN VALUE SERIES TRIM
Testing the Trim Installation

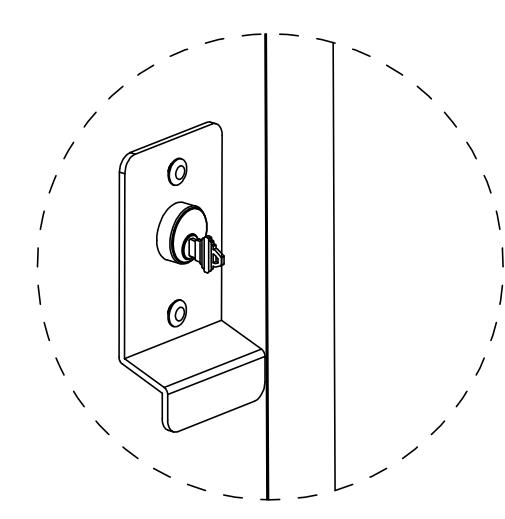

Key should turn smoothly. If binding occurs, check the following:
- 1. For hollow metal doors, adjust for door compression.
- 2. Verify cylinder tailpiece length.
- 3. Verify tailpiece and cam engagement
Adjust screws to relieve door compression.

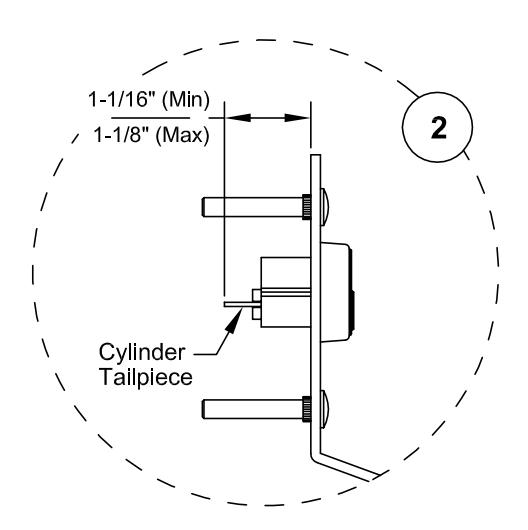

Verify cylinder tailpiece length. (Shorten tailpiece if necessary)

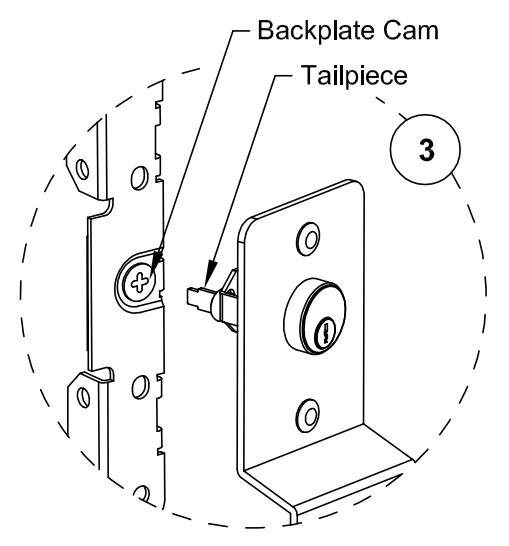

Verify tailpiece and cam engagement
