87 SERIES

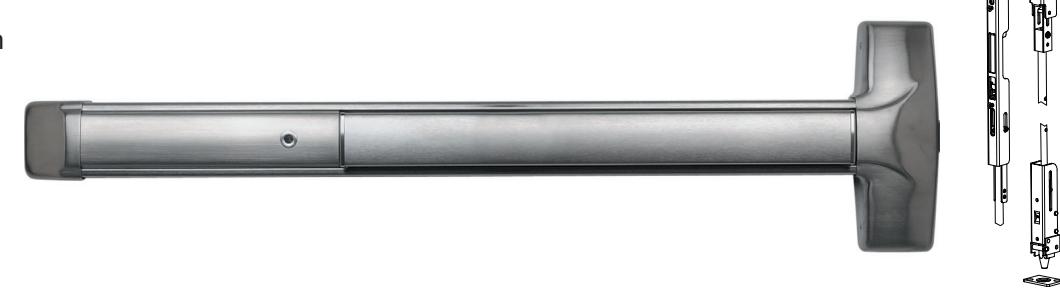

High Security Relatching Concealed Vertical Rod Device

Designed to enhance the architectural aesthetics of any décor, the 87 Series high security concealed vertical rod exit device is also super-heavy-duty panic and fire exit hardware for use on all types of hollow metal doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Note: Only available with both top and bottom rod configuration

Benefits

Tough and durable design for years of trouble-free service in high-use, high-abuse environments
Outside trims are easily changed or rekeyed without removing device from door (exception: 03WSV)
Minimal door prep saves time and money
Fast and easy installation saves time and money
Heavy duty angled end cap deflects damage away from device

Features

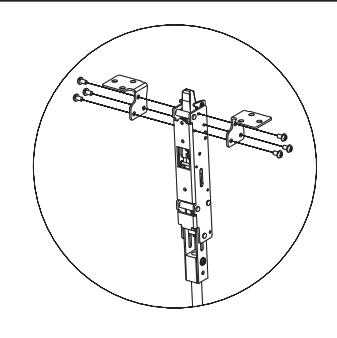

6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door

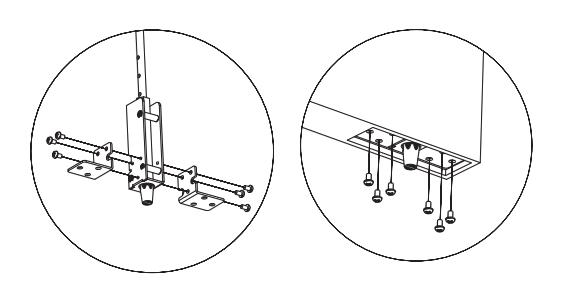

Durable steel bottom drop bolt
1/8 turn dogging
Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
Patented deadlocking of top and bottom bolt assemblies
Rods are easily adjustable with rods installed in door
Handed field reversible
Field sizeable
Top strike both secures the door and re-engages the latchbolt

Mechanical Options

T Tornado/Windstorm Rated (FEMA 361) - up to 42" wide and 88" height
F Contact factory for availability
AM Anti-Microbial Coating
HD Hex Dogging (Std.)
CD Cylinder Dogging

SLR Silencer
24 Fits 24" Door Width
30 Fits 30" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width
EC1 Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
EC2 Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

Electrical Options

Exit Alarm (EA)
Electric Dogging (ED)
Electric Latch Retraction (ER)
Delayed Egress Self-Contained (EE)
Request to Exit (EX)
Request to Exit for High Voltage (EXV)
Electric Delayed Egress with Latch Retraction (EE ER)

Refer to Electrified Options section for more information

Accessories

612 / US10

7000001	100
SSK4 - Security Torx Screw Kit		Trim Functions (see Outside Trims)		Electrified Options (see Electrified Options)
Technical	Information
Door Types - Hollow Metal		Minimum Stile - 5"		Fasteners - Machine and Self- Prillips Corpus standard
Door Thickness - Fits standard				Drilling Screws standard
1-3/4" - 2-1/4" (for other door thicknesses contact factory)				Rail is heavy ribbed aluminum extrusion
Finishes
605 / US3	Polished Brass	628 / US28	Satin Aluminum	693 / SPBLK Black, painted
606 / US4	Brushed Brass	629 / US32	Polished Stainless	695 / SP313 Dark Bronze, painted
611 / US9	Polished Bronze		Steel
