82 SERIES 83 SERIES (Top Rod Only)

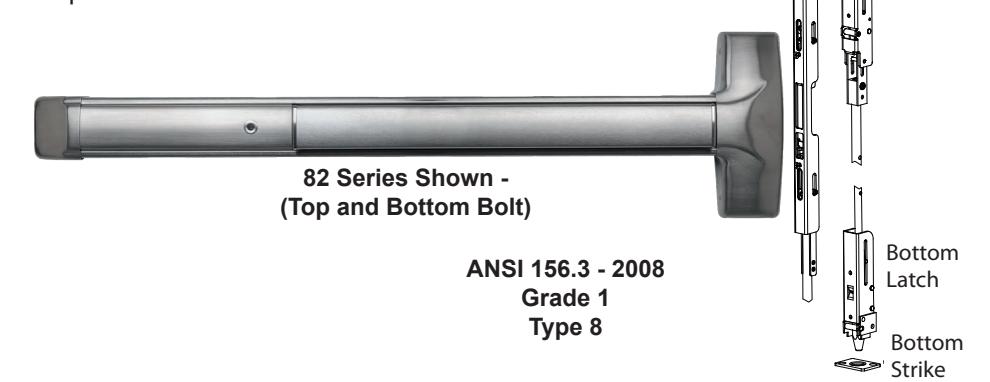

Concealed Vertical Rod Device - Wide Stile Aluminum Door

Designed to enhance the architectural aesthetics of any décor, the 82 and 83 Series concealed vertical rod exit device is also super-heavy-duty panic and fire exit hardware for use on all types of wide stile aluminum doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Note: For Top Rod Only - Specify 83 Series

Also Available:

60/61 CVR Narrow Stile Alum. Door 62/63 CVR Narrow Stile H.M. Door 70/71 CVR Wide Stile Wood Door 80/81 CVR Wide Stile H.M. Door

Benefits

Tough and durable design for years of trouble-free service in high-use, high-abuse environments

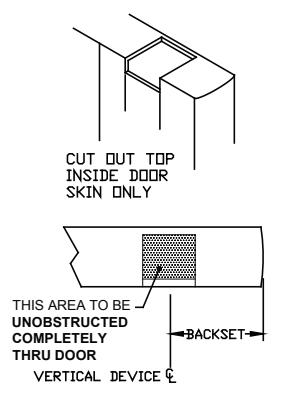

Minimal door prep saves time and money
Fast and easy installation saves time and money
Heavy duty angled end cap deflects damage away from device
Except for 03WSV, outside trims are easily changed or rekeyed without removing device from door

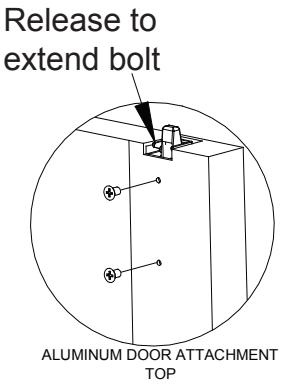

Top Latch

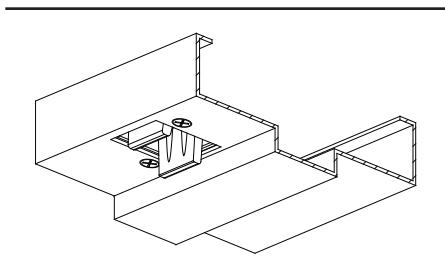

Top Strike

Features

6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
Top strike both secures the door and re-engages the latchbolts
Patented deadlocking of top (82 and 83 Series) and bottom bolt (82 Series) assemblies
Durable steel bottom drop bolt (82 Series)
Rods are easily adjustable with rods installed in door
Handed field reversible
Field sizeable
1/8 turn dogging

Mechanical Options

F 3-Hour Fire Rated without astragal up to 10 foot (steel) door
AM Anti-Microbial Coating
HD Hex Dogging (Std.)
CD Cylinder Dogging
SLR Silencer

24 Fits 24" Door Width
30 Fits 30" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width
EC1 Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
EC2 Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

For full list of available mechanical options, see 80 Series How To Order page

Electrical Options

Exit Alarm (EA)
Electric Dogging (ED)
Delayed Egress Self-Contained (EE)
Electric Latch Retraction (ER)
Request to Exit (EX)
Request to Exit for High Voltage (EXV)
Electric Delayed Egress with Latch Retraction (EE ER)

Refer to Electrified Options section for more information

Accessories

SSK4- Security Torx Screw Kit Trim Functions (see Outside Trims)

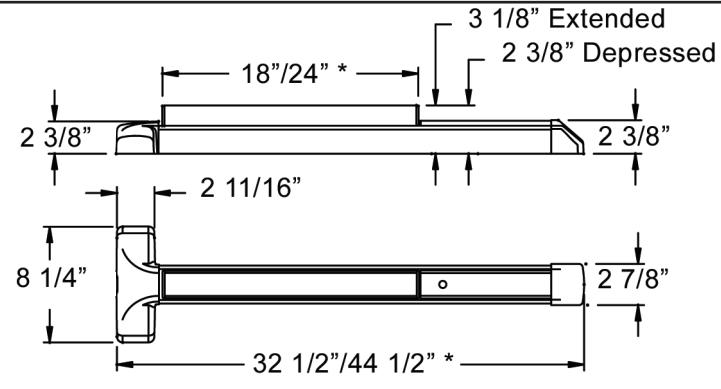

Technical Information

Door Types Aluminum/ Aluminum Channel FRP
· Door Thickness Fits standard 1-3/4" - 2-1/4" (for other door thicknesses contact factory)
Door Stile Fits minimum 4-1/2"
Fasteners Machine and Self- Drilling Screws standard
Rail is heavy ribbed aluminum extrusion
