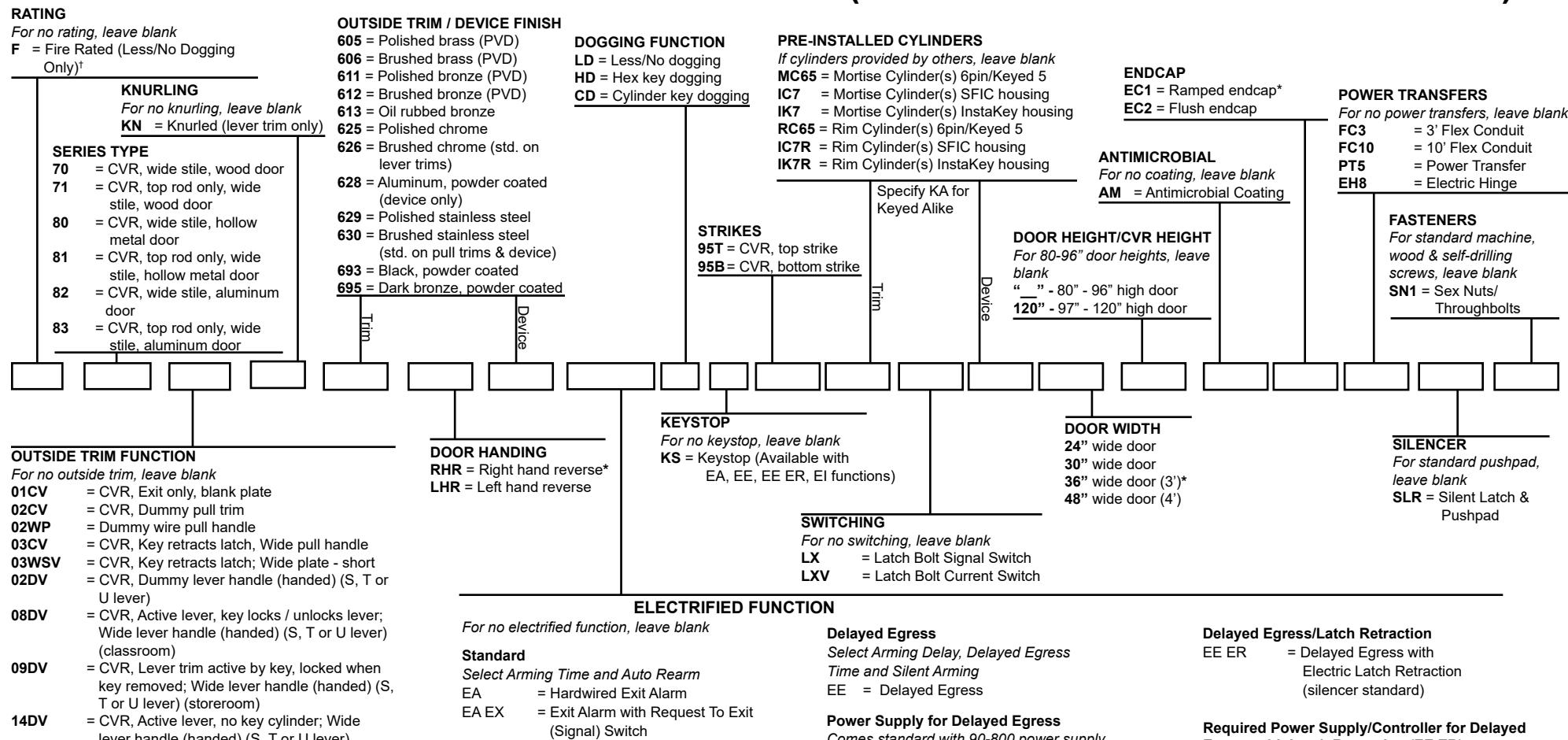

Detex Advantex 70-71-How To Order Page

70/71/80/81/82/83 SERIES (WIDE CONCEALED VERTICAL ROD) ®

EA EXV = Exit Alarm with Request To Exit (3Amp Current) Switch

EX = Request To Exit (Signal) Switch EXV = Request To Exit (3Amp Current) Switch

ED = Electric Dogging

† (70/71 Series only) For use with single doors up to 4'x8' and pairs of doors up to 8'x8' with Listed 90 MINUTE - See 70/71 Series Catalog page for more information

lever handle (handed) (S, T or U lever)

Specify handing (not field reversible). For 12VDC specify 12VDC. For Fail Safe specify

EUV = Electric Unlock Trim (24VDC/FSE Std.) -

Fire-rated trims must be fail safe (FSA)

(passage)

FSA

**Other FSB levers available: 1016, 1035, 1058, 1075, 1093, 1119, 1147. FSB levers available in 630 finish only.See catalog pages for more information.

Comes standard with 90-800 power supply Single = (1) 90-800 w/o bat backup Pair = (1) 90-800 w/o bat backup

Latch Retraction

Single = 81-800

ER EX = Electric Latch Retraction with Request To Exit Switch (silencer standard)

Power Supply / Controller for Latch Retraction Only (ER) Order/Sold Separately

Pair = 82-800 2 Independent Singles = 83-800

Required Power Supply/Controller for Delayed Egress with Latch Retraction (EE ER)

Order/Sold Separately Single EE ER = 84-800 Pair of EE ER = 85-800

One EE ER and One EE = 85-800 EE One EE ER and One ER = 85-800 ER
