70 SERIES 71 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Wide Stile Wood Doors

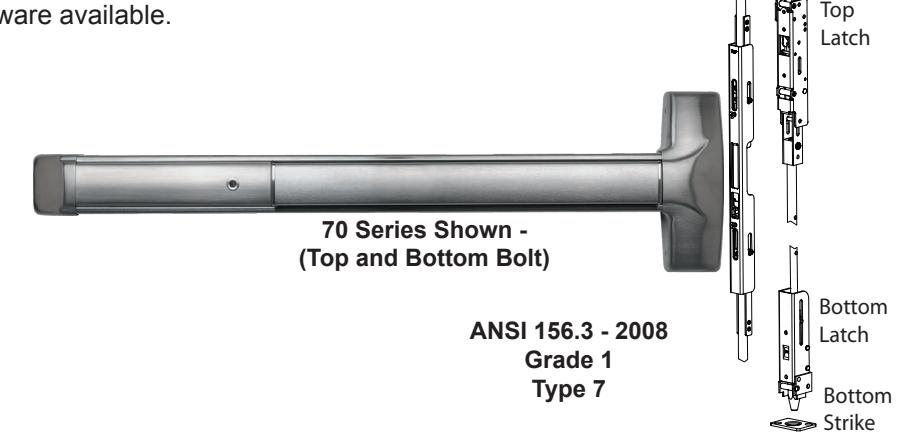

The 70 and 71 Series concealed vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of wooden double doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Note: For Top Rod Only - Specify 71 Series

Also Available:

60/61 CVR Narrow Stile Alum. Door 62/63 CVR Narrow Stile H.M. Door 80/81 CVR Wide Stile H.M. Door 82/83 CVR Wide Stile Alum. Door

Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Heavy duty angled end cap deflects damage away from device
• Except for 03WSV, outside trims are easily changed or rekeyed without removing device from door

Top Strike

Features

• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top (70 and 71 Series) and bottom (70 Series) bolt assemblies
• Durable steel bottom drop bolt (70 Series)
• Rods are easily adjustable with rods installed in door
• Handed field reversible
• Field sizeable
• 1/8 turn dogging

Mechanical Options

• F 60 Minute Fire Rated without astragal up to 8 foot door
• AM Anti-Microbial Coating
• HD Hex Dogging (Std.)
• CD Cylinder Dogging
• LD Less Dogging
• SLR Silencer

• 24 Fits 24" Door Width
• 30 Fits 30" Door Width
• 36 Fits 36" Door Width (Std.)
• 48 Fits 48" Door Width
• EC1 Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• EC2 Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

For full list of available mechanical options, see 70 Series how to order page

Electrical Options

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress Self-Contained (EE)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)
• Electric Delayed Egress with Latch Retraction (EE ER)

Refer to Electrified Options section for more information

Accessories

• SSK - Security Torx Screw Kit

Technical Information

• Door Types Wood
• Door Stile Fits minimum 5"
• Door Thickness Fits standard 1-3/4" - 2 1/4" (for other door thicknesses contact factory)
• NOTE: For secure installation, Detex recommends minimum 2" thick doors
• Fasteners Wood screws supplied standard
• Rail is heavy ribbed aluminum extrusion

Finishes

605 / US3	Polished Brass
606 / US4	Brushed Brass
611 / US9	Polished Bronze
612 / US10	Brushed Bronze
	613 / US10B Oil Rubbed Bronze

628 / US28 Satin Aluminum 629 / US32 Polished Stainless Steel

630 / US32D Brushed Stainless Steel

693 / SPBLK Black, painted 695 / SP313 Dark Bronze, painted

Top Latch Installation for 70 & 71 Series

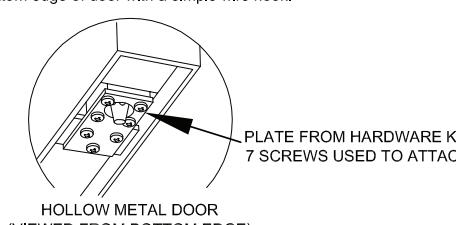

Bottom Latch Installation for 70 Series Only

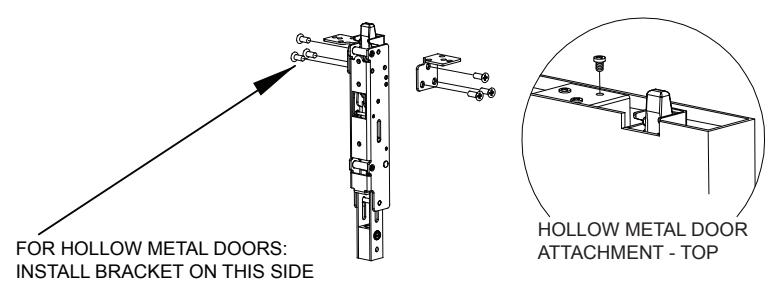

FOR FIRE RATED HOLLOW METAL DOORS: INSTALL BRACKETS ON BOTH SIDES

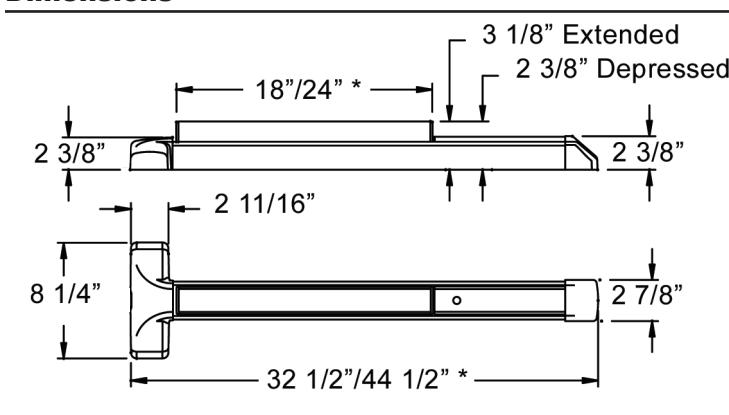

Dimensions

(OPPOSITE FOR LHR)

* 18" and 32 1/2" dimension for 36" door

* 24" and 44 1/2" dimension for 48" door

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Listings and Approvals

UL Listed Panic Hardware

Intertek Listed Fire Exit

Hardware for 60 minutes, metal wrap on door lock edge required, with Georgia Pacific blue core 4x8 double egress pair, same swinging pair, or single door

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Meets ADA requirements

For detailed fire listings, visit www.detex.com/PROVEN

Cancer & Reproductive Harm - www.detex.com/prop65
