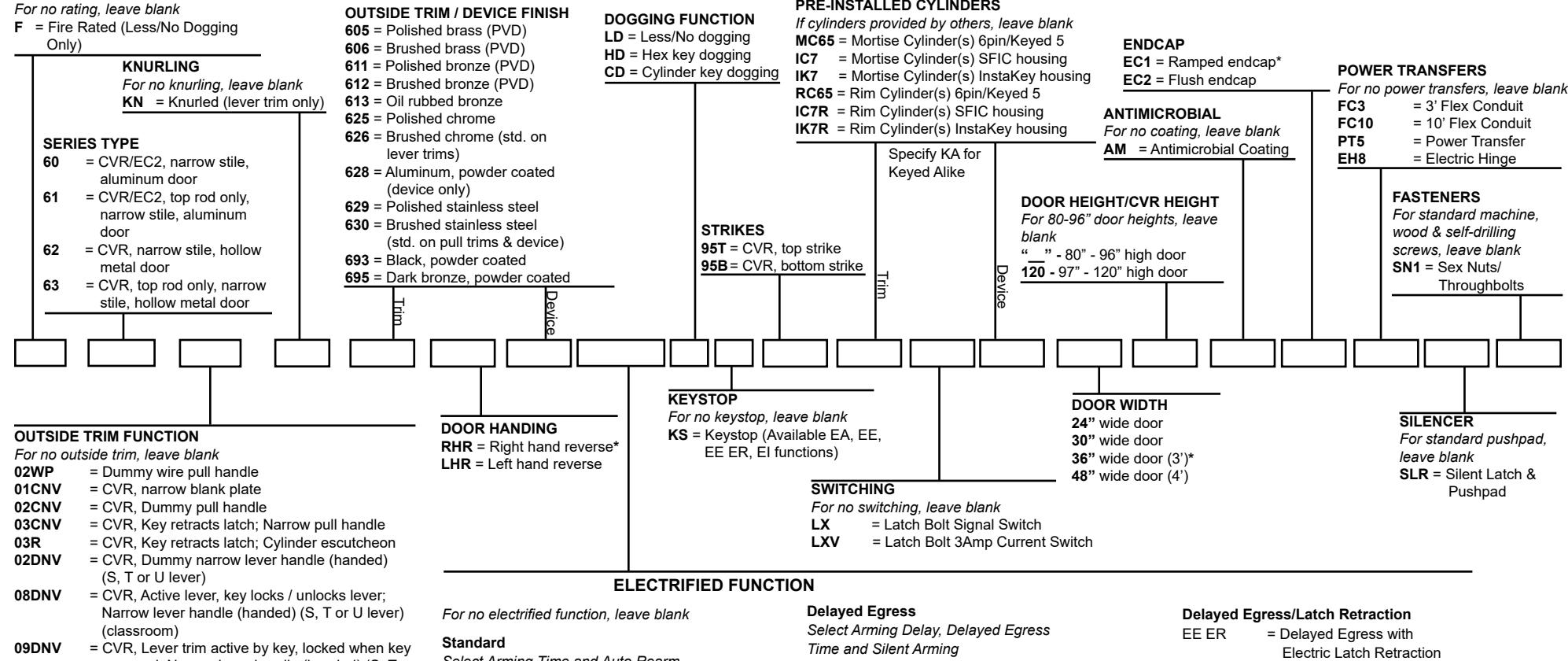

60/61/62/63 SERIES (NARROW CONCEALED VERTICAL ROD) ®

RATING

Select Arming Time and Auto Rearm

EA = Hardwired Exit Alarm

EA EX = Exit Alarm with Request To Exit

(Signal) Switch

EA EXV = Exit Alarm with Request To Exit

(3Amp Current) Switch

ED = Electric Dogging

EX = Request To Exit (Signal) Switch EXV = Request To Exit (3Amp Current) Switch

EE = Delayed Egress

Power Supply for Delayed Egress

Comes standard with 90-800 power supply

Single = (1) 90-800 w/o bat backup

Pair = (1) 90-800 w/o bat backup

Latch Retraction

ER EX = Electric Latch Retraction with Request

To Exit Switch (silencer standard)

Power Supply / Controller for Latch Retraction

Only (ER) Order/Sold Separately

Single = 81-800 Pair = 82-800

2 Independent Singles = 83-800

(silencer standard)

Required Power Supply/Controller for Delayed

Egress with Latch Retraction (EE ER)

Order/Sold Separately Single EE ER = 84-800

Pair of EE ER = 85-800

One EE ER and One EE = 85-800 EE One EE ER and One ER = 85-800 ER

Fire-rated trims must be fail safe (FSA)

U lever) (storeroom)

**Other FSB levers available: 1016, 1035, 1058, 1075, 1093, 1119, 1147. FSB levers available in 630 finish only.See catalog pages for more information.

removed; Narrow lever handle (handed) (S, T or

14DNV = CVR, Active lever, no key cylinder; Narrow lever handle (handed) (S, T or U lever) (passage)

Detex products can expose you to chemicals including Chromium (hexavalent compounds) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.detex.com/prop65
