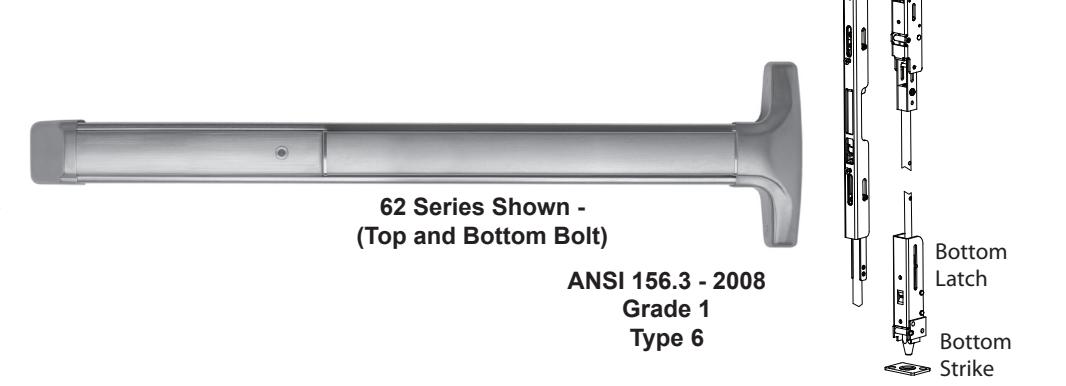

62 SERIES 63 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Narrow Stile Hollow Metal Door

The 62 and 63 Series concealed vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile hollow metal doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Note: For Top Rod Only - Specify 63 Series

Also Available:

60/61 CVR Narrow Stile Alum. Door 70/71 CVR Wide Stile Wood Door 80/81 CVR Wide Stile H.M. Door 82/83 CVR Wide Stile Alum. Door

Benefits

Tough and durable design for years of trouble-free service in high-use, high-abuse environments
Minimal door prep saves time and money
Heavy duty angled end cap deflects damage away from device
Fast and easy installation saves time and money
Except for 03R, outside trims are easily changed or rekeyed without removing device from door

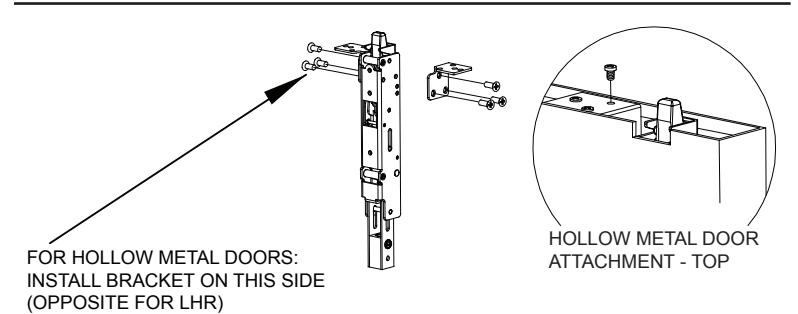

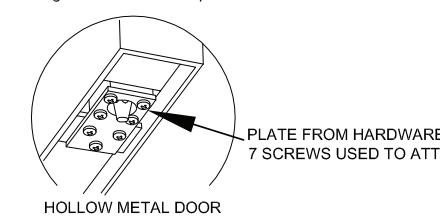

Top Latch

Top Strike

Features

6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
Top strike both secures the door and re-engages the latchbolts
Patented deadlocking of top (62 and 63 Series) and bottom bolt (62 Series) assemblies
Durable steel bottom drop bolt (62 Series)
Rods are easily adjustable with rods installed in door
Handed field reversible
Field sizeable
1/8 turn dogging

Mechanical Options

F 3-Hour Fire Rated without astragal up to 10 foot (steel) door
AM Anti-Microbial Coating
HD Hex Dogging (Std.)
CD Cylinder Dogging
SLR Silencer

24 Fits 24" Door Width
30 Fits 30" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width
EC1 Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
EC2 Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

For full list of available mechanical options, see 60 Series How To Order page

Electrical Options

Exit Alarm (EA)
Electric Dogging (ED)
Electric Latch Retraction (ER)
Delayed Egress Self-Contained (EE
Request to Exit (EX)
Request to Exit for High Voltage (EXV)
Electric Delayed Egress with Latch Retraction (EE ER)

Refer to Electrified Options section for more information

Accessories

• SSK - Security Torx Screw Kit

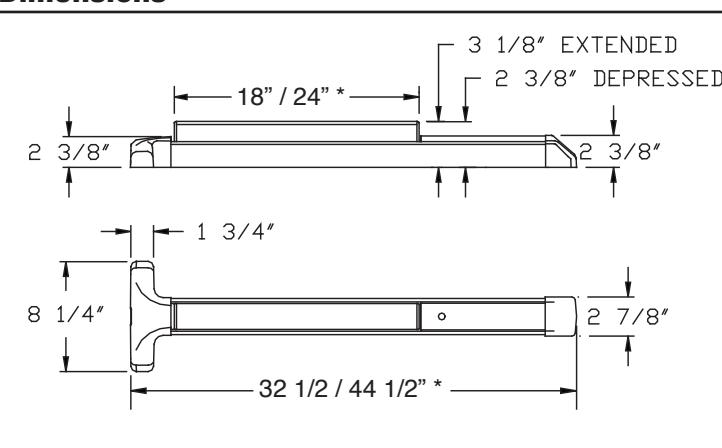

Technical Information

Door Types Hollow Metal
Door Stile Fits minimum 4-1/2"
Door Thickness Fits standard 1-3/4" - 2 1/4" (for other door thicknesses contact factory)
Fasteners Machine and sheet metal screws supplied standard
Rail is heavy ribbed aluminum extrusion

693 / SPBLK Black, painted 695 / SP313 Dark Bronze, painted
