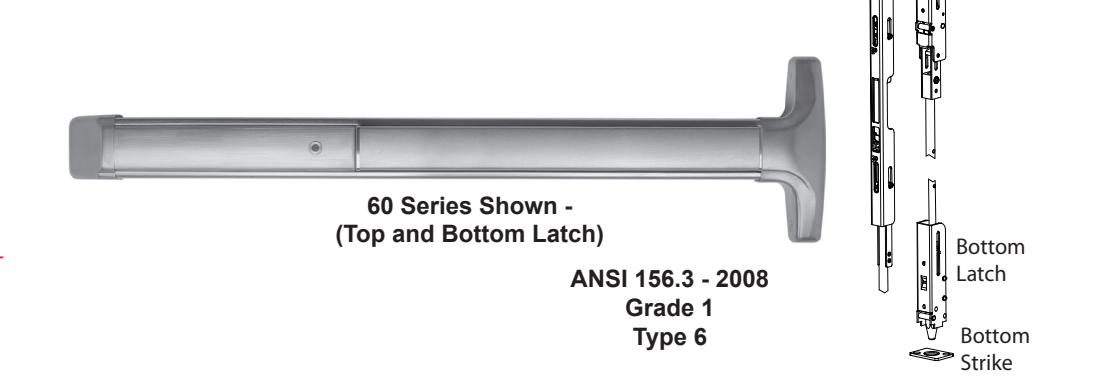

60 SERIES 61 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Narrow Stile Aluminum Door

The 60 and 61 Series concealed vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile aluminum doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Note: For Top Rod Only - Specify 61 Series

Also Available:

62/63 CVR Narrow Stile H.M. Door 70/71 CVR Wide Stile Wood Door 80/81 CVR Wide Stile H.M. Door 82/83 CVR Wide Stile Alum. Door

Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money
• Except for 03R, outside trims are easily changed or rekeyed without removing device from door

Top Latch

Top Strike

Features

• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top (60 and 61 Series) and bottom bolt (60 Series) assemblies
• Durable steel bottom drop bolt (60 Series)
• Rods are easily adjustable with rods installed in door
• Handed field reversible
• Field sizeable
• 1/8 turn dogging

Mechanical Options

• F 3-Hour Fire Rated without astragal up to 10 foot (steel) door
• AM Anti-Microbial Coating
• HD Hex Dogging (Std.)
• CD Cylinder Dogging
• SLR Silencer

• 24 Fits 24" Door Width
• 30 Fits 30" Door Width
• 36 Fits 36" Door Width (Std.)
• 48 Fits 48" Door Width
• EC1 Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• EC2 Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

For full list of available mechanical options, see 60 Series How To Order page

Electrical Options

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress Self-Contained (EE)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)
• Electric Delayed Egress with Latch Retraction (EE ER)

Refer to Electrified Options section for more information

Accessories

• SSK - Security Torx Screw Kit

Technical Information

• Door Thickness Fits standard 1-3/4" - 2 1/4" (for other door thicknesses contact factory)
• Door Stile Fits minimum 2"
• For 2" 3-1/2" door stiles, specify EC2
• Door Types Aluminum/ Aluminum Channel FRP
• Fasteners Machine and sheet metal screws supplied standard
• Rail is heavy ribbed aluminum extrusion

Finishes

605 / US3 Polished Brass 606 / US4 Brushed Brass 611 / US9 Polished Bronze 612 / US10 Brushed Bronze 613 / US10B Oil Rubbed Bronze

628 / US28 Satin Aluminum 629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless Steel

693 / SPBLK Black, painted 695 / SP313 Dark Bronze, painted

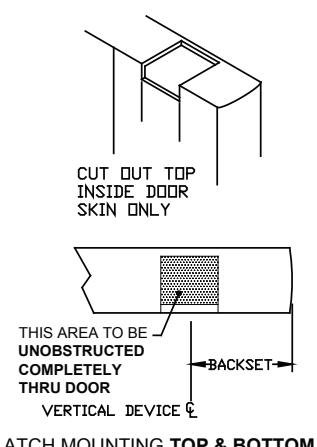

Top & Bottom Latch Door Prep for 60 & 61 Series

LATCH MOUNTING TOP & BOTTOM

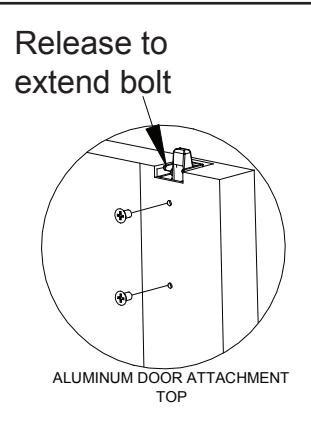

Top Latch Installation for 60 & 61 Series

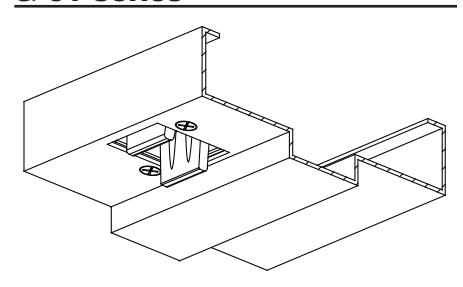

Top Strike Installation for 60 & 61 Series

Bottom Latch Installation for 61 Series only

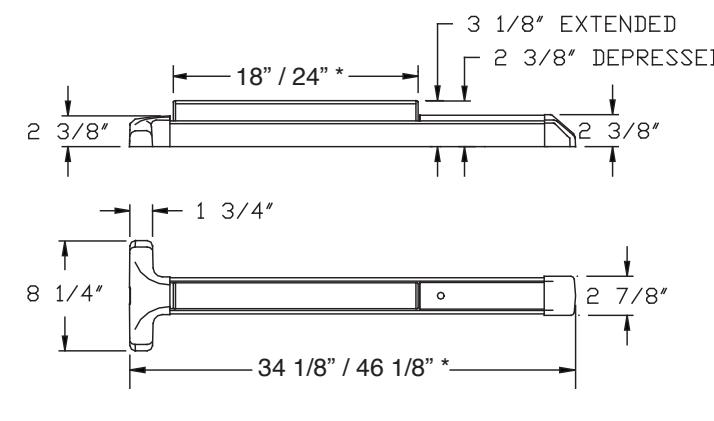

Dimensions

• * 18" and 34 1/8" dimension for 36" door
• * 24" and 46 1/8" dimension for 48" door

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Listings and Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware 8'x10' pairs of doors

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets ADA requirements

Meets NFPA 80 & 101 for Life Safety

For detailed fire listings, visit www.detex.com/PROVEN
