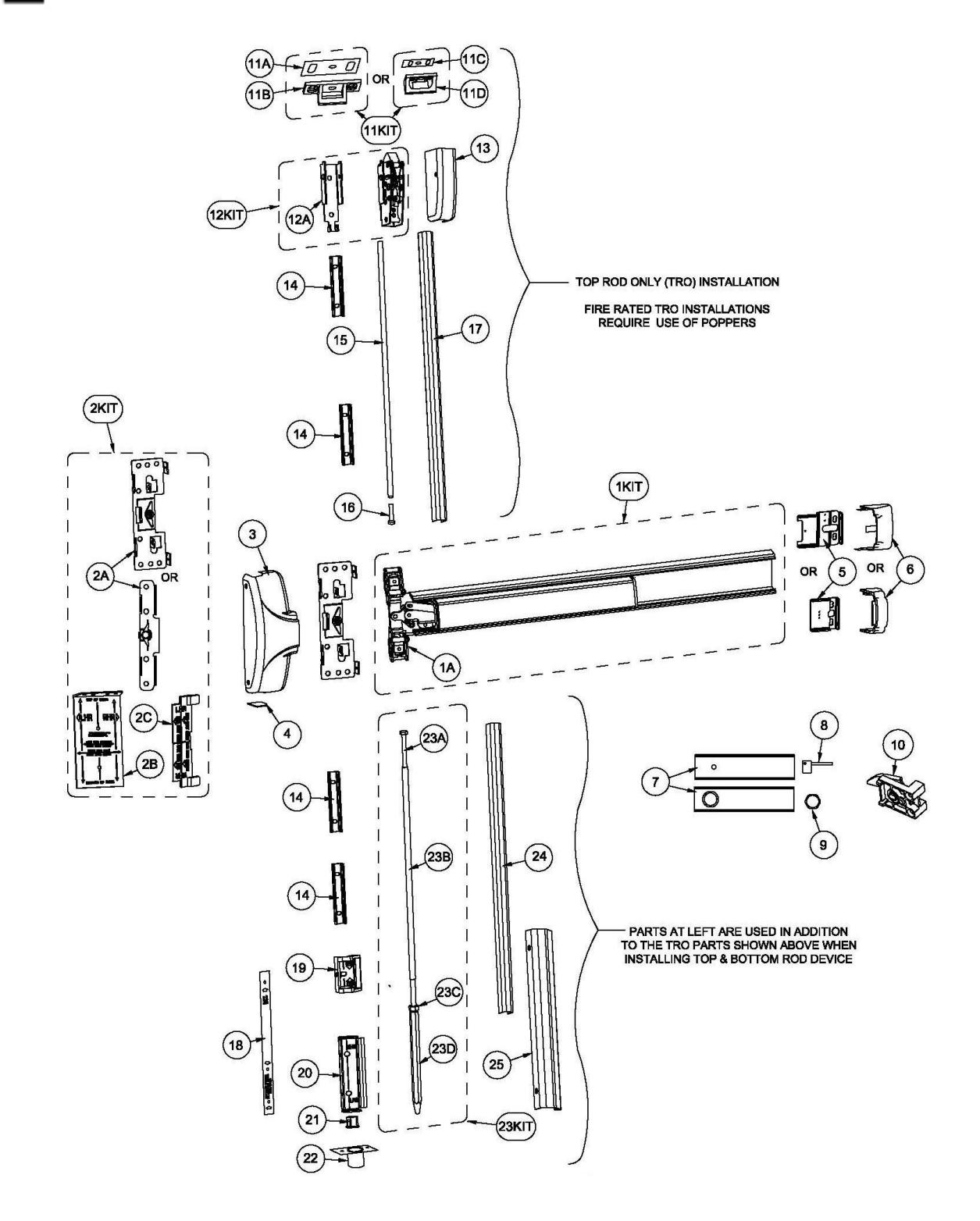

20 / 50 Series Parts List
For Mechanical Devices Only
| Item |
Order
Part# |
Description | Price |
|---|---|---|---|
| 1A | 101463-2 | Centercase Assembly, RHR, Wide Stile, 20 Series | $313.42 |
| 101463-3 | Centercase Assembly, LHR, Narrow Stile, 50 Series | $313.42 | |
| 101463-4 | Cantercase Assembly, RHR, Wide Stile, 20 Series | $313.42 | |
| 2KIT | 103806-13 | Mounting Plate/Strike Locator Kit, Narrow Stile (includes 2A, 2B, 2C) | $57.56 |
| 103806-10 | Mounting Plate/Strike Locator Kit, Wide Stile (includes 2A, 2B, 2C) | $83.16 | |
| 2A | 100696-1 | Mounting Plate, BP2, Narrow Stile | $23.03 |
| 100697-1 | Mounting Plate, BP1, Wide Stile | $44.78 | |
| 2B | 101511-1 | Strike Locator | $23.76 |
| 2C | 100720 | Centercase Locator | $15.35 |
| 3 | 101506-9 | Centercase Cover, Stainless Steel, Wide, 20 series, 630 | $153.51 |
| 101505-9 | Centercase Cover, Stainless Steel, Narrow, 50 series, 630 | $171.42 | |
| 104640-5 | Centercase Cover, Aluminum, Wide, 20 series, 628 | $126.65 | |
| 104602-5 | Centercase Cover, Aluminum, Wide, 20 series, 628 | $197.00 | |
| 4 | 101709 | Centercase Cover Cap (for TRO device only) | $11.51 |
| 5 | 100147 | Endcap bracket for EC1 (ramped) endcap w/o battery holder | $14.07 |
| 101093 | Endcap bracket for EC1 (ramped) endcap w/ battery holder | $24.31 | |
| 104303 | Endcap bracket for EC2 (flush) endcap w/o battery holder | $38.38 | |
| 104636 | Endcap bracket for EC2 (flush) endcap w/ battery holder | $38.38 | |
| 6 | 101642-9 | Endcap, EC1 (ramped) Stainless Steel, 630 | $95.95 |
| 104304-9 | Endcap, EC2 (ramped) Stainless Steel, 630 | $88.27 | |
| 104612-1 | Endcap, EC2 (flush) Aluminum, 628 | $139.44 | |
| 100860-136 | Fillerplate, Subassembly, S&R, Hex Dogging, HD, 20 series, 36", 630 | $722.78 | |
| 100860-118 | Fillerplate, Subassembly, S&R, Cylinder Dogging, CD, 20 series, 36", 630 | $722.78 | |
| 7 | 100860-100 | Fillerplate, Subassembly, S&R, Hex Dogging, HD, 20 series, 36", 628 | $678.88 |
| 100860-137 | Fillerplate, Subassembly, S&R, Hex Dogging, HD, 50 series, 36", 628 | $722.78 | |
| 8 | 100450 | Hex Key (for Hex Dogging) | $7.00 |
| 9 | 100783 | Cylinder Nut (for Cylinder Dogging) | $6.00 |
| 10 | 102216-2 | Hex Dogging Assembly | $23.03 |
| 102216 | Cylinder Dogging Assembly | $17.91 | |
| 100855-3 | 97 Strike Kit (includes 11A & 11B) | $37.00 | |
| 11KIT | 100855-4 | 96 Strike Kit (includes 11C & 11D) | $37.00 |
| 11A | 100088 | Strike Shim | $1.29 |
| 11B | 100234-1 | Strike, Non-roller | $20.47 |
| 11C | 101067 | Strike Shim, Narrow | $6.39 |
| 11D | 100330 | Strike, Non-roller, Narrow | $28.14 |
| 12KIT | 101464 | Top Latch Assembly (includes 12A) | $254.58 |
| 12A | 101393 | Mounting Bracket, Top Latch Assembly | $24.31 |
| 13 | 101400-9 | Top Latch Cover 630 | $113.85 |
| 14 | 101425 | Rod Cover Bracket | $20.47 |
| 15 | 104051-1 | Top Rod, 7' Door, Steel (36.375" long) | $41.04 |
| 104051-1 | Top Rod, 8' Door, Steel (36.375" long) | $85.32 | |
| 16 | 104031-2 | 1/4-20 Hex Bolt, 2" long | $0.58 |
| 17 | 101374-2 | Top Rod Cover, 7' & 10' applications 630 (x2 FOR 10') | $75.48 |
| 101467-9 | $101.52 | ||
| 18 | 101461-9 | Top Rod Cover, 8' applications, 630 | $7.68 |
| 19 | 101716 | Mylar Bottom Latch Bracket Locator Bracket Top (for bottom rad bolt) | $10.24 |
| Bracket, Top (for bottom rod bolt) | |||
| 20 | 101427 | Bolt Retaiing Bracket | $25.59 |
| 21 | 101429 | Hex Bushing | $6.39 |
| 22 | 101562-9 | Dust Strike | $56.29 |
| 23KIT | 101567 | Bottom Rod Assembly (includes 23A-23D) | $104.90 |
| 23A | 101574-3 | 1/4-20 Hex Bolt, 3" long | $0.65 |
| 23B | 101477 | Bottom Rod | $40.93 |
