50 SERIES

Narrow Stile Surface Vertical Rod Device

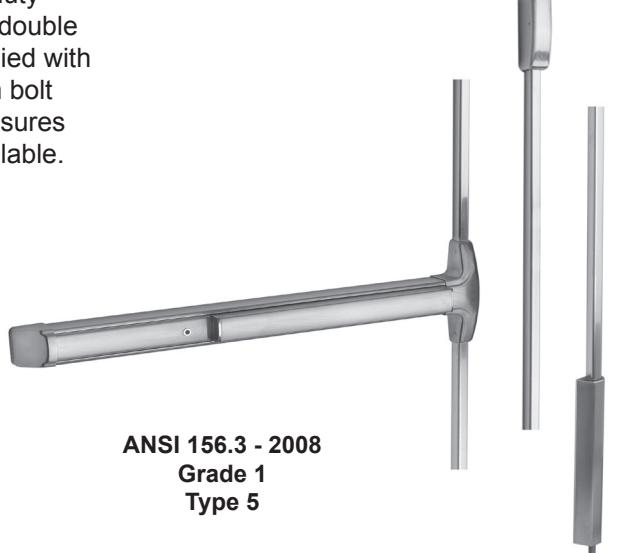

The 50 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile double doors without a mullion. All 50 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits

Tough and durable design for years of trouble-free service in high-use, high-abuse environments
Outside trims are easily changed or rekeyed without removing device from door
Minimal door prep saves time and money
Heavy duty angled end cap deflects damage away from device
Fast and easy installation saves time and money
Security enhanced by stainless steel rod covers, standard
Patented mounting plate and strike locator replaces paper templates

Features

Stainless steel deadlocking top latch
Hardened steel bottom drop bolt with dust proof strike
ADA ramped bottom bolt cover
1/8 turn hex or cylinder dogging
Handed field reversible
Field sizeable

• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process

Mechanical Options

F 3-Hour Fire Rated
AM Anti-Microbial Coating
HD Hex Dogging (Std.)
CD Cylinder Dogging
LD Less Dogging

EC1 Heavy duty angled end cap (Std.)
EC2 Flush end cap
24 Fits 24" Door Width
30 Fits 30" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width

84 84" Door Height (Std.)
96 85" to 96" Door Height
120 97" to 120" Door Height

For full list of available mechanical options, see 50 Series How To Order page

Electrical Options

Exit Alarm (EA)
Electric Dogging (ED)
Electric Latch Retraction (ER)
Delayed Egress Self Contained (EE)
Delayed Egress with Latch Retraction (EE ER)
Electric Unlock (EU2W)
Request to Exit (EX)
Request to Exit for High Voltage (EXV)

Refer to Electrified Options section for more information

Accessories

GB5 Glass Bead Kit 7' Door Height (84")
GB9 Glass Bead Kit 8' Door Height (85" - 96")
GB13 Glass Bead Kit 10' Door Height (97" - 120")
SN1 Sex Nut Kit (2 per package)
SSK- Security Torx Screw Kit
Trim Functions (see Outside Trims)

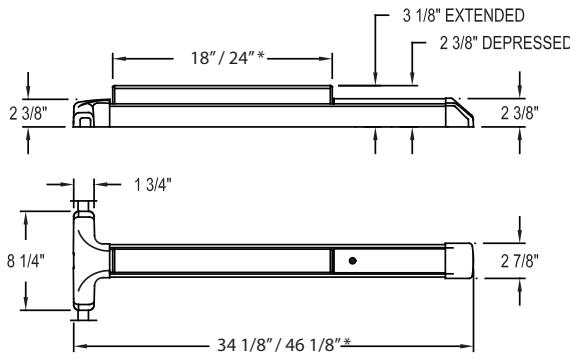

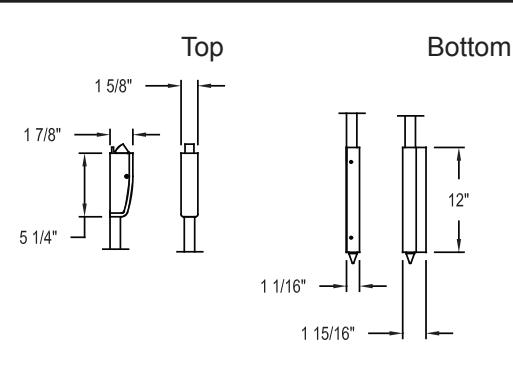

Technical Information

Minimum Stile 2" with standard 96 strike
Door Types Wood, Hollow Metal, Fiberglass or Aluminum
Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
Fasteners Machine and Self- Drilling Screws standard
