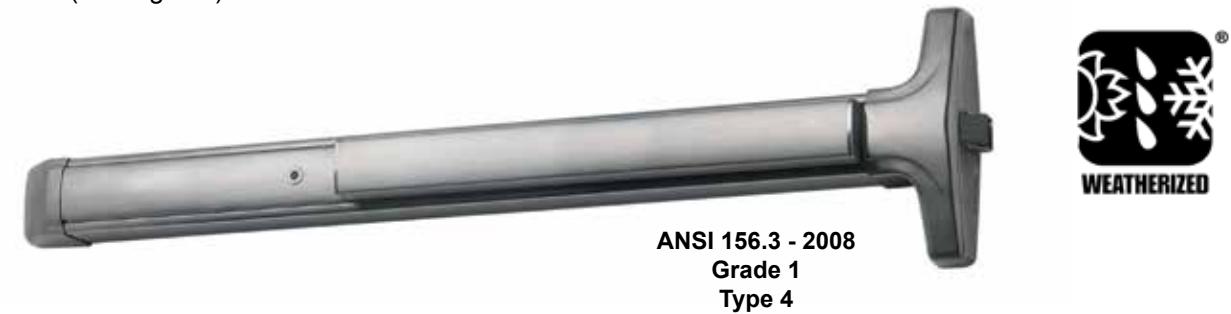

40xW SERIES

Weatherized Narrow Stile Rim Exit Device

The 40xW Series weatherized rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions that are or may be exposed directly to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL 1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); and MIL-STD 810F, Method 509.4 (salt fog test).

Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse inclement weather environments
• Fast and easy installation saves time and money
• Patented mounting plate and strike locator replaces paper templates
• Heavy duty angled end cap deflects damage away from device
• Outside trims are easily changed or re-keyed without removing device from door
• Minimal door prep saves time and money

Features

• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Non-handed

• Assembled using components resistant to temperature, dust, driving rain and salt fog
• Fasteners made of stainless steel 316 material

Mechanical Options

• H Hurricane Rated
• AM Anti-Microbial Coating
• CD Cylinder Dogging
• HD Hex Dogging (Std.)
• CD Cylinder Dogging
• LD Less Dogging

• 98 Semi Mortise Strike (Std.)
• 99 Surface Strike
• EC1 Heavy duty angled end cap (Std.)
• EC2 Flush end cap
• 24 Fits 24" Door Width

• 30 Fits 30" Door Width
• 36 Fits 36" Door Width (Std.)
• 48 Fits 48" Door Width

For full list of available mechanical options, see 40 Series How To Order page

Electrical Options

• Electric Unlock (EU2W) Request to Exit Weatherized (EX W)
• Request to Exit Weatherized for High Voltage (EXV W)

Refer to Electrified Options section for more information

Accessories

• GB2 Glass Bead Kit
• SN1 Sex Nut Kit (2 per package)
• SSK Security Torx Screw Kit
• Trim Functions (see Outside Trims)
• GTPLKIT Adjustable Gate Plate

Technical Information

• Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
• Minimum Stile 2" with standard 98 strike; 2-1/2" with optional 99 strike
• Door Types Wood, Hollow Metal, Fiberglass or Aluminum

• Fasteners - Machine and Self-Drilling Screws standard stainless steel 316 material

Finishes

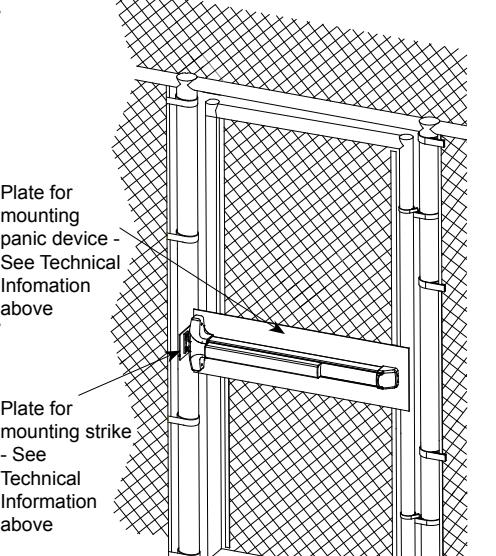

Single Gate

605 / US3	Polished Brass
606 / US4	Brushed Brass
611 / US9	Polished Bronze
612 / US10	Brushed Bronze
	613 / US10B Oil Rubbed Bronze
628 / US28	Aluminum Satin
629 / US32	Polished Stainless Steel
	630 / US32D Brushed Stainless Steel
	693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

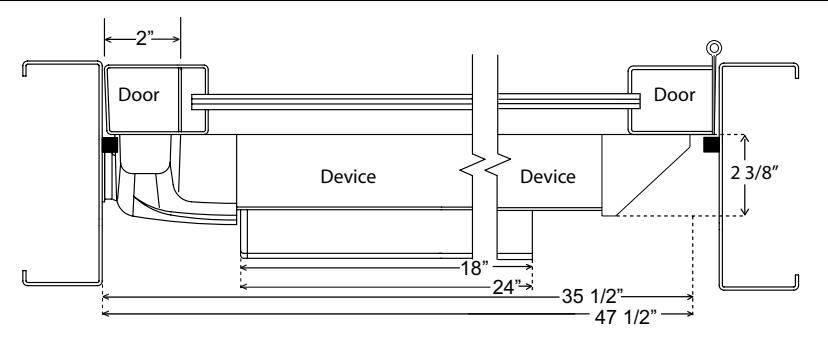

Single Door

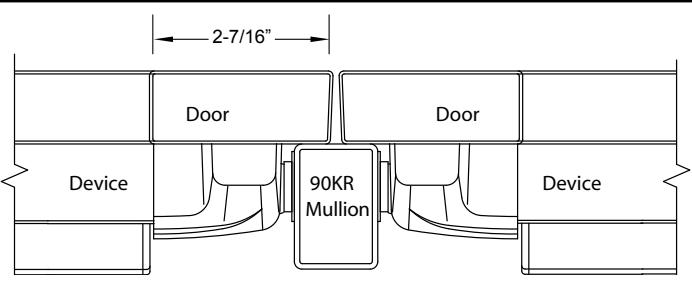

Double Door with 90KR Mullion

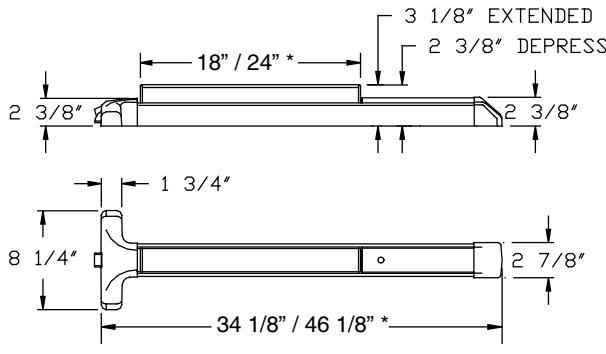

Dimensions

• * 18" and 34 1/8" dimension for 36" door
• * 24" and 46 1/8" dimension for 48" door

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

For Detex gate plate, specify GTPLKIT

Life Safety and Security Door Hardware Where Trust is Built

Detex Corporation 302 Detex Drive New Braunfels, Texas 78130-3045 USA PH. (830) 629-2900 (800) 729-3839 FAX (800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com International Sales: export@detex.com

Listings and Approvals

UL Listed Panic Hardware Meets ADA requirements

UL1034-34 Temperature Section 34 [Temperature Range -31°F (-35° C) to 150° F (+66° C)]

UL1034-54 Dust Section 54

MIL-STD 810F (G), Method 509.4 (Salt Fog Test)

MIL-STD 810F (G), Method 506.4 (Driving Rain), Procedure 1

ANSI/BHMA certified A156.3

State of Florida Approval

Meets NFPA 80 & 101 for Life Safety

Texas Department of Insurance

For detailed windstorm listings, visit www.detex.com/PROVEN

Cancer & Reproductive Harm - www.detex.com/prop65
