NARROW STILE OUTSIDE PULL & PLATE TRIM DESIGNS
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Narrow stile trims can be used on 40 Series Rim, 50 / 51 Series Surface Vertical Rods and 60 / 61 / 62 / 63 Concealed Vertical Rods. Detex uses the BHMA functions/descriptions for all trims.

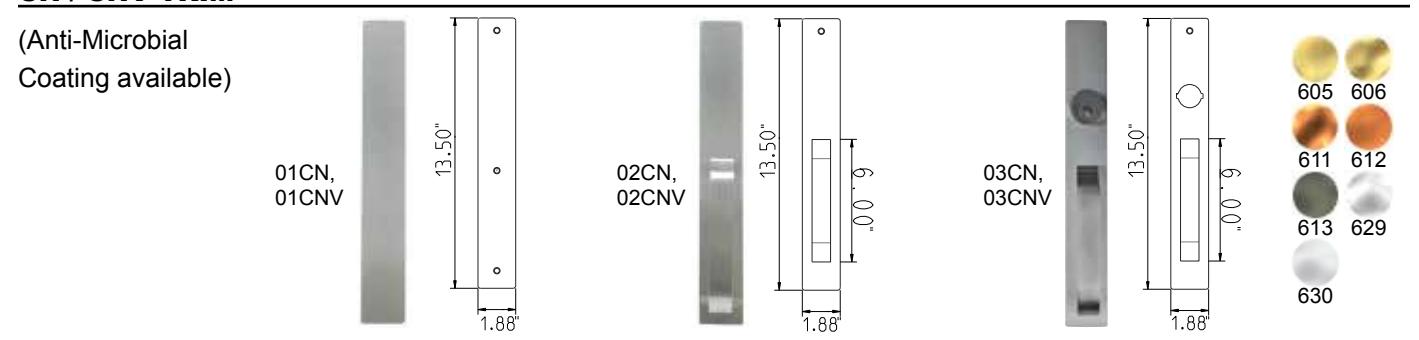

CN / CNV TRIM

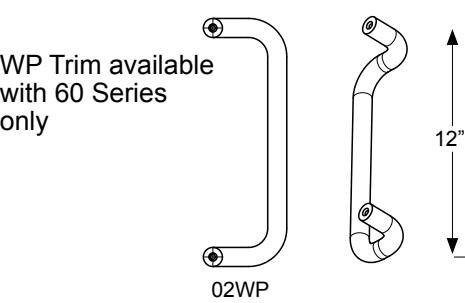

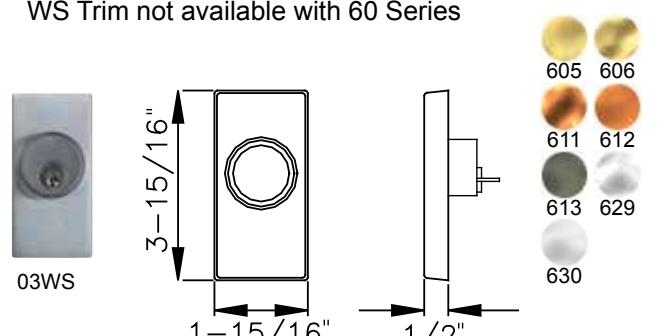

WP Trim
1" dia.
R Trim
R Trim available with 60 Series only
BHMA Function/Description
- 01 Exit only, no trim or blank escutcheon
- 02 Entrance by trim when actuating bar is locked down (dummy)
- 03 Entrance by trim when latch bolt is released by key. Key removable only when locked.
- 08 Entrance by knob or lever. Key locks or unlocks knob or lever.
- 09 Entrance by knob or lever only when released by key. Key removable only when locked.
- 10 Entrance by lever. Inside or outside key locks or unlocks lever.
- 14 Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder.
- EU2W Electric Lock / Unlock, wide escutcheon - Fail Secure or Fail Safe
Technical Information
- CN Trims are Stainless Steel
- DN and WS Trims are Forged Brass
- KN Knurling available on all levers
- Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
- Narrow stile trim configured for use with BP2 or BP8 (when ordered with 03 function) - Standard for use on 40, 50/51 Series, BP10 or BP12 (when ordered with 03 function) - Standard for use on 60/61, 62/63 Series Call factory for retrofit applications
- Advantex narrow stile trim also available for use with all Value Series Devices
- When ordered with device, trims will match mounting plate specified
Finishes
| 605 / US3 | Polished Brass |
|---|---|
| 606 / US4 | Brushed Brass |
| 611 / US9 | Polished Bronze |
| 612 / US10 | Brushed Bronze |
| 613 / US10B | Oil Rubbed Bronze |
| 629 / US32 | Polished Stainless Steel |
| 630 / US32D | Brushed Stainless Steel |
