WIDE STILE

OUTSIDE PULL & PLATE TRIM DESIGNS

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Wide stile trims can be used on 10 Series Rim and 20 and 21 Series Surface Vertical Rods. Add M to most trims for use with 30 Series Mortise devices. Add V to most trims for use with 70, 71, 80, 81, 82 and 83 Series Concealed Vertical Rod devices. Detex uses the BHMA functions/descriptions for all trims.

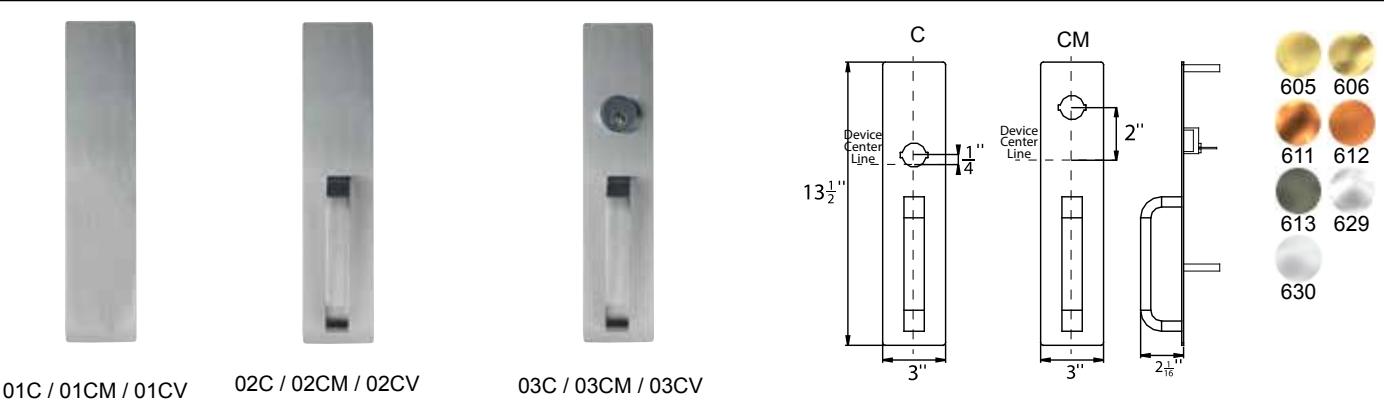

C/CM/CV TRIM (Anti-Microbial Coating available)

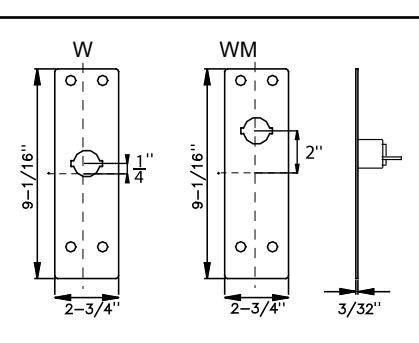

W/WM Trim

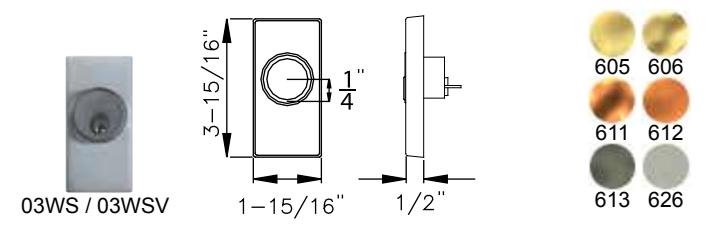

WS/WSV Trim

WS Trim not available with 30 Series

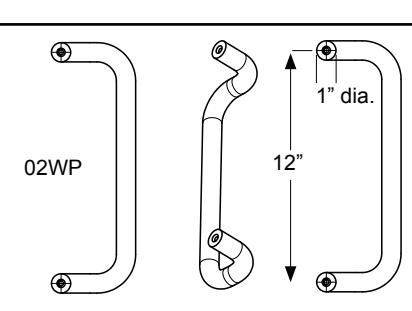

WP Trim

WP Trim available with 70/80 Series only

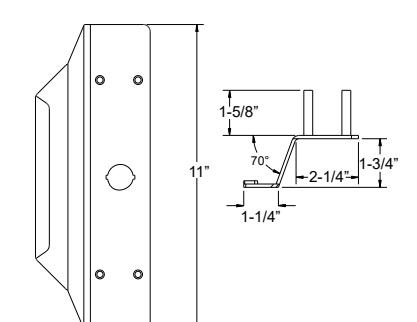

Z Trim

Z Trim (Vandal Pull) available with 10/20/21 Series only *Available in 630

(Brushed Stainless Steel) Only

02Z and 03Z Trims are shipped RHR unless specified LHR

BHMA Function/Description

• 01 Exit only, no trim or blank escutcheon
• 02 Entrance by trim when actuating bar is locked down (dummy trim)
• 03 Entrance by trim when latch bolt is released by key. Key removable only when locked.

Technical Information

• C and W Trims are Stainless Steel
• WS Trims are Forged Brass
• When ordered with device, trim will match mounting plate specified
• Wide stile trim configured for use with BP1 or BP7 (when ordered with 03 function) - standard on 10, 20/21 Series, BP11 or BP13 (when ordered with 03 function) standard on 70, 80/81/82/83 Series Call factory for retrofit applications
• Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)

Finishes

605 / US3	Polished Brass
606 / US4	Brushed Brass
611 / US9	Polished Bronze
612 / US10	Brushed Bronze
613 / US10B	Oil Rubbed Bronze
626 / US26D	Brushed Chrome
629 / US32	Polished Stainless Steel
630 / US32D	Brushed Stainless Steel

Detex Corporation 302 Detex Drive New Braunfels, Texas 78130-3045 USA PH. (830) 629-2900 (800) 729-3839 FAX (800) 653-3839 http://www.detex.com USA Sales: marketing@detex.com International Sales:
