Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com

INSTALLATION INSTRUCTIONS FOR ADVANTEX MORTISE LOCK 30 & F30 SERIES DEVICE & "W" (Weatherized) MODELS

Drawing #: 103200 (SS) 104695 (AL)

Table of Contents Page
Device parts breakdown view 2
Device parts breakdown list with part numbers 3
Hardware List with part numbers & tools required 4
Door prep & OKC installation (if required) 5
Install Mortise lock, backplate, strike and device 6

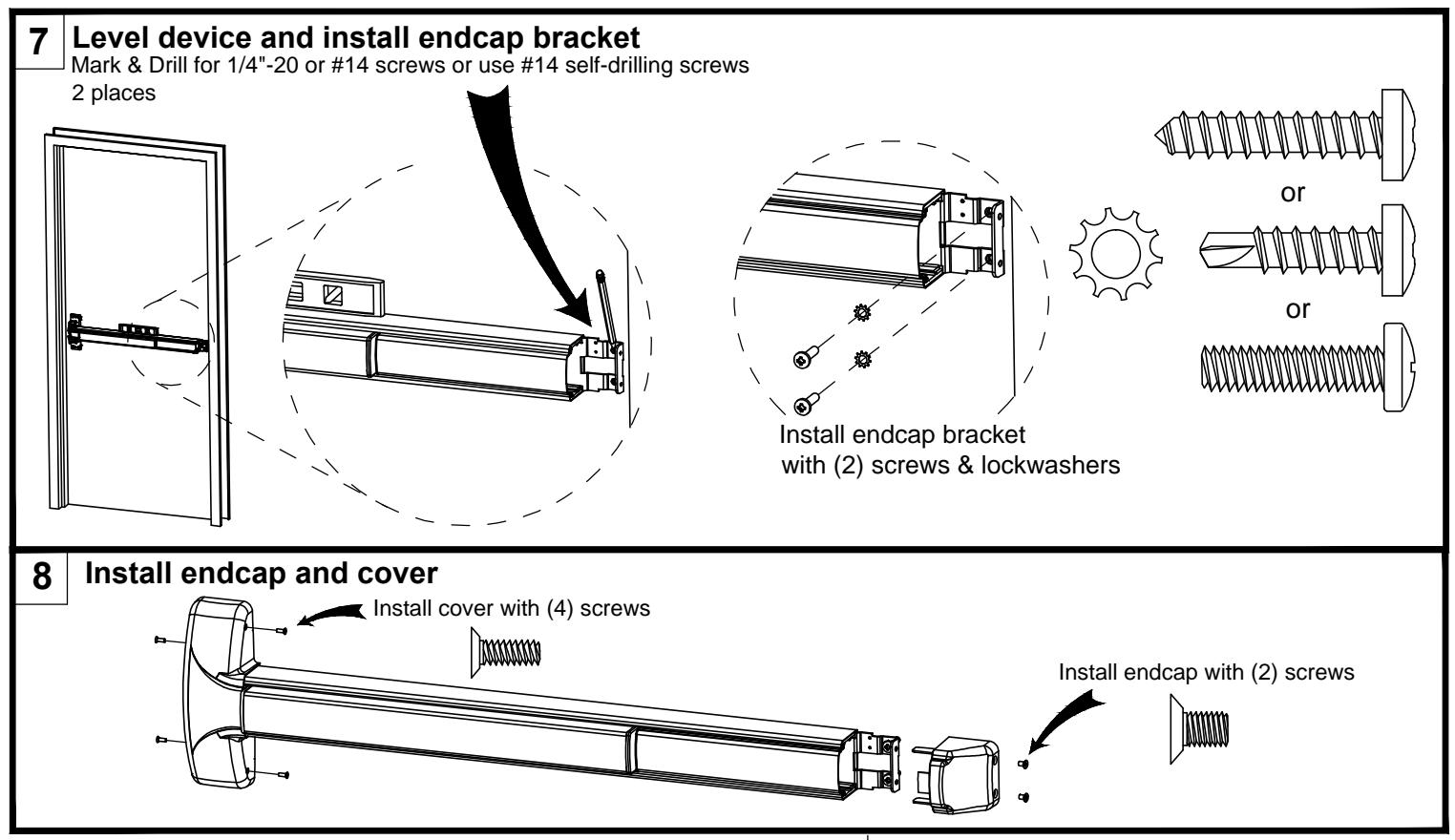

Check for device clearance, level device 7

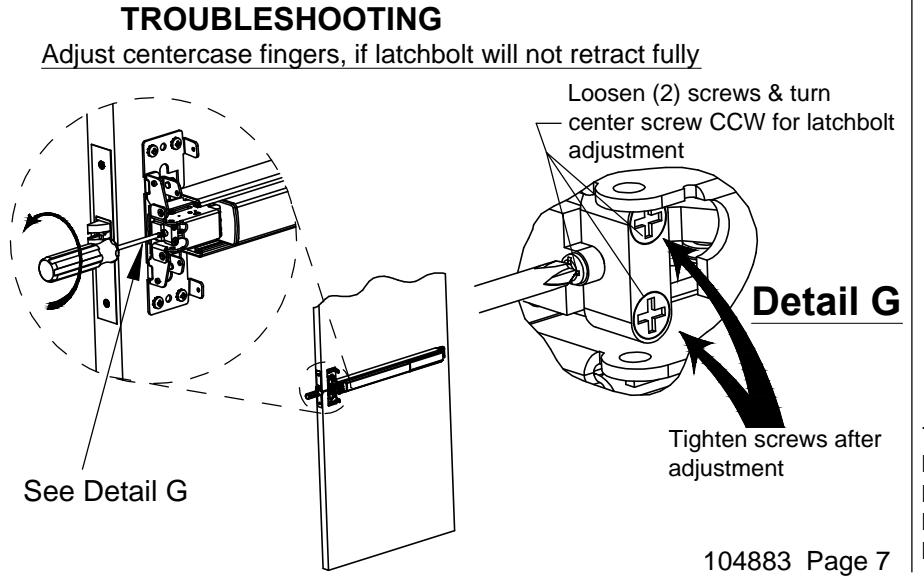

Troubleshooting & optional accessories 7

Should you have a Qustion/Problem with your Detex device please call Detex Technical Support from the job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.

For WARRANTY information, scan code below or go to www.detex.com/warranty

For device installation videos, scan code below or go to www.detex.com/vidoes

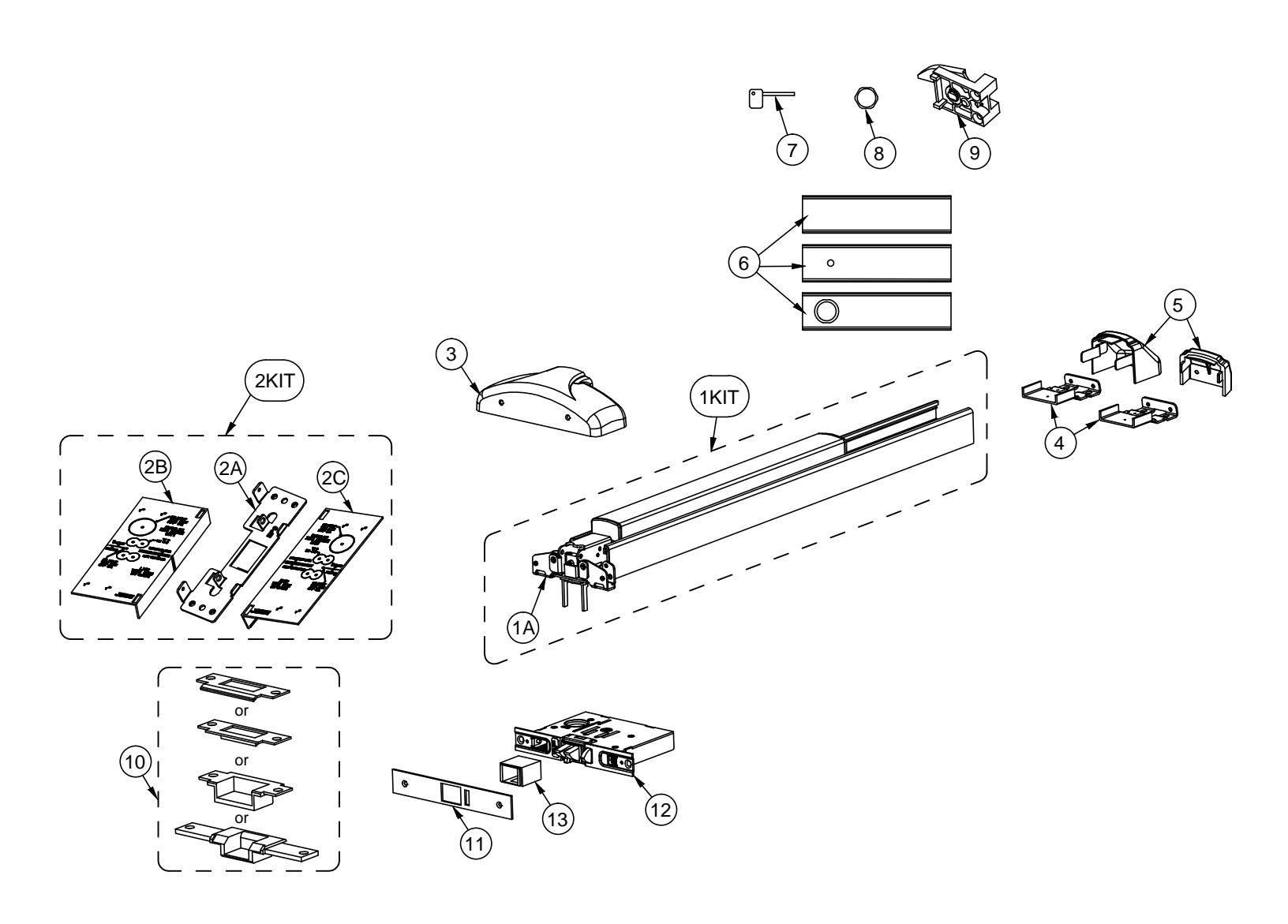

PARTS BREAKDOWN
Item	Order Part #	Description
1KIT	105500-X	Centercase/Pushpad SubAssembly (includes 1A)
1A	100698-2	Centercase Assembly, Wide Stile
2KIT	103806-9	Mounting Plate/Strike Locator Kit, Mortise (includes 2A, 2B & 2C)
2A	103215	Mounting Plate, BP9
2B	103284	Template, RHR, Mortise
2C	103285	Template, LHR, Mortise
3 -	102353-1	Centercase Cover, Stainless Steel, Wide, 10 series, 630 Centercase Cover, Aluminum, Wide, 10 series, 628
٦ [	104601-1
	100147	Endcap bracket for EC1 (ramped) endcap w/o battery holder
4	101093	Endcap bracket for EC1 (ramped) endcap w/ battery holder
7 [	104303	Endcap bracket for EC2 (flush) endcap w/o battery holder
104636 Endcap bracket for EC2 (flush) endcap w/		Endcap bracket for EC2 (flush) endcap w/ battery holder
	101642-9	Endcap, EC1 (ramped) Stainless Steel, 630
5	104304-9	Endcap, EC2 (flush) Stainless Steel, 630
	104612-1	Endcap, EC2 (flush) Aluminum, 628
		Fillerplate, Subassembly, S&R, Less Dogging, LD, 10 series, 36"
	Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 series, 36"
6		Fillerplate, Subassembly, S&R, Cylinder Dogging,CD, 10 series, 36"
7	100450	Hex Key (for Hex Dogging)
8	100783	Cylinder Nut (for Cylinder Dogging)
9	102216-2 Hex Dogging Assembly
9	102216	Cylinder Dogging Assembly
	103285-X	Strike Kit, ANSI (includes hardware)
10	103294-X	Strike Kit, ANSI, flat lip (includes hardware)
| 10 |	103286-X	Strike Kit, Double door, short open back (includes hardware)
	103289-X	Strike Kit, Double door, long open back (includes hardware)
11	103203-X	Front plate
12	103320-1	Mortise lock, standard
12	103303-2	Mortise lock, EE
13	103273	Latchbolt block

Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)

Hardware Table for BASIC device mounting. Additional hardware is provided per the device configuration

Fastener Part No	Drill Bit
P/N: 100980 1/4-20 x 1" PPH	#7 or 13/64"
P/N: 100954 1/4-20 x 1-1/2" PPH	#7 or 13/64"
P/N: 101621-5 1/4-20 x 1/4" PPHMS	#7 or 13/64"
P/N: 101632-2 10-32 x 5/16" PFHUMS (multiple finishes included)
P/N: 100162-106 6-32 x 3/8" PFHUMS (multiple finishes included)
P/N: 103276-63 #14 x 1" PPH self-drilling	1/8 pilot hole recommended for self-drilling screws
P/N: PP-5183-110 #14 x 1-1/4" PPH wood screw	1/8 pilot hole recommended for wood screws
P/N: PP-5067-25 #14 Lockwasher
P/N: 100156-108 #8-32 x 1/2 "
P/N: PP-5802-118 12-24 x 1/2"
P/N: 103253-52 #12 x 1" self-drilling

Tools Required:

Pencil Hammer Pliers 1/4-20 Tap Phillips & small flat Screw Drivers Combination Square Center Punch Saw for cutting device if necessary (chopsaw preferred) Safety Glasses Power Drill Tape Measure Level

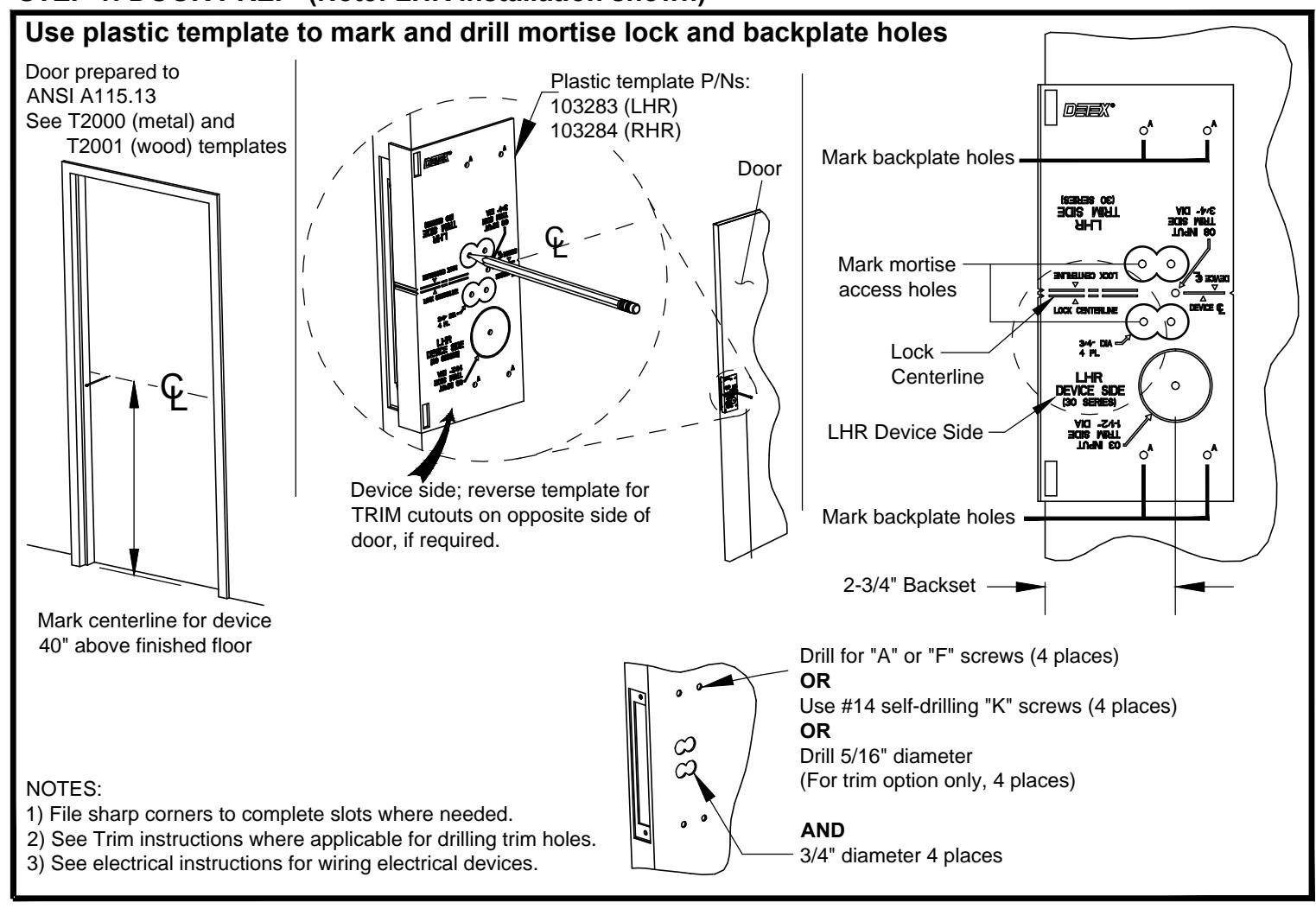

STEP 1: DOOR PREP (Note: LHR installation shown)

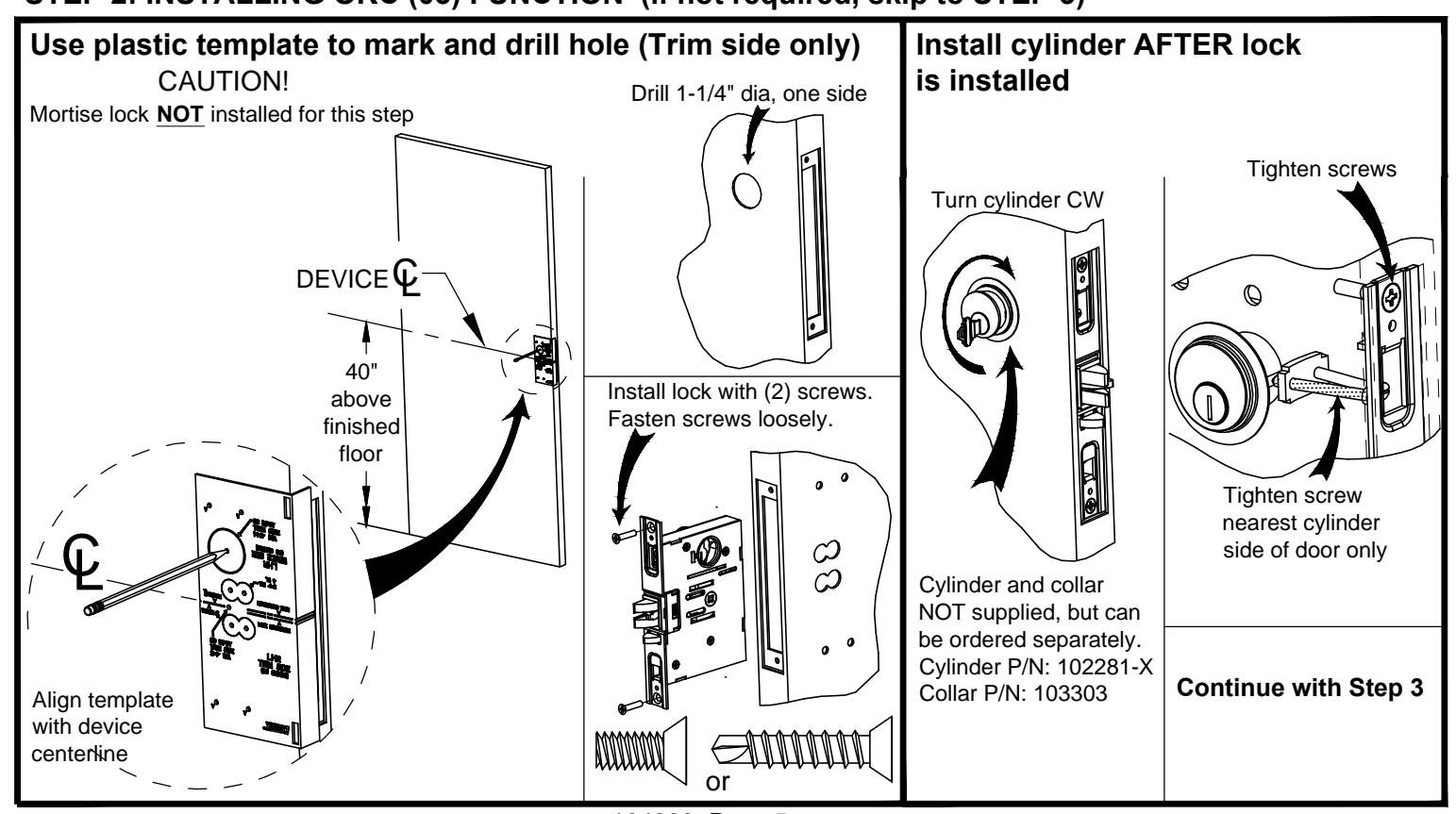

STEP 2: INSTALLING OKC (03) FUNCTION (if not required, skip to STEP 3)

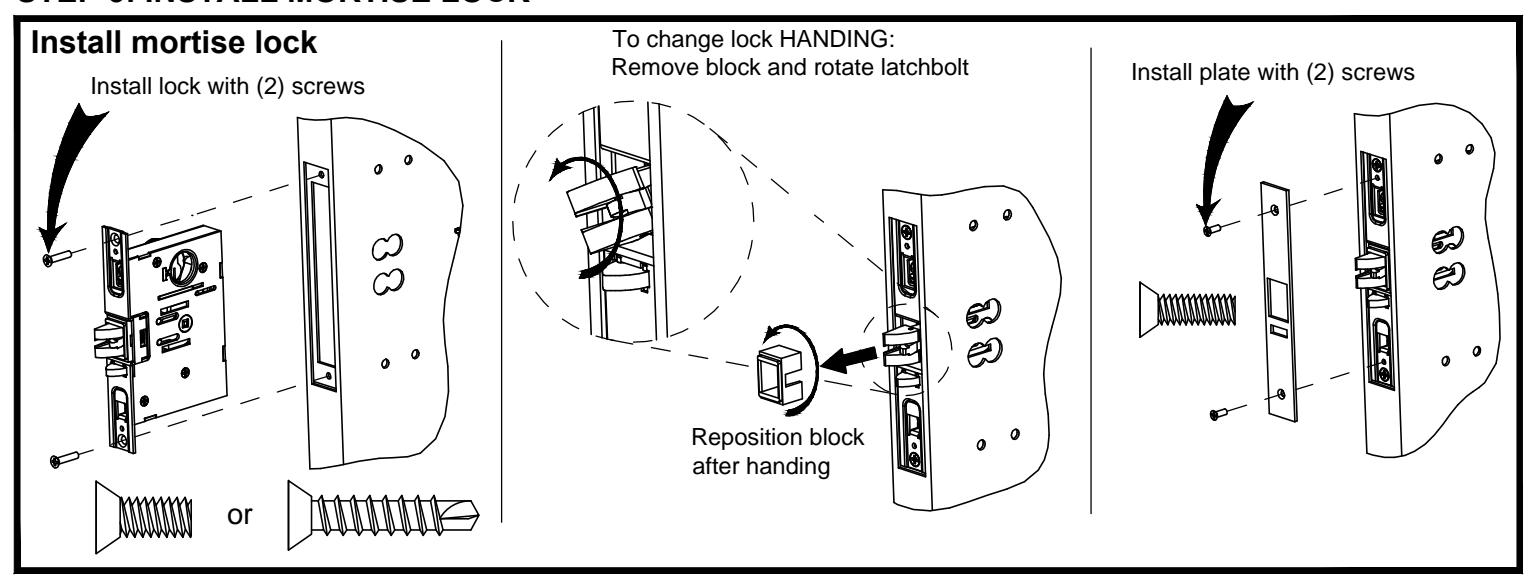

STEP 3: INSTALL MORTISE LOCK

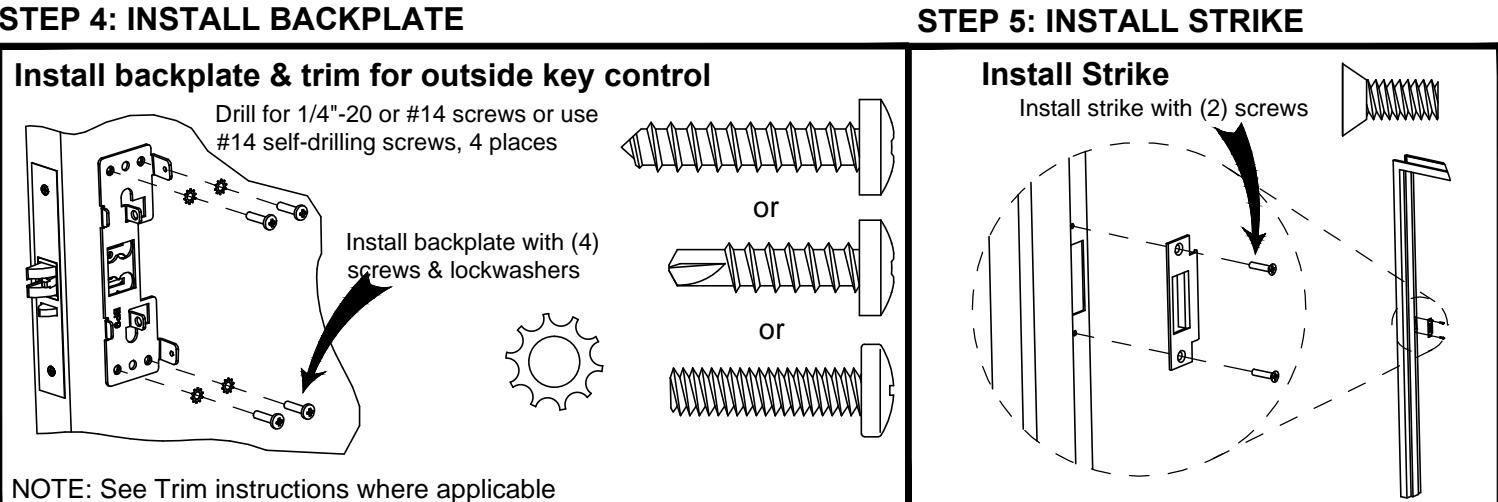

STEP 4: INSTALL BACKPLATE

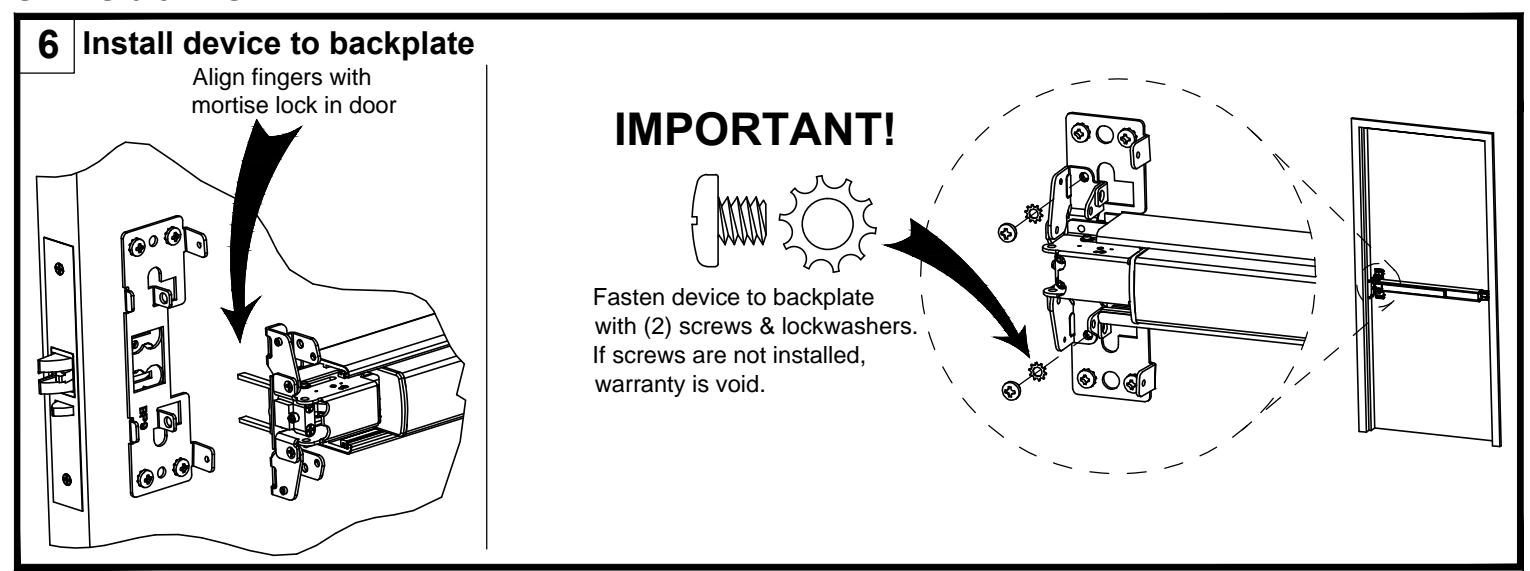

STEPS 6-8: INSTALL DEVICE

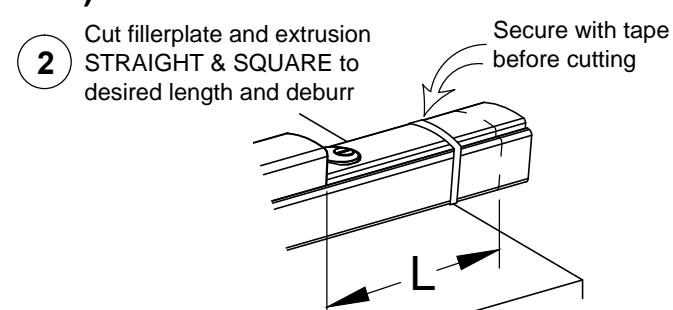

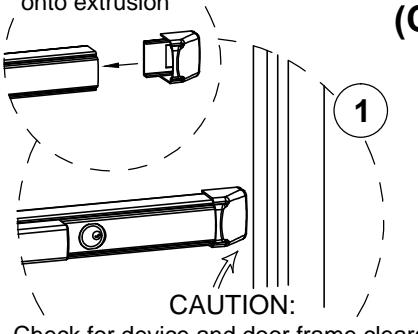

Slide endcap assembly onto extrusion (Cut-Off procedure if required)

Minimum
Fillerplate
Length
Type	Length (L)
LD	2-1/2"
HD/CD	3"

Check for device and door frame clearance. If no cut-off needed, proceed to the next page.

For aluminum Advantex finish cutdown applications: After cutting, the baseplate extrusion can be reversed to place the cut end inside the head cover. To do so, loosen the setscrew inside the aluminum baseplate extrusion and slide extrusion out, reverse, & slide back in. Tighten setscrew.

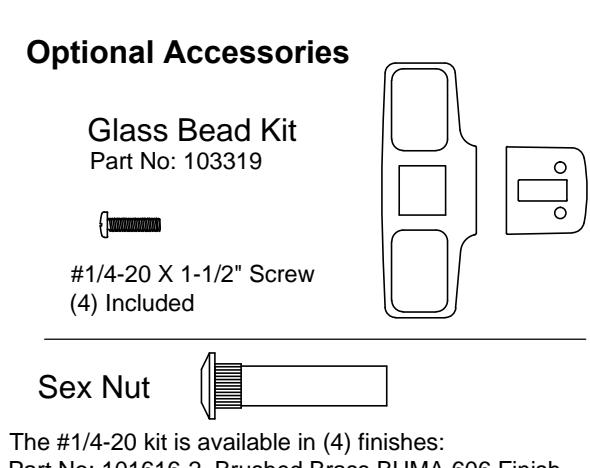

Part No: 101616-2 Brushed Brass BHMA 606 Finish Part No: 101616-5 Oil Rubbed Bronze BHMA 613 Finish Part No: 101616-7 Brushed Chrome BHMA 626 Finish Part No: 101616-9 Stainless Steel BHMA 630 Finish
