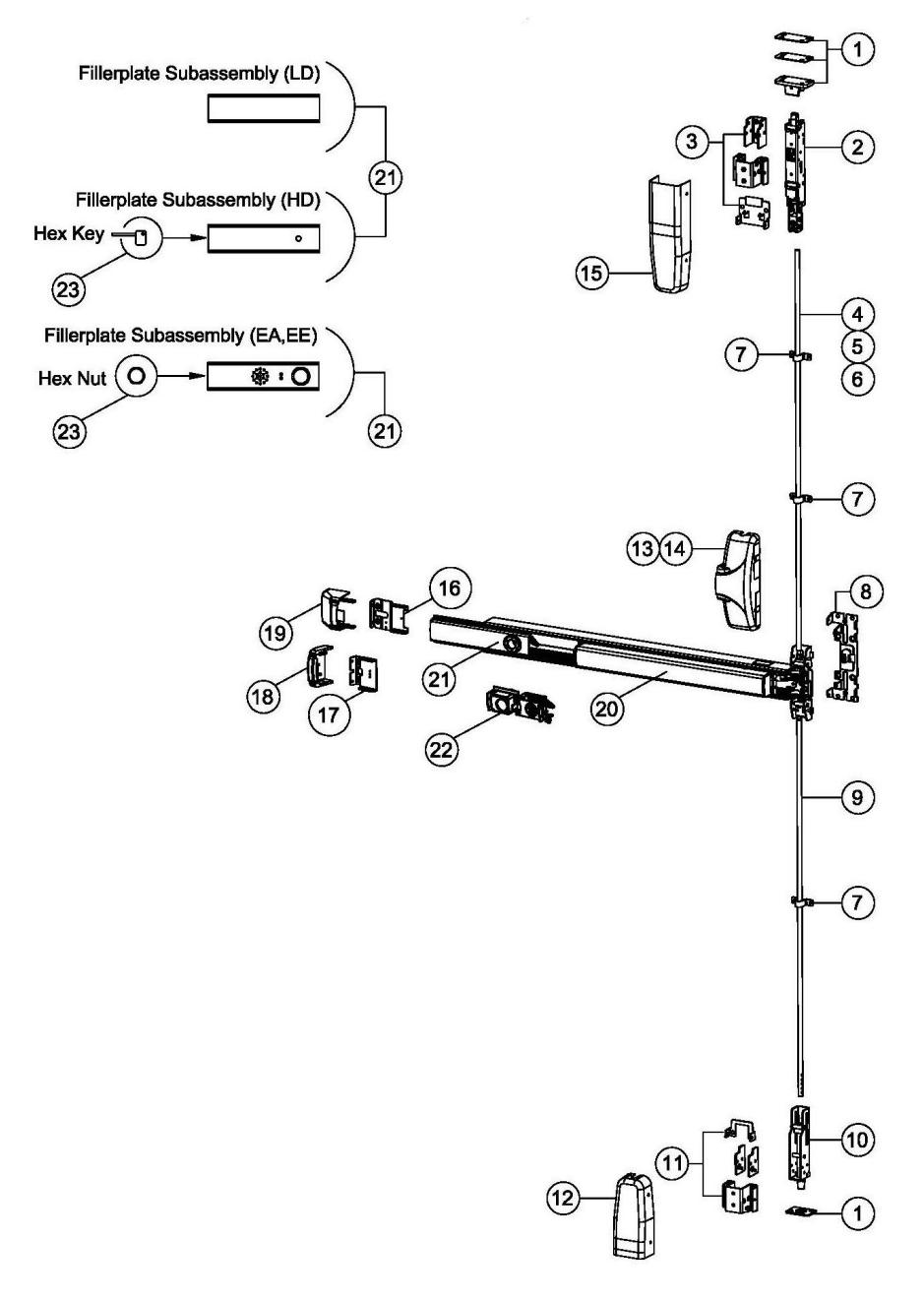

27 Series Parts List
For Mechanical Devices Only
| Item |
Order
Part# |
Fire
QTY |
Non-Fire
QTY |
Description | Price |
|---|---|---|---|---|---|
| 1 | 106405-1 | 1 | 1 | Strike kit, ADV 27 | $120.25 |
| 2 | 105984-3 | 0 | 1 | Top latch assembly, FEMA, SVR | $716.13 |
| 105984-4 | 1 | 0 | Top latch assembly, FEMA, SVR, Fire | $729.57 | |
| 3 | 106407-1 | 1 | 1 | Top latch mounting kit | $135.23 |
| 4 | 104051-3 | 1 | 1 | Top rod, SS, 7' | $69.12 |
| 104051-4 | Top rod, SS, 8' | $69.12 | |||
| 5 | 106445 | 1 | 1 | Top rod, ADV 27, Latch side, 10' | $177.82 |
| 6 | 106446 | 1 | 1 | Top rod, ADV 27, Device side, 10' | $177.82 |
| 7 | 104073-4 | 1 | 1 | Rod guide kit, ADV 27 (3 rod guide) | $34.56 |
| 8 | 104171-1 | 1 | Backplate assembly, wide BP11 (03 cam) | $65.50 | |
| 104171-2 | 1 | Backplate assembly, wide BP13 (03 cam) | $66.01 | ||
| 9 | 103544 | 1 | 1 | Bottom rod | $44.97 |
| 10 | 106140 | 1 | 1 | Bottom bolt assembly, SVR, FEMA | $152.24 |
| 11 | 106408-1 | 1 | 1 | Bottom latch mounting kit, ADV 27 | $97.61 |
| 12 | 106148-9 | 1 | 1 | Cover, bottom latch, SVR, FEMA, 630 | $115.14 |
| 13 | 106141-9 | 1 | 1 | Cover, centercase, wide, SVR, SS, 630 | $158.63 |
| 14 | 104640-13 | 1 | 1 | Cover, centercase, wide, SVR, 628 | $126.65 |
| 104640-14 | Cover, centercase, wide, SVR, 693 | $126.65 | |||
| 104640-15 | Cover, centercase, wide, SVR, 695 | $126.65 | |||
| 15 | 106147-9 | 1 | 1 | Cover, top latch, SVR, FEMA, 630 | $152.24 |
| 16 | 100147 | Endcap mounting bracket, EC1 | $14.07 | ||
| 17 | 104303 | 1 | 1 | Flush endcap mounting bracket, EC2 | $38.38 |
| 18 | 104612-1 | 1 | 1 | Flush endcap, EC2, AL, 628 | $139.44 |
| 104686-1 | Flush endcap, EC2, AL, FC, 628 | $121.53 | |||
| 104304-9 | Flush endcap, EC2, SS, 630 | $88.27 | |||
| 104317-9 | Flush endcap, EC2, SS, FC, 630 | $120.25 | |||
| 19 | 101642-9 | 1 | 1 | Endcap assembly, EC1, SS, 630 | $95.95 |
| 102095-9 | Endcap assembly, EC1, SS, FC, 630 | $147.12 | |||
| 20 | 105500-190 | 1 | 1 | S&R Centercase/Pushpad assy | $608.04 |
| 21 | 100860-78 | 1 | 1 | S&R Fillerplate subassembly | $171.42 |
NOTE: Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)
