27 SERIES

High Security Relatching Surface Vertical Rod Device

The 27 Series high security surface vertical rod exit device is super-heavyduty panic and fire exit hardware for use on all types of double doors without a mullion. The 27 Series is available with both top and bottom rods, but not available with top rod only. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits

Tough and durable design for years of trouble-free service in high-use, high-abuse environments
Security enhanced by oversized, heavy duty relatching top and bottom bolts
Patented mounting plate and strike locator replaces paper templates
Minimal door prep saves time and money
Outside trims are easily changed or rekeyed without removing device from door
Fast and easy installation saves time and money
Heavy duty angled end cap deflects damage away from device

Features

Stainless steel relatching, top bolt
Hardened steel bottom drop bolt with optional dust proof strike
Handed field reversible
Field sizeable

Bottom bolt cover
1/8 turn hex or cylinder dogging
All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process

Mechanical Options

T Tornado/Windstorm Rated (FEMA 361) - up to 42" wide and 88" height
F Contact factory for availability
AM Anti-Microbial Coating
HD Hex Dogging (Std.)
CD Cylinder Dogging

LD Less Dogging
24 Fits 24" Door Width
30 Fits 30" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width

84 84" Door Height (Std.)
96 85" to 96" Door Height
120 97" to 120" Door Height

Electrical Options

Exit Alarm (EA)
Electric Dogging (ED)
Electric Latch Retraction (ER)
Delayed Egress Self Contained (EE)
Delayed Egress with Latch Retraction (EE ER)
Electric Unlock (EU)
Request to Exit (EX)
Request to Exit for High Voltage (EXV)

Refer to Electrified Options section for more information

Accessories

GB3 Glass Bead Kit 7' Door Height (84")
GB7 Glass Bead Kit 8' Door Height (85" - 96")
GB11 Glass Bead Kit 10' Door Height (97" - 120")
SN1 Sex Nut Kit (2 per package)
SSK- Security Torx Screw Kit
Trim Functions (see Outside Trims)

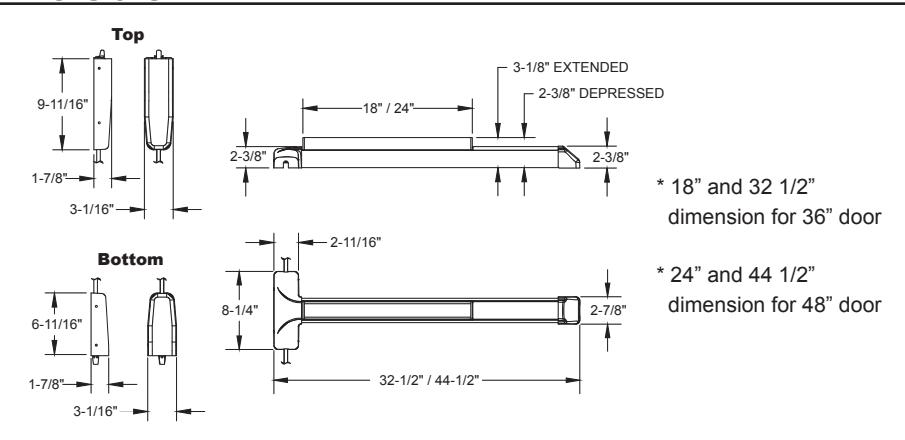

Technical Information

Door Types Wood, Hollow Metal, Fiberglass or Aluminum
Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
Minimum Stile 4-1/2" with standard 999 strike
1-1/2" minimum frame stop width

• Fasteners - Machine and Self- Drilling Screws standard
