21xW SERIES

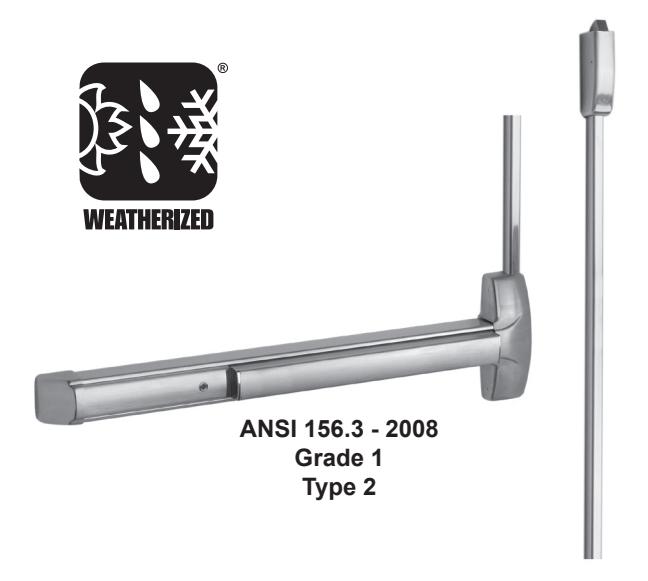

Weatherized Surface Vertical Top Rod Only Device

The 21xW Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors or gates without a mullion that are or may be exposed directly to the weather. All 21 Series Top Rod Only exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); and MIL-STD 810F, Method 509.4 (salt fog test).

Benefits

Fast and easy installation saves time and money
Heavy duty angled end cap deflects damage away from device
Minimal door prep saves time and money
Outside trims are easily changed or rekeyed without removing device from door
Tough and durable design for years of trouble-free service in high-use, high-abuse or inclement weather environments
Security enhanced by stainless steel rod covers, standard
Patented mounting plate and strike locator system replaces paper templates

Features

Stainless steel deadlocking top latch
Handed field reversible
Field sizeable

1/8 turn hex or cylinder dogging
All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process
Assembled using components resistant to temperature, dust, driving rain and salt fog
Fasteners made of stainless steel 316 material

Mechanical Options

F 3-Hour Fire Rated
AM Anti-Microbial Coating
HD Hex Dogging (Std.)
CD Cylinder Dogging
LD Less Dogging

24 Fits 24" Door Width
30 Fits 30" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width
84 84" Door Height (Std.)

96 85" to 96" Door Height
120 97" to 120" Door Height

For full list of available mechanical options, see 20 Series How To Order page

Electrical Options

Electric Unlock (EU)
Request to Exit Weatherized (EX W)
Request to Exit Weatherized for High Voltage (EXV W)

Refer to Electrified Options section for more information

Accessories

GB4 Glass Bead Kit 7' Door Height (84")
GB8 Glass Bead Kit 8' Door Height (85" - 96")
GB12 Glass Bead Kit 10' Door Height (97" - 120")
GTPLKIT Adjustable Gate Plate
SN1 Sex Nut Kit (2 per package)
SSK- Security Torx Screw Kit
Trim Functions (see Outside Trims)

Technical Information

Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
Door Types Wood, Hollow Metal, Fiberglass or Aluminum
Minimum Stile 4-1/2" with standard 97 strike
Fasteners Machine and Self-Drilling Screws standard stainless steel 316 material

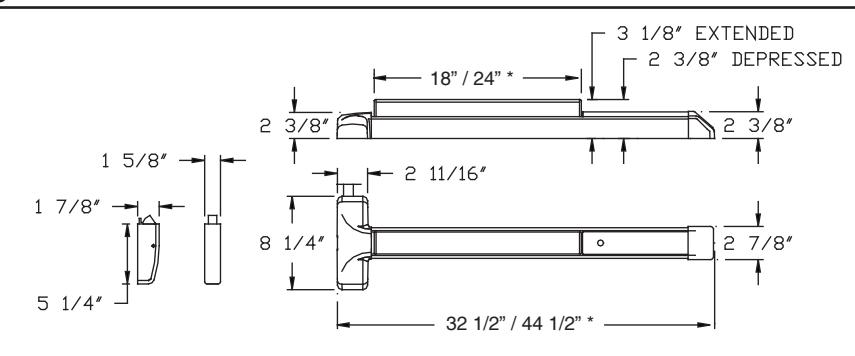

Dimensions

* 18" and 32 1/2" dimension for 36" door
* 24" and 44 1/2" dimension for 48" door

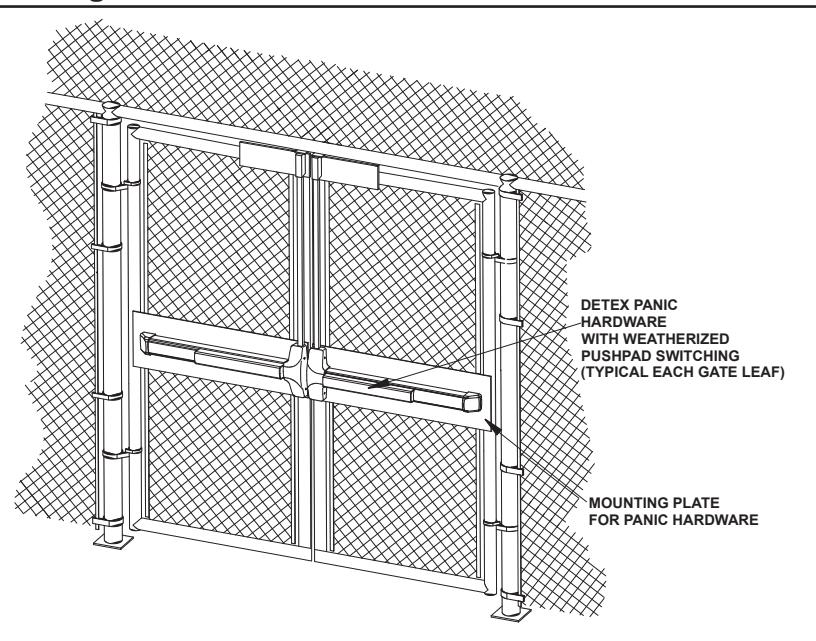

Riser Diagram

Finishes

605 / US3	Polished Brass
606 / US4	Brushed Brass
611 / US9	Polished Bronze
612 / US10	Brushed Bronze
	613 / US10B Oil Rubbed Bronze
628 / US28	Aluminum Satin
629 / US32	Polished Stainless Steel
	630 / US32D Brushed Stainless
Steel
	693 / SPBLK Black, Painted
	695 / SP 313 Dark Bronze, Painted
