21 SERIES

Surface Vertical Top Rod Only Device

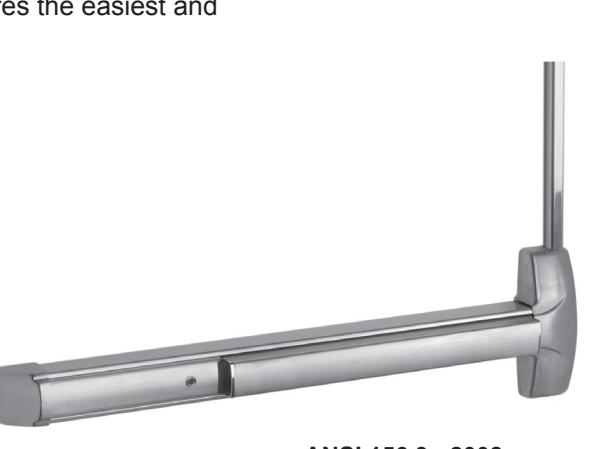

The 21 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. All 21 Series Top Rod Only exit devices are supplied with rod cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

ANSI 156.3 - 2008 Grade 1 Type 2

Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Outside trims are easily changed or rekeyed without removing device from door
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Heavy duty angled end cap deflects damage away from device
• Security enhanced by stainless steel rod covers, standard
• Patented mounting plate and strike locator system replaces paper templates

Features

• Stainless steel deadlocking top latch
• 1/8 turn hex or cylinder dogging
• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process
• Handed field reversible
• Field sizeable

Mechanical Options

• F 3-Hour Fire Rated
• HD Hex Dogging (Std.)
• AM Anti-Microbial Coating
• CD Cylinder Dogging
• LD Less Dogging

• 24 Fits 24" Door Width
• 30 Fits 30" Door Width
• 36 Fits 36" Door Width (Std.)
• 48 Fits 48" Door Width
• 84 84" Door Height (Std.)

• 96 85" to 96" Door Height
• 120 97" to 120" Door Height

For full list of available mechanical options, see 20 Series How To Order page

Electrical Options

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction (ER)
• Delayed Egress Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Unlock (EU)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Refer to Electrified Options section for more information

Accessories

• GB4 Glass Bead Kit 7' Door Height (84")
• GB8 Glass Bead Kit 8' Door Height (85" - 96")
• GB12 Glass Bead Kit 10' Door Height (97" - 120")
• SN1 Sex Nut Kit (2 per package)
• SSK- Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information

• Door Types Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
• Minimum Stile 4-1/2" with standard 97 strike
• Fasteners Machine and Self- Drilling Screws standard

Popper Detail for Fire Rated Device

Finishes

605 / US3	Polished Brass
606 / US4	Brushed Brass
611 / US9	Polished Bronze
612 / US10	Brushed Bronze
	613 / US10B Oil Rubbed Bronze
628 / US28	Aluminum Satin

629 / US32 Polished Stainless Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Detex Limited Warranty

* 18" and 32 1/2" dimension for 36" door

* 24" and 44 1/2" dimension for 48" door

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

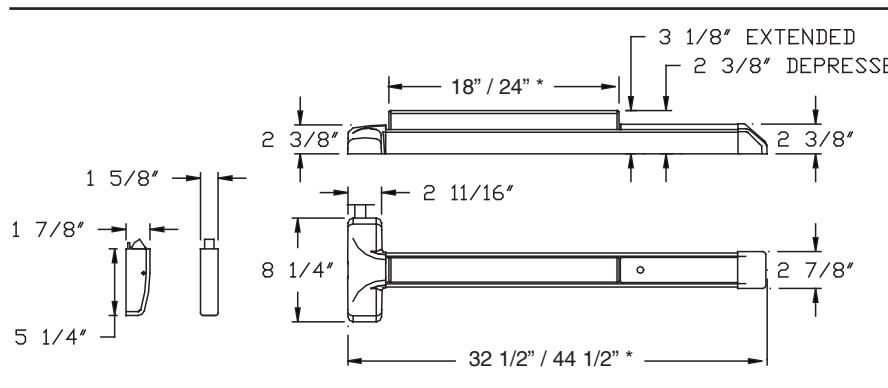

Dimensions

Listings and Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and 8'x10' pairs of doors

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

Meets NFPA 80 & 101 for Life Safety

Meets ADA requirements

California State Fire Marshall

ANSI/BHMA certified A156.3

For detailed fire listings, visit www.detex.com/PROVEN

Cancer & Reproductive Harm - www.detex.com/prop65
