INSTALLATION INSTRUCTIONS FOR ADVANTEX TRIM
Outside lever trim 08, 09, 14
(drawing 101437: 08 Trim - includes 08D, 08DT, 08DU, 08DV) (drawing 101996: 09 Trim - includes 09D, 09DT, 09DU, 09DV) (drawing 101447: 14 Trim - includes 14D, 14DT, 14DU, 14DV)
| Table of Contents | Page |
|---|---|
| Device parts breakdown view | 2 |
| Device parts breakdown list with part numbers | 3 |
| Prep Trim, Prep Door for Rim | 4 |
| Install Trim | 5 |
| Rehanding | 6 |
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos
LHR ASSEMBLIES SHOWN
RHR assemblies opposite

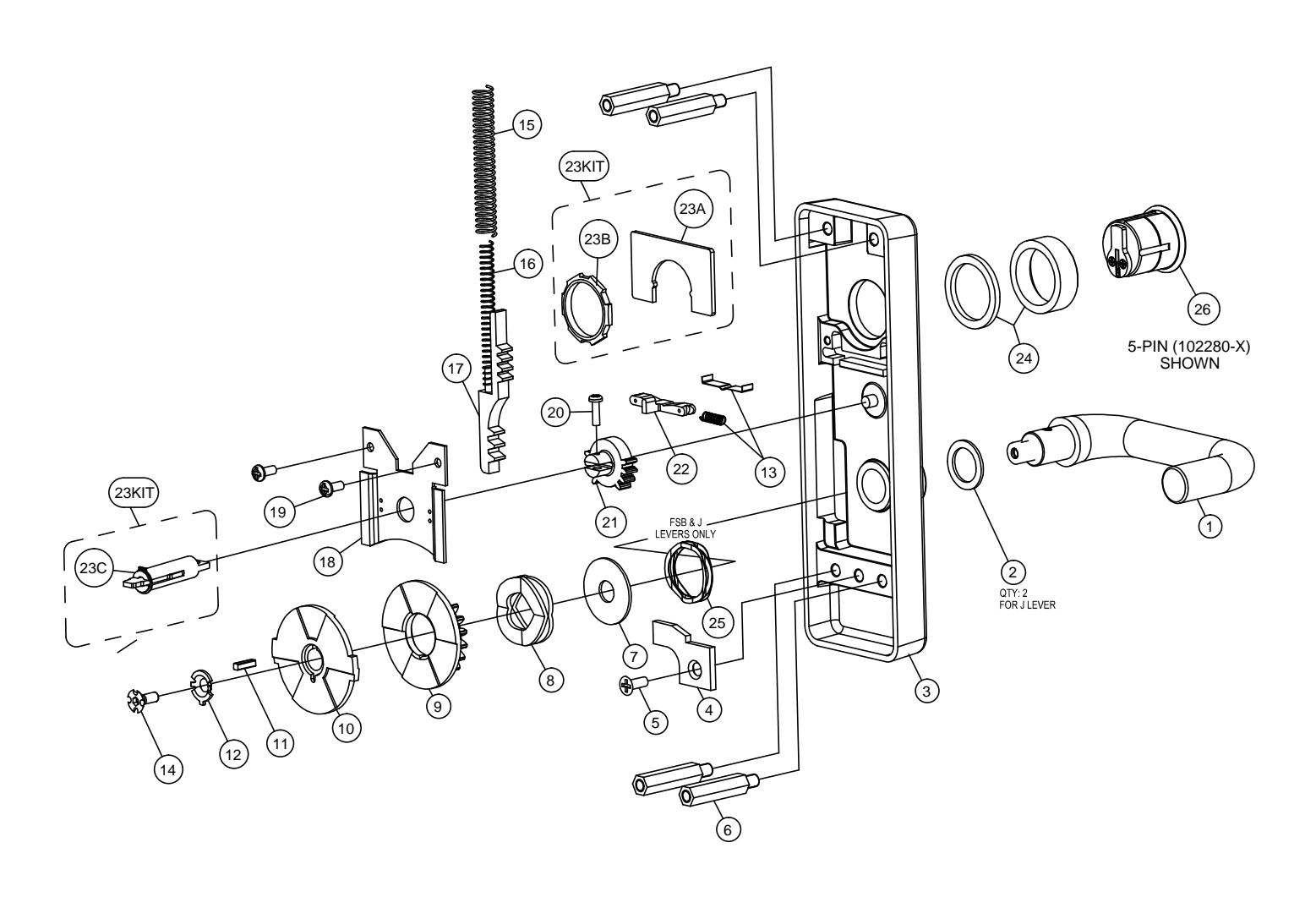

| PARTS BREAKDOWN | ||||
|---|---|---|---|---|
| Item | P/N | QTY | Description | |
|
106
106 101 101 101 101 101 101 101 |
106264-7 | LEVER ASSY, Q, 626 | ||
| 106264-14 | 1 | LEVER ASSY, Q, 693 | ||
| 106264-15 | LEVER ASSY, Q, 695 | |||
| 101376-7 | LEVER ASSY, S, 626 | |||
| 101376-14 | LEVER ASSY, S, 693 | |||
| 101376-15 | LEVER ASSY, S, 695 | |||
| 101375-7 | LEVER ASSY, U, 626 | |||
| 101375-14 | LEVER ASSY, U, 693 | |||
| 101375-15 | LEVER ASSY, U, 695 | |||
| 101374-7 | LEVER ASSY, T, 626 | |||
| 101374-14 | LEVER ASSY, T, 693 | |||
| 101374-15 | LEVER ASSY, T, 695 | |||
| 106603 | 2 | WASHER, FLAT, 1"x0.02 THK (J LEVER ONLY) | ||
| 2 | 100851 | 1 | WASHER, FLAT, 1"x0.06 THK (ALL EXCEPT J LEVER) | |
| 3 | 101373-9 | 1 | ESCUTCHEON ASSY, 08W / 09W, BP1, 630 FINISH | |
| 101459-9 | ESCUTCHEON ASSY, 14W, BP1, 630 FINISH | |||
| 4 | 100771 | 1 | STOP, ROTATIONAL | |
| 5 | PP-5305-108 | 1 | SCREW, MACH, 10-24 X 1/2 PFH | |
| 6 | 100777 | 4 | STANDOFF, HEX | |
| 7 | 100775 | 1 | WASHER, FLAT | |
| 8 | 103047 | 1 | CLUTCH SPRING | |
| 9 | 103043 | 1 | BOTTOM GEAR, WIDE | |
| 10 | 103044 | 1 | TORQUE PLATE, WIDE | |
| 11 | 103994 | 1 | KEY, SHEAR PIN, STEEL | |
| 12 | 100821 | 1 | WASHER CLUTCH | |
| 4.0 | 100773 | FLAT SPRING LOCKING (08 function only) | ||
| 13 | 101997 | 1 | SPRING, COMPRESSION (09 function only) | |
| 14 | 102536-1 | 1 | SCREW, 10-24, CUSTOM | |
| 15 | 100766 | 1 | SPRING, RETURN | |
| 16 | 101509 | 1 | SPRING, RETURN, HELPER | |
| 17 | 101436 | 1 | RACK ASSEMBLY | |
| 18 | 100753 | 1 | COVER PLATE | |
| 19 | PP-5378-106 | 2 | SCREW, MACH, 8-32 x 3/8 PPH | |
| 20 | PP-5367-108 | 1 | SCREW, MACH, 6-32 x 1/2 PPH | |
| 21 | 100762 | 1 | TOP GEAR | |
| 22 | 101993 | 1 | LOCK SLIDE | |
| 23KIT | 105673-1 | 1 | LEVER TRIM HARDWARE KIT, RIM/SVR | |
| 105673-3 | LEVER TRIM HARDWARE KIT, CVR | |||
| 23A | 100754 | 1 | PLATE, CYLINDER POSITION | |
| 23B | 100783 | 1 | NUT, HEXAGON, CYLINDER | |
| 000 | 101478 | SHAFT EXTENSION ASSEMBLY | ||
| 23C | 106694 | 1 | TAILPIECE ASSEMBLY, D TRIM, CVR UNIVERSAL | |
| 100572-9 | CYLINDER COLLAR, SHORT | |||
| 24 | 100752-9 | 1 | CYLINDER COLLAR, TALL | |
| 25 | 105964 | 1 | WASHER, WAVE | |
| 26 | 103800-626 | CYLINDER HOUSING, SFIC, MORTISE, 7 PIN, CHROME | ||
| 1 | CYLINDER, MORTISE, 5 PIN, CHROME | |||
| 102281-7-X | CYLINDER, MORTISE, 5 PIN, CHROME | |||
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)

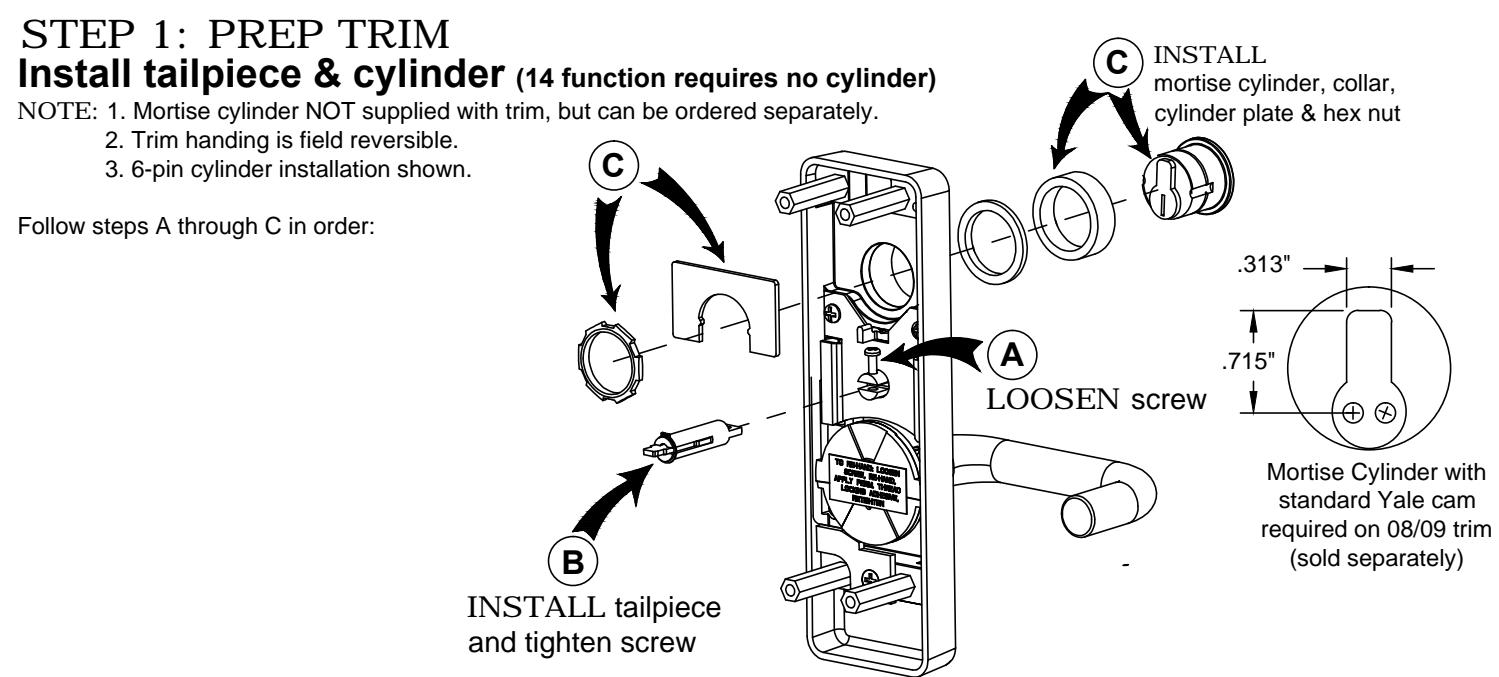

Tools Required: Safety Glasses Power Drill Tape Measure Level Pencil Center Punch Hammer #2 and #3 Phillips Screw Drivers Drill bits: 5/16" 1/2" 3/4"
FOR ITEM 26 "-X" REFERS TO KEY CODE AA-KK
STEP 2: PREP DOOR

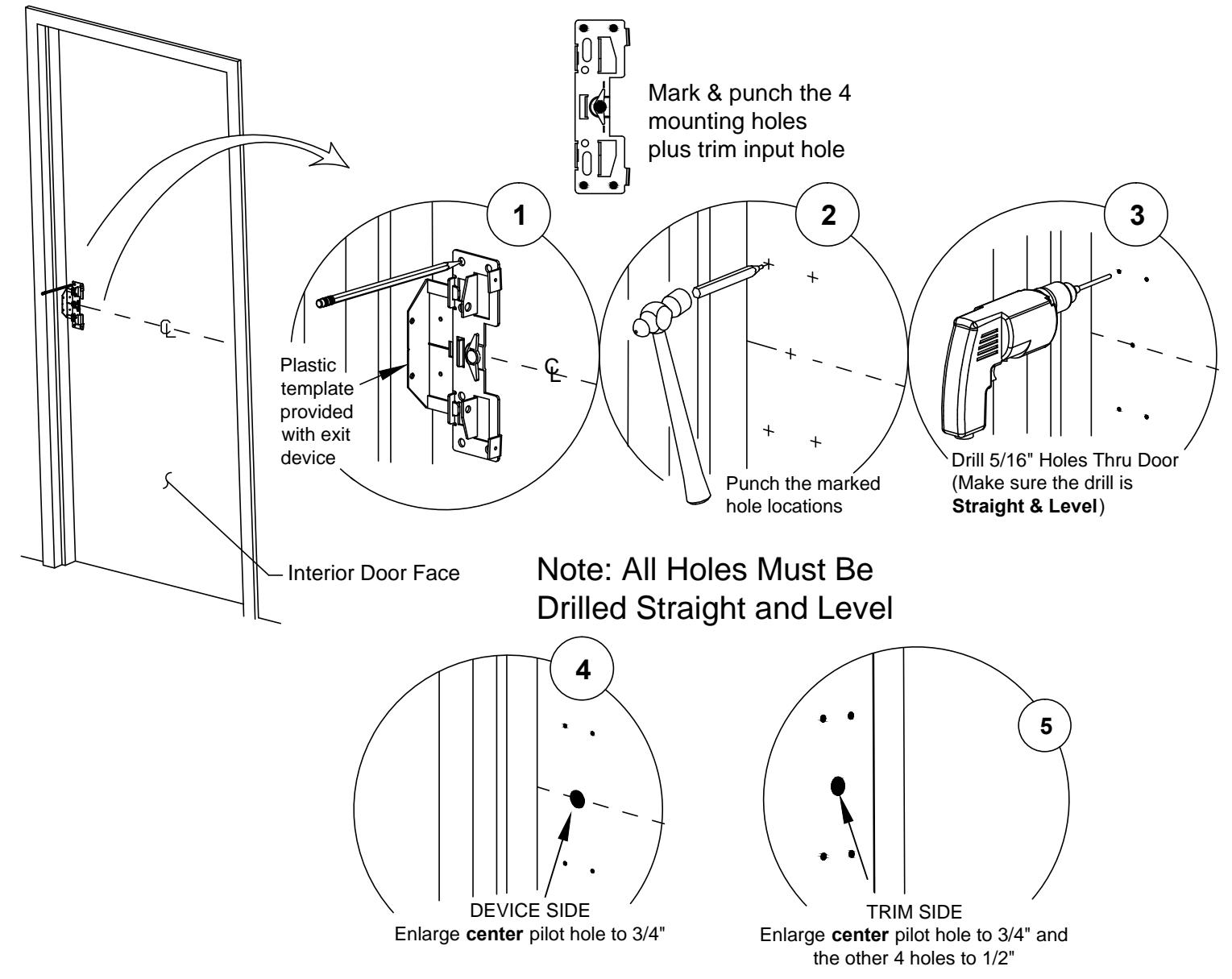

Mark and drill holes. (LHR installation shown, reverse for RHR)

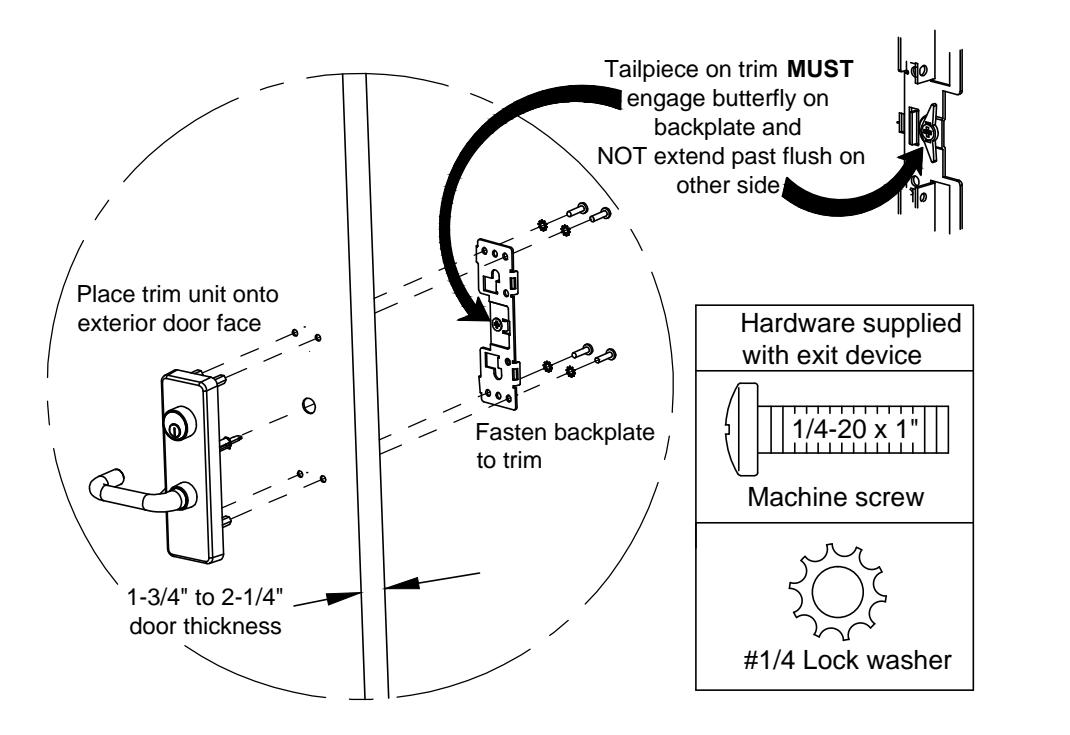

STEP 3: INSTALL TRIM
TRIM INSTALLATION COMPLETE Continue installation using device instructions

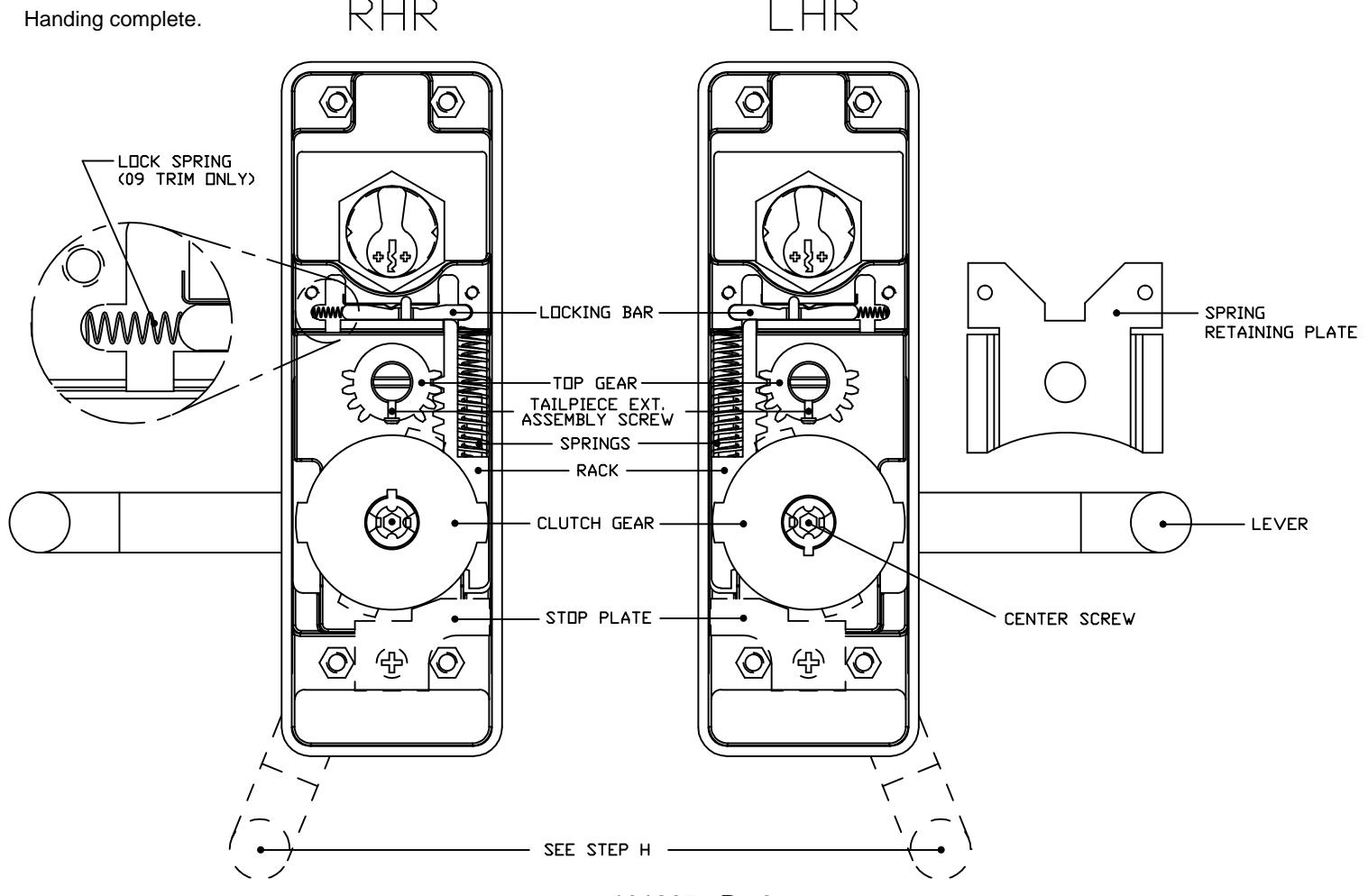

CHANGE LEVER HANDING (if required)
- A. Remove tailpiece extension assembly screw. Remove tailpiece extension assembly if already installed.
- B. Remove stop plate.
- C. Warning: Springs under pressure! Remove spring retaining plate and carefully remove the springs.
- D. Switch lock spring to opposite side (for 09 function only).
- E. Remove top gear.
- F. Loosen the clutch center screw approximately two (2) turns. Bend locking tab back to disengage with notch.
- G. Slide the locking bar away from the rack (not necessary for 14 function). Remove the rack while rotating the lever.
- H. Continue rotating the lever to the opposite side.
- I. Rotate the lever to the position shown. Partially engage the rack and the clutch gear on the opposite side.
- J. Rotate the lever until the rack is completely seated.
- K. Insert the top gear.
- L. Add permanent thread locking adhesive and tighten the clutch center screw. Bend tab over screw notch so the screw cannot turn.
- M. WARNING: Springs under pressure! Install the springs. Hold the lever in the down position, firmly compressing the springs in place.
- N. While holding the lever in the down position, replace the spring retaining plate and fasten the two (2) screws.
- O. Reverse the stop plate and fasten the screw.
- P. Replace the tailpiece extension and screw.
