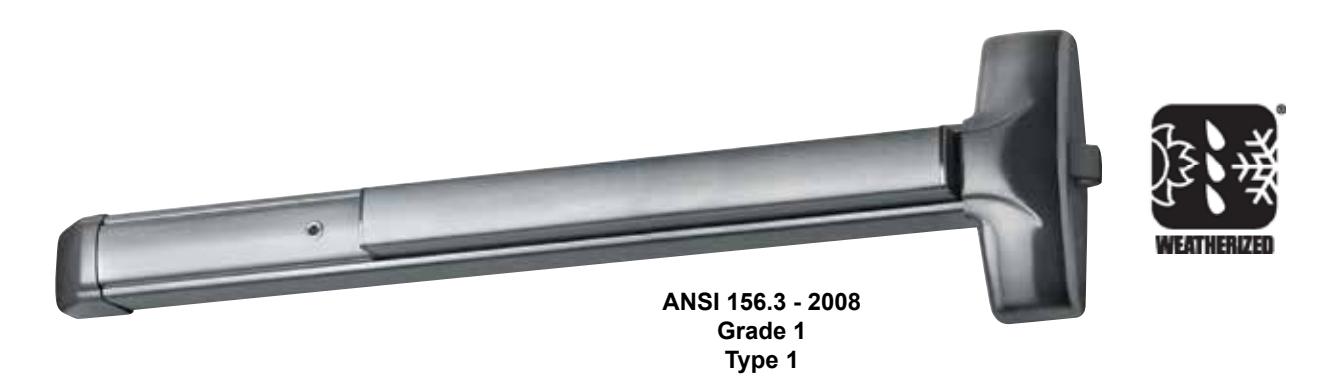

10xW SERIES

Weatherized Rim Exit Device

The 10xW Series weatherized rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single doors and gates and double doors and gates with mullions that are or may be exposed directly to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034- 34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); and MIL-STD 810F, Method 509.4 (salt fog test).

Benefits

Tough and durable design for years of trouble-free service in high-use, high-abuse or inclement weather environments
Minimal door prep saves time and money
Fast and easy installation saves time and money
Patented mounting plate and strike locator replaces paper templates
Outside trims are easily changed or re-keyed without removing device from door
Heavy duty angled end cap deflects damage away from device

Features

Stainless steel deadlocking, Pullman-type latch bolt
Assembled using components resistant to temperature, dust, driving rain and salt fog
1/8 turn hex or cylinder dogging
Field sizeable
All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
Non-handed

Fasteners made of stainless steel 316 material
Tested beyond 1,000,000 cycles Twice the cycling required for Grade 1 UL testing

Mechanical Options

H Hurricane Rated
AM Anti-Microbial Coating
BP-3 Mounting plate (call factory for retrofit information)
BP-5 Mounting Plate (call factory for retrofit information)
CD Cylinder Dogging
HD Hex Dogging (Std.)

LD Less Dogging
EC1 Heavy duty angled end cap (Std.)
EC2 Flush end cap
99 Surface Strike (Std.)
98 Semi Mortise Strike

24 Fits 24" Door Width
30 Fits 36" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width

For full list of available mechanical options, see 10 Series How To Order page

Electrical Options

Electric Unlock (EU)
Request to Exit Weatherized (EX W)
Request to Exit Weatherized for High Voltage (EXV W)

Refer to Electrified Options section for more information

Accessories

GB1 Glass Bead Kit
SN1 Sex Nut Kit (2 per package)
SSK Security Torx Screw Kit
Trim Functions (see Outside Trims)
GTPLKIT Adjustable Gate Plate

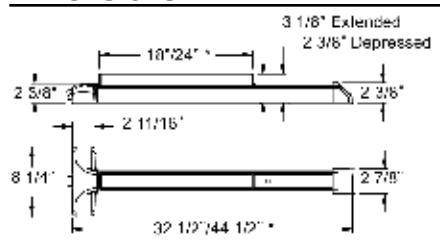

Technical Information

Door Types Wood, Hollow Metal, Fiberglass or Aluminum
Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
Minimum Stile 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
Fasteners Machine and Self-Drilling Screws standard stainless steel 316 material

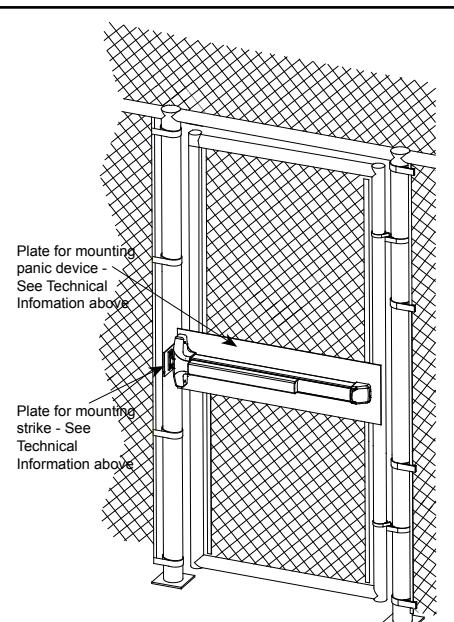

Recommended Plate Size

Gate - 1/8" thick plate, galvanized, or painted steel or 1/4" thick aluminum plate, minimum height - 10"

Strike - 1/8" thick plated, galvanized, painted steel plate, angle iron, or 1/4" thick aluminum plate, minimum Height - 5"

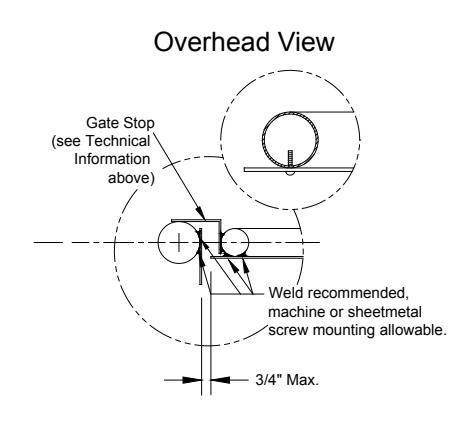

Stop - 1/8 thick plated, galvanized, or painted angle iron or 1/4" thick aluminum angle plate, minimum Height - 2"
