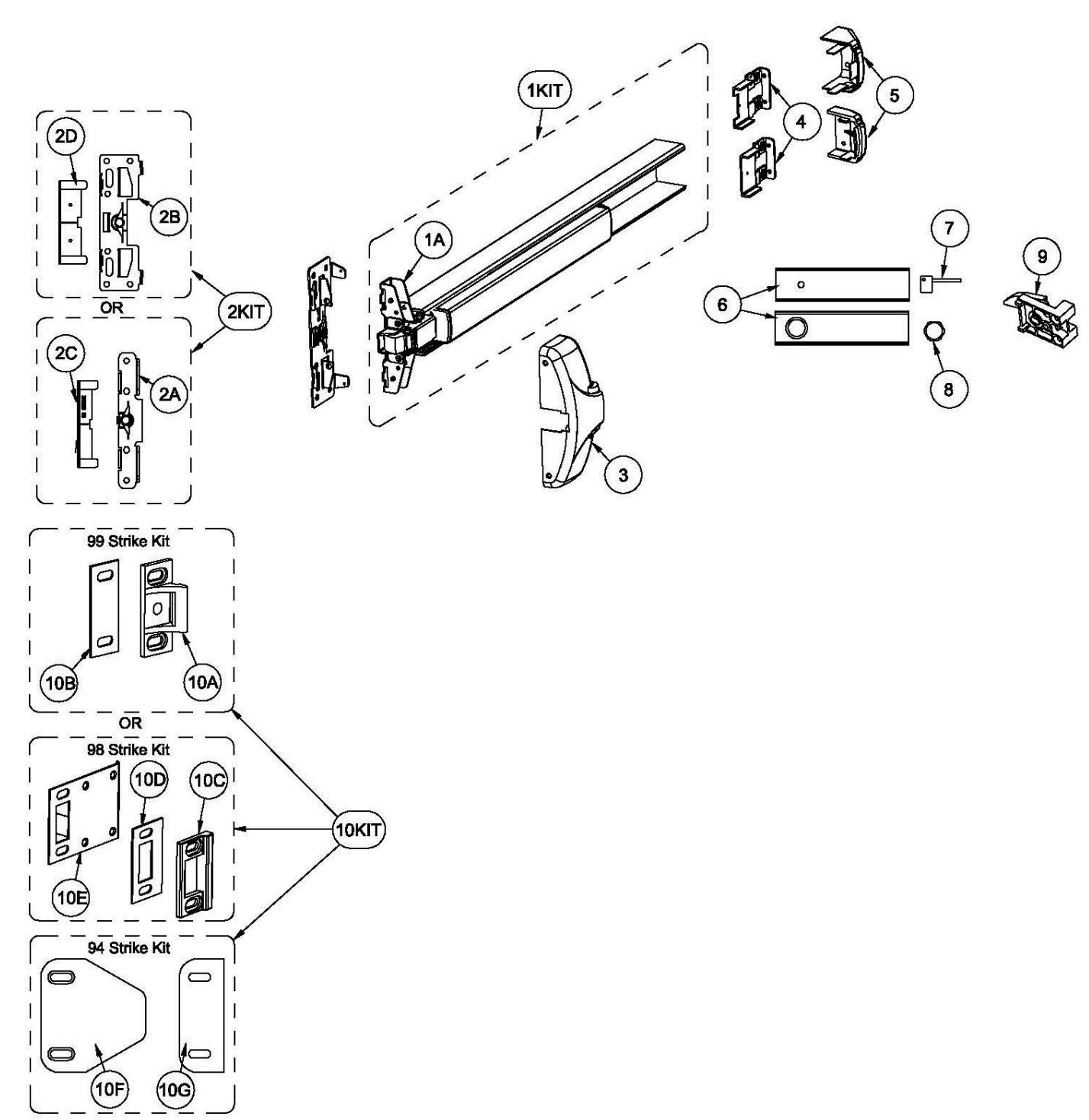

10 / 40 Series Parts List
For Mechanical Devices Only
| Item |
Order
Part# |
Description | Price |
|---|---|---|---|
| 1KIT | 105500-63 | Centercase/Pushpad SubAssembly, 40 series, 36", 630 (Includes 1A) | $671.61 |
| 105500-62 | Centercase/Pushpad SubAssembly, 10 series, 36", 630 (Includes 1A) | $671.61 | |
| 1A | 100698-1 | Centercase Assembly, Narrow Stile, 40 Series | $168.86 |
| 100698-2 | Centercase Assembly, Wide Stile, 10 Series | $171.42 | |
| 2KIT | 103806-1 | Mounting Plate/Strike Locator Kit, Narrow Stile (includes 2A & 2C) | $31.98 |
| 103806-2 | Mounting Plate/Strike Locator Kit, Wide Stile (includes 2B & 2D) | $51.17 | |
| 2A | 100696-1 | Mounting Plate, BP2, Narrow Stile | $23.03 |
| 2B | 100697-1 | Mounting Plate, BP1, Wide Stile | $44.78 |
| 2C | 101899 | Strike Locator 2" Glass Door (98) | $11.51 |
| 2D | 100212 | Strike Locator, Standard (99) | $5.12 |
| 3 | 100311-9 | Centercase Cover, Stainless Steel, Narrow, 40 Series, 630 | $212.36 |
| 100196-9 | Centercase Cover, Stainless Steel, Wide, 10 Series, 630 | $126.65 | |
| 104602-1 | Centercase Cover, Aluminum, Narrow, 40 Series, 628 | $197.00 | |
| 104640-1 | Centercase Cover, Aluminum, Wide, 10 Series, 628 | $126.65 | |
| 4 | 100147 | Endcap bracket for EC1 (ramped) endcap w/o battery holder | $14.07 |
| 101093 | Endcap bracket for EC1 (ramped) endcap w/ battery holder | $19.19 | |
| 104303 | Endcap bracket for EC2 (flush) endcap w/o battery holder | $38.38 | |
| 104636 | Endcap bracket for EC2 (flush) endcap w/ battery holder | $38.38 | |
| 5 | 101642-9 | Endcap, EC1 (ramped) Stainless Steel, 630 | $95.95 |
| 104304-9 | Endcap, EC2 (flush) Stainless Steel, 630 | $88.27 | |
| 104612-1 | Endcap, EC2 (flush) Aluminum, 628 | $139.44 | |
| 6 | 100860-54 | Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 series, 36", 630 | $171.42 |
| 100860-49 | Fillerplate, Subassembly, S&R, Cylinder Dogging, CD, 10 series, 36", 630 | $228.99 | |
| 100860-100 | Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 series, 36", 628 | $678.88 | |
| 100860-137 | Fillerplate, Subassembly, S&R, Hex Dogging, HD, 40 series, 36", 628 | $722.78 | |
| 7 | 100450 | Hex Key (for Hex Dogging) | $7.00 |
| 8 | 100783 | Cylinder Nut (for Cylinder Dogging) | $6.00 |
| 9 | 102216-2 | Hex Dogging Assembly | $23.03 |
| 102216 | Cylinder Dogging Assembly | $17.91 | |
| 10KIT | 100855-2 | 99 Strike Kit (includes 10A & 10B) | $44.00 |
| 100855-1 | 98 Strike Kit (includes 10C, 10D & 10E) | $54.00 | |
| 102212-1 | 94 Double Door Strike Kit (includes 10F & 10G) | $74.00 | |
| 10A | 100234-1 | Strike, Non-roller | $20.47 |
| 10B | 100088 | Strike Shim | $1.29 |
| 10C | 100480 | Strike, Mortise | $25.59 |
| 10D | 100482 | Shim, Mortise Strike | $5.12 |
| 10E | 100481 | Shield, Strike | $20.47 |
| 10F | 102211 | Double Door Strike Plate | $72.92 |
| 10G | 102214 | Shim, 94 strike | $2.56 |
NOTE: Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)
