Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com

INSTALLATION INSTRUCTIONS FOR DETEX ADVANTEX® RIM 10/40 SERIES, F10/40 SERIES, "H" MODELS (HURRICANE) & "W" MODELS (WEATHERIZED)

Drawing: 101379: (Stainless Steel) 104600: (Aluminum)

U.S. PATENT NUMBERS: 6009732 6205825B1 6532777B2 INTERNATIONAL PATENT NUMBER: PCT6009732

Table of Contents Page
Device parts breakdown view 2
Device parts breakdown list with part numbers 3
Hardware List with part numbers & tools required 4

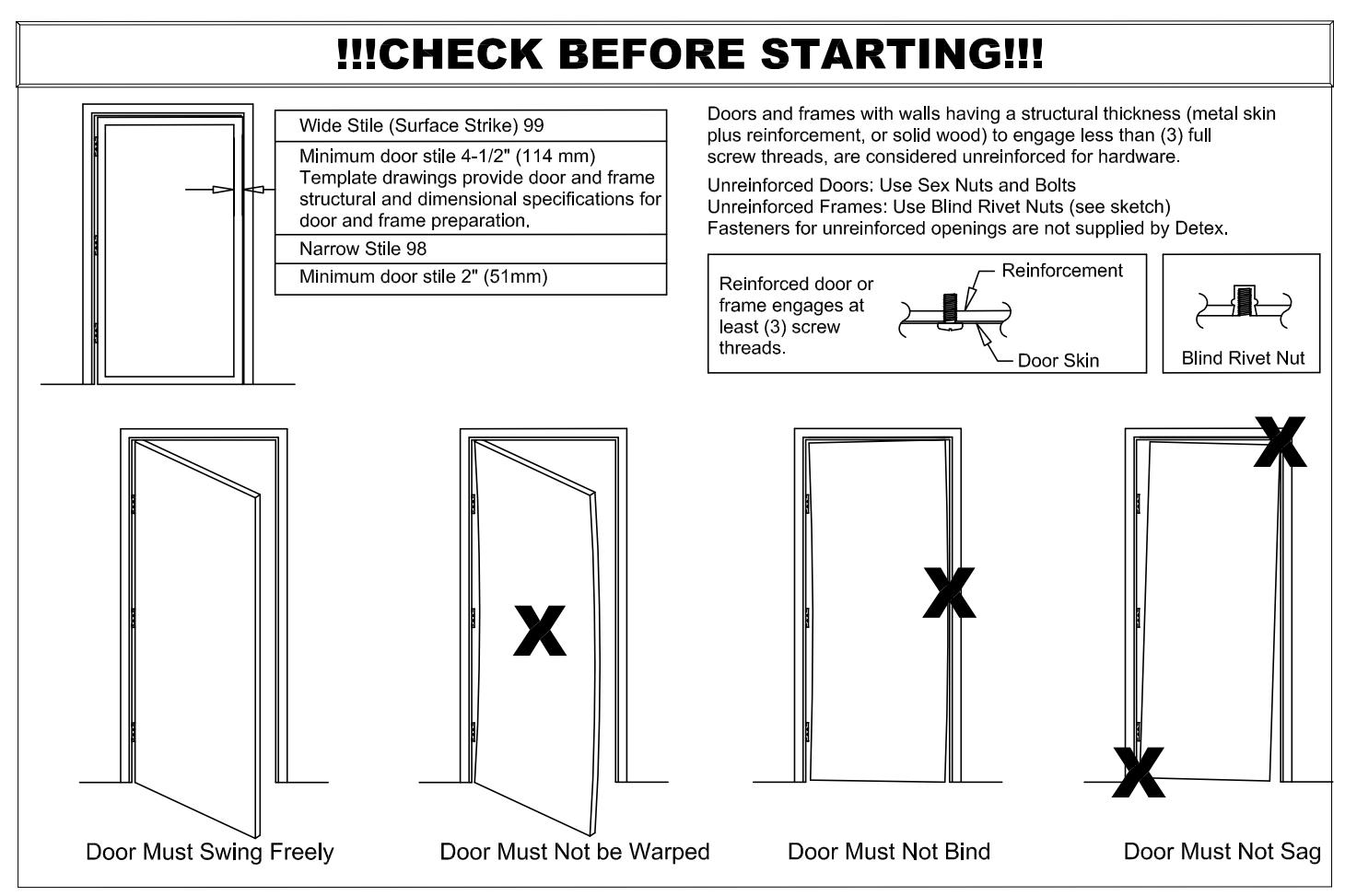

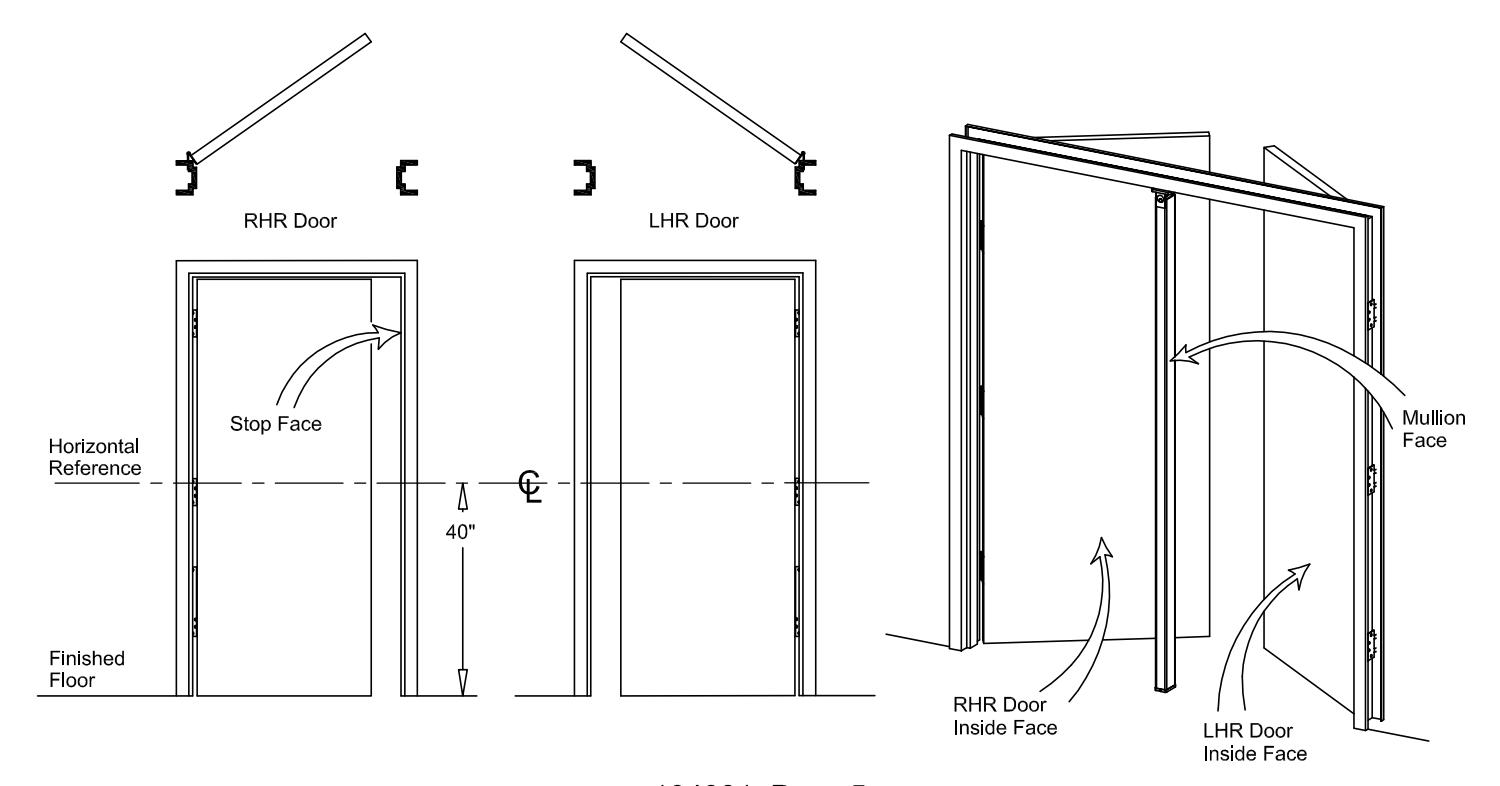

Door condition check 5

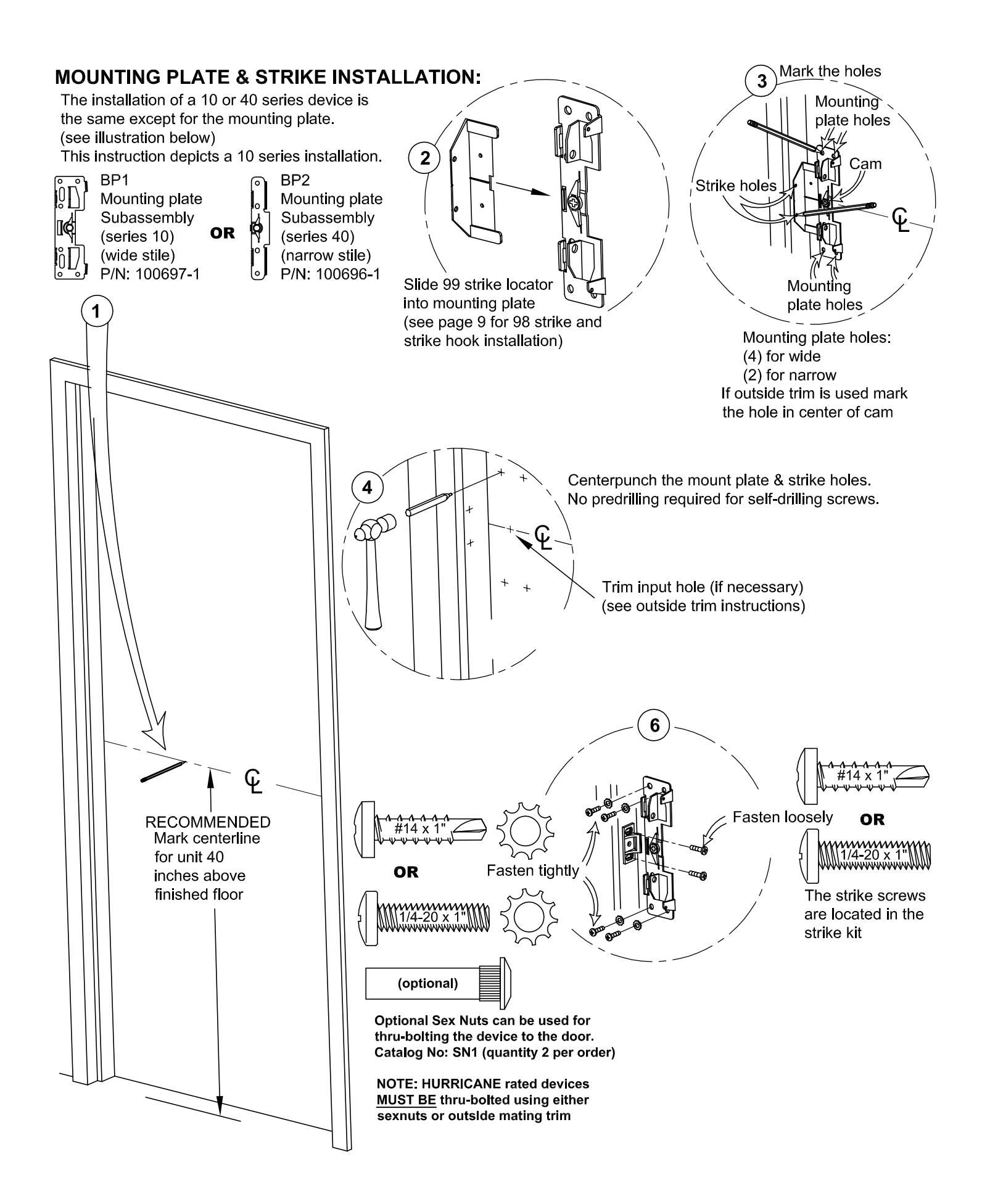

Mounting plate and strike installation 6
Device installation 7
Cut down procedure, Mortise Cylinder installation - 8

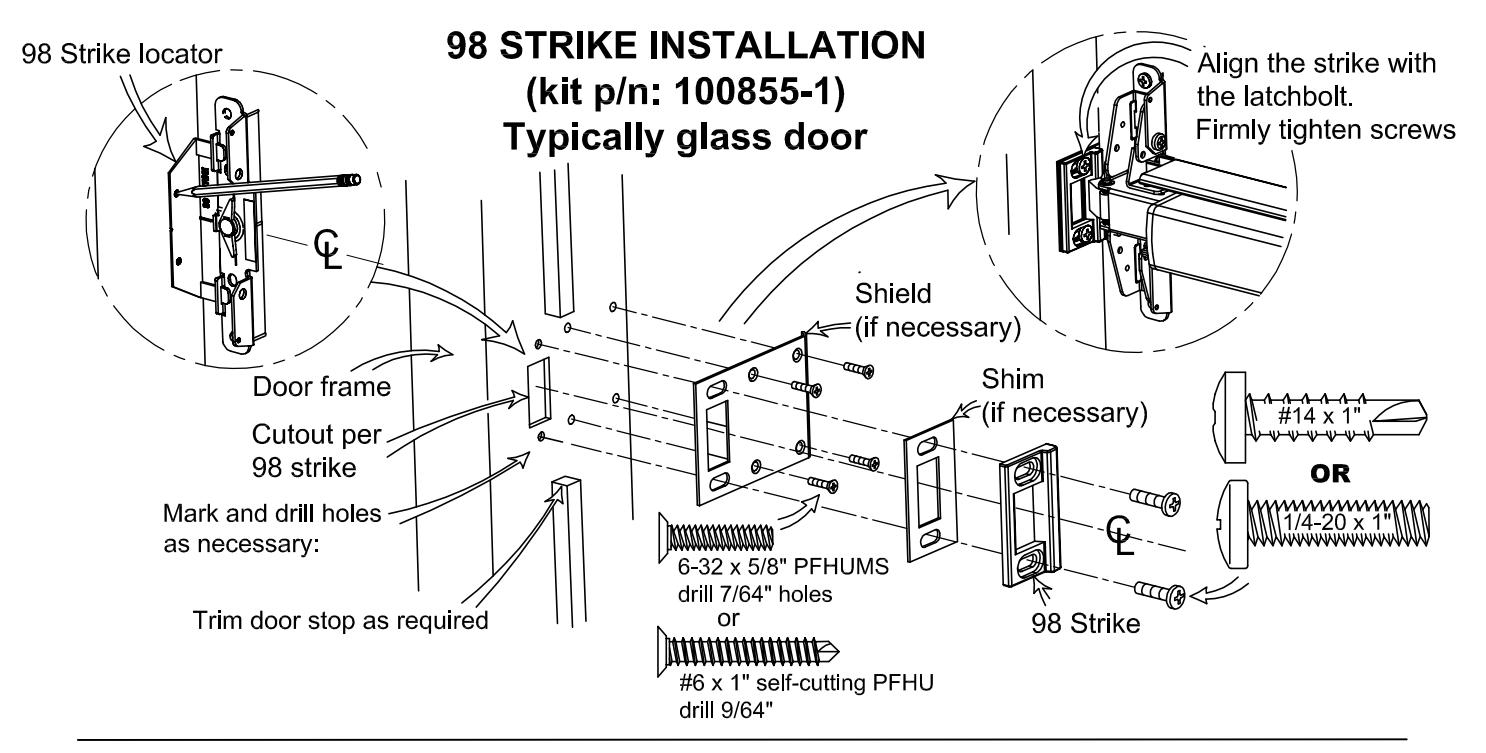

98 Strike, Strike Hook & Narrow Stile Fascia installation 9
94 Double Door Strike installation . 10
Optional Accessories 11

Should you have a Question/Problem with your Detex device please call Detex Technical Support from the job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.

For WARRANTY information, scan code below or go to www.detex.com/warranty

Owner's Copy

For device installation videos, scan code below or go to www.detex.com/videos

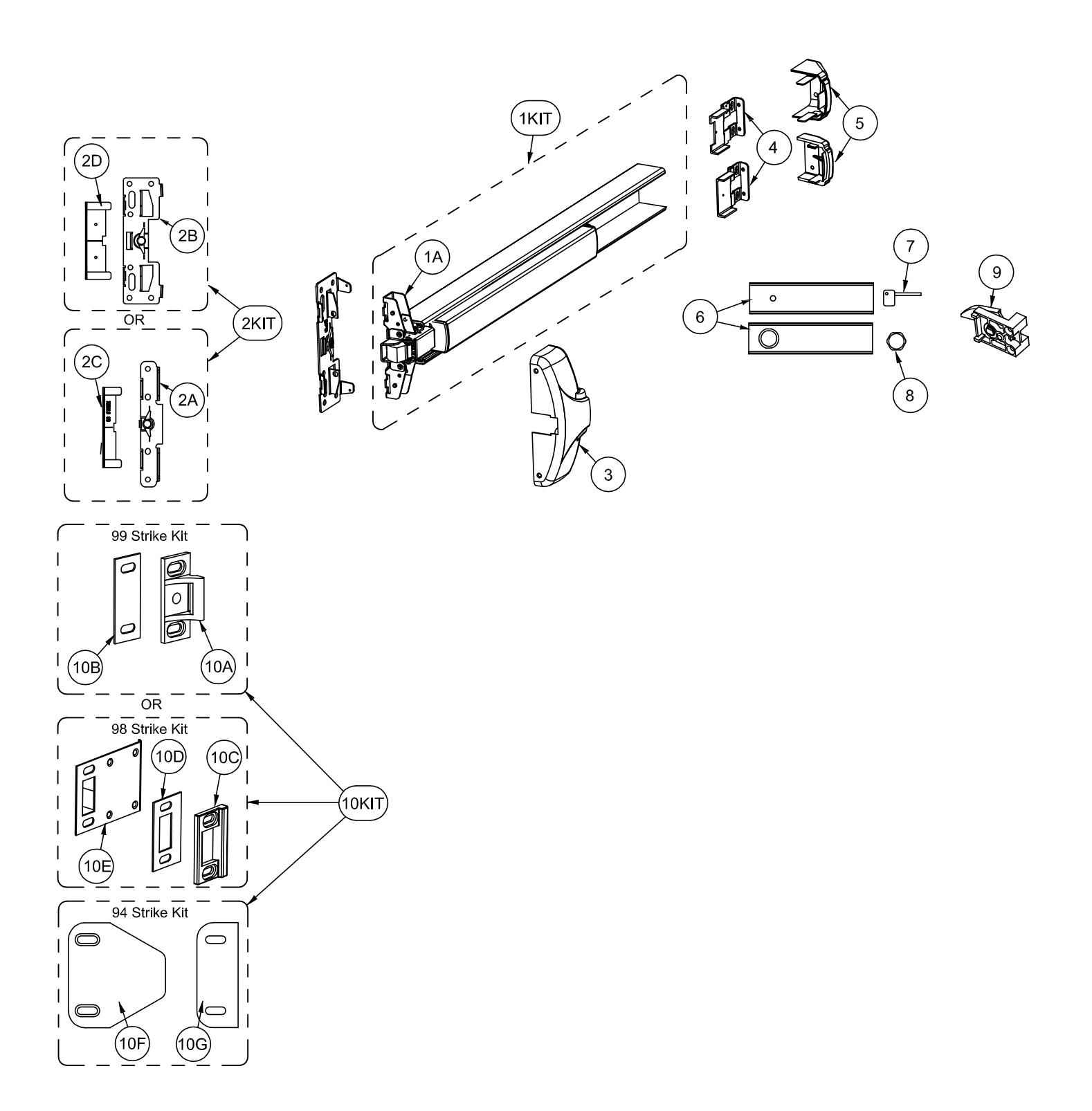

PARTS BREAKDOWN
Item Order
Part #
Description
1KIT 105500-63 Centercase/Pushpad SubAssembly, 40 series, 36", 630 (includes 1A)
105500-62 Centercase/Pushpad SubAssembly, 10 series, 36", 630 (includes 1A)
1A 100698-1 Centercase Assembly, Narrow Stile, 40 series
100698-2 Centercase Assembly, Wide Stile, 10 series
2KIT 103806-1 Mounting Plate/Strike Locator Kit, Narrow Stile (includes 2A & 2C)
103806-2 Mounting Plate/Strike Locator Kit, Wide Stile (includes 2B & 2D)
2A 100696-1 Mounting Plate, BP2, Narrow Stile
2B 100697-1 Mounting Plate, BP1, Wide Stile
2C 101899 Strike Locator 2" Glass Door (98)
2D 100212 Strike Locator, Standard (99)
100311-9 Centercase Cover, Stainless Steel, Narrow, 40 series, 630
3 100196-9 Centercase Cover, Stainless Steel, Wide, 10 series, 630
) J 104602-1 Centercase Cover, Aluminum, Narrow, 40 series, 628
104640-1 Centercase Cover, Aluminum, Wide, 10 series, 628
100147 Endcap bracket for EC1 (ramped) endcap w/o battery holder
4 101093 Endcap bracket for EC1 (ramped) endcap w/ battery holder
4 104303 Endcap bracket for EC2 (flush) endcap w/o battery holder
104636 Endcap bracket for EC2 (flush) endcap w/ battery holder
101642-9 Endcap, EC1 (ramped) Stainless Steel, 630
5 104304-9 Endcap, EC2 (flush) Stainless Steel, 630
104612-1 Endcap, EC2 (flush) Aluminum, 628
100860-54 Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 series, 36", 630
100860-49 Fillerplate, Subassembly, S&R, Cylinder Dogging, CD, 10 series, 36", 630
6 100860-100 Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 series, 36", 628
100860-137 Fillerplate, Subassembly, S&R, Hex Dogging, HD, 40 series, 36", 628
7 100450 Hex Key (for Hex Dogging)
8 100783 Cylinder Nut (for Cylinder Dogging)
102216-2 Hex Dogging Assembly
9 102216 Cylinder Dogging Assembly
100855-2 99 Strike Kit (includes 10A & 10B)
10KIT 100855-1 98 Strike Kit (includes 10C, 10D & 10E)
102212-1 94 Double Door Strike Kit (includes 10F & 10G)
10A 100234-1 Strike, Non-roller
10B 100088 Strike Shim
10C 100480 Strike, Mortise
10D 100482 Shim, Mortise Strike
10E 100481 Shield, Strike
10F 102211 Double Door Strike Plate
10G 102214 Shim, 94 strike

Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)

Hardware Table for BASIC device mounting. Additional hardware is provided per the device configuration in kit form and is addressed on the appropriate pages as required

EC1 (ramped) Device hardware kit: p/n 101438-1 for Hex Dogging (HD)

EC1 (ramped) Device hardware kit: p/n 101438-2 for Cylinder Dogging (CD)

EC2 (flush) Device hardware kit: p/n 105723-1 for Hex Dogging (HD)

EC2 (flush) Device hardware kit: p/n 105723-2 for Cylinder Dogging (CD)

Fastener Part No Drill Bit comme
P/N: 100980
1/4-20 x 1" PPH
#7 or 13/64"
P/N: 101621-5
1/4-20 x 1/4" PPHMS
#7 or 13/64"
P/N: 101632-2
10-32 x 5/16" PFHUMS
(multiple finishes included)
Jummu P/N: 100162-106
6-32 x 3/8" PFHUMS
(multiple finishes included)
P/N: 103276-63
#14 x 1" PPH self-drilling
1/8 pilot hole recommended for self-drilling screws
P/N: PP-5183-110
#14 x 1-1/4" PPH wood screw
1/8 pilot hole recommended for wood screws
P/N: PP-5067-25
#14 Lockwasher
99 Strike Kit: p/n 100855-2 or 98 Strike Kit: p/n 100855-1
P/N: 100980
1/4-20 x 1" PPH
#7 or 13/64" in both kits
P/N: 100112
10-24 x 5/8" PFHUMS
in 99 kit only
P/N: 100162-1
6-32 x 5/8" PFHUMS
in 98 kit only
P/N: 103276-63
#14 x 1" PPH
1/8 pilot hole recommended for self-drilling screws in both kits
P/N: 103277-216
#10 x 1" self-cutting PFHU
in 99 kit only
P/N: 101451-1
#6 x 1" self-cutting PFHU
in 98 kit only

Tools Required:

Safety Glasses Power Drill Tape Measure Level

Pencil Phillips & small flat Screw Drivers Hammer Combination Square

Hammer Combination Square Pliers Center Punch

1/4-20 Tap Saw for cutting device if necessary (chopsaw preferred)

104881 Page 4

NOTE: 750mm MAXIMUM DOOR WIDTH OPENING FOR EUROPE FOR 36" DEVICE 1000mm MAXIMUM DOOR WIDTH OPENING FOR EUROPE FOR 48" DEVICE THE SAFETY FEATURES OF THIS PRODUCT ARE ESSENTIAL TO IT'S COMPLIANCE WITH EN 1125. NO MODIFICATION OF ANY KIND, OTHER THAN THOSE DESCRIBED IN THESE INSTRUCTIONS ARE PERMITTED.

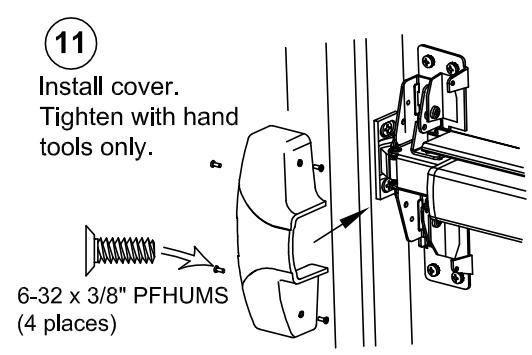

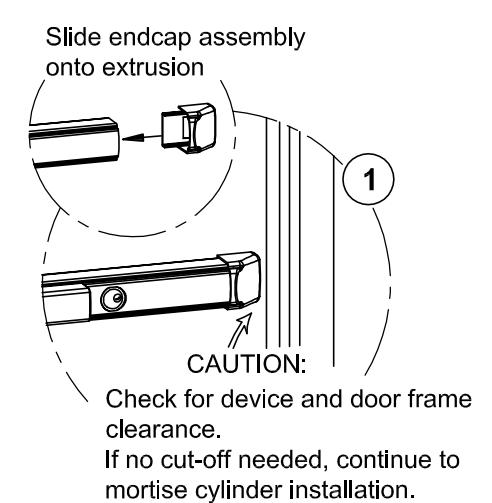

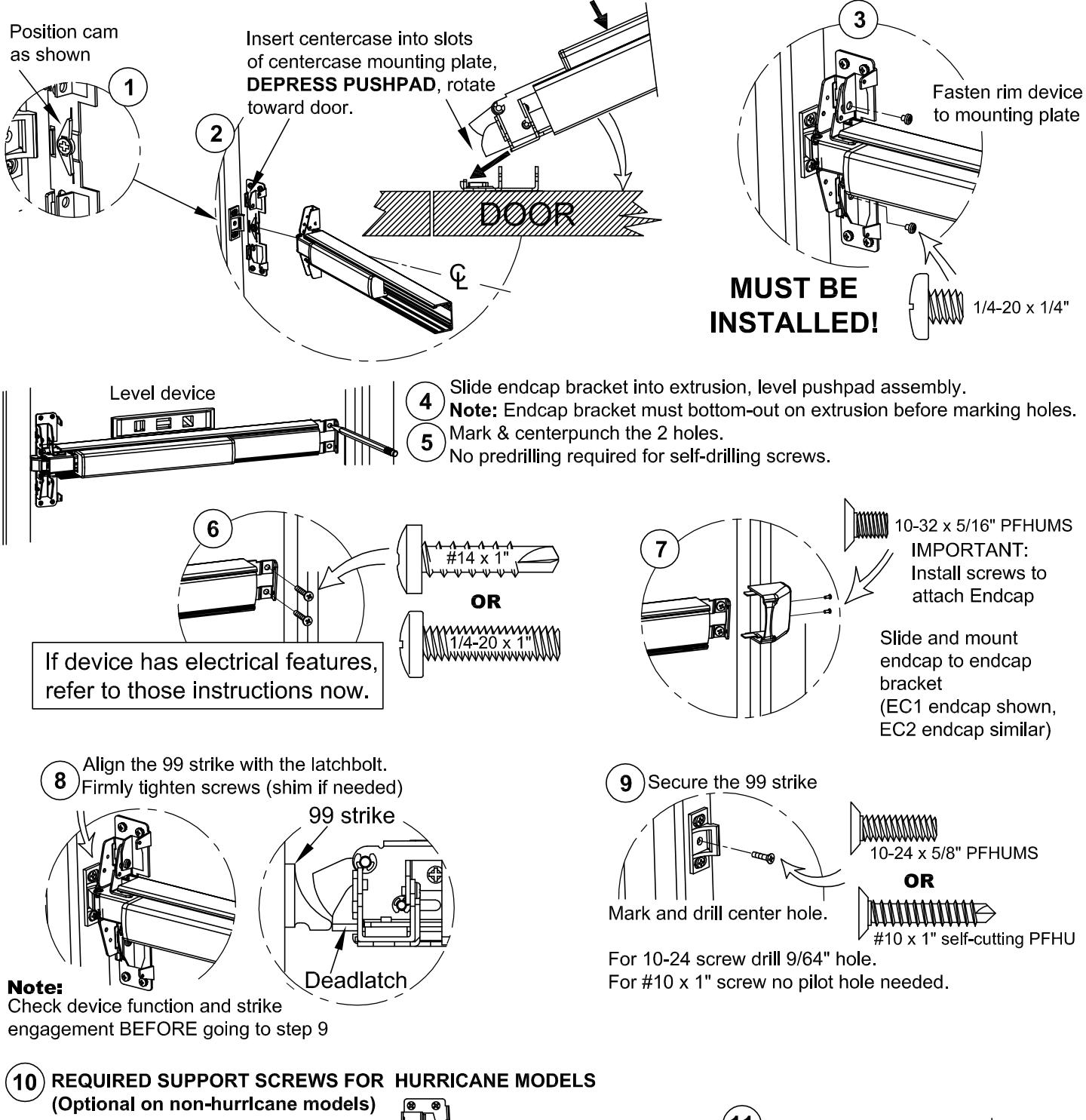

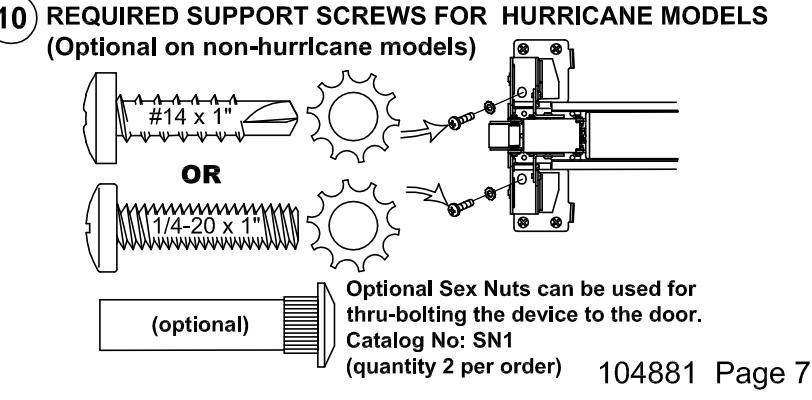

DEVICE INSTALLATION: NOTE: If device is too long, refer to next page for cut-down procedure.

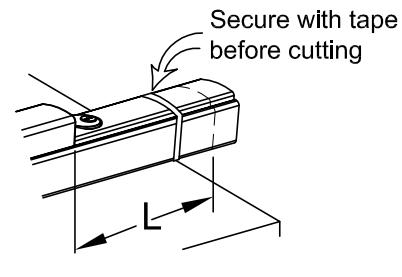

CHECKING FOR DEVICE CLEARANCE (Cut-Down procedure if required)

Cut fillerplate and extrusion STRAIGHT & SQUARE to desired length and deburr

Non-Electrified
Minimum Fillerplate
Length
Туре Length (L)
LD 2-1/2"
HD/CD 3"

For further Cut-Down information, see: www.detex.com/cutdown

For aluminum Advantex finish cutdown applications:

After cutting, the baseplate extrusion can be reversed to place the cut end inside the head cover. To do so, loosen the setscrew inside the aluminum baseplate extrusion and slide extrusion out, reverse, & slide back in. Tighten setscrew.

MORTISE CYLINDER INSTALLATION CD (Cylinder Dogging) Cylinder Installation Cylinder nut socket kit .715' p/n 103779 (sold separately) Mortise Cvlinder Mortise Cylinder with standard Yale cam required Spacers Endcap Dogging Fillerplaté Assembly Endcap Mounting Bracket Figure A1

Follow steps "a" through "g" for CD installations

  • a. Remove endcap and endcap mounting bracket.
  • b. Remove fillerplate.
  • c. Remove and discard shipping insert and nut. Loosen (2) screws from dogging assembly.
  • d. Install mortise cylinder (sold separately) with large hex nut provided.
  • e. Trial fit dogging assembly. If cylinder is too short, remove spacers as necessary and reattach them under the (2) screw heads (See Figure A1). Fasten the (2) screws to the rest of the assembly.

NOTE: The key should easily turn in both directions.

  • f. Rotate key counterclockwise
  • g. Assembly complete. Continue with Panic Hardware instruction.

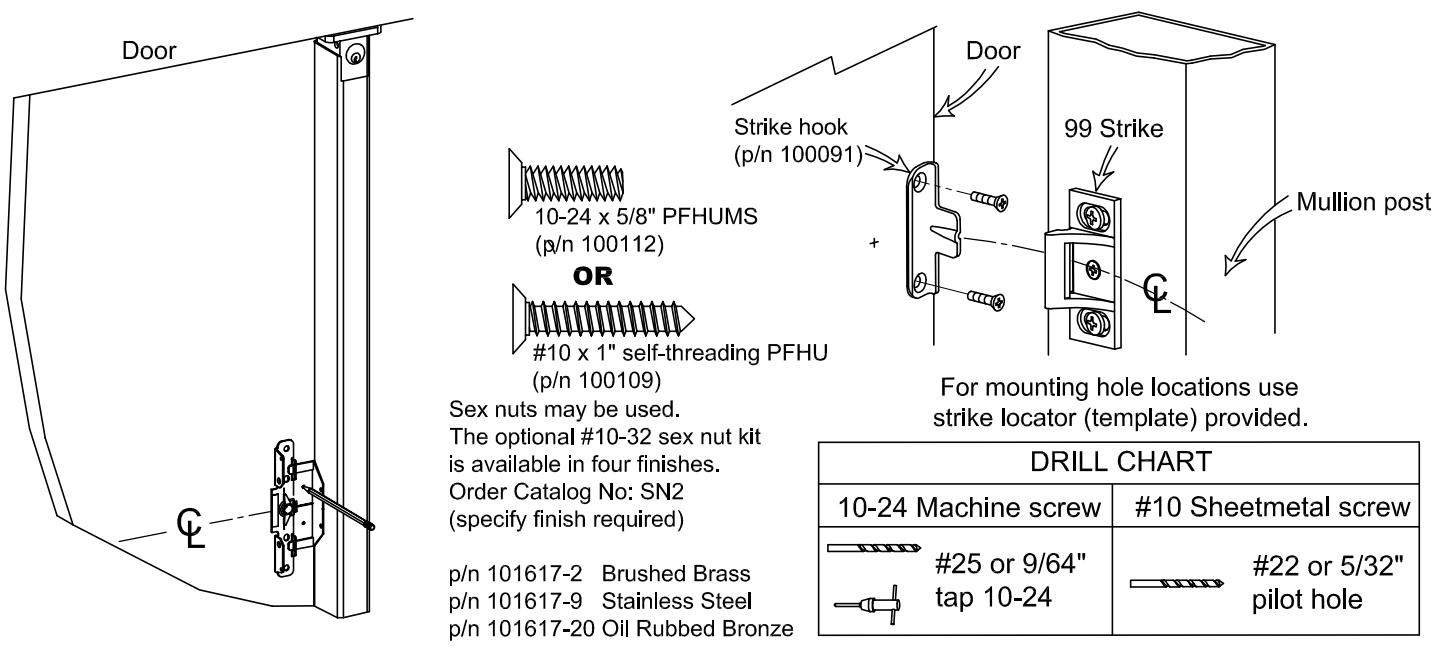

STRIKE HOOK INSTALLATION

Strike Hook Kit p/n 101795

(Caution: This installation is required on fire rated door openings with removable mullion.)

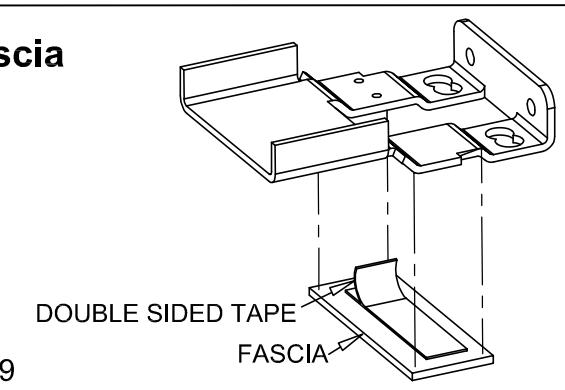

Narrow Stile Endcap Mounting Plate Fascia (For use on Glass Doors) (not used with EC2 endcap)

  • a. Remove the endcap mounting bracket.
  • b. Attach the fascia with the adhesive tape.
  • c. Re-attach the endcap mounting bracket.

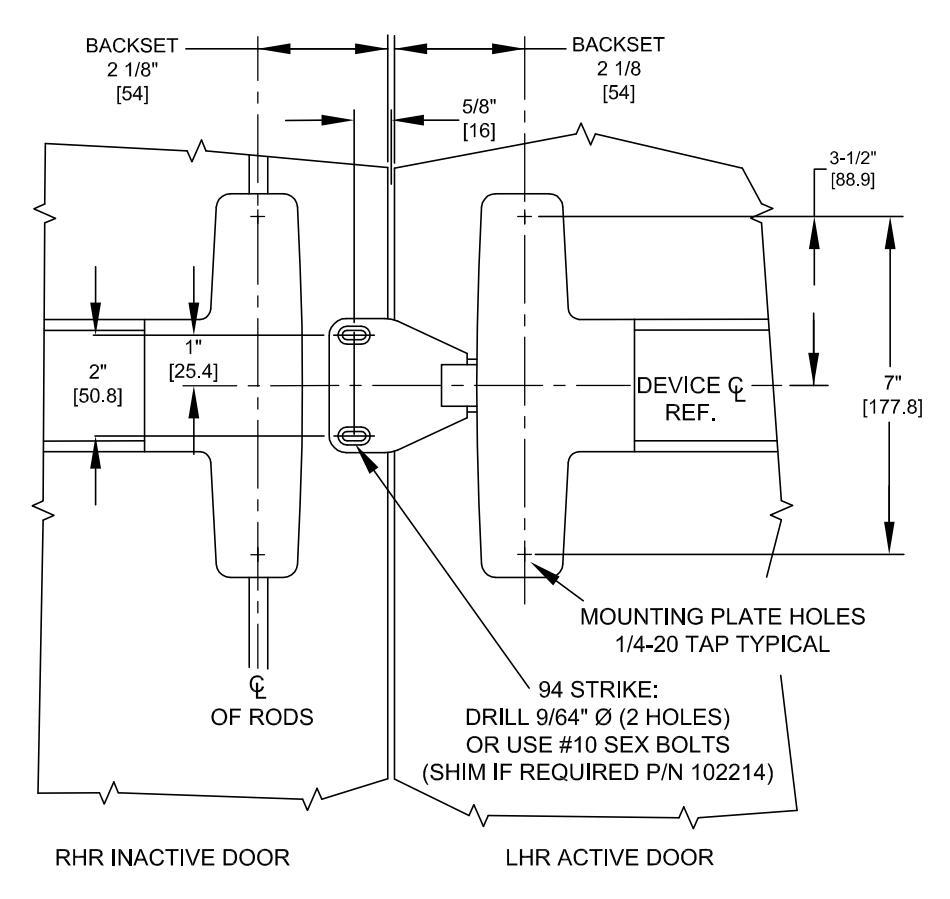

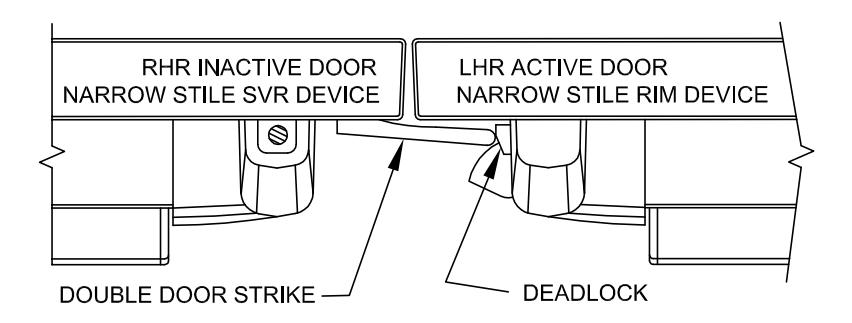

94 DOUBLE DOOR STRIKE INSTALLATION (if required)

NOTE: FOR DEVICE FUNCTION AND OTHER DIMENSIONS, SEE APPROPRIATE DEVICE AND/OR TRIM INSTRUCTIONS

THE DEVICE USED ON THE ACTIVE DOOR SHOULD BE INSTALLED SO THAT THE STRIKE WILL DEPRESS THE DEADLOCK SUFFICIENTLY TO ALLOW FOR ANY AND ALL ALARM / ELECTRONIC FUNCTIONS. ADD SHIM (P/N 102214) AS REQUIRED. TWO PROVIDED IN KIT. THE INACTIVE DOOR SHOULD CLOSE FIRST.

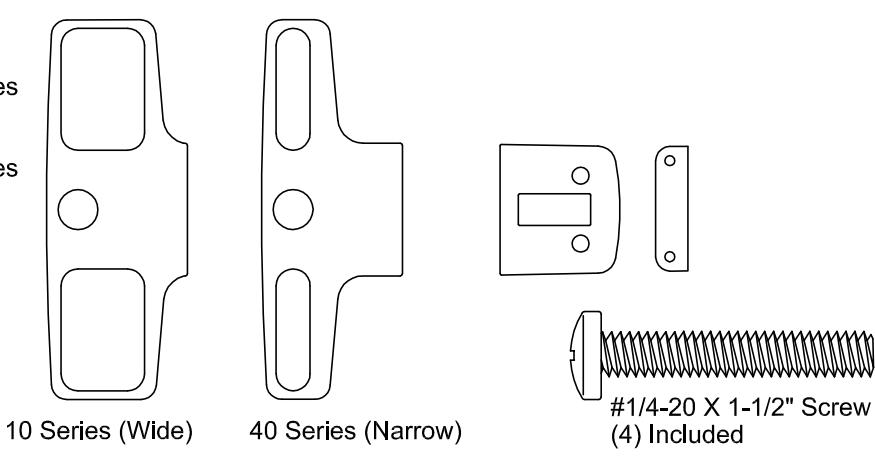

Optional Accessories

Glass Bead Kit

Catalog No: GB1 - Glass Bead Kit, 10 series

p/n: 101643

Catalog No: GB2 - Glass Bead Kit, 40 series

p/n: 101644

The #1/4-20 kit is available in (4) finishes:

Catalog No: SN1 Brushed Brass BHMA 606 Finish Catalog No: SN1 Oil Rubbed Bronze BHMA 613 Finish Catalog No: SN1 Brushed Chrome BHMA 626 Finish Catalog No: SN1 Stainless Steel BHMA 630 Finish

p/n: 101616-X

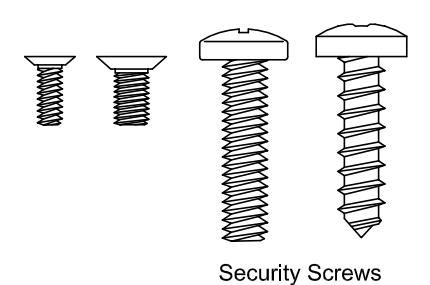

Tamper Kit

(Security Kit) Catalog No: SSK3 p/n: 101233

Security Pin TORX® Bits provided

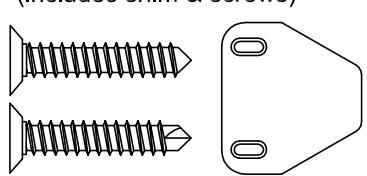

Double Door Strike Kit

Catalog No: 94 (includes shim & screws)

screws

p/n: 102212-1

Cylinder nut socket kit

p/n: 103779

The following Models in the series were evaluated by UL: Controlled Exit Panic Devices; Model 10 and 40. These devices may be suffixed with 01, 02, 03, 08, 09, or 14 followed by C, CN, D, DN, DT, DNT, DU, DNU, P, PN, W or WS, followed by BP1, BP2, BP3, BP5, BP6, BP7or BP8 followed by 605, 606, 611, 612, 613, 625, 626, 628, 629, 630, 693, 695 or 711 followed by LD or CD, followed by 605, 606, 611, 612, 613, 625, 626, 628, 629, 630, 693, 695 or 711 followed by 98 or 99, followed by 36 or 48.
