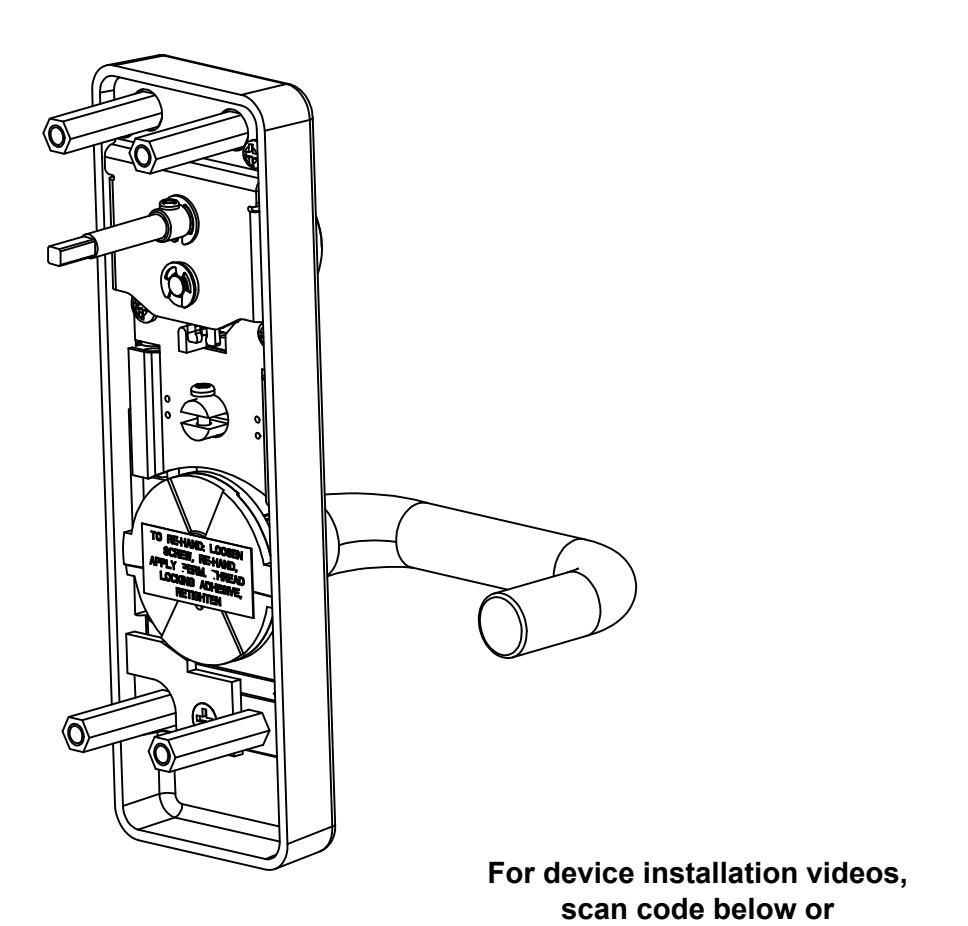

INSTALLATION INSTRUCTIONS FOR "10 FUNCTION" LEVER TRIM (10 and 30 series)
Drawing: 107123
| Table of Contents | Page |
|---|---|
| Device parts breakdown view | 2 |
| Device parts breakdown list with part numbers | 3 |
| Trim Prep | 4 |
| Door Prep Rim | 5 |
| Door Prep Mortise | 6 |
| Trim Installation | 7 |
For WARRANTY information, scan code below or go to www.detex.com/warranty
go to www.detex.com/videos
107122 Page 1

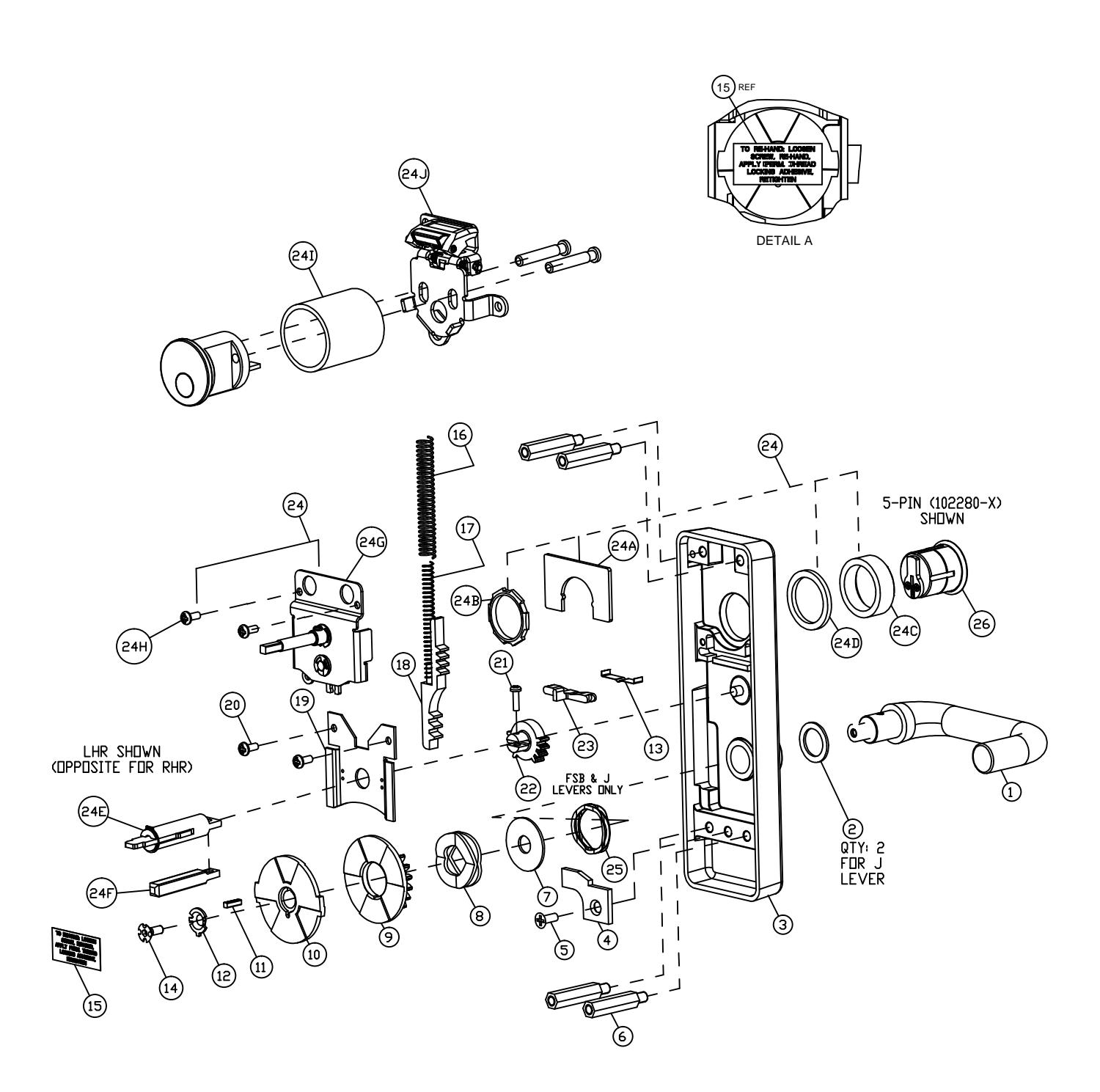

| PARTS BREAKDOWN | |||||||
|---|---|---|---|---|---|---|---|
| Item |
Order
Part # |
QTY | Description | ||||
| 106494-8 | LEVER ASSY, J, LHR, 629 | ||||||
| 106494-9 | LEVER ASSY, J, LHR, 630 | ||||||
| 106495-8 | LEVER ASSY, J, RHR, 629 | ||||||
| 106495-9 | LEVER ASSY, J, RHR, 630 | ||||||
| l ⊢ | 105965-1016 | LEVER ASSY, FSB, 1016, 630 | |||||
| 105965-1035 | LEVER ASSY, FSB, 1035, 630 | ||||||
| 105965-1058 | LEVER ASSY, FSB, 1058, 630 | ||||||
| 105965-1075 | LEVER ASSY, FSB, 1075, 630 | ||||||
| 105965-1076 | LEVER ASSY, FSB, 1076, 630 | ||||||
| 105965-1093 | LEVER ASSY, FSB, 1093, 630 | ||||||
| 105965-1108 | LEVER ASSY, FSB, 1108, 630 | ||||||
| 105965-1119-1 | LEVER ASSY, FSB, 1119, RHR, 630 | ||||||
| 1 | 105965-1119-2 | 1 | LEVER ASSY, FSB, 1119, LHR, 630 | ||||
| 105965-1147 | LEVER ASSY, FSB, 1147, 630 | ||||||
| 106264-7 | LEVER ASSY, Q, 626 | ||||||
| 106264-14 | LEVER ASSY, Q, 693 | ||||||
| 106264-15 | LEVER ASSY, Q, 695 | ||||||
| 101376-7 | LEVER ASSY, S, 626 | ||||||
| 101376-14 | LEVER ASSY, S, 693 | ||||||
| 101376-15 | LEVER ASSY, S, 695 | ||||||
| 101375-7 | LEVER ASSY, U, 626 | ||||||
| 101375-14 | LEVER ASSY, U, 693 | ||||||
| 101375-15 | LEVER ASSY, U, 695 | ||||||
| 101374-7 | LEVER ASSY, T, 626 | ||||||
| 101374-14 | LEVER ASSY, T, 693 | ||||||
| 101374-15 | LEVER ASSY, T, 695 | ||||||
| 106603 | 2 | WASHER, FLAT, 1"x0.02 THK (J LEVER ONLY) | |||||
| 2 | 100851 | 1 | WASHER, FLAT, 1"x0.06 THK (ALL EXCEPT J LEVER) | ||||
| 103344-7 | EXCUTCHEON ASY 08D BP1 10 FUNC IND, 626 | ||||||
| 103344-9 | EXCUTCHEON ASY 08D BP1 10 FUNC IND, 630 | ||||||
| 3 | 103344-14 | 1 | EXCUTCHEON ASY 08D BP1 10 FUNC IND, 693 | ||||
| 103344-15 | EXCUTCHEON ASY 08D BP1 10 FUNC IND, 695 | ||||||
| 4 | 100771 | 1 | STOP, ROTATIONAL | ||||
| 5 | PP-5305-108 | 1 | SCREW, MACH, 10-24 X 1/2 PFH | ||||
| 6 | 100777 | 4 | STANDOFF, HEX | ||||
| 7 | 100775 | 1 | WASHER, FLAT | ||||
| 8 | 103047 | 1 | CLUTCH SPRING | ||||
| 9 | 103043 | 1 | BOTTOM GEAR, WIDE | ||||
| 10 | 103044 | 1 | TORQUE PLATE, WIDE | ||||
| 11 | 103994 | 1 | KEY, SHEAR PIN, STEEL | ||||
| 12 | 100821 | 1 | WASHER CLUTCH | ||||
| 13 | 100773 | 1 | FLAT SPRING LOCKING | ||||
| 14 | 102536-1 | 1 | SCREW, 10-24, CUSTOM | ||||
| 15 | 103029 | 1 | LABEL, REHANDING | ||||
| 16 | 100766 | 1 | SPRING, RETURN | ||||
| 17 | 101509 | 1 | SPRING, RETURN, HELPER | ||||
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)
| PARTS BREAKDOWN CONTINUED | |||||
|---|---|---|---|---|---|
| Item |
Order
Part # |
QTY | Description | ||
| 18 | 101436 | 1 | RACK ASSEMBLY | ||
| 19 | 100753 1 | COVER PLATE | |||
| 20 | PP-5378-106 | 2 | SCREW, MACH, 8-32 x 3/8 PPH | ||
| 21 | PP-5367-108 | 1 | SCREW, MACH, 6-32 x 1/2 PPH | ||
| 22 | 100762 | 1 | TOP GEAR | ||
| 23 | 101993 | 1 | LOCK SLIDE | ||
| 107112-5 | HARDWARE KIT 08D TRIM 10 FUNC LHR, 613, RIM | ||||
| 107112-7 | 1 | HARDWARE KIT 08D TRIM 10 FUNC LHR, 626, RIM | |||
| 107112-12 | HARDWARE KIT 08D TRIM 10 FUNC LHR, 613, MORTISE | ||||
| 24KIT | 107112-14 | HARDWARE KIT 08D TRIM 10 FUNC LHR, 626, MORTISE | |||
| 24KH | 107113-5 | ' | HARDWARE KIT 08D TRIM 10 FUNC RHR, 613, RIM | ||
| 107113-7 | HARDWARE KIT 08D TRIM 10 FUNC RHR, 626, RIM | ||||
| 107113-12 | HARDWARE KIT 08D TRIM 10 FUNC RHR, 613, MORTISE | ||||
| 107113-14 | HARDWARE KIT 08D TRIM 10 FUNC RHR, 626, MORTISE | ||||
| 24A | 100754 | 1 | PLATE, CYLINDER POSITION | ||
| 24B | 100783 | 1 | NUT, HEXAGON, CYLINDER | ||
| 24C | 103332-7 | 1 | CYLINDER COLLAR, 5-PIN, CHROME 626 | ||
| 24D | D 103346-7 3 CYLINDER | CYLINDER COLLAR, 1/8, CHROME 626 | |||
| 24E | 101478 | 1 | SHAFT EXTENSION ASSEMBLY | ||
| 24F | 103218 | 1 | SHAFT, INPUT (MORTISE) | ||
| 24G | 4G 107110-1 1 TRIM GEAR ASY 10-FUNCTION | TRIM GEAR ASY 10-FUNCTION | |||
| 24H | 4H PP-5378-106 2 SCREW, MACH, 8-32 x 3/8 PPH | SCREW, MACH, 8-32 x 3/8 PPH | |||
| 241 | NO SALE | 1 | COLLAR, CYLINDER | ||
| 24J | 107114-1 | 1 | CYL BRKT ASY, 10-FUNCTION IND LHR | ||
| 24J | 107115-1 | | ' | | CYL BRKT ASY, 10-FUNCTION IND RHR | ||
| 25 | NO SALE | 1 | WASHER, WAVE | ||
| FOR ITEM 26 | 26 | 103800-612 | 1 | CYLINDER HOUSING, MORTISE, 7 PIN, BRONZE | |
| "-X" REFERS TO | 103800-613 | CYLINDER HOUSING, MORTISE, 7 PIN, OIL RUB BRONZE | |||
| KEY CODE | 103800-626 | CYLINDER HOUSING, MORTISE, 7 PIN, CHROME | |||
| AA THRU KK | 102281-4-X | CYLINDER, MORTISE, 5 PIN, BRONZE | |||
| AA IIIKO KK | 102281-5-X | CYLINDER, MORTISE, 5 PIN, OIL RUB BRONZE | |||
| 102281-7-X | CYLINDER, MORTISE, 5 PIN, CHROME | ||||
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)

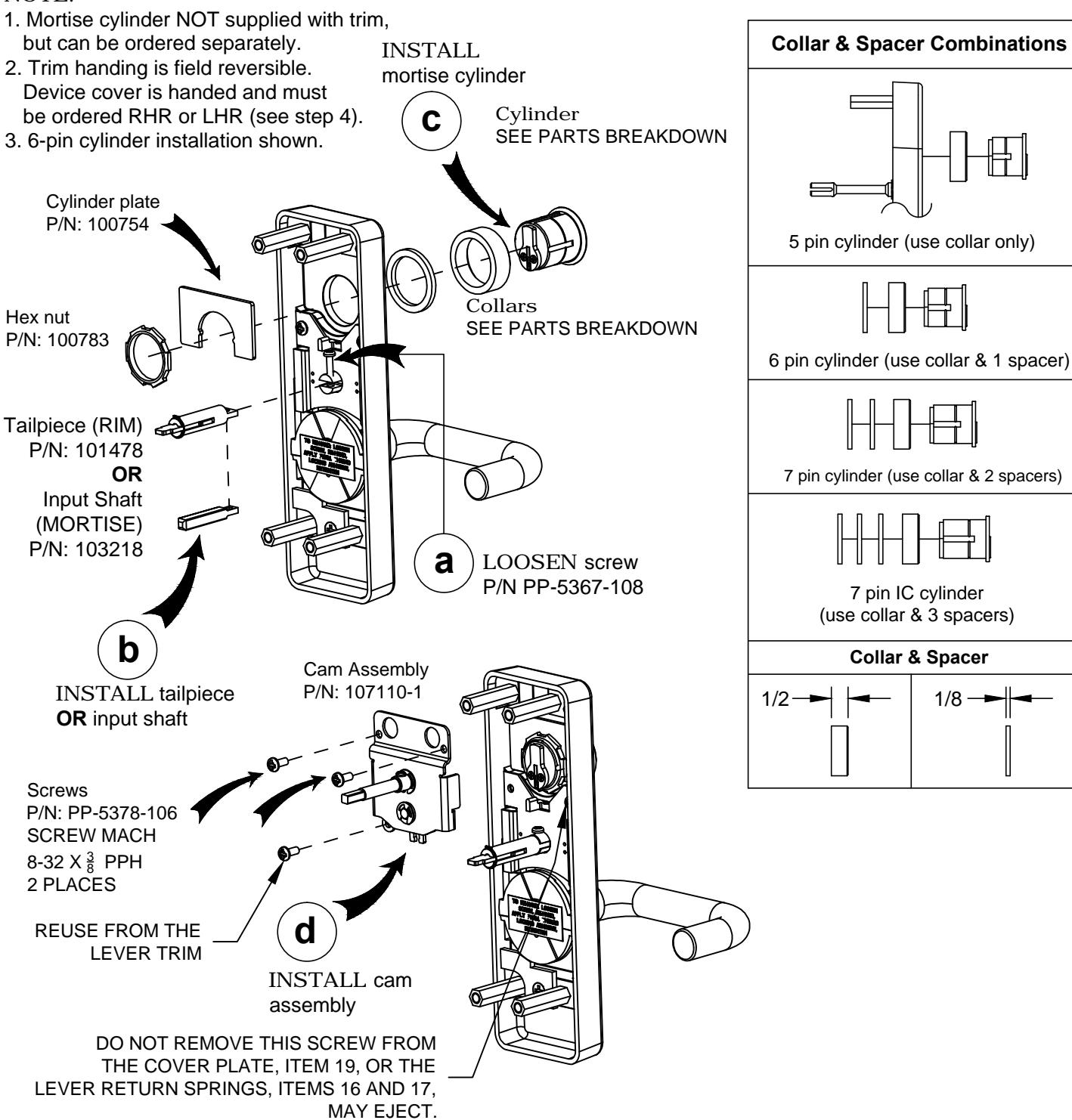

STEP 1: PREP TRIM
NOTE:

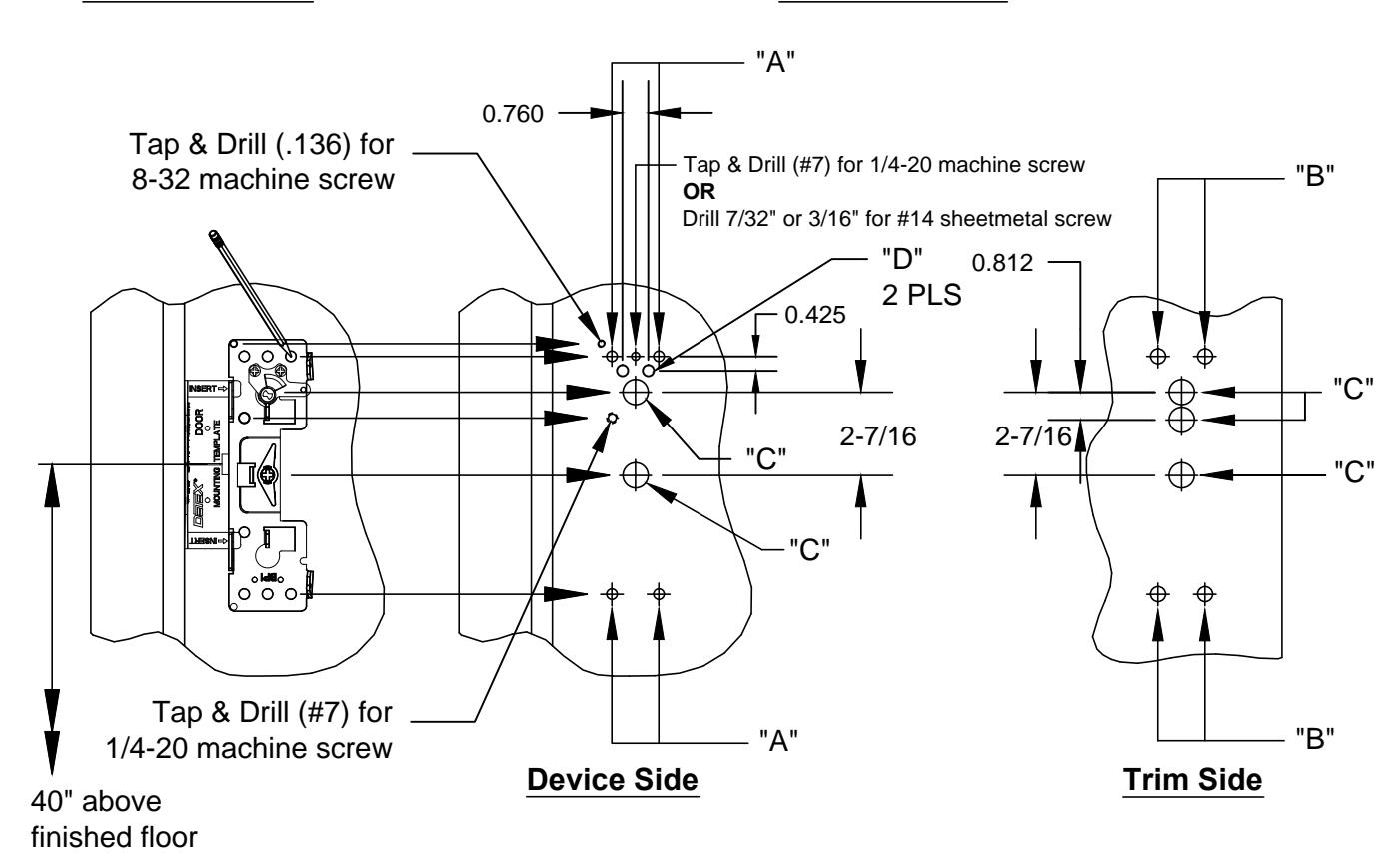

STEP 2: PREP DOOR (Rim)
Mark and drill holes
(LHR installation shown, reverse all steps for RHR)
| (Metal Doors Only) | ||||||
|---|---|---|---|---|---|---|
| Hole "A" | Hole "B" | Hole "C" | Hole "D" | |||
|
DRILL 5/16 hole
through Device Side |
DRILL 1/2 hole
through Trim Side |
DRILL 3/4 hole through
Trim & Device Side |
DRILL 1/4 hole through
Device Side |
|||
| 5/16" | 1/2" | 3/4" | 1/4" | |||

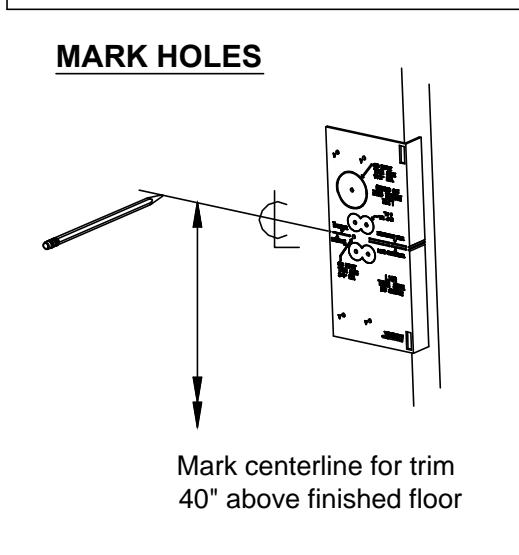

MARK HOLES
DRILL HOLES

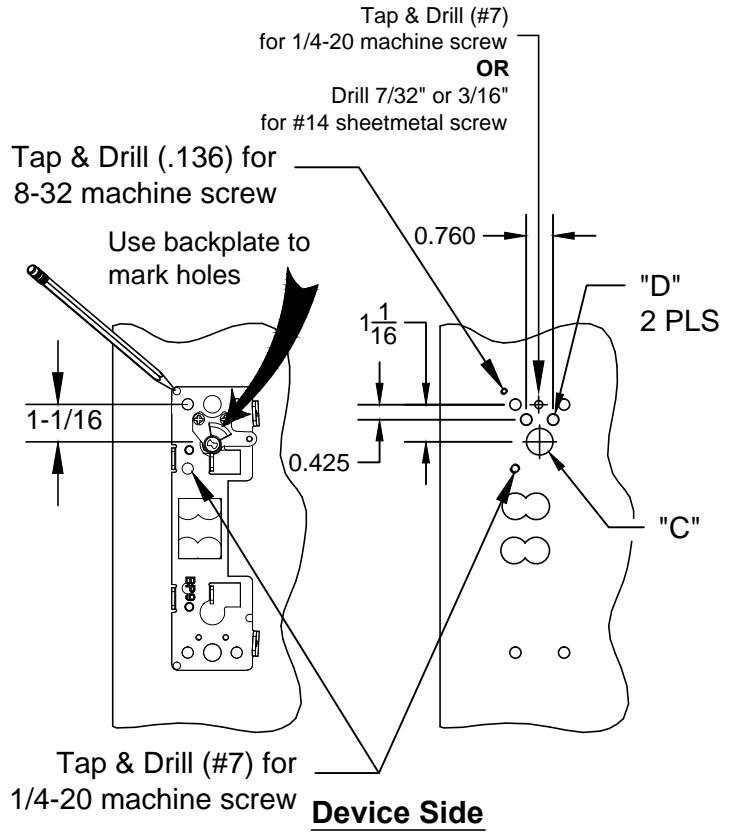

STEP 2: PREP DOOR (Mortise)

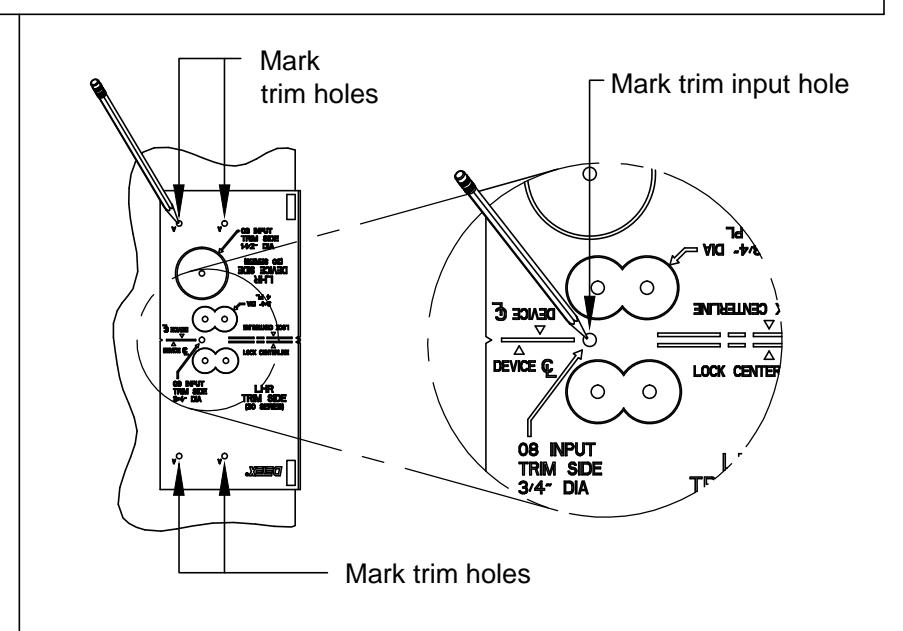

TRIM SIDE: Use plastic template to mark and drill TRIM holes
(LHR installation shown, reverse all steps for RHR)

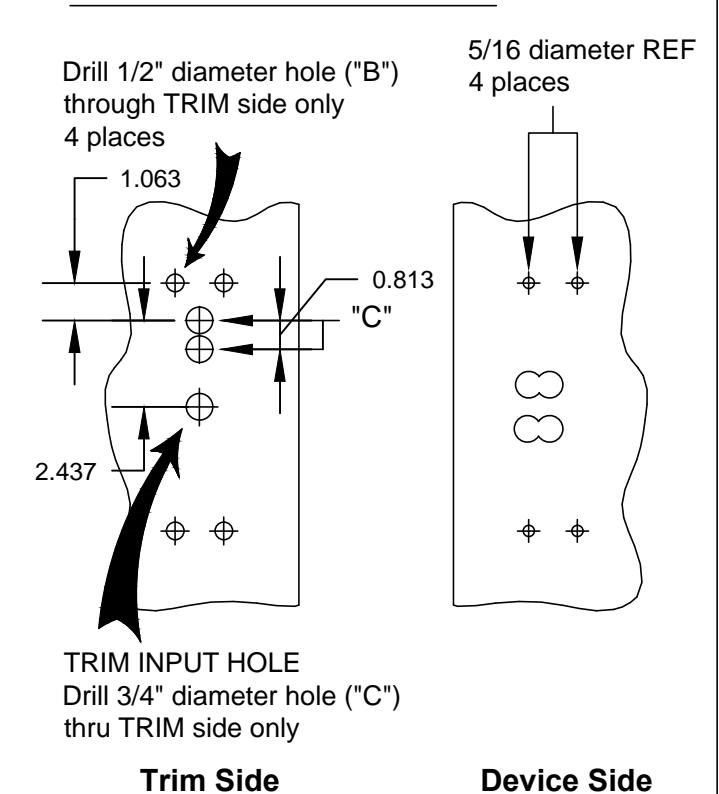

DRILL HOLES ON TRIM SIDE
NOTE:
1) For a retrofit application, remove mortise lock (if required) and device before installing new trim.

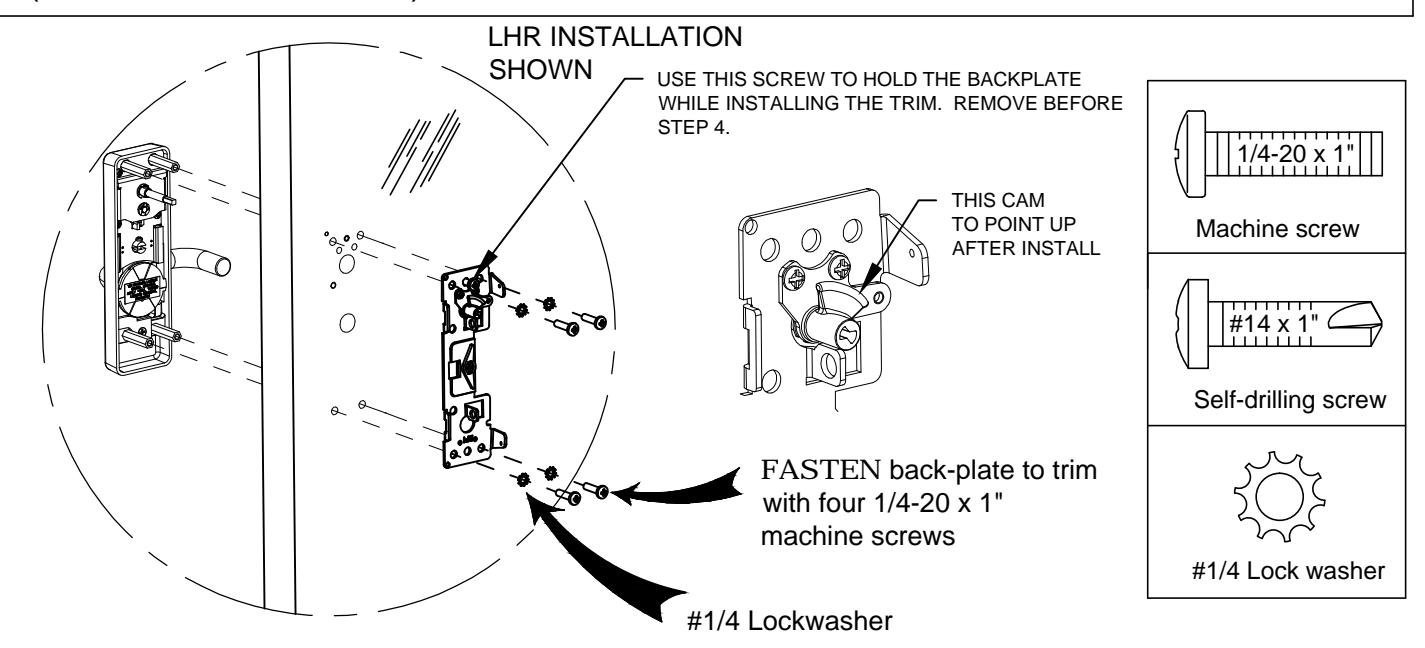

STEP 3: INSTALL TRIM
(RIM installation shown)

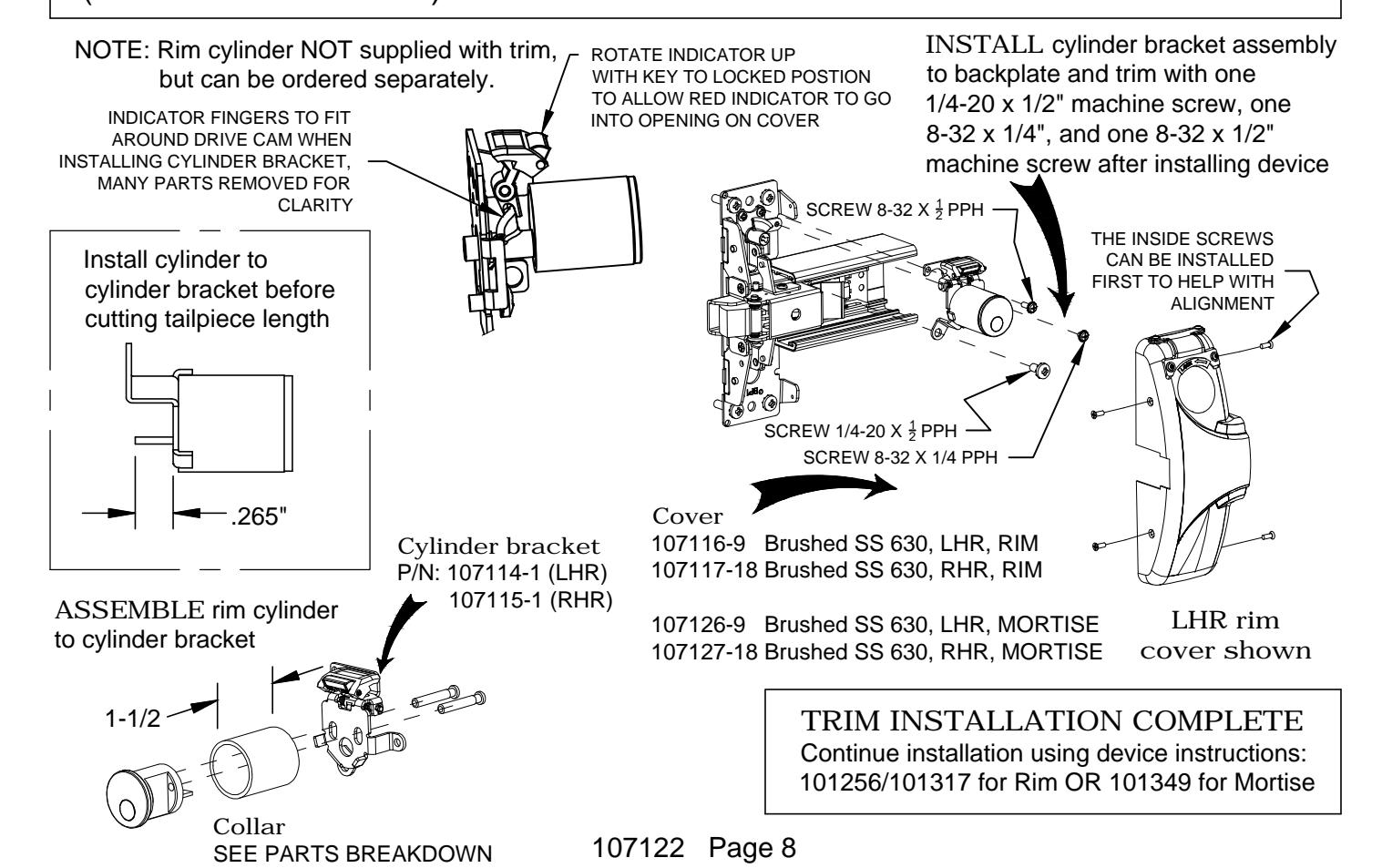

STEP 4: INSTALL DEVICE AND BRACKET ASSEMBLY (RIM installation shown)
