Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 08D x 2W, 09D x 2W and 14D x 2W TRIM
drawing 105665: 08D x 2W drawing 105666: 09D x 2W drawing 105668: 14D x 2W
| Table of Contents | Page |
|---|---|
| Device parts breakdown view | 2 |
| Device parts breakdown list with part numbers | 3 |
| Prep Trim, Prep Door | 4 |
| Install Trim | 5 |
| Rehanding | 6 |
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos

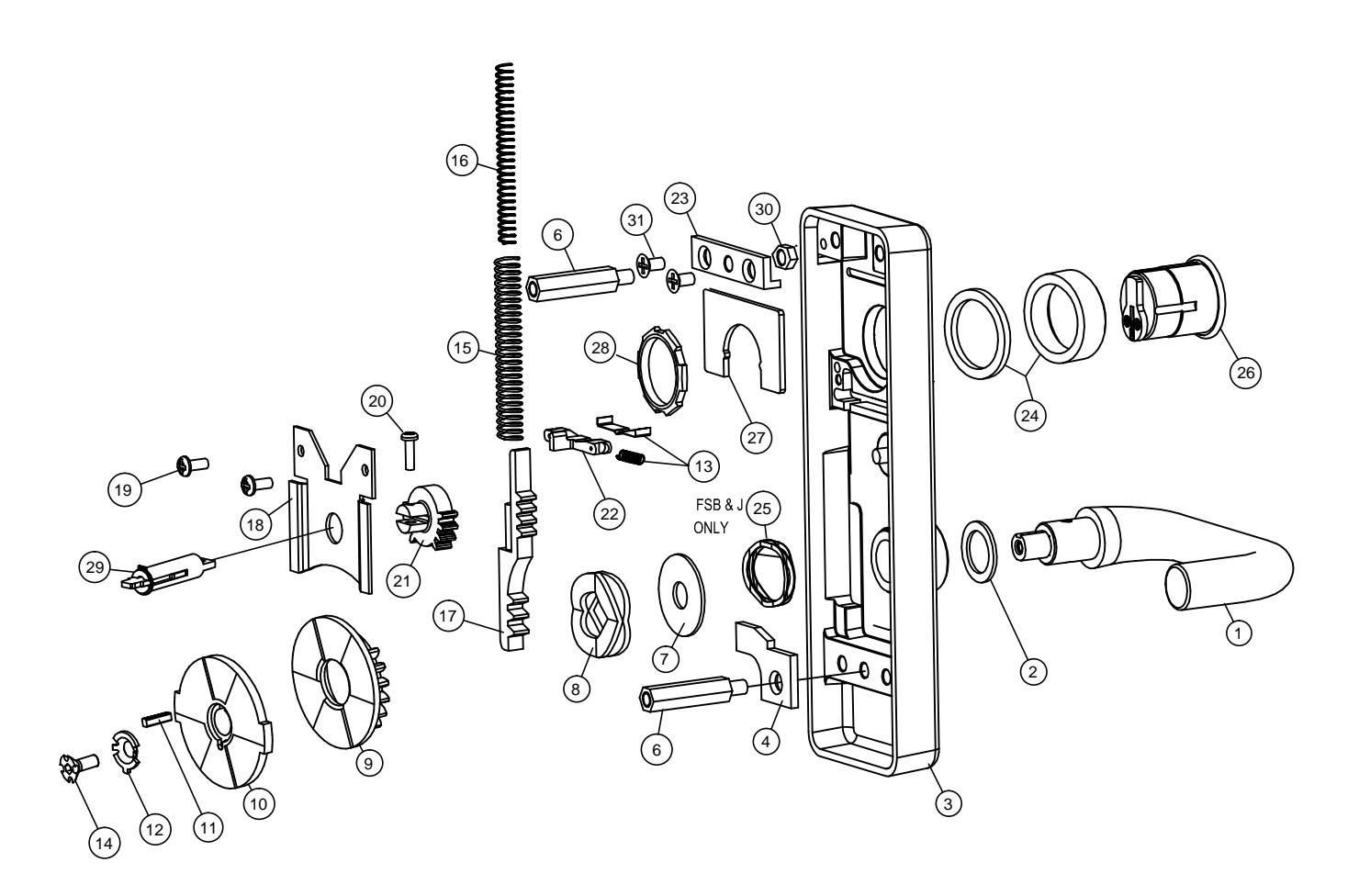

LHR ASSEMBLIES SHOWN
RHR assemblies opposite
| PARTS BREAKDOWN | |||||
|---|---|---|---|---|---|
| Item | P/N | QTY | Description | ||
| - | 1 - | 106264-7 | 1 | LEVER ASSY, Q, 626 | |
| 106264-14 | LEVER ASSY, Q, 693 | ||||
| 106264-15 | LEVER ASSY, Q, 695 | ||||
| 101376-7 | LEVER ASSY, S, 626 | ||||
| 101376-14 | LEVER ASSY, S, 693 | ||||
| 101376-15 | LEVER ASSY, S, 695 | ||||
| 101375-7 | LEVER ASSY, U, 626 | ||||
| 101375-14 | LEVER ASSY, U, 693 | ||||
| 101375-15 | LEVER ASSY, U, 695 | ||||
| 101374-7 | LEVER ASSY, T, 626 | ||||
| 101374-14 | LEVER ASSY, T, 693 | ||||
| 101374-15 | LEVER ASSY, T, 695 | ||||
| 2 | 106603 | 2 | WASHER, FLAT, 1"x0.02 THK (J LEVER ONLY) | ||
| 2 | 100851 | 1 | WASHER, FLAT, 1"x0.06 THK (ALL EXCEPT J LEVER) | ||
| 2 | 105664-9 | 4 | ESCUTCHEON ASSY, 08Dx2W / 09Wx2W, BP2, 630 FINISH | ||
| 3 | 105669-9 | 1 | ESCUTCHEON ASSY, 14Dx2W, BP2, 630 FINISH | ||
| Γ | 4 | 100771 | 1 | STOP, ROTATIONAL | |
| 6 | 104220 | 2 | STANDOFF, HEX, BP2, EU | ||
| 7 | 100775 | 1 | WASHER, FLAT | ||
| Ī | 8 | 103047 | 1 | CLUTCH SPRING | |
| 9 | 103043 | 1 | BOTTOM GEAR, WIDE | ||
| 10 | 103044 | 1 | TORQUE PLATE, WIDE | ||
| 11 | 103994 | 1 | KEY, SHEAR PIN, STEEL | ||
| 12 | 100821 | 1 | WASHER CLUTCH | ||
| 13 | 100773 | 1 | FLAT SPRING LOCKING (08D function only) | ||
| 13 | 101997 | ' | SPRING, COMPRESSION (09D function only) | ||
| 14 | 102536-1 | 1 | SCREW, 10-24, CUSTOM | ||
| 15 | 100766 | 1 | SPRING, RETURN | ||
| 16 | 101509 | 1 | SPRING, RETURN, HELPER | ||
| 17 | 101436 | 1 | RACK ASSEMBLY | ||
| 18 | 100753 | 1 | COVER PLATE | ||
| 19 | PP-5378-106 | 2 | SCREW, MACH, 8-32 x 3/8 PPH | ||
| 20 | PP-5367-108 | 1 | SCREW, MACH, 6-32 x 1/2 PPH | ||
| 21 | 100762 | 1 | TOP GEAR | ||
| 22 | 101993 | 1 | LOCK SLIDE (08D / 09D only) | ||
| 23 | 104214 | 1 | ADAPTER PLATE, BP2, EU | ||
| - | 100572-9 | 1 | CYLINDER COLLAR, SHORT | ||
| 24 | 100752-9 | 1 | CYLINDER COLLAR, TALL | ||
| 25 | 105964 | 1 | WASHER, WAVE | ||
| 26 | 103800-626 | CYLINDER HOUSING, SFIC, MORTISE, 7 PIN, CHROME | |||
| 102281-7-X | 1 | CYLINDER, MORTISE, 5 PIN, CHROME | |||
| 27 | 100754 | 1 | PLATE, CYLINDER POSITION | ||
| ſ | 28 | 100783 | 1 | NUT, HEXAGON, CYLINDER | |
| ſ | 29 | 101478 | 1 | SHAFT EXTENSION ASSEMBLY | |
| ſ | 30 | 104224-14 | 1 | LOCKNUT, 1/4-20, NYLON INSERT | |
| Г | 1000010 | _ | |||
SCREW, 1/4-20 x 3/8 PFH, UNDERCUT
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)
Tools Required:
Safety Glasses Power Drill Tape Measure Level Pencil Center Punch Hammer #2 and #3 Phillips Screw Drivers Drill bits: 5/16" 1/2"
3/4"
FOR ITEM 26 "-X" REFERS TO KEY CODE AA-KK
102264-2

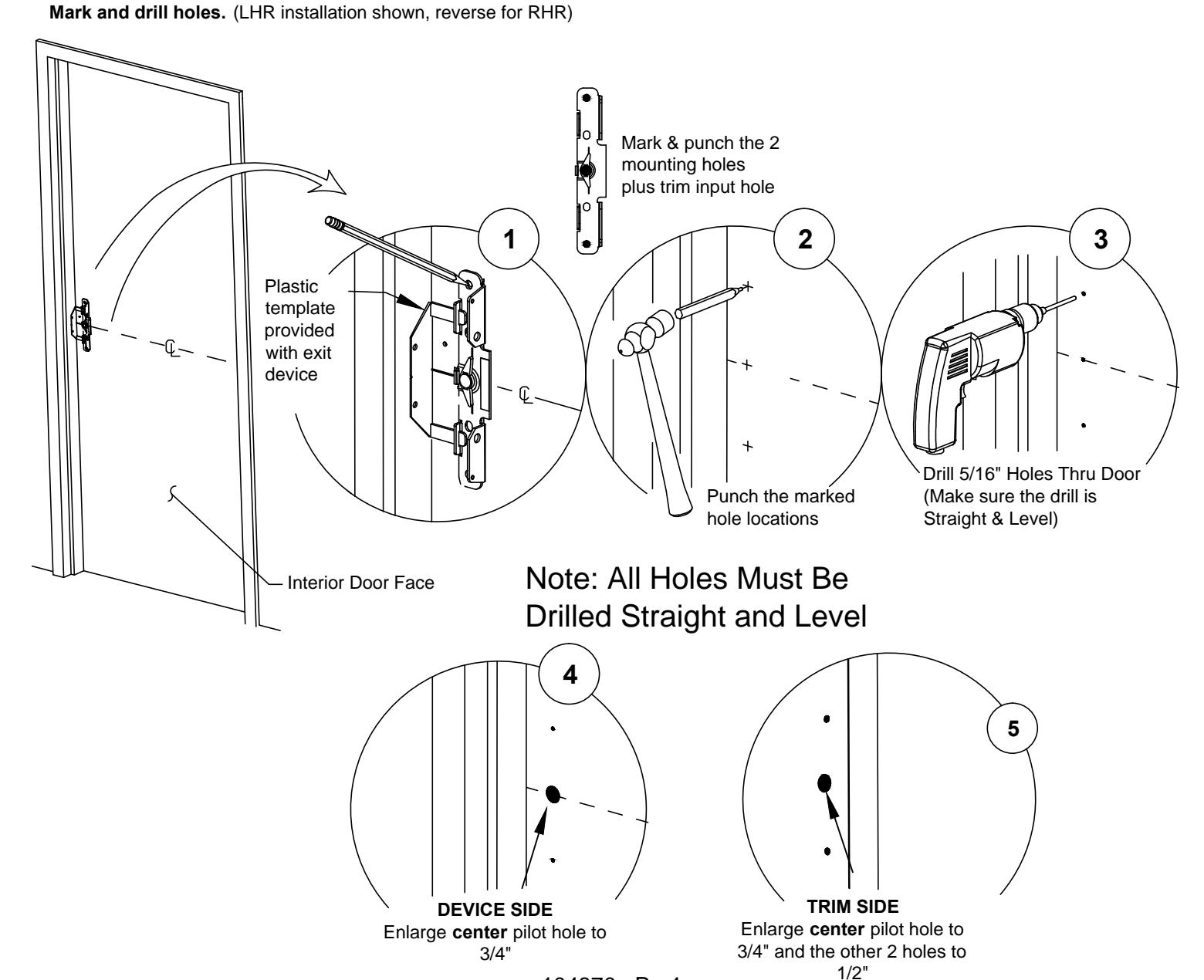

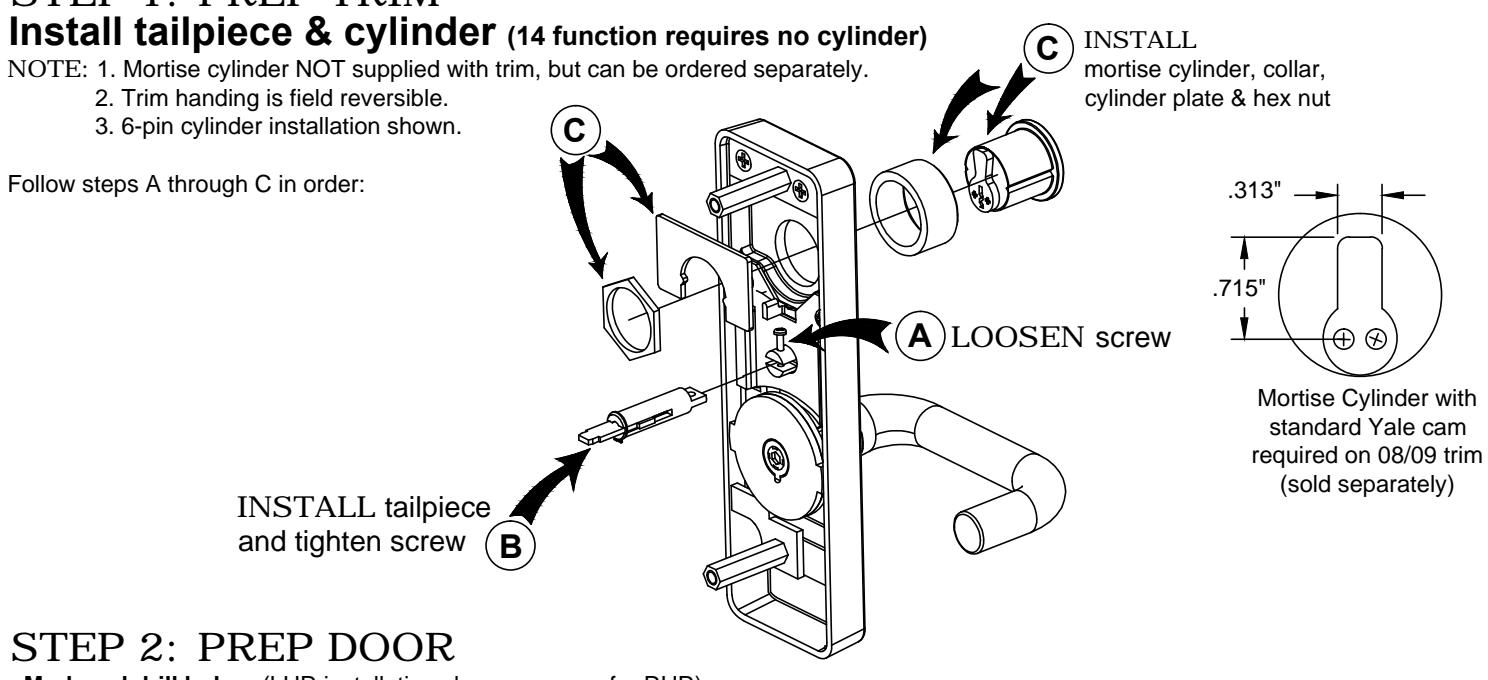

STEP 1: PREP TRIM
104870 Pg 4

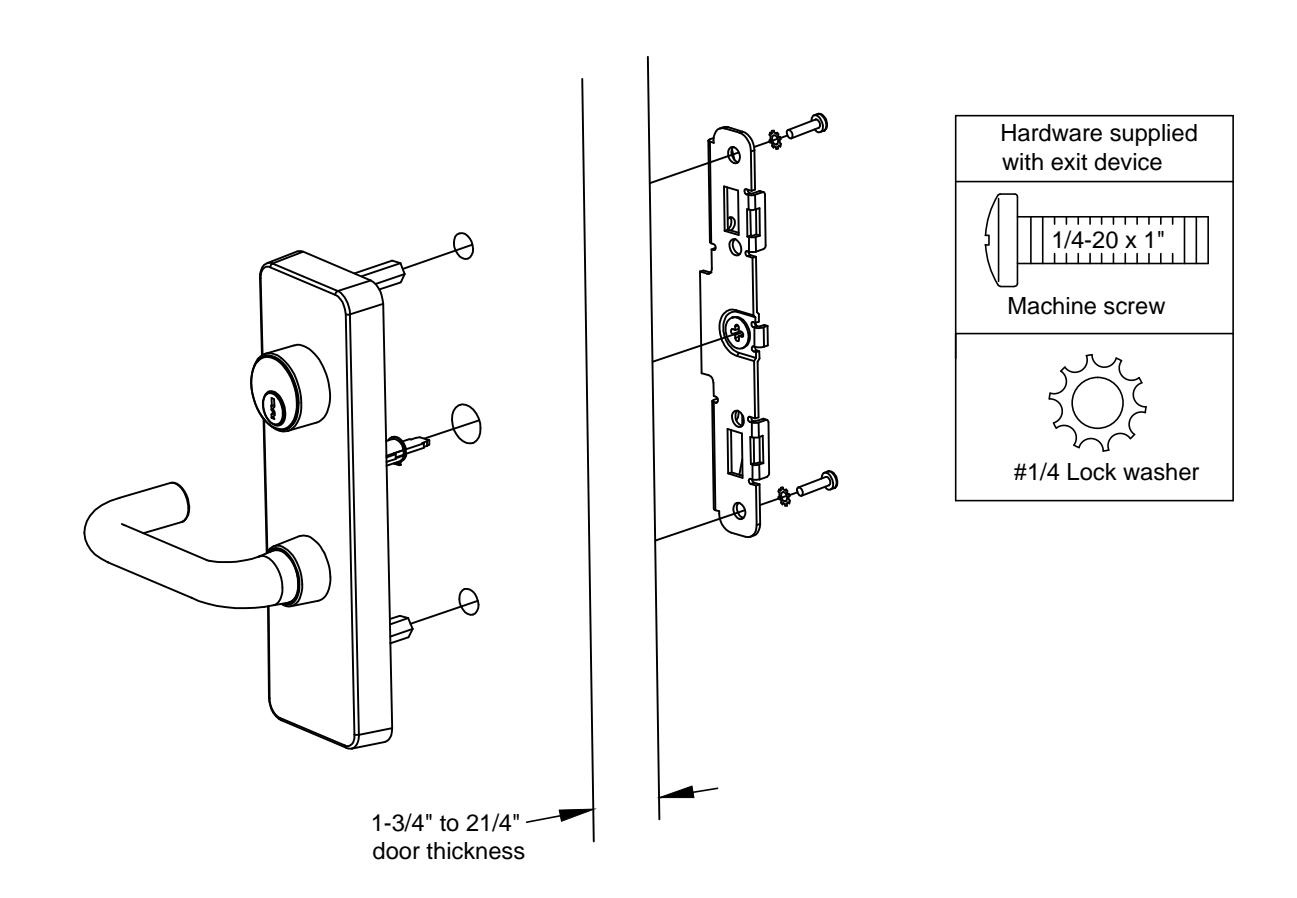

STEP 3: INSTALL TRIM
TRIM INSTALLATION COMPLETE Continue installation using device instructions

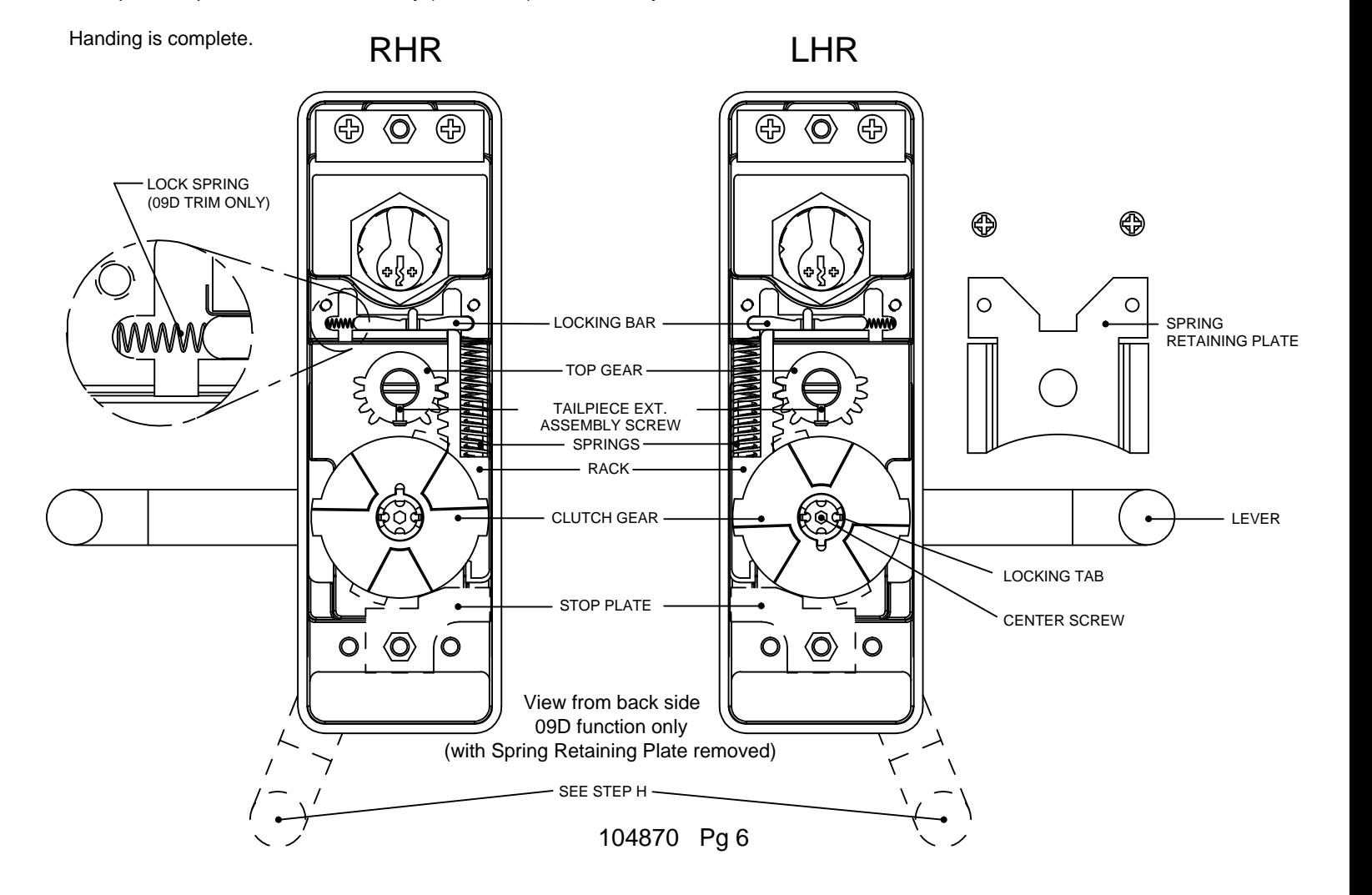

CHANGE LEVER HANDING
- A. Remove tailpiece extension assembly screw. (Remove tailpiece extension assembly if necessary.
- B. Remove lower stand-off and stop plate.
- C. WARNING: Springs under pressure! Remove spring retaining plate. Carefully remove the springs.
- D. Switch lock spring to opposite side (for 09 function only).
- E. Remove top gear.
- F. Loosen the clutch center screw approximately two (2) turns. Bend locking tab back to disengage with notch.
- G. Slide the locking bar away from the rack (not necessary for 14 function). Remove the rack while rotating the lever.
- H. Continue rotating the lever to the opposite side.
- I. Rotate the lever to the position shown. Partially engage the rack and the clutch gear on the opposite side.
- J. Rotate the lever until the rack is completely seated.
- K. Insert the top gear.
- L. Add permanent thread locking adhesive and tighten the clutch center screw. Bend tab over screw notch so that screw cannot turn.
- M. Warning: Springs under pressure! Install the springs. Hold the lever in the down position, firmly compressing the springs in place.
- N. While holding the lever in the down position, replace the spring retaining plate and fasten the two (2) screws.
- O. Reverse the stop plate and fasten the stand-off.
- P. Replace tailpiece extension assembly (if removed) and assembly screw.
