Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR ADVANTEX NARROW TRIM
OUTSIDE LEVER TRIM 08, 09, 14
(drawing 101446: 08 Trim - includes 08DN, 08DNT, 08DNU, 08DNV) (drawing 101995: 09 Trim - includes 09DN, 09DNT, 09DNU, 09DNV) (drawing 101448: 14 Trim - includes 14DN, 14DNT, 14DNU, 14DNV)
| Table of Contents | Page |
|---|---|
| Device parts breakdown view | 2 |
| Device parts breakdown list with part numbers | 3 |

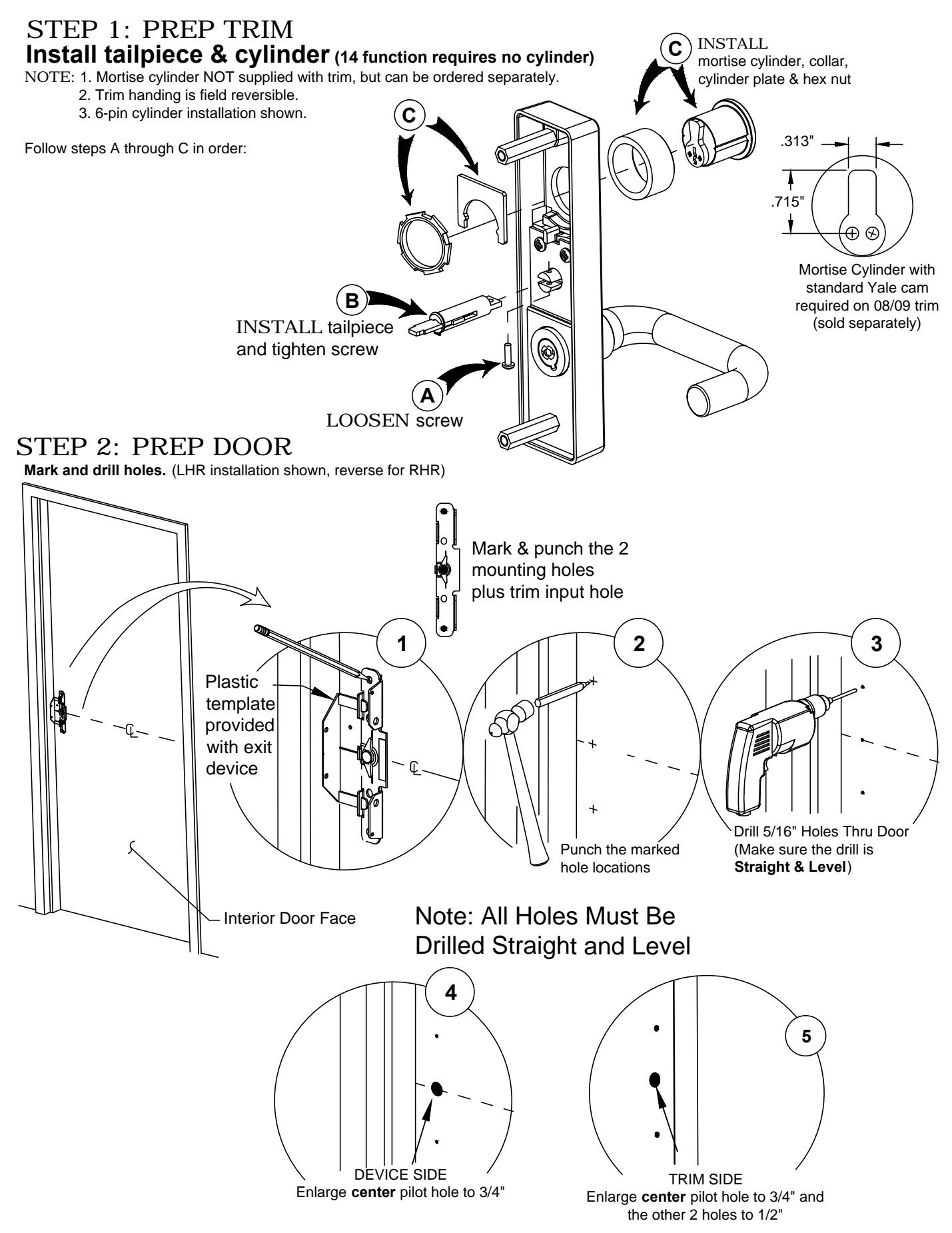

| Prep Trim, Prep Door | 4 |
| Install Trim | 5 |
| Rehanding | 6 |
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos
LHR ASSEMBLIES SHOWN
RHR assemblies opposite
| 1 | 10020-7 | LE VEIT /1001, Q, 020 | |
|---|---|---|---|
| 106264-14 | 1 | LEVER ASSY, Q, 693 | |
| 106264-15 | LEVER ASSY, Q, 695 | ||
| 101376-7 | LEVER ASSY, S, 626 | ||
| 101376-14 | LEVER ASSY, S, 693 | ||
| 101376-15 | LEVER ASSY, S, 695 | ||
| 1 | |||
| 101375-7 | LEVER ASSY, U, 626 | ||
| 101375-14 | LEVER ASSY, U, 693 | ||
| 101375-15 | LEVER ASSY, U, 695 | ||
| 101374-7 | LEVER ASSY, T, 626 | ||
| 101374-14 | LEVER ASSY, T, 693 | ||
| 101374-15 | LEVER ASSY, T, 695 | ||
| 2 | 100851 | 1 | WASHER, FLAT |
| 3 | 100745-9 | 1 | ESCUTCHEON ASSY, 08DN / 09DN, BP2, 630 |
| 101448-9 | ESCUTCHEON ASSY, 14DN, BP2, 630 | ||
| 4 | 101457 | 1 | SPRING RACK ASSEMBLY |
| 5 | 100877 | 1 | SPRING, COMPRESSION, TRIM, NARROW |
| 6 | 101510 | 1 | SPRING, HELPER, RETURN-NARROW |
| 7 | 100865 | 1 | RACK, NARROW |
| 8 | 105124-1 | 1 | WAVE WASHER, .694 DIAMETER |
| 9 | 103010 | 1 | GEAR & TORQUE PLATE, NON-CLUTCHING |
| 10 | 100774 | 1 | KEY, SHEARPIN |
| 11 | 100821 | 1 | CLUTCH WASHER |
| 12 | 102536-1 | 1 | SCREW, 10-24 x 17/32 FH SOCKET CAP |
| 13 | 100866 | 1 | PLATE, COVER |
| 14 | 100777 | STANDOFF, HEX | |
| 105233 | 2 | STANDOFF, HEX, CVR LEVER TRIM, NARROW | |
| 15 | PP-5378-106 | 2 | SCREW, 8-32 x 3/8 PPH |
| 16 | 100762 | 1 | TOP GEAR |
| -10 | PP-5367-108 | SCREW, 6-32 x 1/2 PPH | |
| 17 | PP-5367-110 | 1 | SCREW, 6-32 x 7/2 FFFFF SCREW, 6-32 x 5/8 PPH SEMS (LS trim) |
| 18 | 101994 | 1 | SLIDE LOCK, NARROW |
| 10 | 100773 | 1 | FLAT SPRING, LOCKING (08 function only) |
| 19 | 100773 | SPRING, COMPRESSION (09 function only) | |
| ` '' | |||
| 20KIT | 105673-4 | 1 | LEVER TRIM HARDWARE KIT, 08DN/09DN (STD, SVR) |
| 105673-5 | LEVER TRIM HARDWARE KIT, 08DNV/09DNV (CVR) | ||
| 20A | 101478 | 1 | SHAFT EXTENSION ASSEMBLY (RIM, SVR) |
| 106694 | TAILPIECE ASSEMBLY, D TRIM (CVR) | ||
| 20B | 100783 | 1 | CYLINDER NUT, HEX |
| 20C | 100868 | 1 | PLATE, CYLINDER POSITION, NARROW |
| 21 | 100572-9 | 1 | CYLINDER COLLAR, SHORT |
| 100752-9 | CYLINDER COLLAR, TALL | ||
| 22 | 102281-7-X | CYLINDER, MORTISE, 5 PIN, CHROME | |
| 103800-626 | 1 | CYLINDER, HOUSING, SFIC, MORTISE, 7 PIN, CHROME | |
| 102287-7-DS | CYLINDER, MORTISE 6 PIN DS 26D (626) |

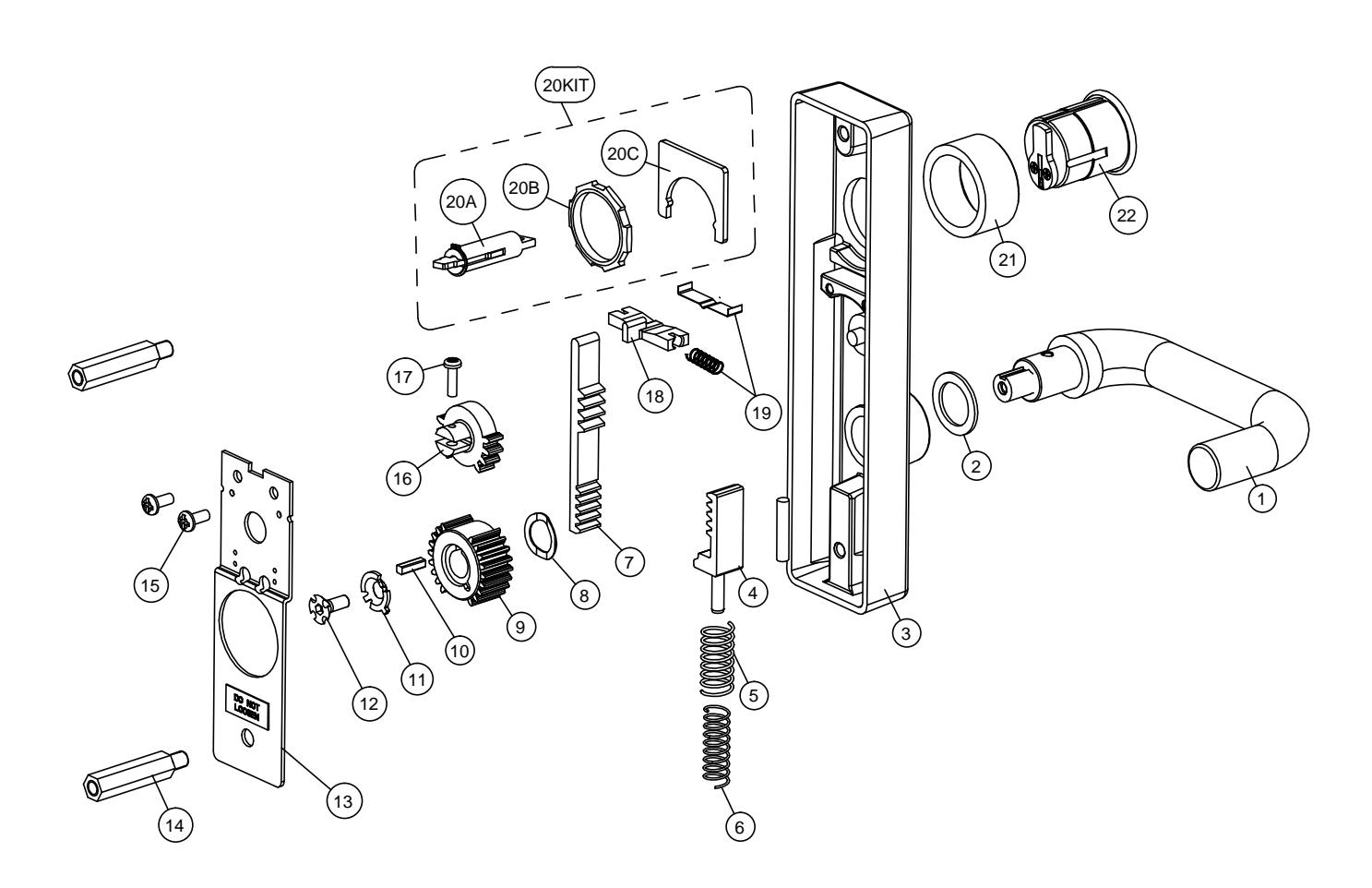

PARTS BREAKDOWN
LEVER ASSY, Q, 626
Description
QTY
Item
P/N 106264-7
Power Drill Tape Measure Level Pencil Center Punch #2 and #3 Phillips Screw Drivers Drill bits: 5/16" 3/8" 1/2" 5/8" 3/4" FOR ITEM 22 "-X" REFERS TO KEY CODE
AA-KK
Tools Required: Safety Glasses
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)

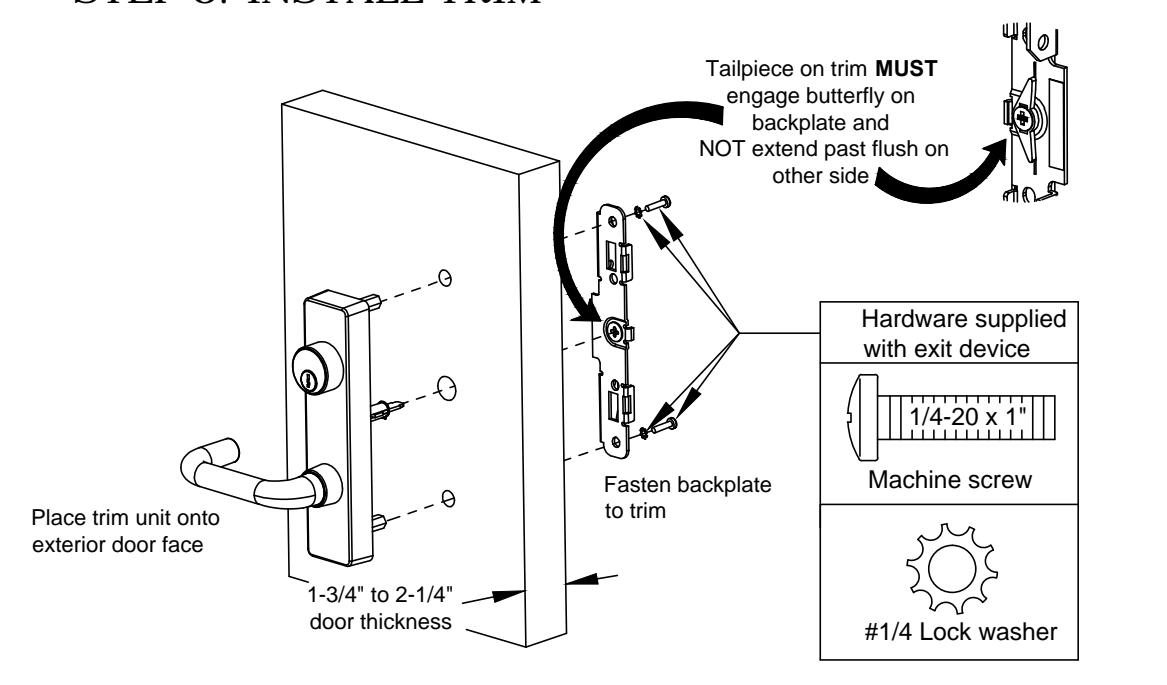

STEP 3: INSTALL TRIM
TRIM INSTALLATION COMPLETE Continue installation using device instructions

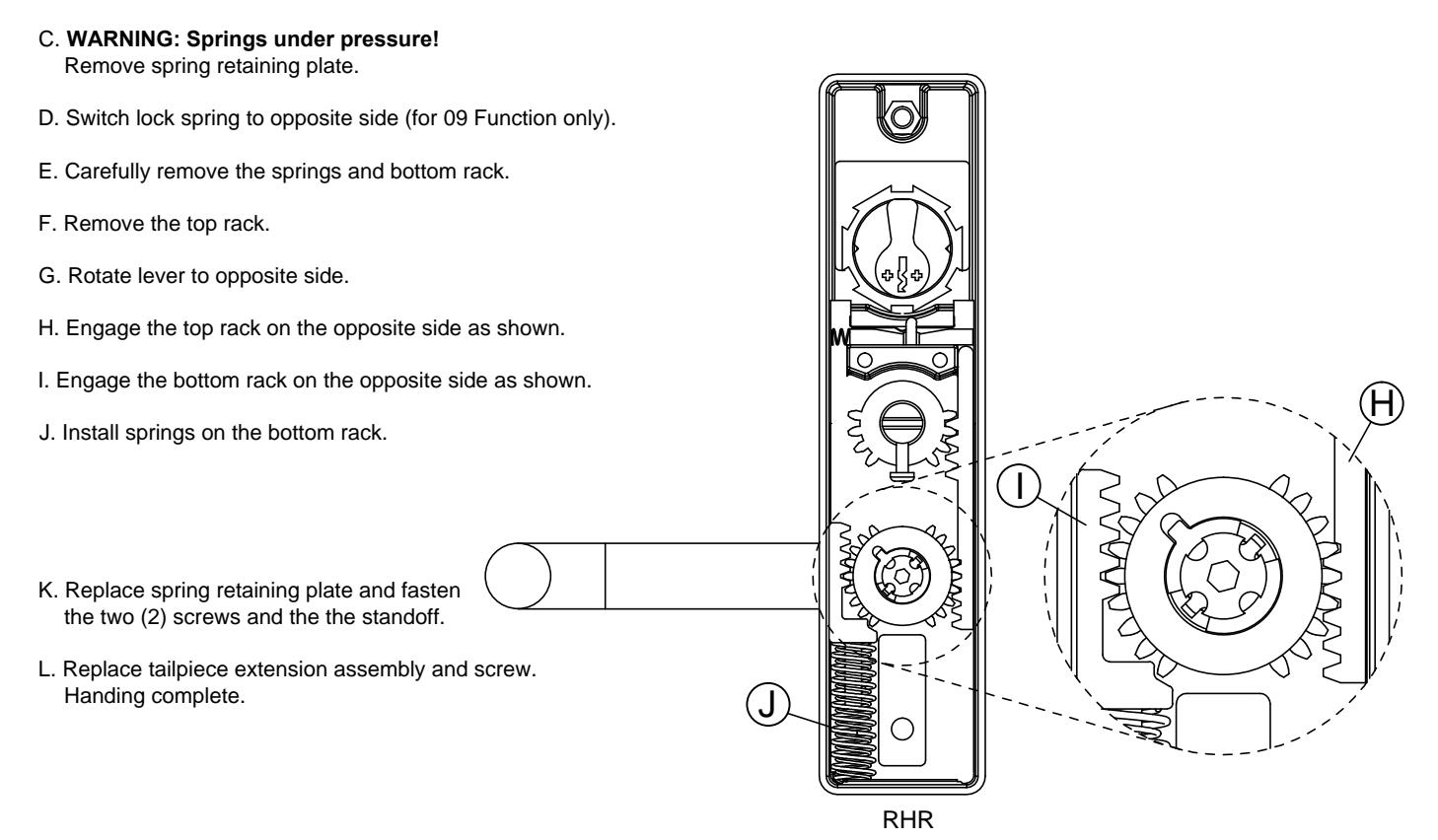

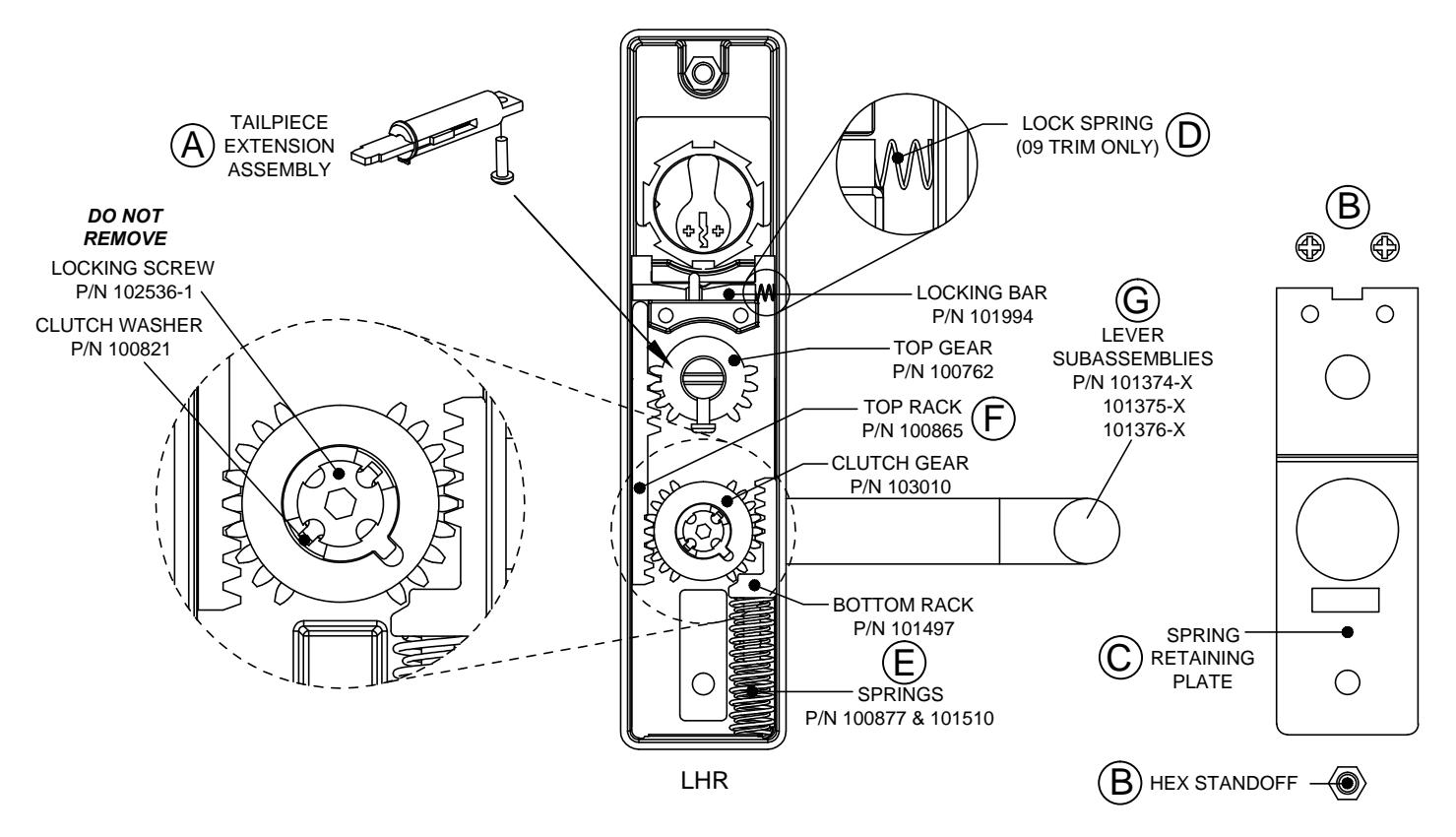

TO CHANGE LEVER HANDING:
- A. Remove tailpiece extension assembly & retaining screw (if present).
- B. Remove the hex standoff and the two (2) screws holding the spring retaining plate.
