Dummy Rail Devices

The Advantex Series of non-locking or dummy rail devices are designed for use on all types of doors where locking is not required. Utilizing the same extruded aluminum base-plate and stainless steel wraps, these devices are able to complete your specification where non-locking interior doors are required.

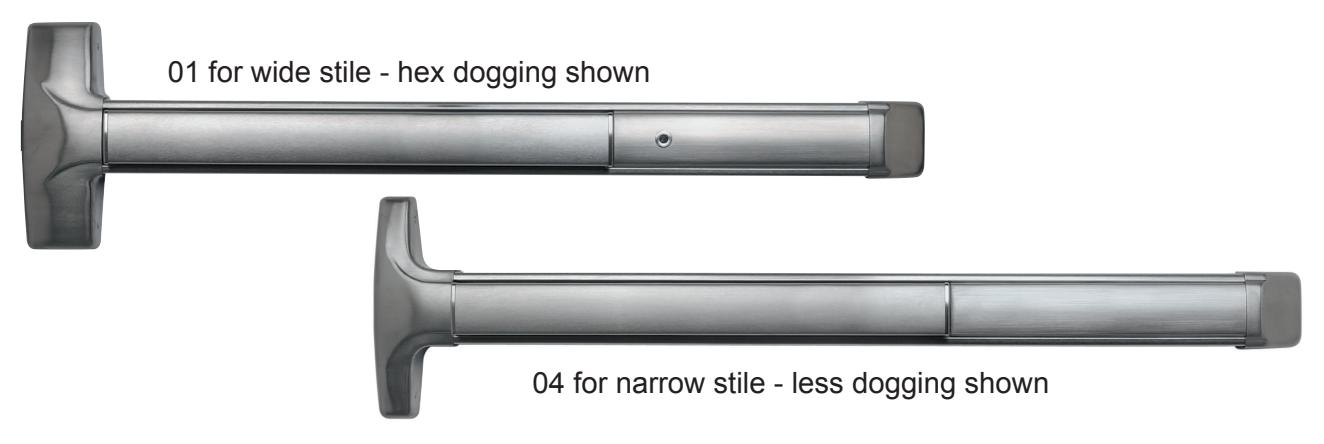

01/04 Standard Dummy Device with head cover and endcap

The 01 for wide stile and 04 for narrow stile devices consists of a moving pushpad but no latch bolt. The 01 provides the look of the standard 10 exit device for wide stile doors when matching devices in a grouping is important. The 04 provides the look of the standard 40 exit device for narrow stile doors when matching devices in a grouping is important.

Mechanical Options

• HD - Hex Dogging (Std.)	• 36 - Fits 36" Door Widths (std.)	• EC1 - Ramped Endcap - Heavy
• CD - Cylinder Dogging	• 48 - Fits 48" Door Widths	duty (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• LD - Less Dogging	• SLR - Silencer	• EC2 - Flush Endcap (standard on 628, 693 & 695 finishes only)

Electrical Options

• Request to Exit (EX)	• Request to Exit Weatherized	• Request to Exit Weatherized for
• Request to Exit for High Voltage	(EXxW)	High Voltage (EXVxW)
(EXV)

Accessories

Finishes

605 / US3	Polished Brass	629 / US32	Polished Stainless
606 / US4	Brushed Brass		Steel
611 / US9	Polished Bronze		630 / US32D Brushed Stainless
612 / US10	Brushed Bronze		Steel
	613 / US10B Oil Rubbed Bronze		693 / SPBLK Black, painted
628 / US28	Satin Aluminum		695 / SP313 Dark Bronze, painted

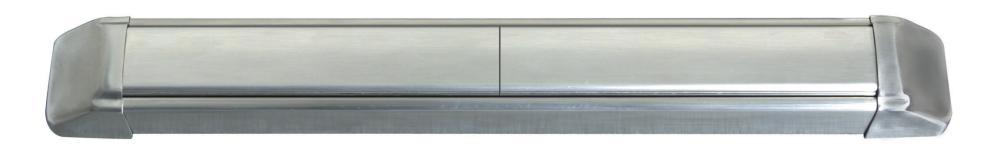

00/05 Standard Dummy Device with two end-caps

The standard 00 device consists of no moving parts. With two standard Advantex end-caps, this inactive device is easy to install and is available in all finishes. The 05 device is the same but with an extended base-plate for narrow stile doors.

Mechanical Options

• 36 - Fits 36" Door Widths (std.)	• EC1 - Ramped Endcap - Heavy duty (standard on 630, 606, 612,	• EC2 - Flush Endcap (standard on 628, 693 & 695 finishes only)
• 48 - Fits 48" Door Widths	613, 605, 611 & 629 finishes only)

Accessories

• SN1 - Sex Nut Kit

Finishes

605 / US3	Polished Brass	628 / US28	Satin Aluminum	693 / SPBLK Black, painted
606 / US4	Brushed Brass	629 / US32	Polished Stainless	695 / SP313 Dark Bronze, painted
611 / US9	Polished Bronze		Steel
612 / US10	Brushed Bronze		630 / US32D Brushed Stainless
	613 / US10B Oil Rubbed Bronze		Steel
