Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text: 830-481-6433 / INTERNET: www.detex.com

INSTALLATION INSTRUCTIONS FOR 03ZM ANTI-VANDAL 30 SERIES MORTISE TRIM

DWG# 105645

Table of Contents	Page
Device parts breakdown view & part number list, Prep Door-Trim Side	2

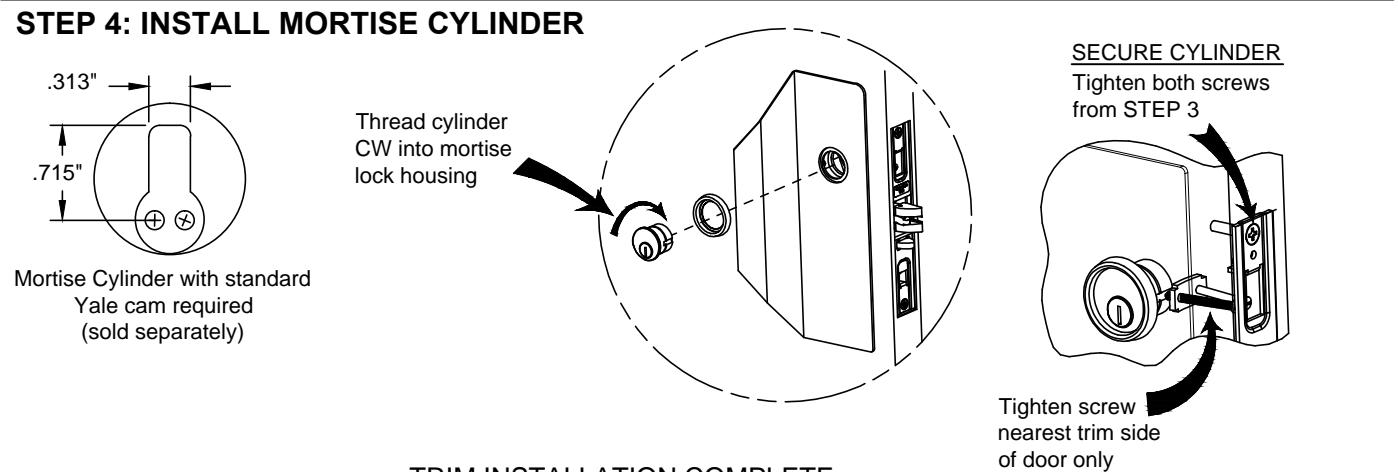

Prep Door-Device Side, Install Mortise Lock & Trim, Install Mortise cylinder	3

Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.

For WARRANTY information, scan code below or go to www.detex.com/warranty

For device installation videos, scan code below or go to www.detex.com/videos

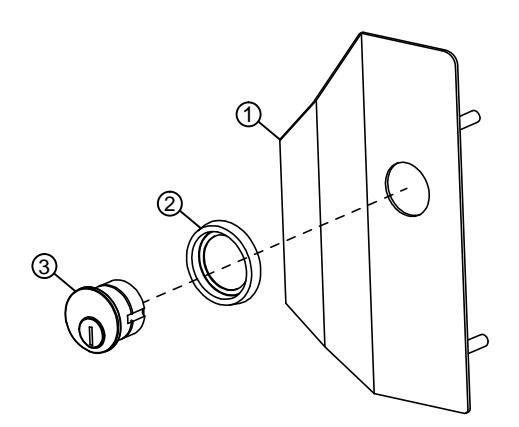

	PARTS BREAKDOWN
	Item	P/N	QTY	Description
FOR ITEM 2	1	105644-LHR-630	4	TRIM, 03ZM, ANTI-VANDAL, LHR (shown)
	| '	105644-RHR-630	) ' |	TRIM, 03ZM, ANTI-VANDAL, RHR (opposite)
	2	103303	1	COLLAR, MORTISE CYLINDER (sold separately)
FOR ITEM 3 ———————————————————————————————————	- 3	102281-7-X	1	CYLINDER, MORTISE, 5 PIN, CHROME (sold separately)
-X KEFEKS IU	•

Tools Required

Safety Glasses Power Drill Pencil Hammer Center Punch Tape Measure Phillips Screwdriver 5/16" drill bit 3/8" drill bit 3/4" drill bit

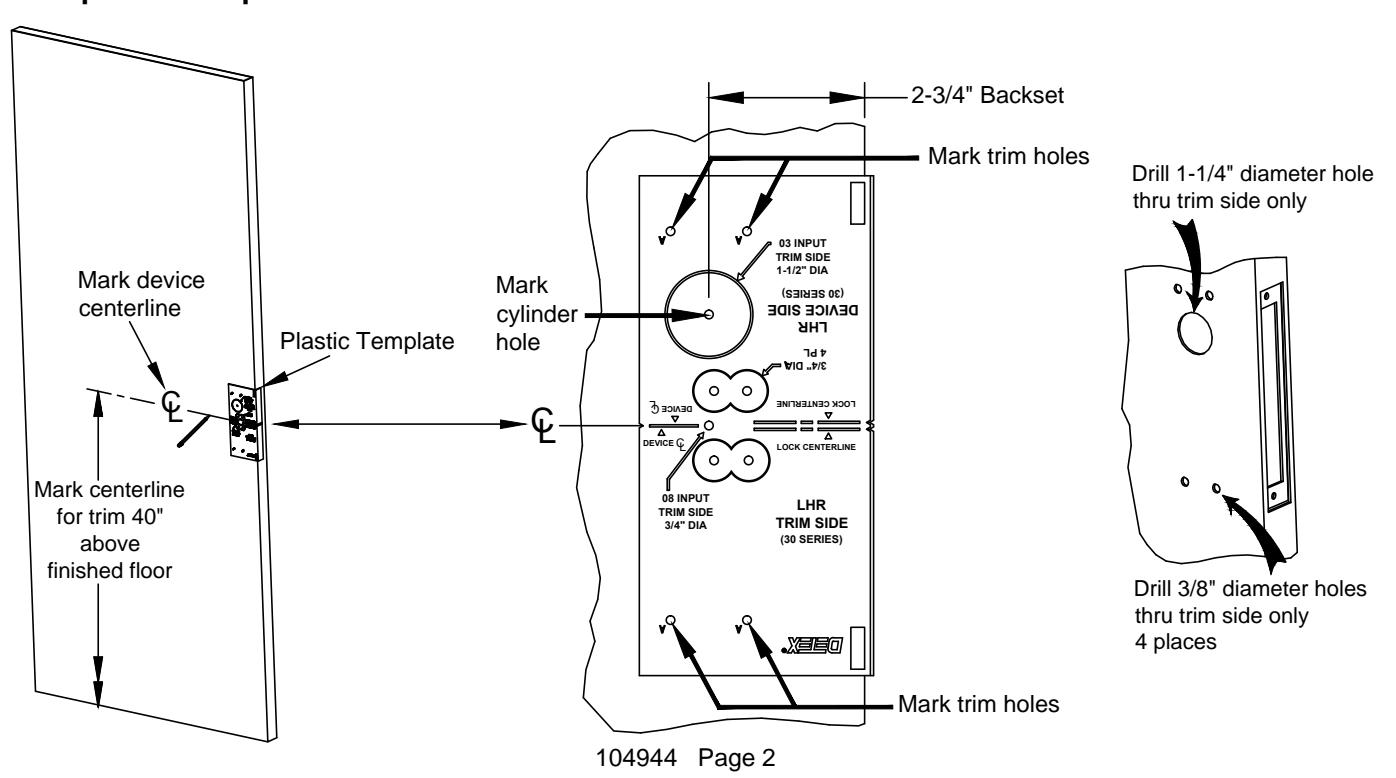

STEP 1: PREP DOOR - TRIM SIDE (LHR shown)

KEY CODE AA-KK

Use plastic template to mark and drill TRIM holes

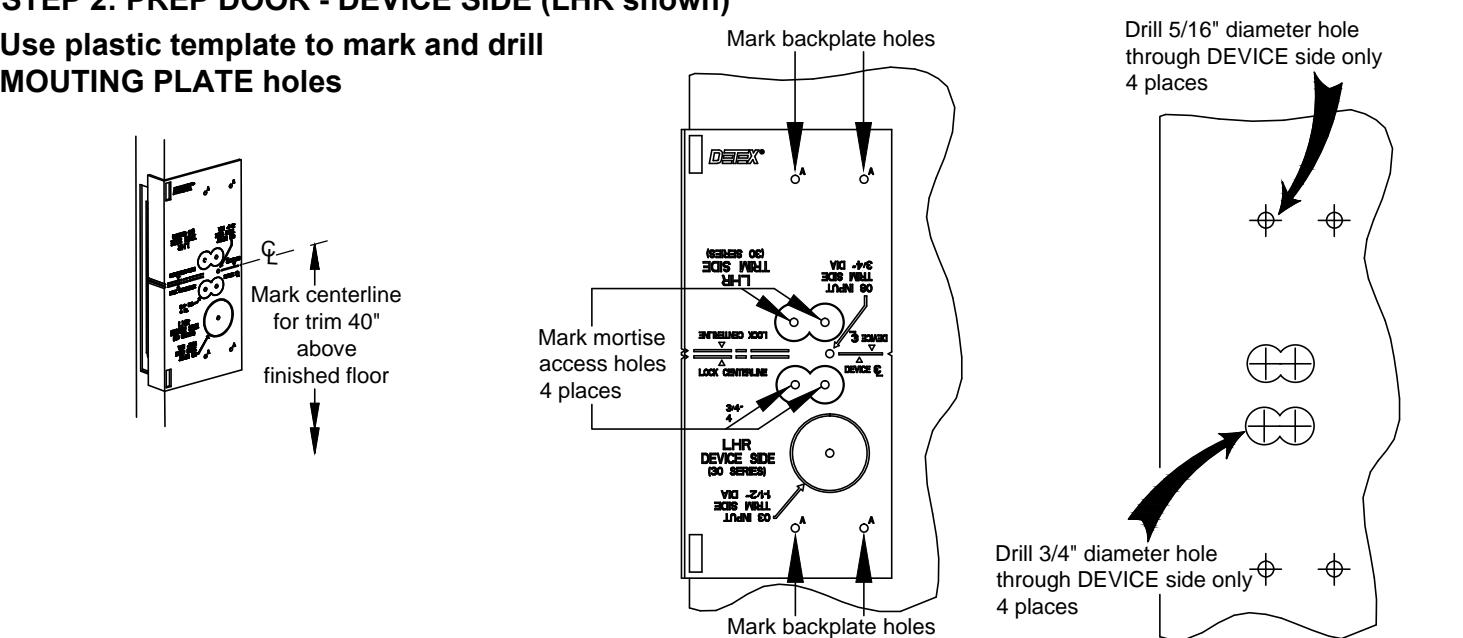

STEP 2: PREP DOOR - DEVICE SIDE (LHR shown)

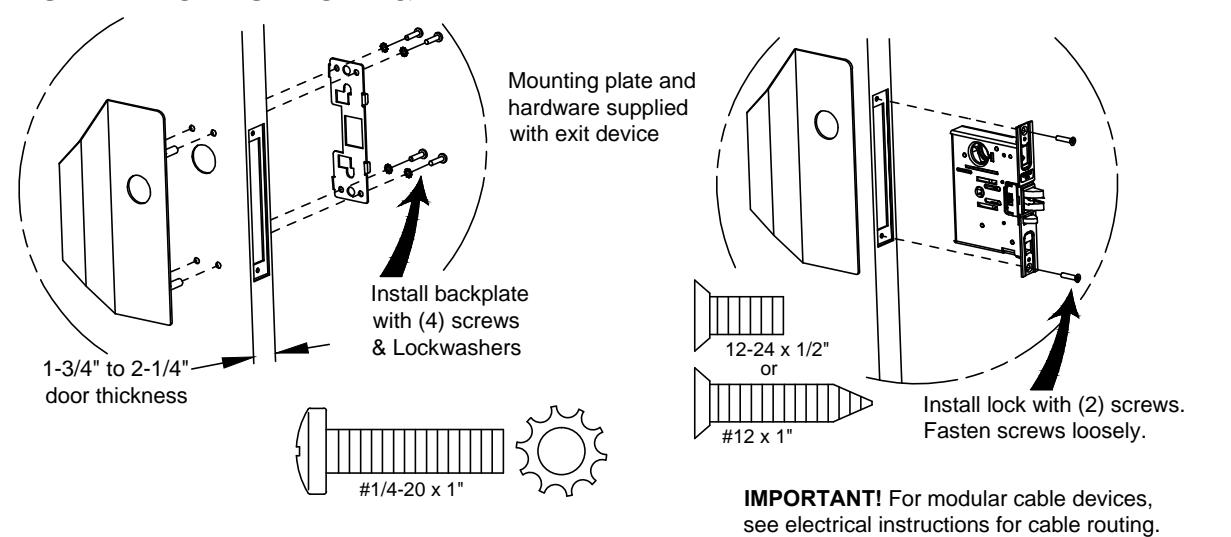

STEP 3: INSTALL MORTISE LOCK & TRIM

TRIM INSTALLATION COMPLETE

Continue installation using device instructions (p/n: 101349)
