Detex Advantex 03WM Installation Instructions
Open the original PDF document
View PDF
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 03WM TRIM
DWG #: 103290
| Table of Contents | Page |
|---|---|
| Device parts breakdown view & part numbers | 2 |

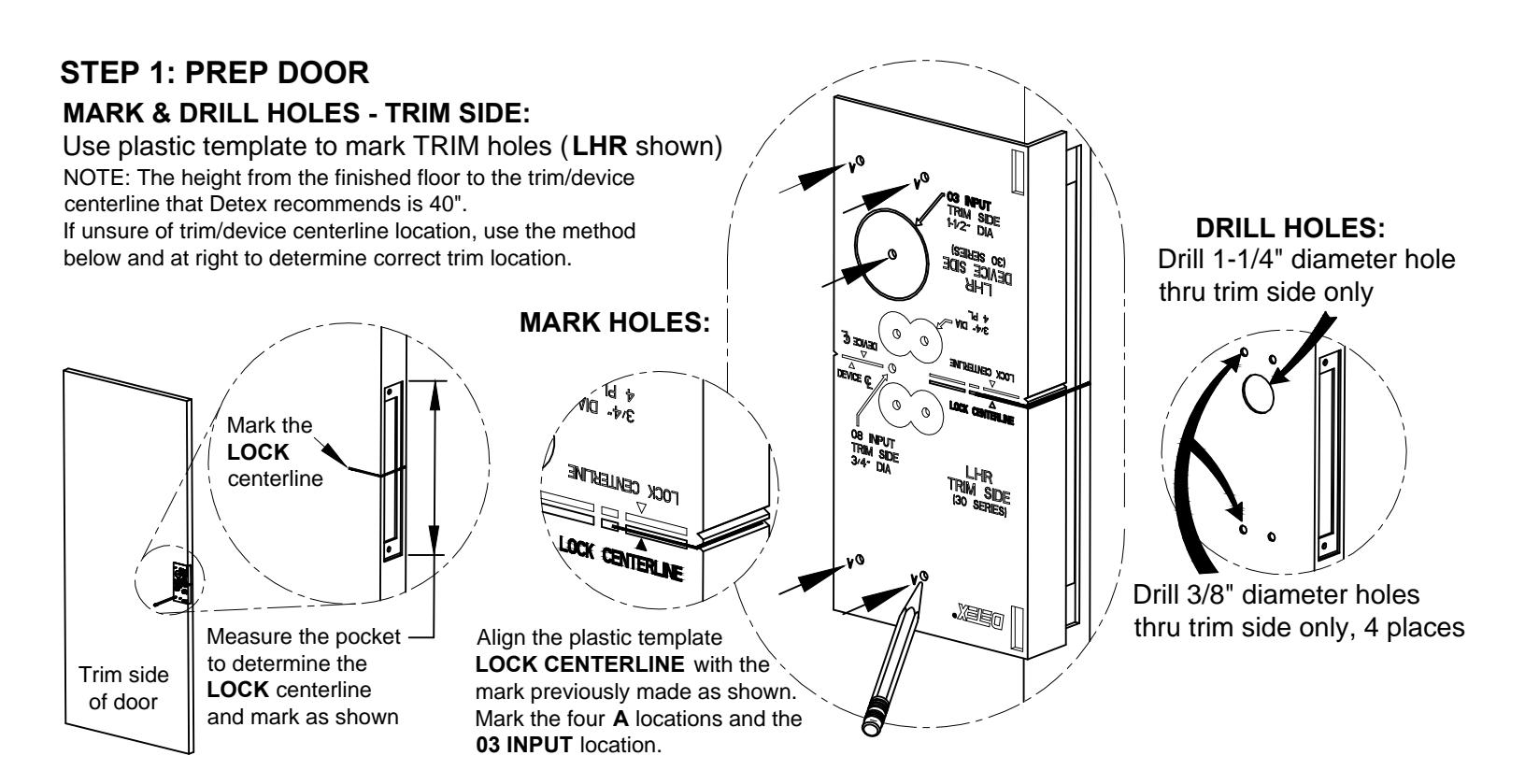

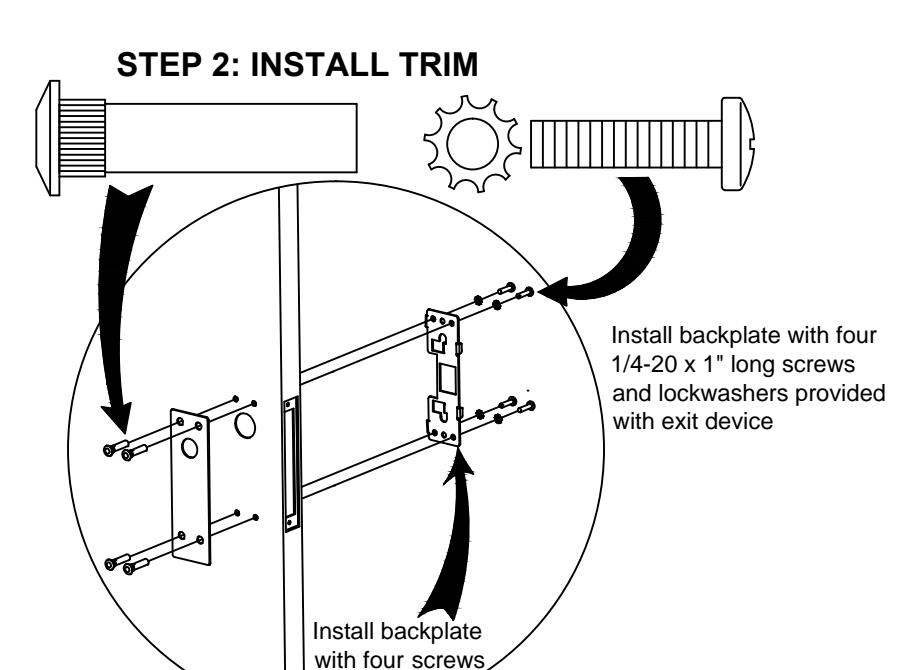

| Door Prep - Trim Side, Install Trim, Install Mortise Lock | 3 |
| Install Mortise Cylinder, Secure Cylinder | 3 |
TOOLS AND SUPPLIES
Safety Glasses (Always put on safety glasses prior to beginning installation of unit)
Pencil Center Punch Hammer Drill Motor Drill Bits & Taps Screw Driver (Phillips Drive) Tape Measure
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos

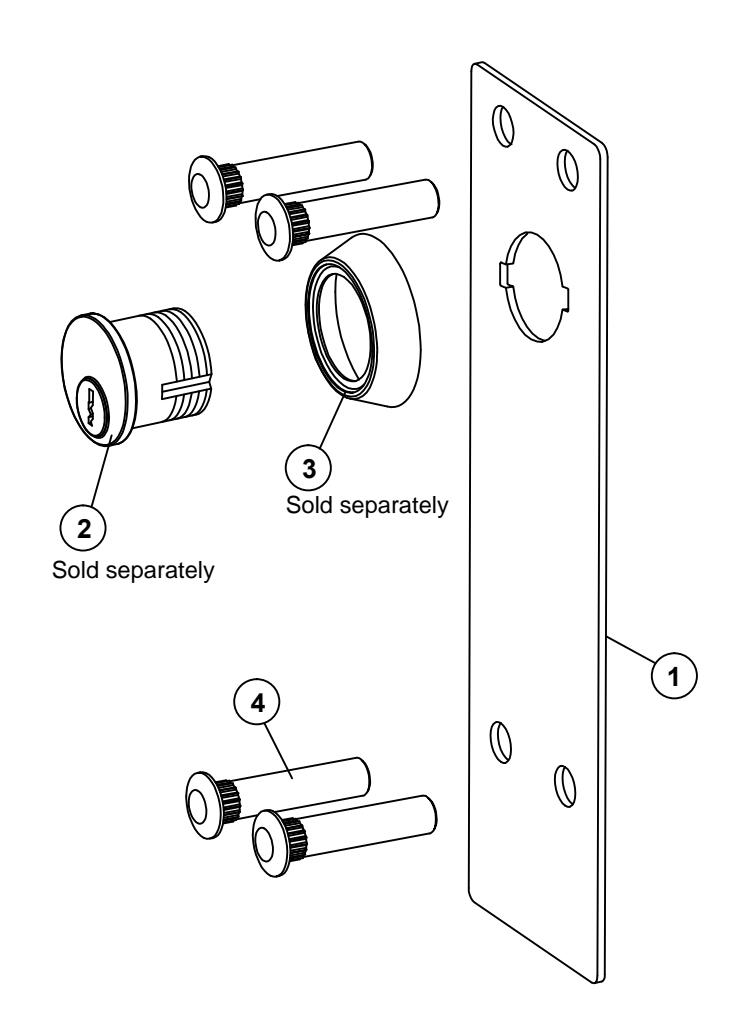

| ITEM | PART NO. | QTY | DESCRIPTION |
|---|---|---|---|
| 1 | 103291-9 | 1 | TRIM PLATE, 03WM, BRUSHED STAINLESS STEEL FINISH (630) |
| 2 | 102281-X | 1 | CYLINDER, MORTISE, 5 PIN |
| 3 | 100752-X | 1 | CYLINDER COLLAR, TALL |
| 4 | 100464-9 | 4 | SEX NUT, 1/4-20 |

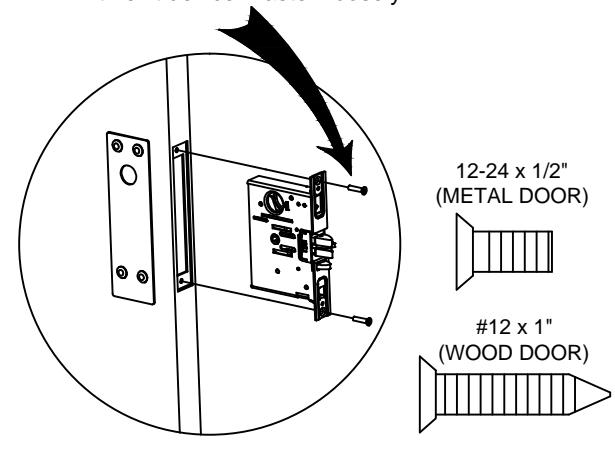

Mortise lock and mounting hardware provided with exit device. Fasten loosely.

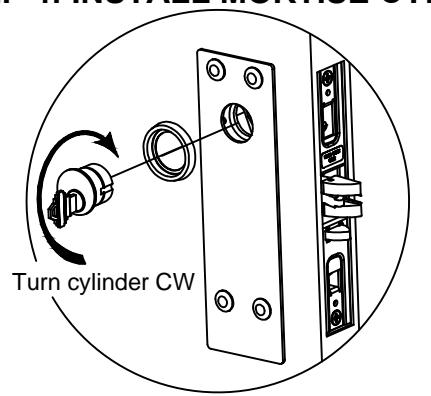

STEP 4: INSTALL MORTISE CYLINDER
Tighten screws (Reference step 3) Tighten screw nearest trim side of door only
TRIM INSTALLATION COMPLETE
Continue installation using device instructions
103106 Page 3
