,167$//$7,21,16758&7,216)255$'9$17(; TRIM FOR NARROW STILE (60 SERIES) CVR APPLICATIONS

60 / F60 / 61 / F61 / 62 / F62 / 63 / F63 Series Drawing # 105106

Table of Contents	Page
Device parts breakdown view & part numbers	2
Prep Door	3
Prep Cylinder & Trim, Install Trim on Door	4

Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.

For WARRANTY information, scan code below or go to www.detex.com/warranty

For device installation videos, scan code below or go to www.detex.com/videos

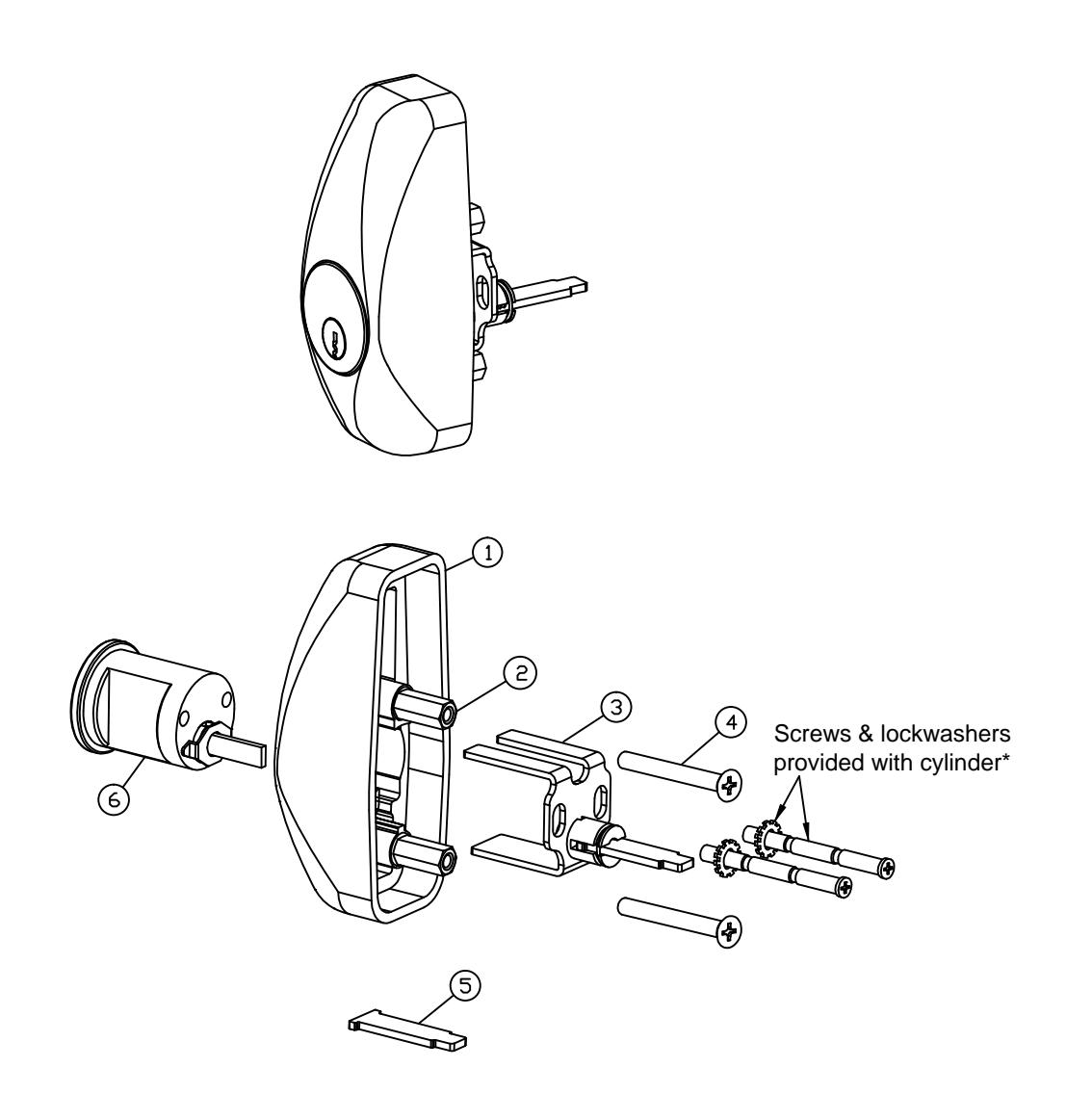

	PARTS BREAKDOWN
Item	P/N	QTY	Description
1	105104-7	1	03R TRIM HOUSING, CVR NARROW, 626 FINISH
2	105105	2	HEX STANDOFF, CVR 03 TRIM NARROW
3	105238-1	1	TRIM TAILPIECE ASSY, 03 FUNCTION, CVR, 03R
4	105622-124	2	SCREW, 10-24 X 1-1/2" LONG, PFH, S.S. (for 1-3/4" door)
	105622-128	2	SCREW, 10-24 X 1-3/4" LONG, PFH, S.S. (for 2" door)
	105622-132	2	SCREW, 10-24 X 2" PFH, LONG, S.S. (for 2-1/4" door)
5	105239-1	1	TAILPIECE, 2-1/4" THK DOOR, CVR
6	ECL-445-7-DD	1	CYLINDER, RIM, 5 PIN, SATIN CHROME (*sold separately)
	RC7-626		CYLINDER, RIM, 7 PIN, SATIN CHROME (*sold separately)
7	105285	1	TEMPLATE, PAPER, 03R TRIM PREP (not shown)

Must use BP12 backplate (supplied with exit device)

1. PREPARE THE DOOR - DEVICE SIDE

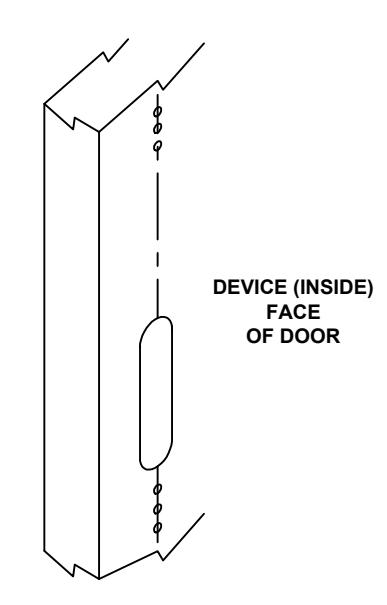

If not already done, prep the door per the instructions provided with the exit device.

TOOLS AND SUPPLIES

Safety Glasses

(Always put on safety glasses prior to beginning installation of unit)

Pencil Center Punch Hammer Power Drill 1-1/4" Hole Saw Drill Bit & Tap Set Screw Driver (Phillips Drive) Tape Measure

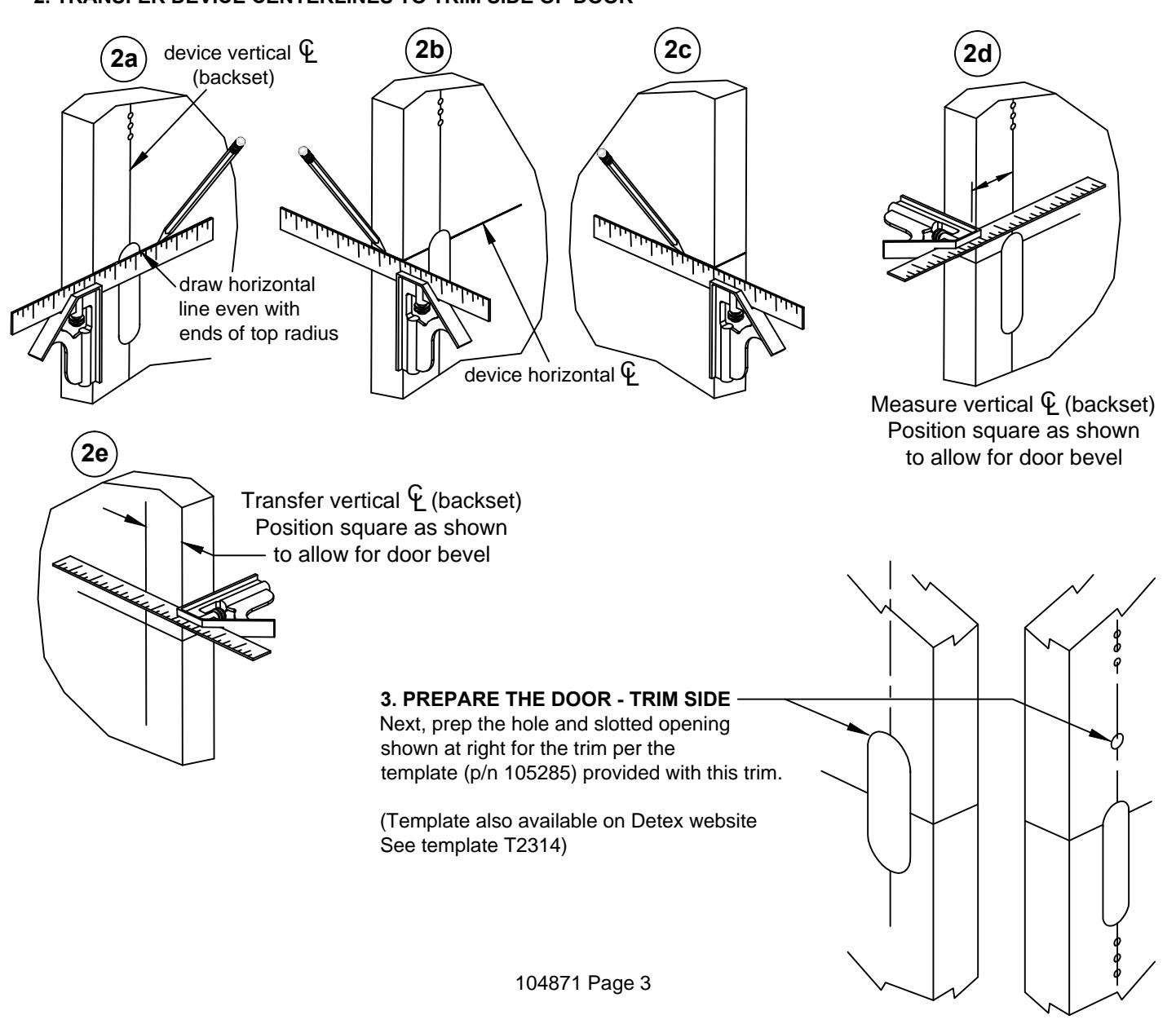

2. TRANSFER DEVICE CENTERLINES TO TRIM SIDE OF DOOR

4. PREPARING THE CYLINDER:

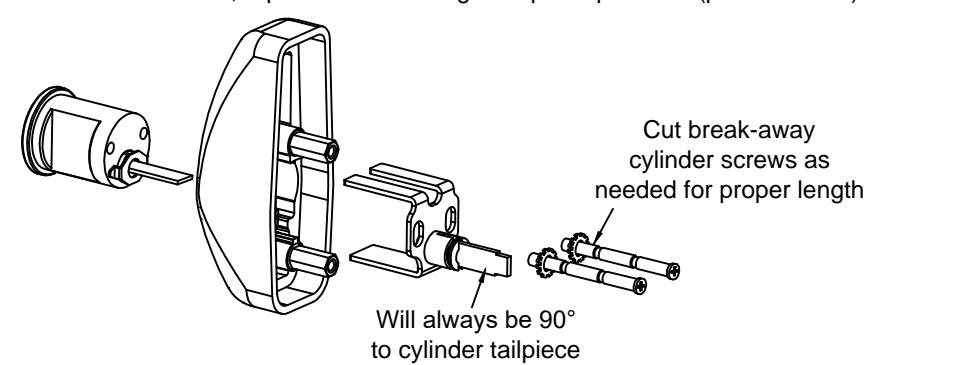

Cut rim cylinder tailpiece as shown below.

5. ASSEMBLE THE TRIM:

Assemble the cylinder (with key removed), trim housing & tailpiece assembly. The unit comes assembled with the tailpiece used on 1-3/4 to 2" thick doors. For 2-1/4" thick doors, replace with the longer tailpiece provided (p/n 105239-1).

6. GO BACK AND FOLLOW EXIT DEVICE INSTRUCTION STEPS up to, but not including ASSEMBLE DEVICE TO DOOR. Trim must be installed BEFORE device is assembled to door.

7. INSTALL TRIM ON DOOR

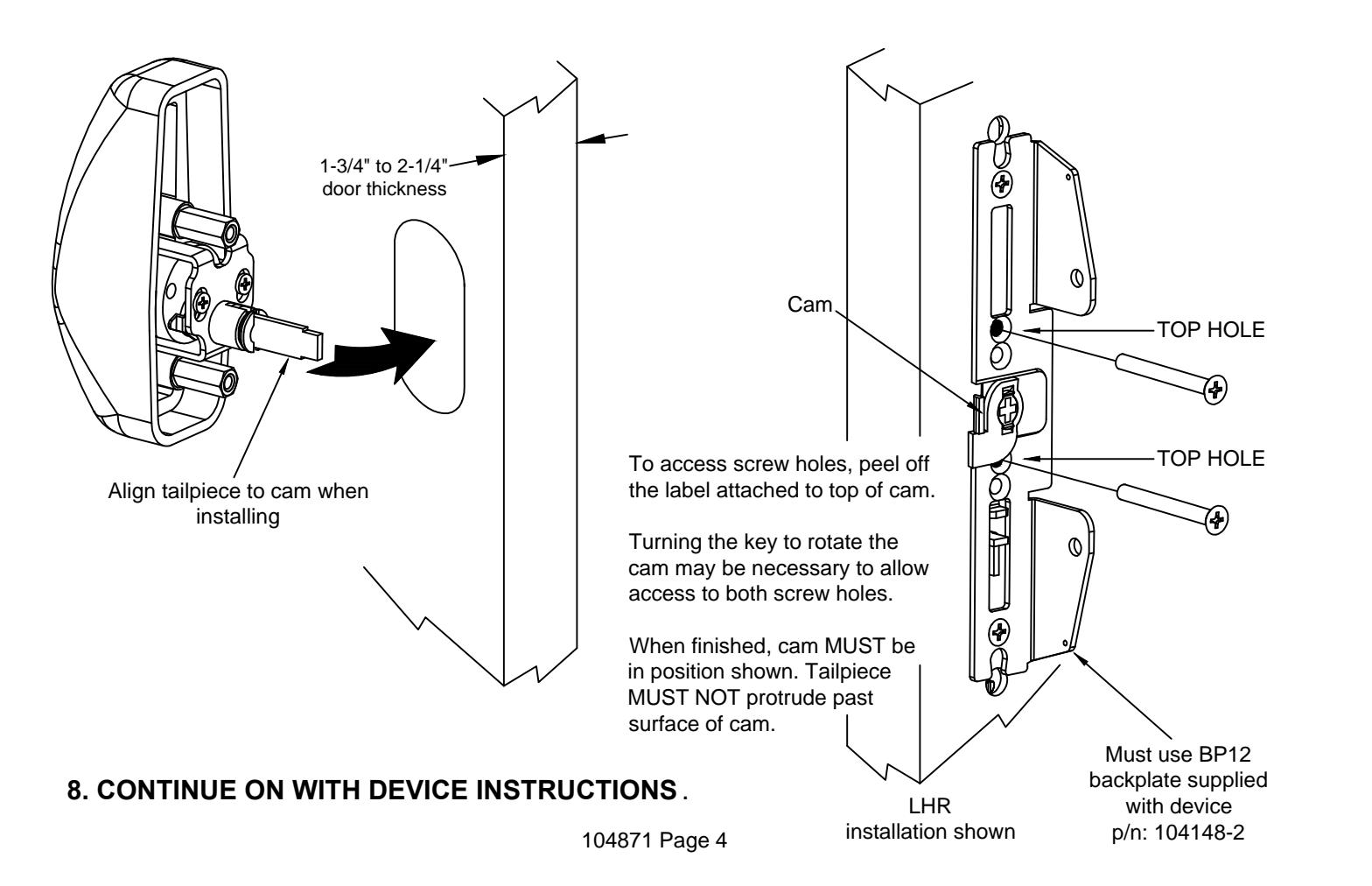

With the required BP12 backplate secured, use the appropriate length screws in the TOP HOLE in each pair of backplate holes above and below the cam (as shown) to install trim.
