Detex Advantex 03CM Installation Instructions
Open the original PDF document
View PDF
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR MORTISE 03CM TRIM
DWG #: 103295
| Table of Contents | Page |
|---|---|
| Device parts breakdown view & part numbers | 2 |

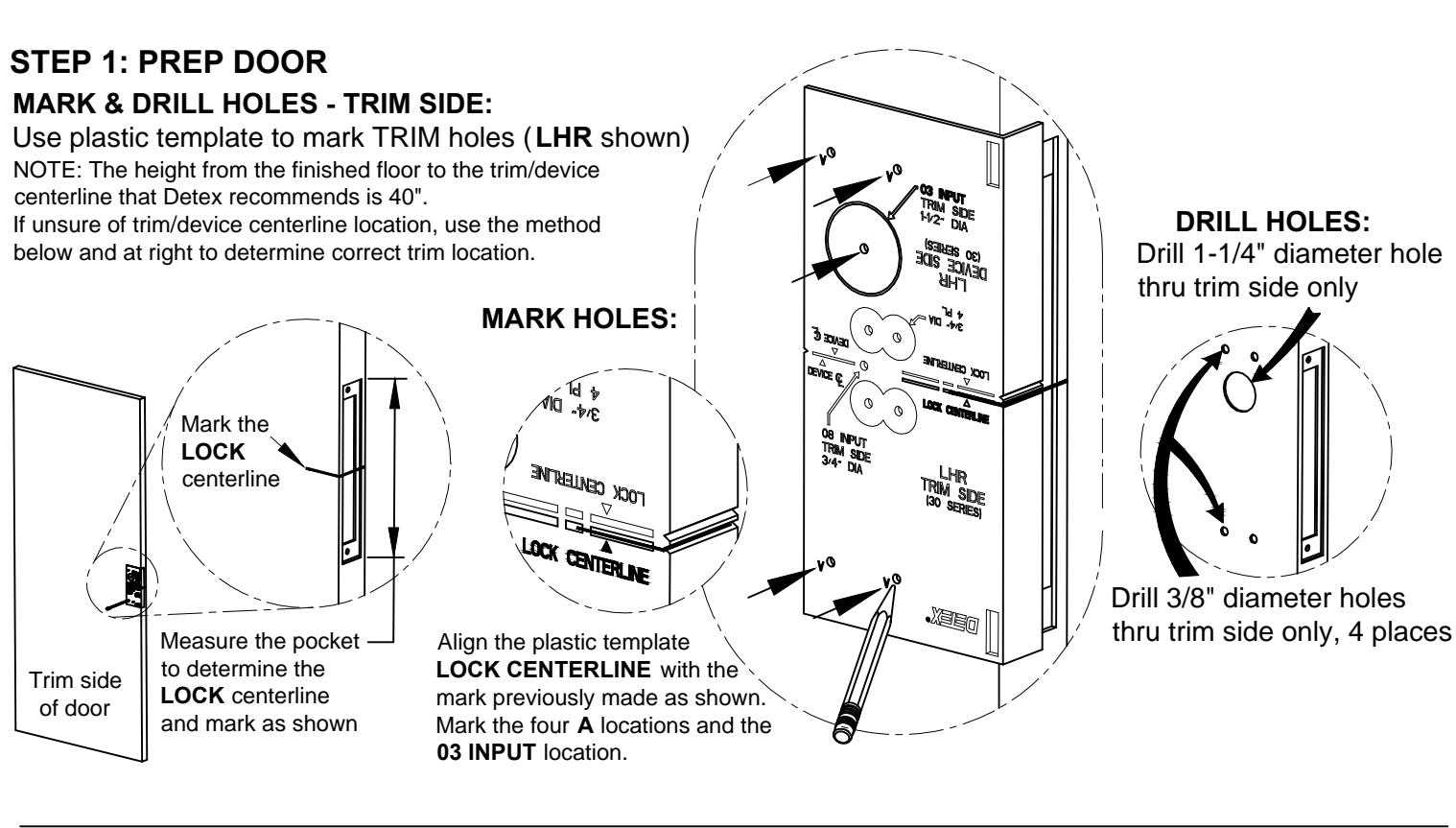

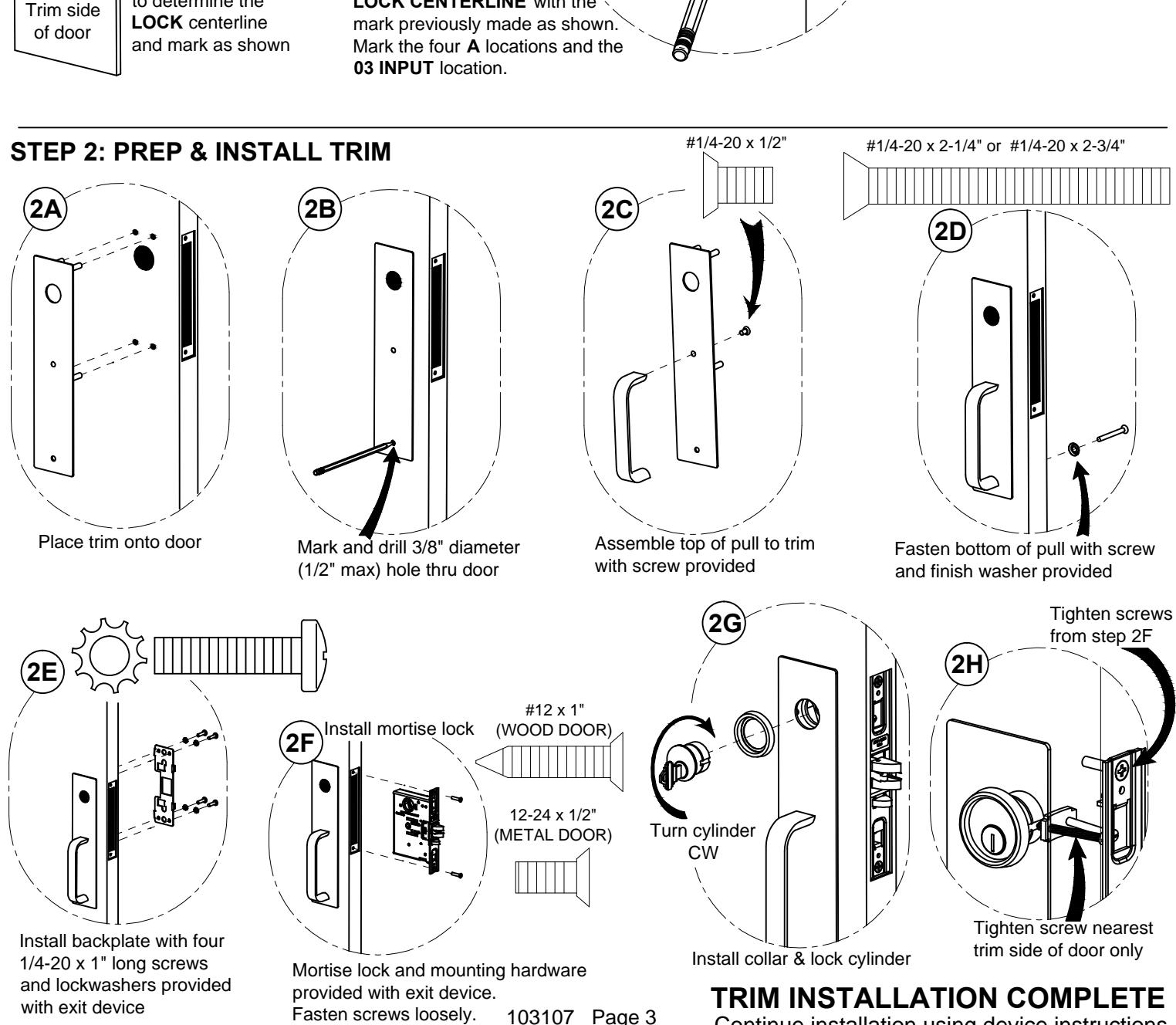

| Door Prep - Trim Side, Install Trim, Install Mortise Lock | 3 |
| Install Mortise Cylinder, Secure Cylinder | 3 |
TOOLS AND SUPPLIES
Safety Glasses (Always put on safety glasses prior to beginning installation of unit)
Pencil Center Punch Hammer Drill Motor Drill Bits & Taps Screw Driver (Phillips Drive) Tape Measure
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos

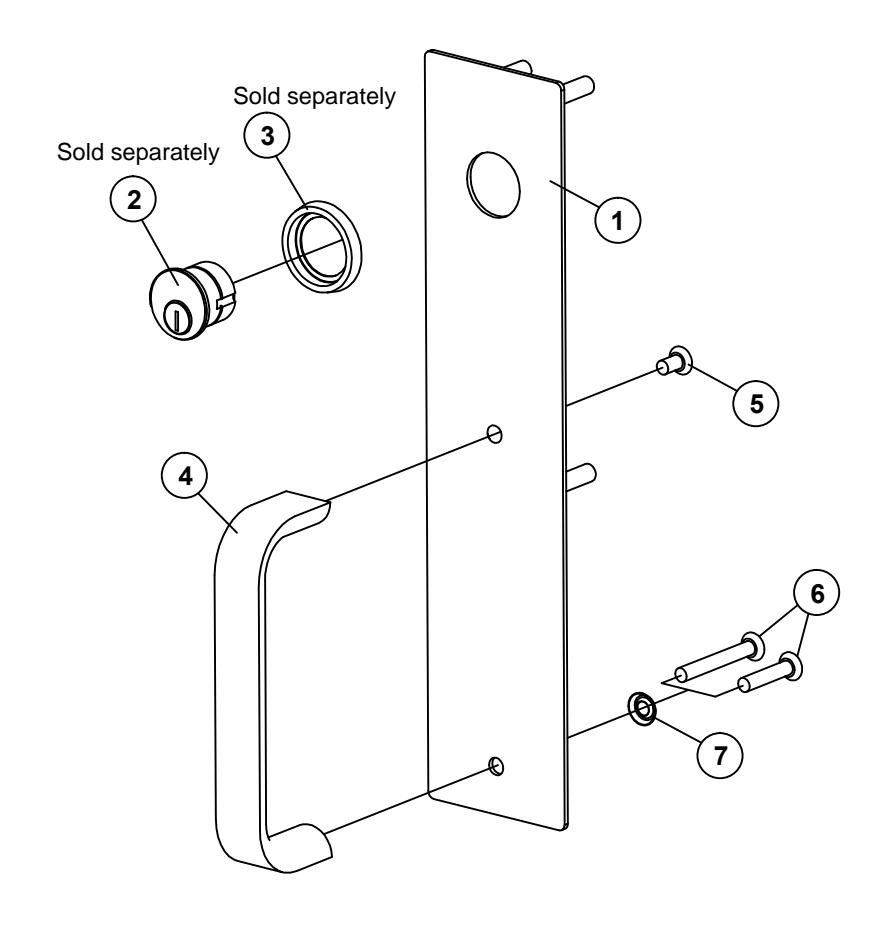

| ITEM | PART NO. | QTY | DESCRIPTION |
|---|---|---|---|
| 1 | 103296-9 | 1 | TRIM PLATE, 03WM, BRUSHED STAINLESS STEEL FINISH (630) |
| 2 | 102281-X | 1 | CYLINDER, MORTISE, 5 PIN |
| 3 | 100752-X | 1 | CYLINDER COLLAR, TALL |
| 4 | 102235-9 | 1 | PULL, 03C |
| 5 | 102264-1 | 1 | SCREW, MACH, 1/4-20 X 1/2" UNDERCUT, PFH |
| 6 | 102271-136 | 1 | SCREW, MACH, 1/4-20 X 2-1/4", PFH, STAINLESS STEEL |
| 10 | 102271-144 | 1 | SCREW, MACH, 1/4-20 X 2-3/4", PFH, STAINLESS STEEL |
| 7 | 102272-2 | 1 | WASHER, #14, FINISHED, STAINLESS STEEL |
Continue installation using device instructions
