Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 02Z & 03Z ANTI-VANDAL TRIM
02Z ANTI-VANDAL TRIM P/N: 105640 03Z ANTI-VANDAL TRIM P/N: 105650
| Table of Contents | Page | |
|---|---|---|
| Device parts breakdown view & part numbers | 2 | |

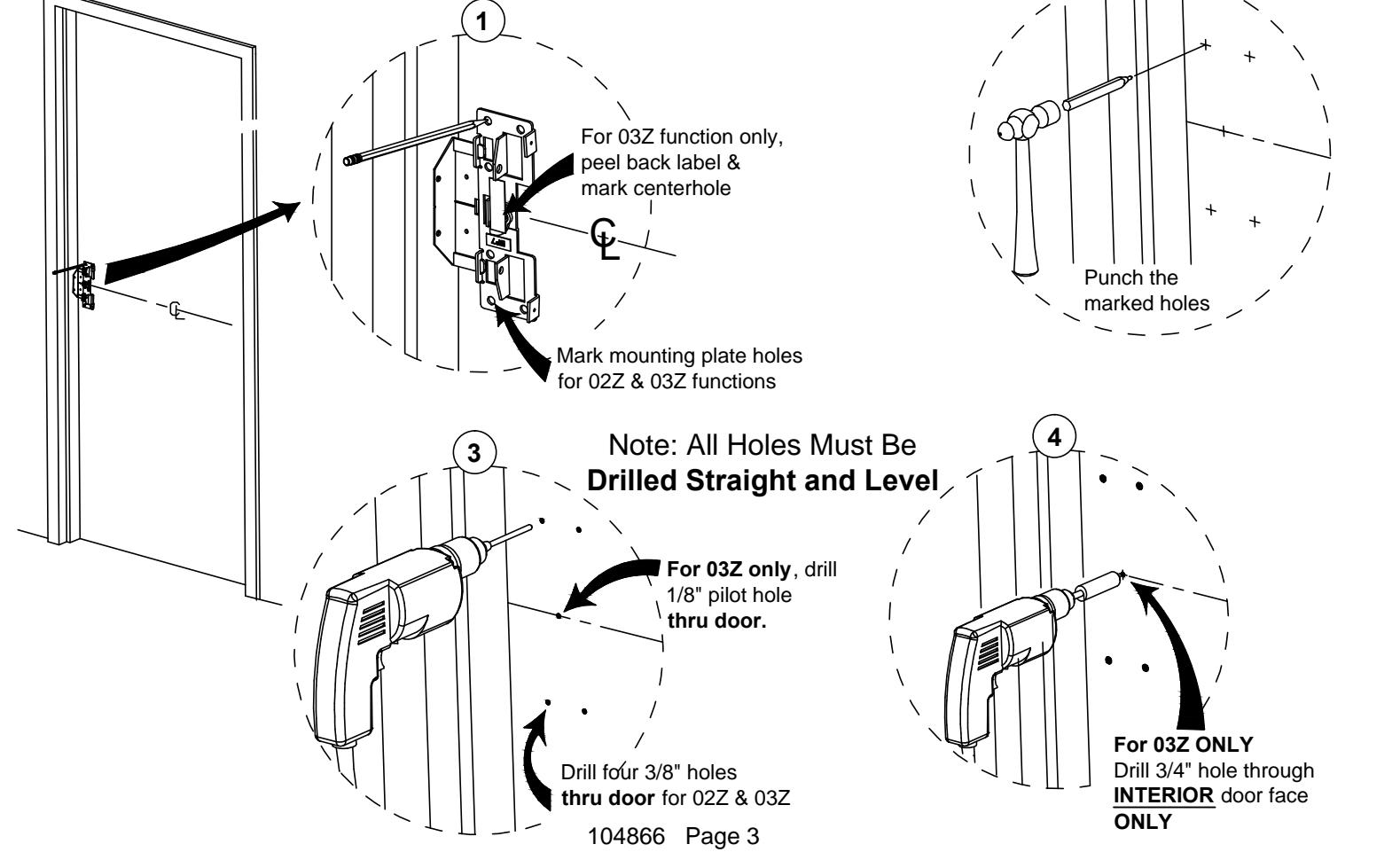

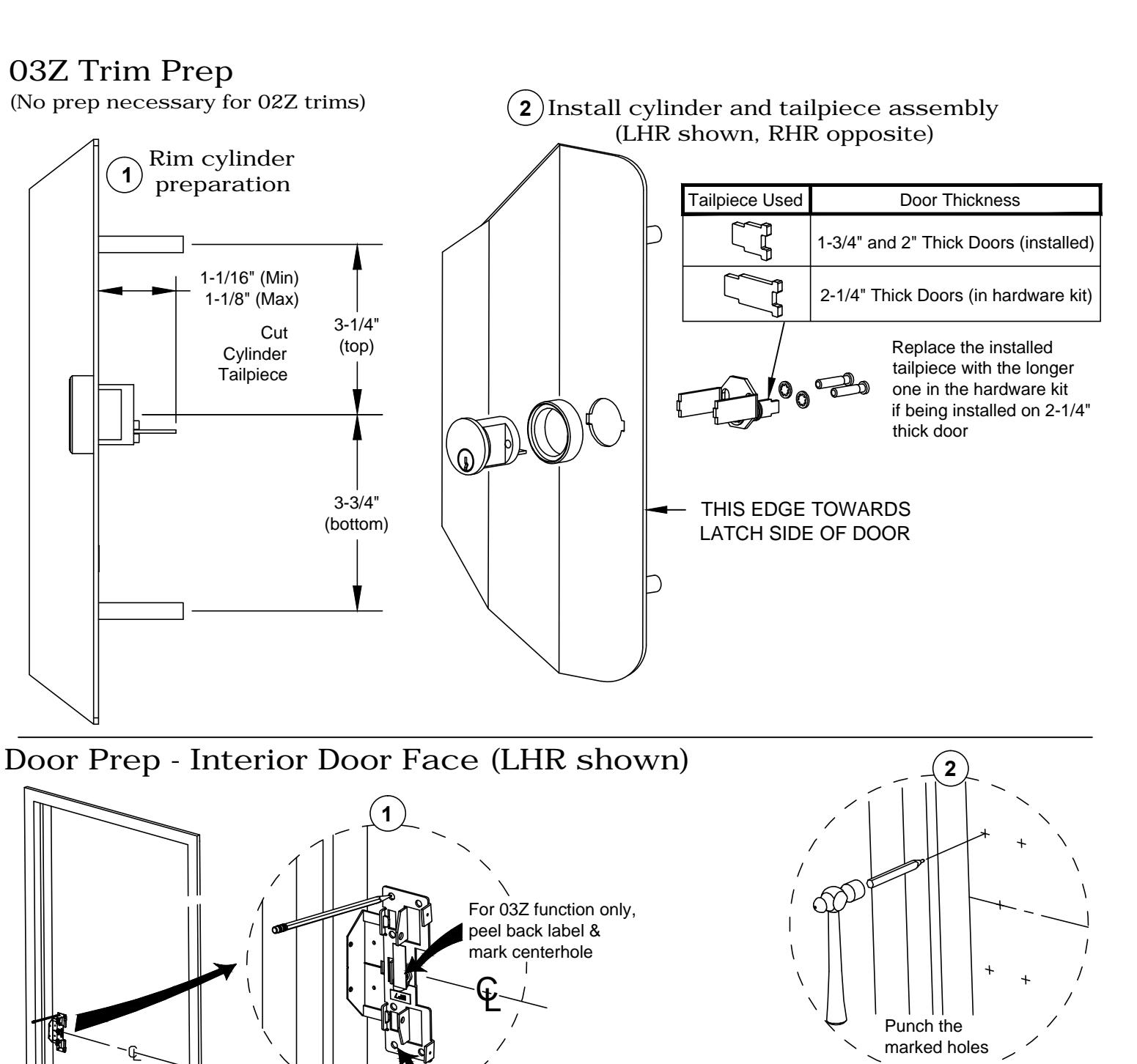

| Trim Prep, Door Prep - Interior Door Face | 3 | |
| Door Prep - Exterior Door Face, Install Trim | 4 |
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos

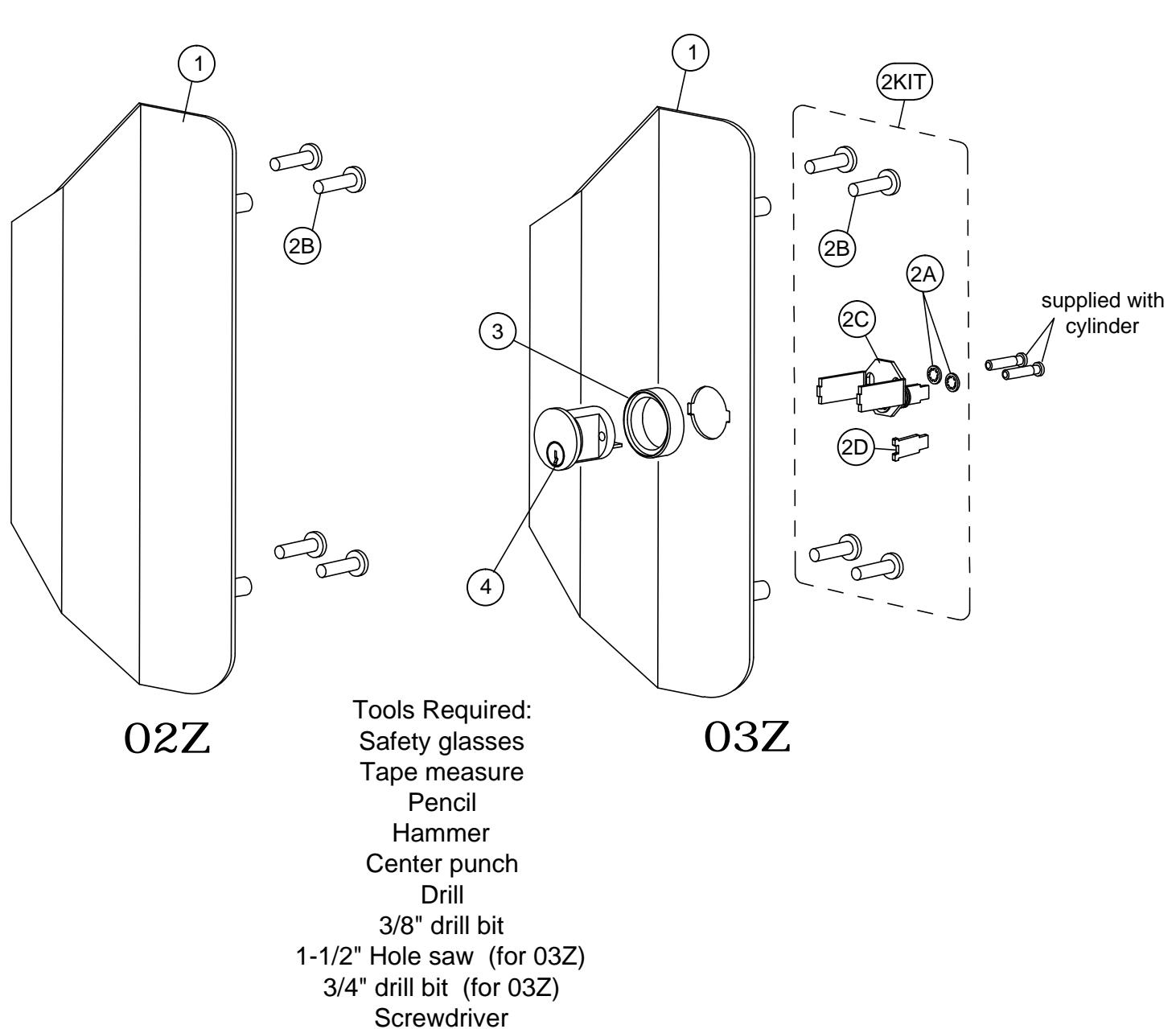

| P/ | ARTS | BREAKDOWN | ||
|---|---|---|---|---|
| Item | P/N | QTY | Description | |
| ITEM 4 ERS TO | 105641-630 | TRIM, 02Z, ANTI-VANDAL | ||
| 1 | 105649-LHR-630 | 1 | TRIM, 03Z, ANTI-VANDAL, LHR | |
| 105649-RHR-630 | TRIM, 03Z, ANTI-VANDAL, RHR | |||
| 2KIT | 105646-2 | 1 | KIT, 03Z TRIM | |
| 2A | PP-5066-12 | 2 | LOCKWASHER, #12 | |
| 2B | 100980 | 4 | SCREW, 1/4-20 x 1 | |
| 2C | 101454-1 | 1 | TAILPIECE ASSEMBLY, RIM, 03WS | |
| 2D | 101480-1 | 1 | TAILPIECE, 03 WSN (for 2-1/4" thick door) | |
| 3 | 100752-9 | 1 | CYLINDER COLLAR, TALL | |
| ECL-445-7-X | 1 | CYLINDER, 5 PIN RIM (sold separately) | ||
| 4 | IC7R-626 | ] ' | | CYLINDER, 7 PIN RIM (sold separately) |
FOR ITEM 4 "-X" REFERS TO KEY CODE AA-KK
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)

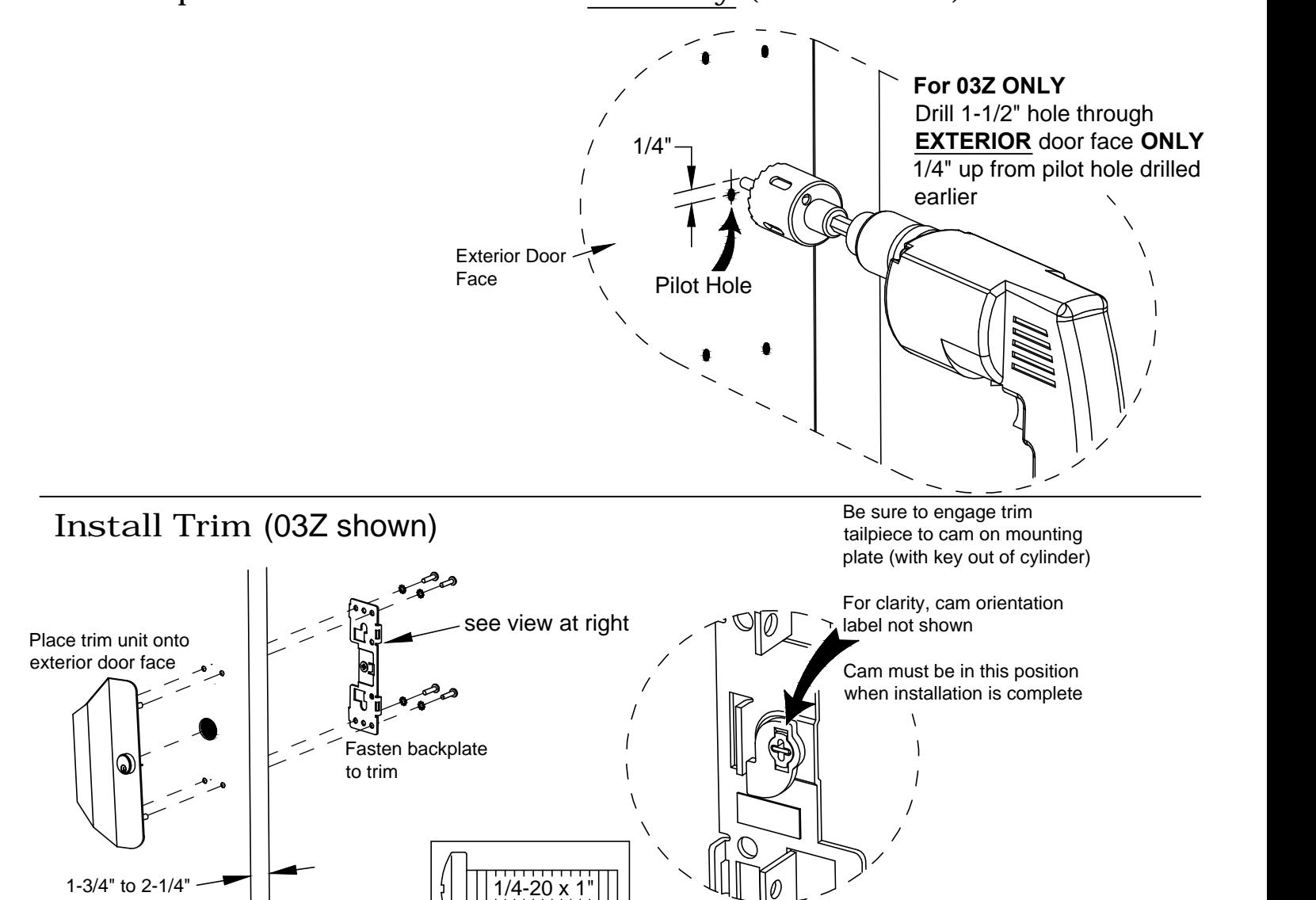

Door Prep - Exterior Door Face - 03Z only (LHR shown)
Continue with Exit Hardware Instructions
door thickness (viewed from exit device side)
Machine screws in trim hardware kit
#1/4 Lock washers supplied with exit device
(viewed from trim side)
