Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR '(7(;:3:,5(38//75,0
Drawing # 105670
| Table of Contents | Page |
|---|---|
| Device parts breakdown view & part numbers | 2 |
| Door Prep and Install Trim | 3 |
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos

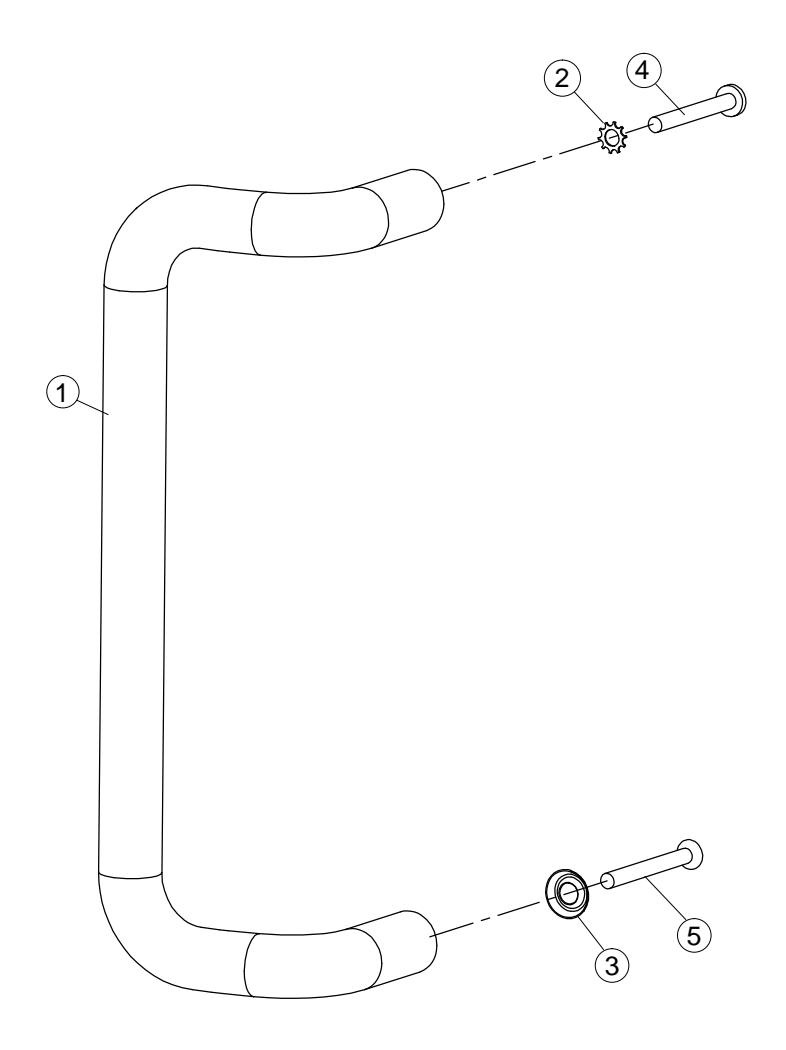

| PARTS BREAKDOWN | |||
|---|---|---|---|
| Item | P/N | QTY | Description |
| 1 | 105245-X | 1 | Wire Pull |
| 2 | PP-5067-25 | 1 | 1/4" Lockwasher |
| 3 | 102272-2 | 2 | 1/4" Finish Washer |
| 4 | 105624 | 1/4-20 x 2-3/4" PPH Screw (for 1-3/4" to 2" thick doors) | |
| 4 | 105638 | ] ' [ | 1/4-20 x 3" PPH Screw (for 2" to 2-1/4" thick doors) |
| 5 | 5 102271-144 2 | 1/4-20 x 2-3/4" PFH Screw (for 1-3/4" to 2" thick doors) | |
| 2 | 102271-148 | | | 1/4-20 x 3" PFH Screw (for 2" to 2-1/4" thick doors) |
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)
TOOLS AND SUPPLIES
- Safety Glasses
- Pencil
- Center Punch
- Hammer
- Power Drill
- Drill Bit & Tap Set
- Screw Driver (Phillips Drive)
- Tape Measure

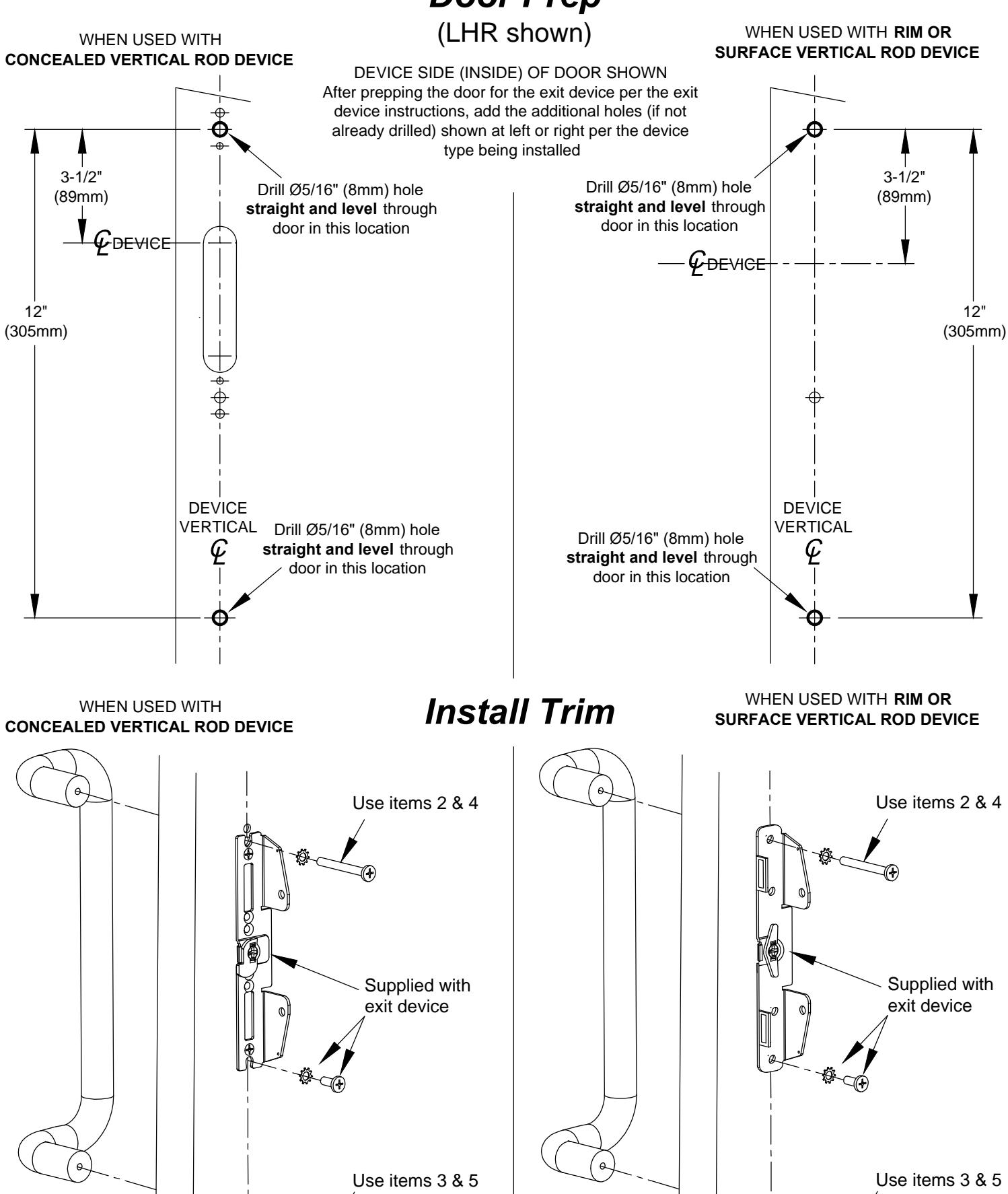

Door Prep
104872 Page 3
1-3/4" to 2-1/4".
door thickness
1-3/4" to 2-1/4"
door thickness
