Detex Advantex 02DNV Installation Instruction

Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com

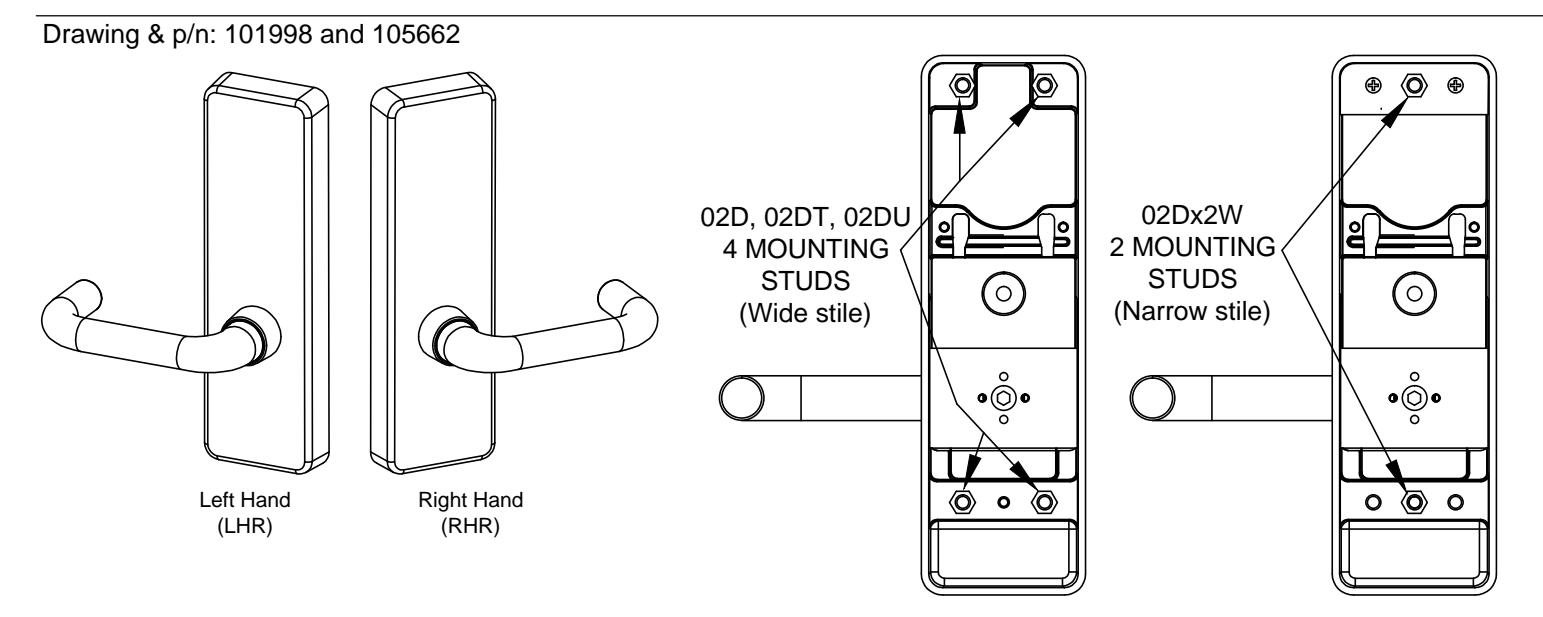

INSTALLATION INSTRUCTIONS FOR 02D, 02DT, 02DU, 02Dx2W OUTSIDE LEVER TRIM

NOT DESIGNED FOR 2" STILE DOOR

Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.

For WARRANTY information, scan code below or go to www.detex.com/warranty

For device installation videos, scan code below or go to www.detex.com/videos

1-3/4" to 2-1/4" door thickness
