Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR MORTISE 02DM, 02DMT, 02DMU OUTSIDE LEVER PULL TRIM
DWG #: 101998
| Table of Contents | Page |
|---|---|

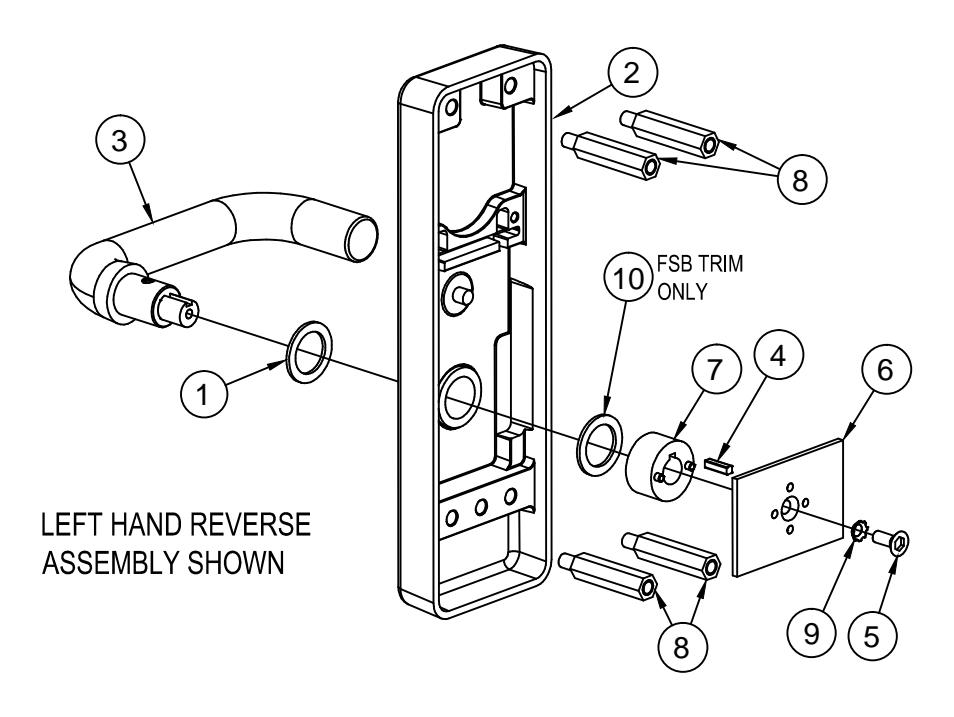

| Device parts breakdown view & part numbers | 2 |

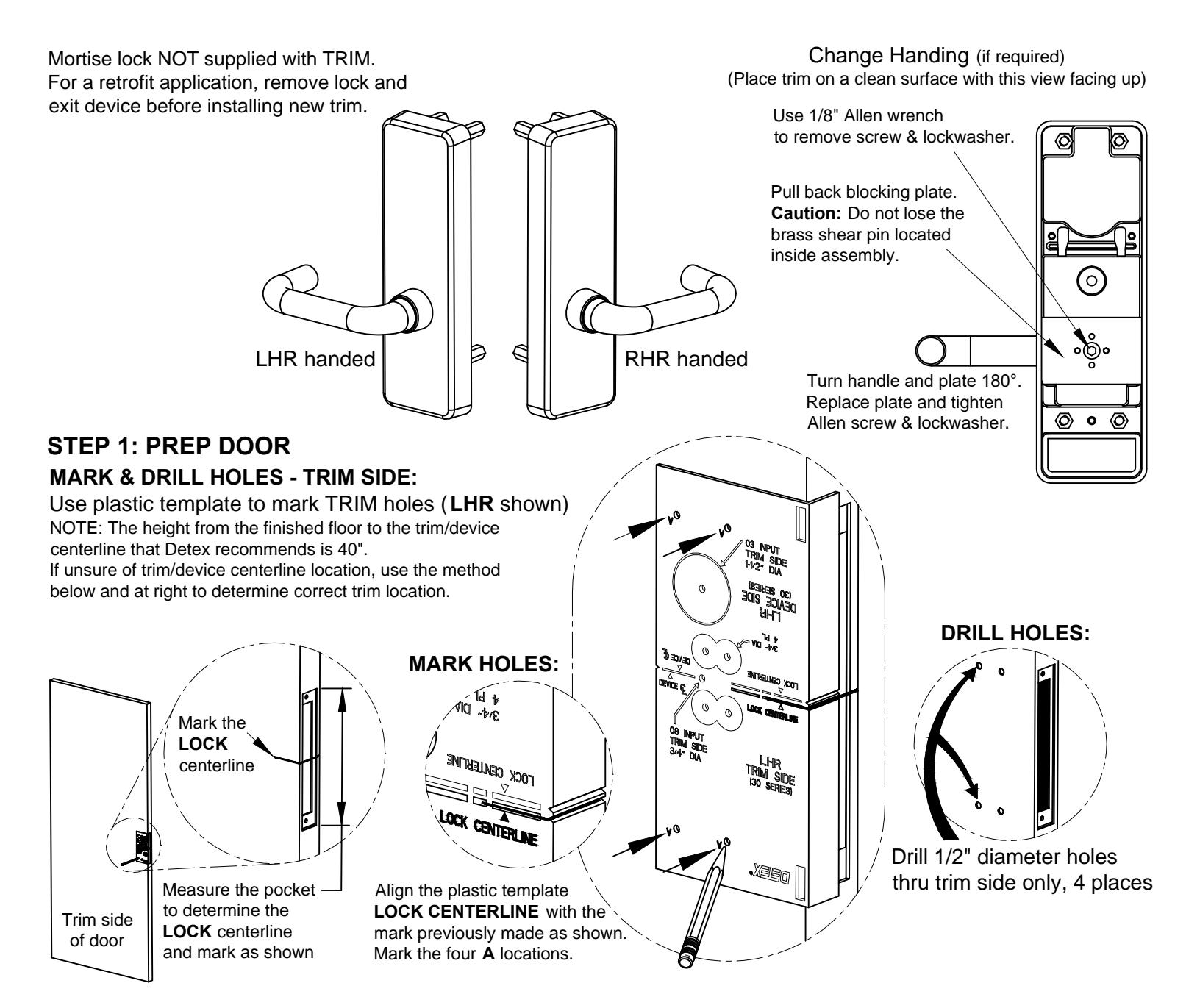

| Rehanding, Door Prep - Trim Side | 3 |
| Install Trim, Install Mortise Lock | 3 |
TOOLS AND SUPPLIES
Safety Glasses (Always put on safety glasses prior to beginning installation of unit)
Pencil Center Punch Hammer Drill Motor Drill Bits & Taps Screw Driver (Phillips Drive) Tape Measure
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos
| QTY | PART NO. | ITEM | DESCRIPTION |
|---|---|---|---|
| 1 | 100851 | 1 | WASHER, FLAT |
| 101459-X | ESCUTCHEON ASSY, 14 WIDE, BP-1 | ||
| 1 | 101502-X | 2 | ESCUTCHEON ASSY, 14 WIDE, BP-3 |
| 101503-X | ESCUTCHEON ASSY, 14 WIDE, BP-5 | ||
| 1 | 101376-7 | 3 | LEVER ASSEMBLY, S |
| 1 | 100774 | 4 | KEY, SHEAR PIN |
| 1 | 100822-1 | 5 | SCREW, 10-24 x 1/2 FH SOCKET CAP |
| 1 | 101989 | 6 | BLOCKING PLATE, 02 LEVER TRIM |
| 1 | 101992 | 7 | ASSEMBLY, TORQUE COLLAR |
| 4 | 100777 | 8 | STANDOFF, HEX, 1/4-20 |
| 1 | CK-110-1 | 9 | LOCKWASHER, C'SUNK, EXT. TOOTH |
| 1 | 105964 | 10 | WAVE WASHER (FSB) |

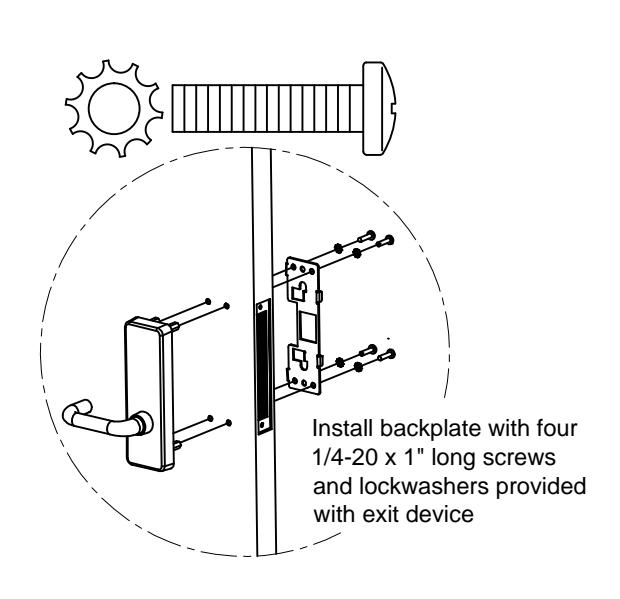

STEP 2: INSTALL TRIM & BACKPLATE

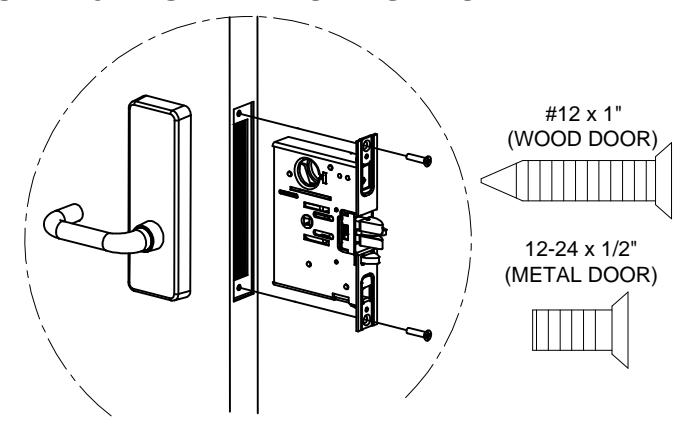

STEP 3: INSTALL MORTISE LOCK
Note: Mortise lock and mounting hardware supplied with exit device. Fasten screws loosely.
IMPORTANT!
For modular cable devices, see electrical instructions for cable routing.
