INSTALLATION INSTRUCTIONS FOR 01W ADVANTEX TRIM
DWG #: 101898
| Table of Contents | Page |
|---|---|

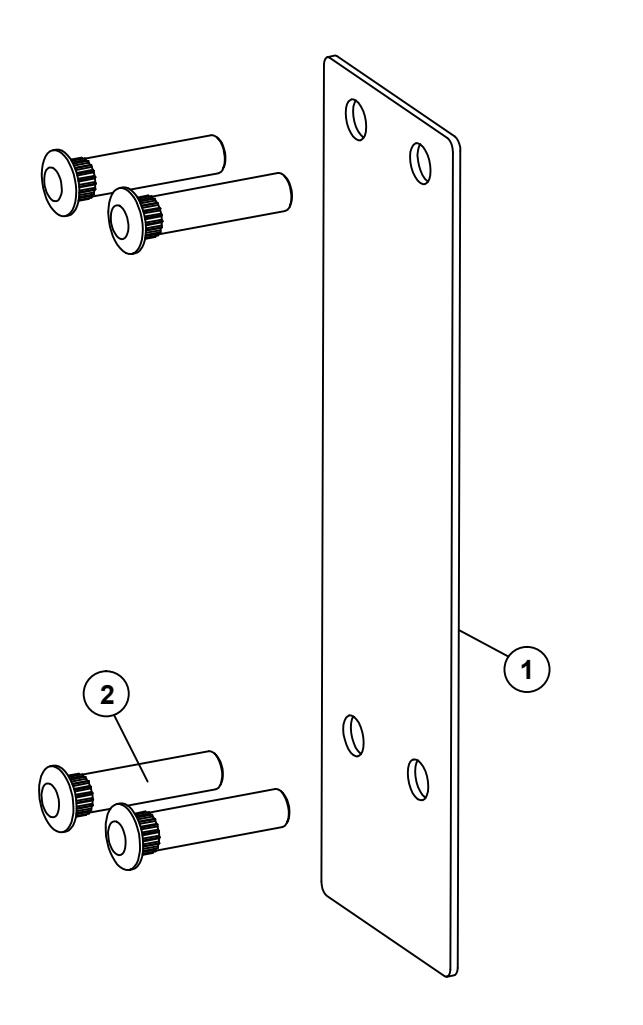

| Device parts breakdown view & part numbers | 2 |

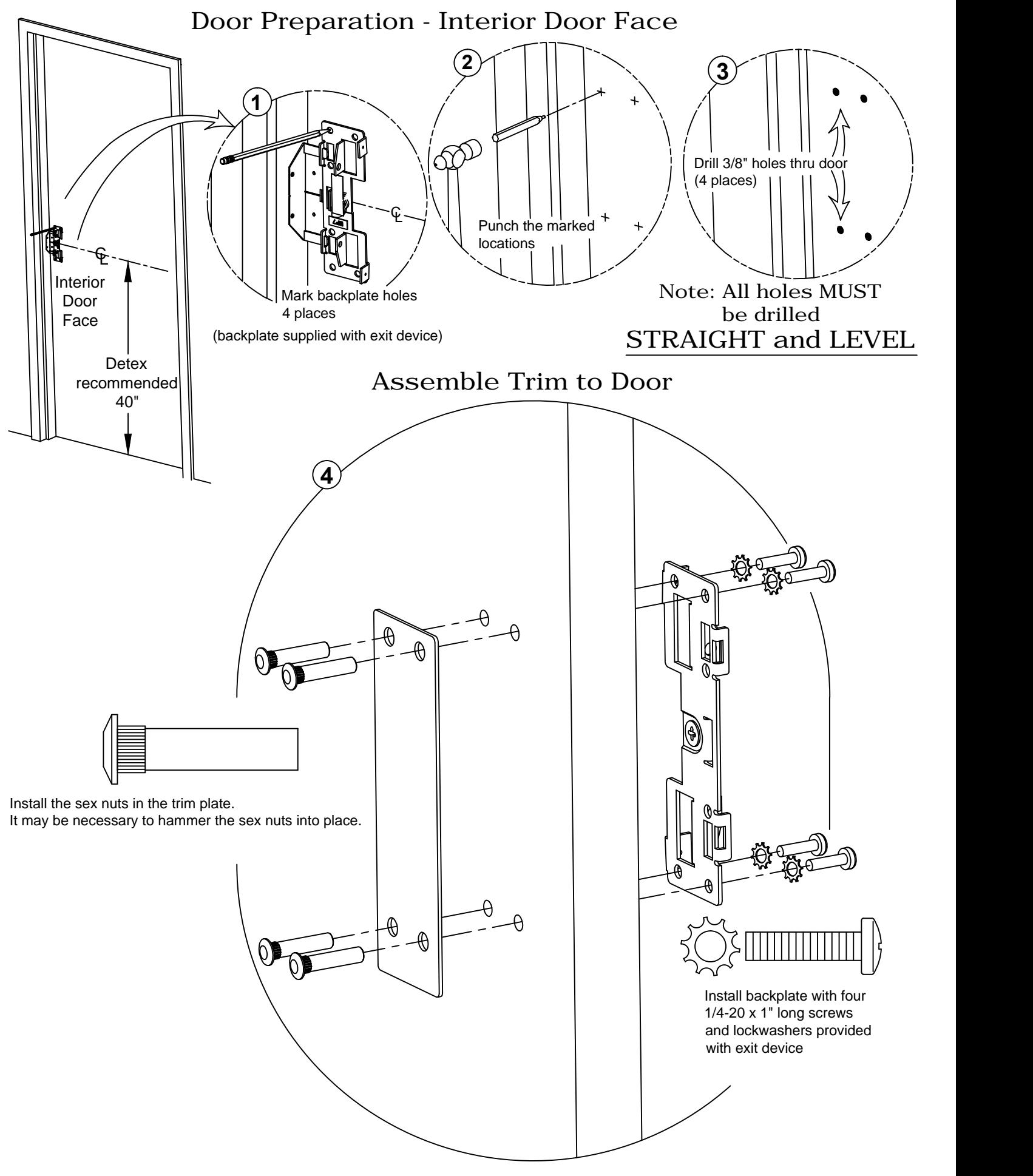

| Door Prep - Interior Door Face | 3 |
| Assemble Trim to Door | 3 |
TOOLS AND SUPPLIES
Safety Glasses (Always put on safety glasses prior to beginning installation of unit)
Pencil Center Punch Hammer Drill Motor Drill Bits & Taps Screw Driver (Phillips Drive) Tape Measure
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos
| ITEM | PART NO. | QTY | DESCRIPTION |
|---|---|---|---|
| 1 | 101911-9 | 1 | TRIM PLATE, 01W, BRUSHED STAINLESS STEEL FINISH (630) |
| 2 | 100464-9 | 4 | SEX NUT, 1/4-20 |
Continue with panic hardware instruction.
