Detex Advantex 01DN Installation Instructions

Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com

INSTALLATION INSTRUCTIONS FOR ADVANTEX NARROW (01DN) TRIM OR WIDE (01D) TRIM

Drawing # 105151 & 105150

PREPARING THE DOOR

• 1. Mark and centerpunch the exit device mounting plate holes according to the exit device instructions.
• 2. Drill pilot holes at centerpunched locations. CAUTION: Be sure to drill STRAIGHT through the door.
• 3. For METAL doors: DEVICE SIDE: drill a 5/16" hole

TRIM SIDE: drill 1/2" hole

For WOOD doors: drill 1/2" hole through door

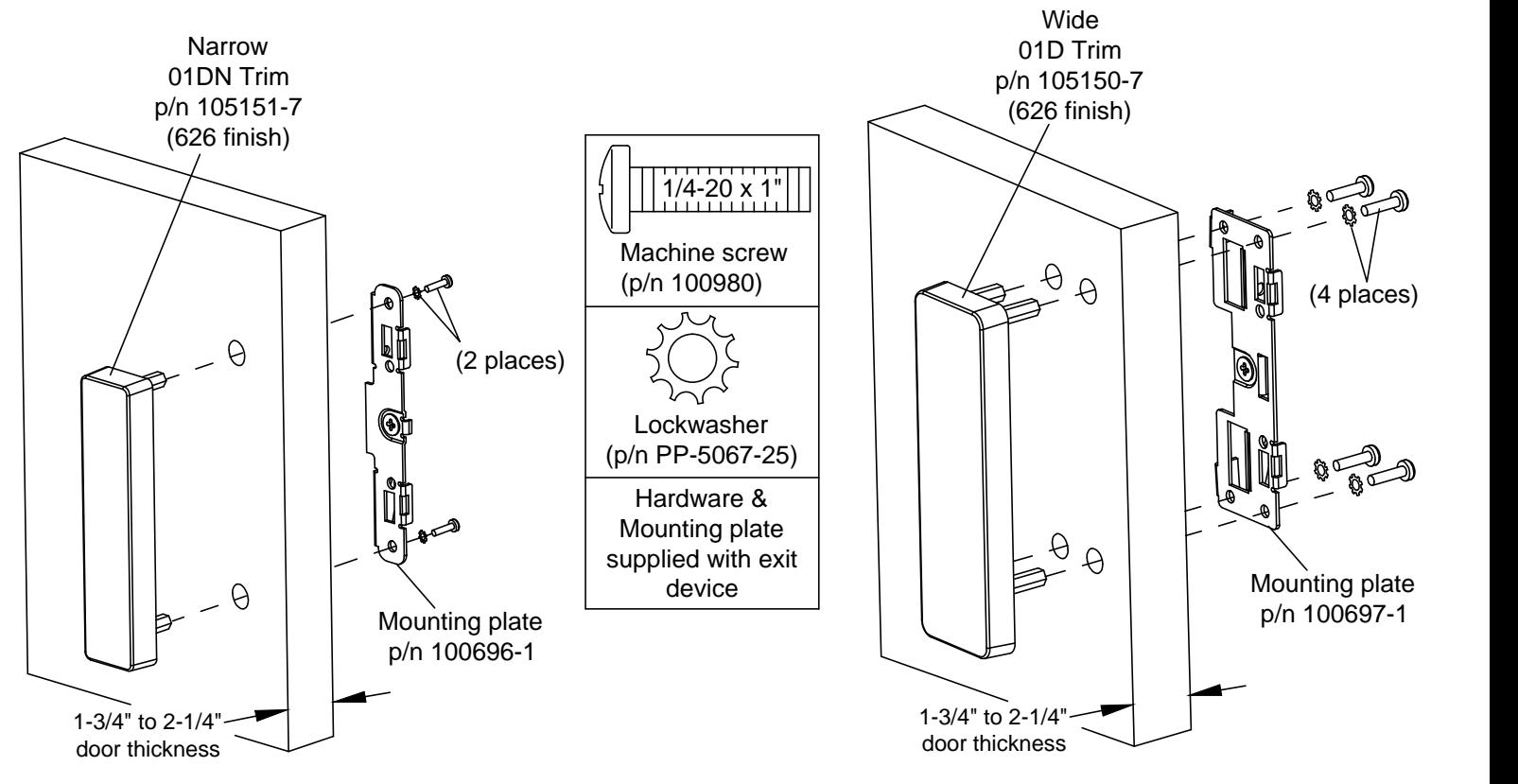

ASSEMBLE THE OUTSIDE TRIM AND BACKPLATE AS SHOWN BELOW.

Resume the exit device instructions.

Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.

For WARRANTY information, scan code below or go to www.detex.com/warranty

For device installation videos, scan code below or go to www.detex.com/videos
