Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 03C(N), 02C(N), 01C(N) PULLPLATE TRIM
DWG #: 102236 - 03C(N) 102237 - 02C(N)
102238 - 01C(N)
| Table of Contents | Page | ||
|---|---|---|---|

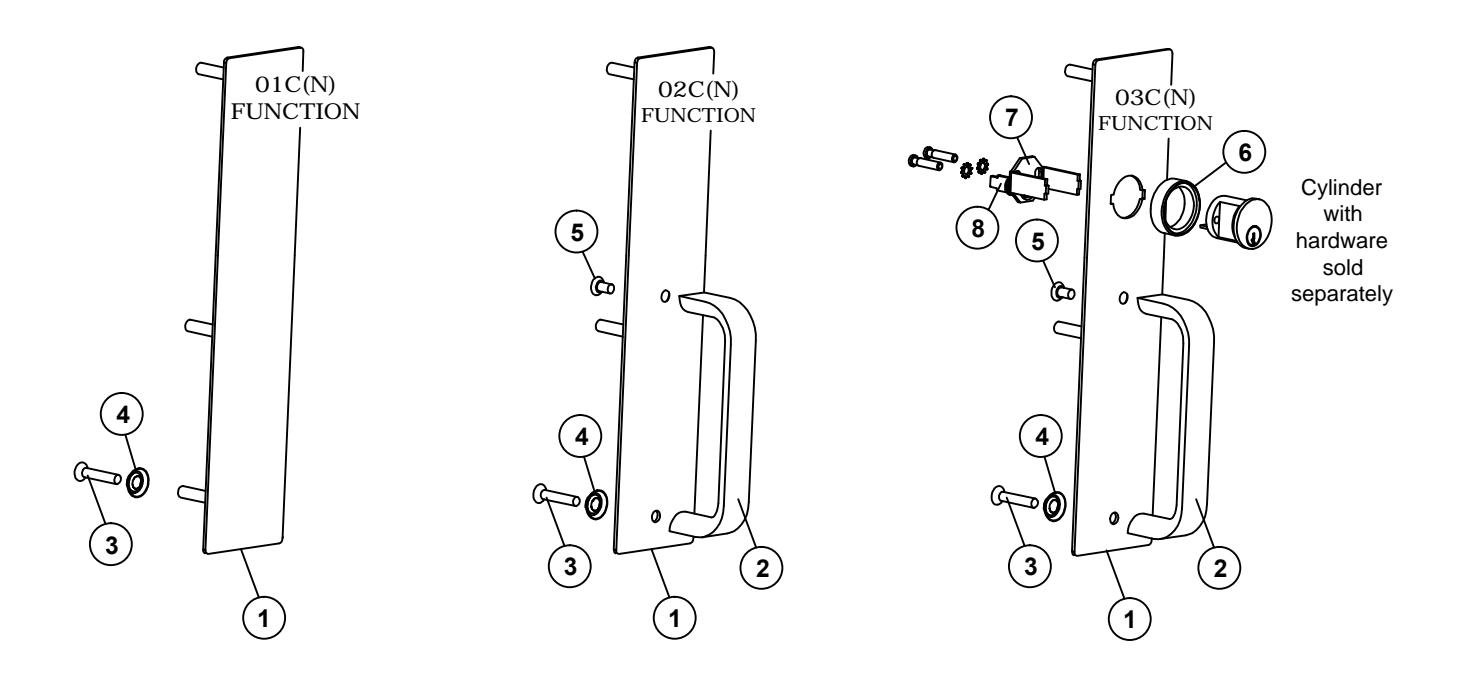

| Device parts breakdown view & part numbers | 2 | ||

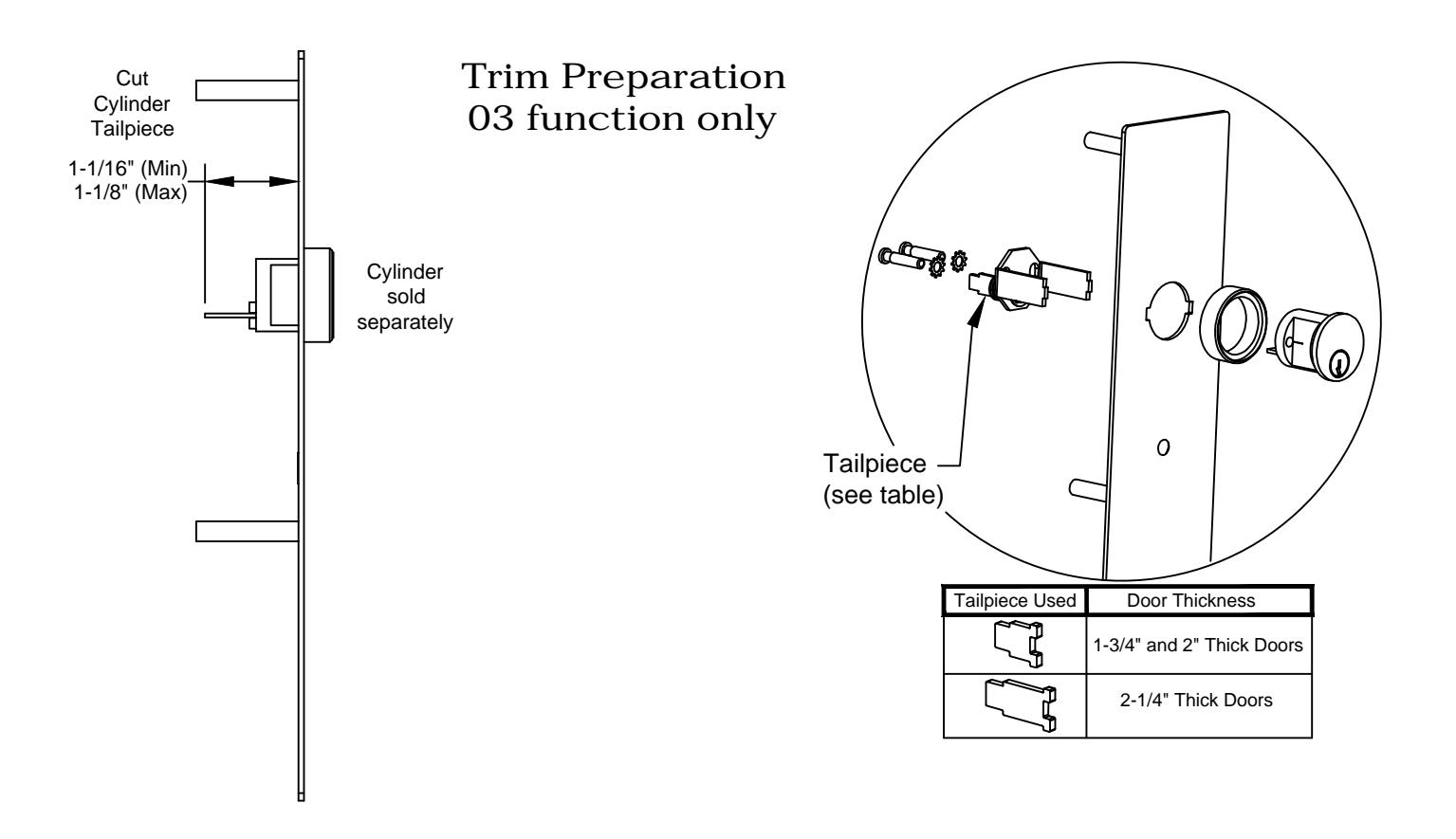

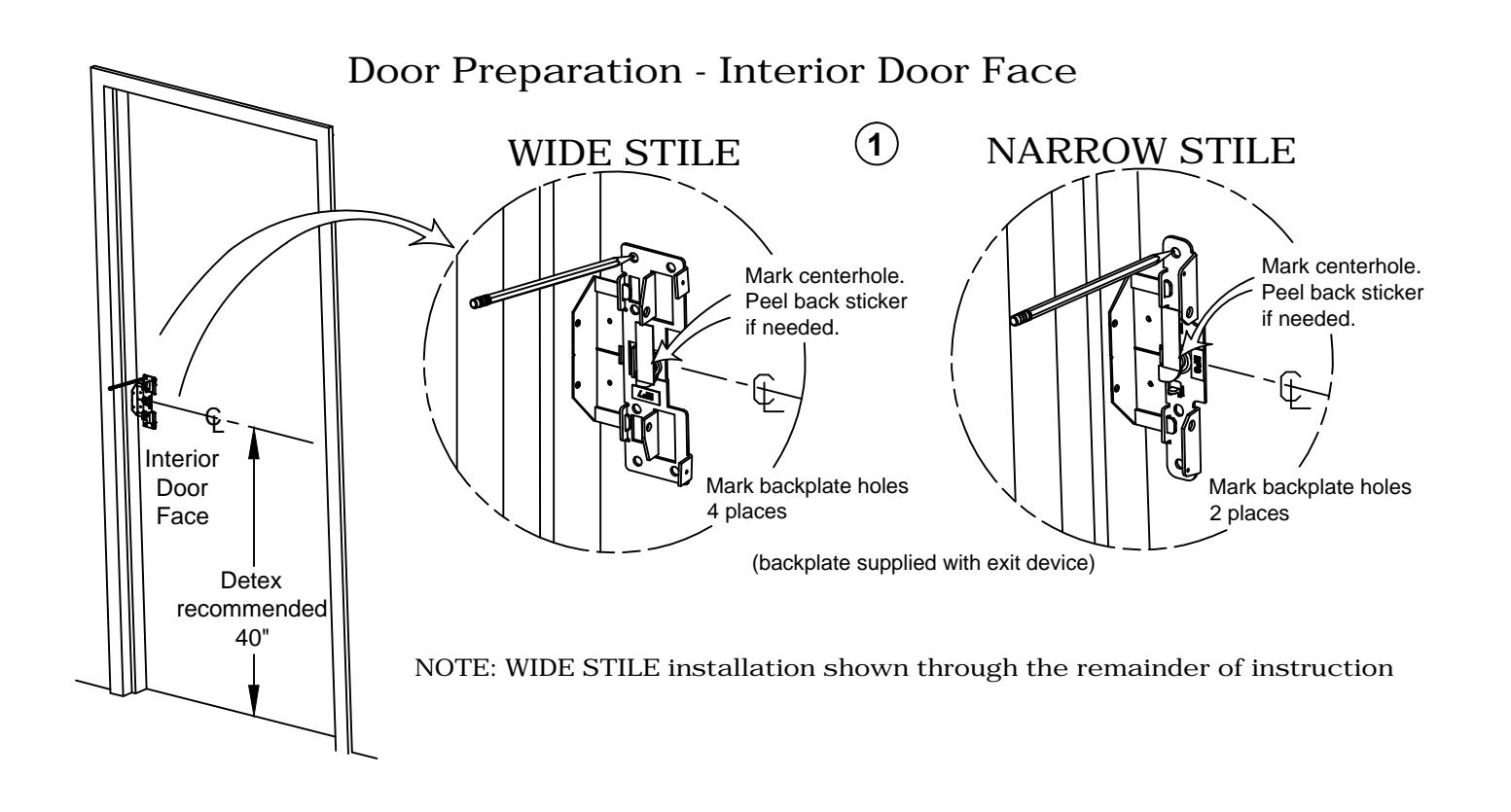

| Trim Prep, Door Prep - Interior Door Face | 3 | ||
|

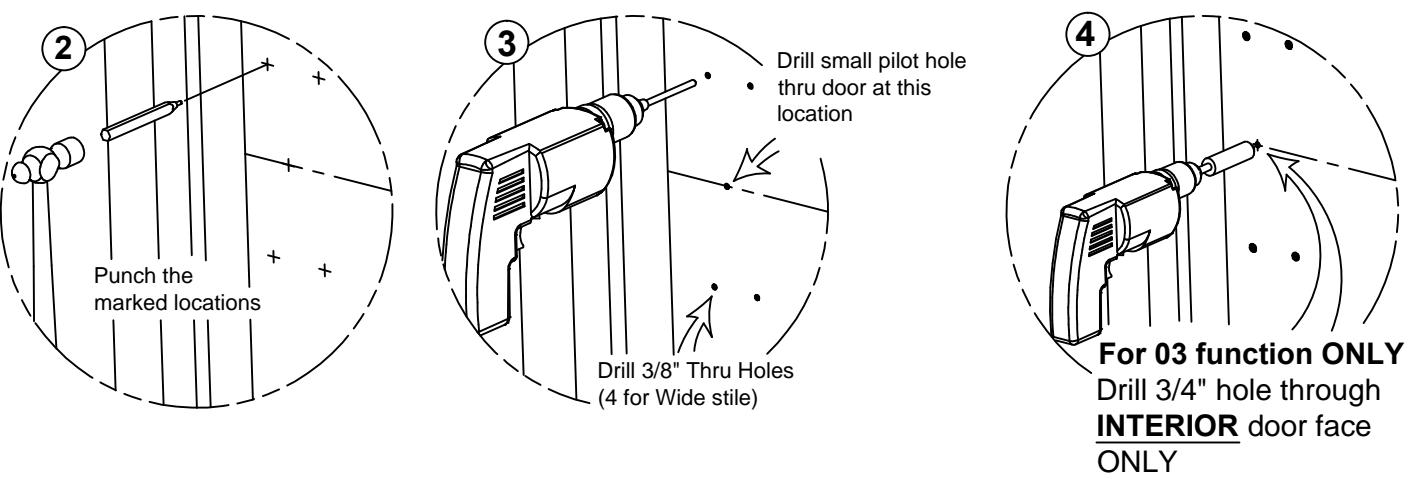

Door Prep - Interior Door Face (cont'd)
4 |
|||
| Door Prep - Exterior Door Face | |||

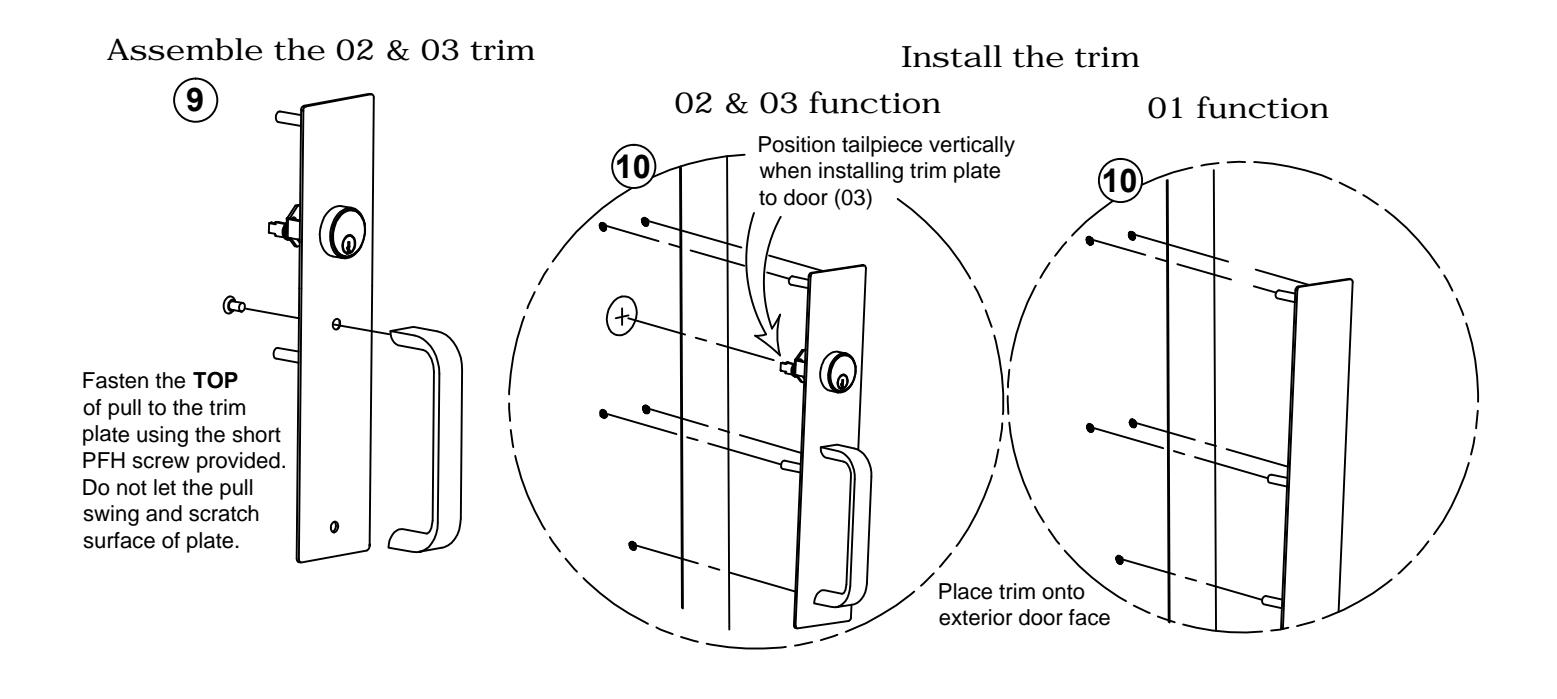

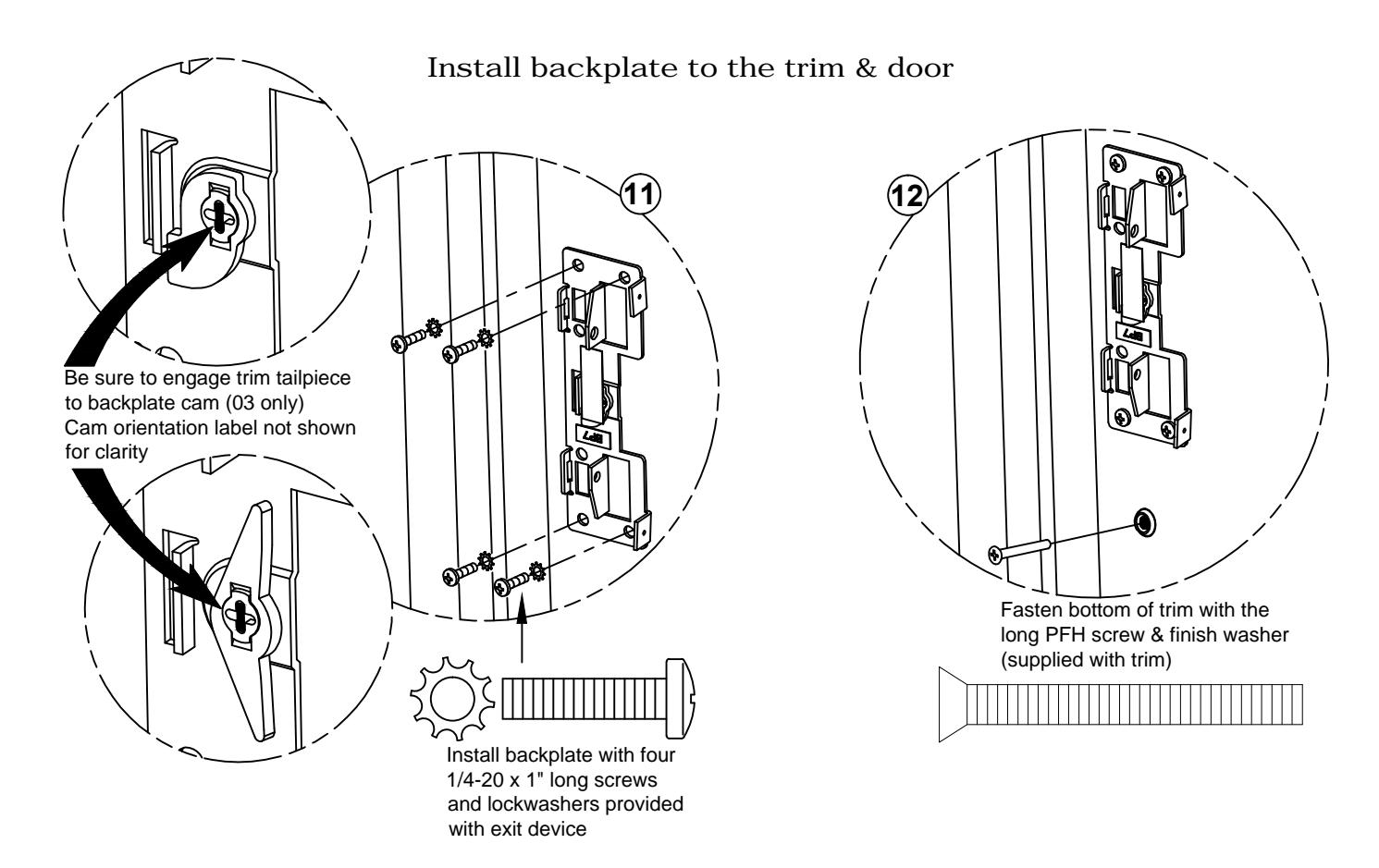

| Assemble & Install Trim & Backplate | 5 | ||
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos
| ITEM | PART NO. | QTY | DESCRIPTION |
|---|---|---|---|
| 1 | 102219-9 | 1 | TRIM PULLPLATE, 01C (WIDE BP-1 OR BP-11) |
| 102228-9 | TRIM PULLPLATE, 01CN (NARROW BP-2) | ||
| 105633-9 | TRIM PULLPLATE, 01CNV (NARROW CVR BP-10) | ||
| 102218-9 | TRIM PULLPLATE, 02C (WIDE BP-1 OR BP-11) | ||
| 102227-9 | TRIM PULLPLATE, 02CN (NARROW BP-2) | ||
| 105632-9 | TRIM PULLPLATE, 02CNV (NARROW CVR BP-10) | ||
| 102217-9 | TRIM PULLPLATE, 03C (WIDE BP-7 OR BP-13) | ||
| 102226-9 | TRIM PULLPLATE, 03CN (NARROW BP-8) | ||
| 105631-9 | TRIM PULLPLATE, 03CNV (NARROW CVR BP-12) | ||
| 2 | 102235-9 | 1 | PULL, 03, 02 C, CN |
| 3 | 102271-136 | 1 | 1/4-20 X 2-1/4" SCREW, S/S, PFH (02, 03 w 1-3/4" TO 2" DOOR) |
| 102271-144 | 1/4-20 X 2-3/4" SCREW, S/S, PFH (02, 03 w 2-1/4" DOOR) | ||
| 102271-116 | 1/4-20 X 1" SCREW, S/S, PFH, (01 ALL) | ||
| 4 | 102272-2 | 1 | 1/4" FINISH WASHER, S/S (01, 02, 03) |
| 5 | 102264-1 | 1 | SCREW, 1/4-20 X 1/2", UNDERCUT, PFH (02, 03) |
| 6 | 100752-9 | 1 | CYLINDER COLLAR, TALL (03) |
| 105227-7 | TAPERED CYLINDER COLLAR, CVR (03) | ||
| 7 | 101454-1 | 1 | TAILPIECE ASSY (03) |
| 105238-3 | TAILPIECE ASSEMBLY (03 CVR) | ||
| 8 | 101480-1 | 1 | TAILPIECE, 03 |
| 105239-1 | | ' | TAILPIECE, 2.25 THK DOOR (03, CVR) |

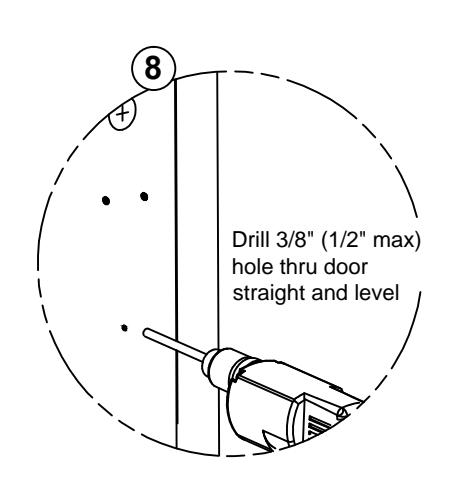

Note: All holes MUST be drilled STRAIGHT and LEVEL

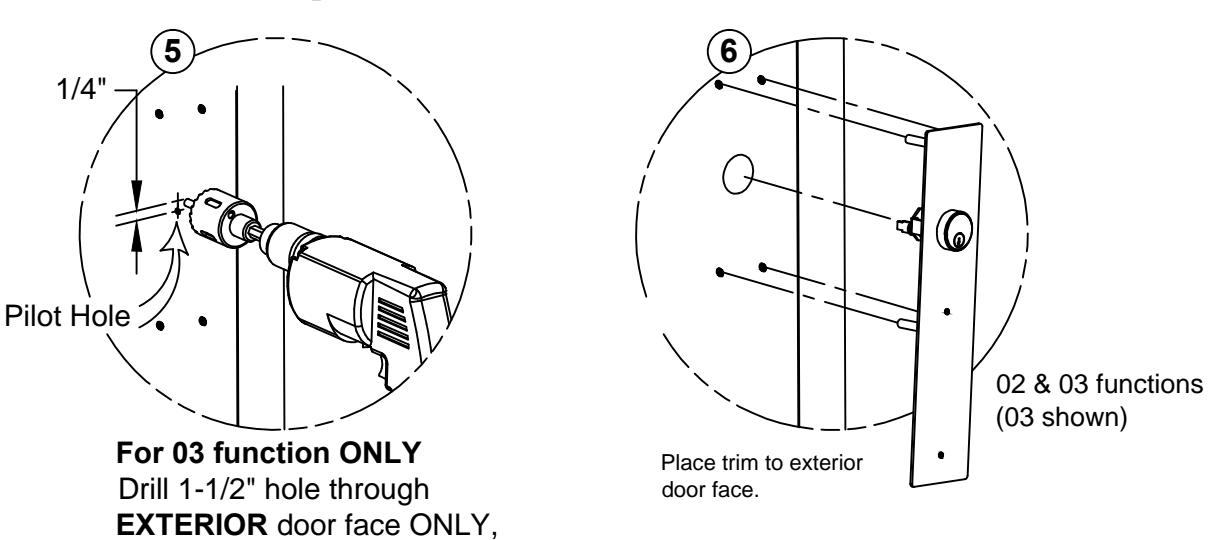

Door Preparation - Exterior Door Face

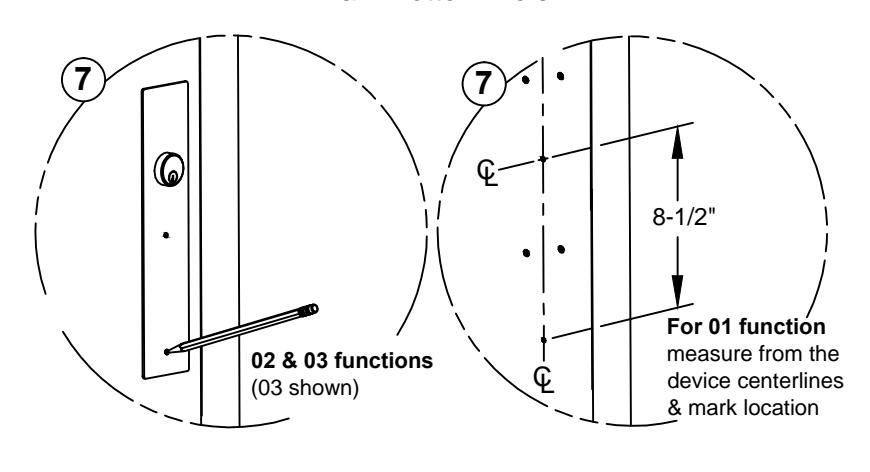

Mark Bottom Hole
1/4" up from pilot hole
101285 Page 4
Continue with Exit Hardware Instructions
