Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR MORTISE 01 & 02CM OUTSIDE TRIMS
DWG #: 103335 (01CM) 103345 (02CM)
| Table of Contents | Page |
|---|---|

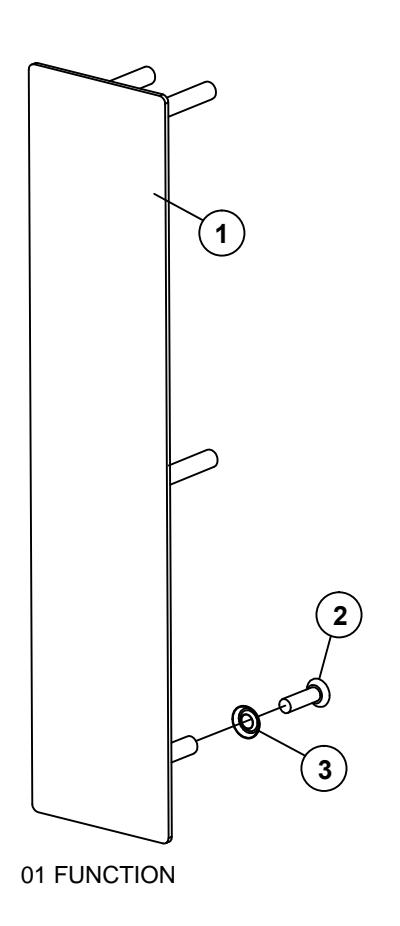

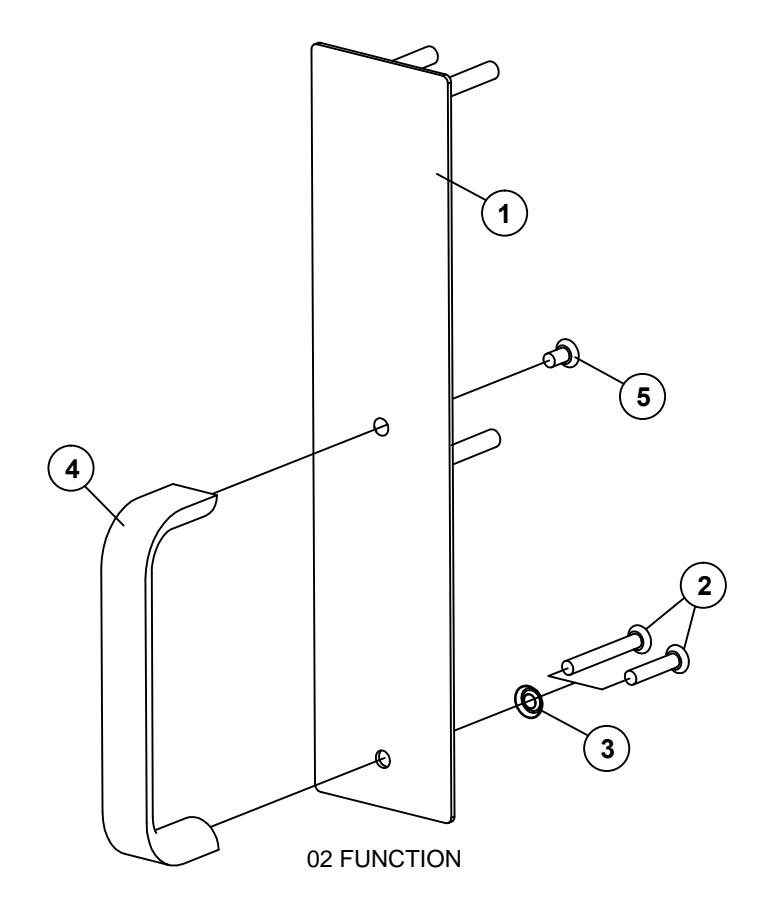

| Device parts breakdown view & part numbers | 2 |

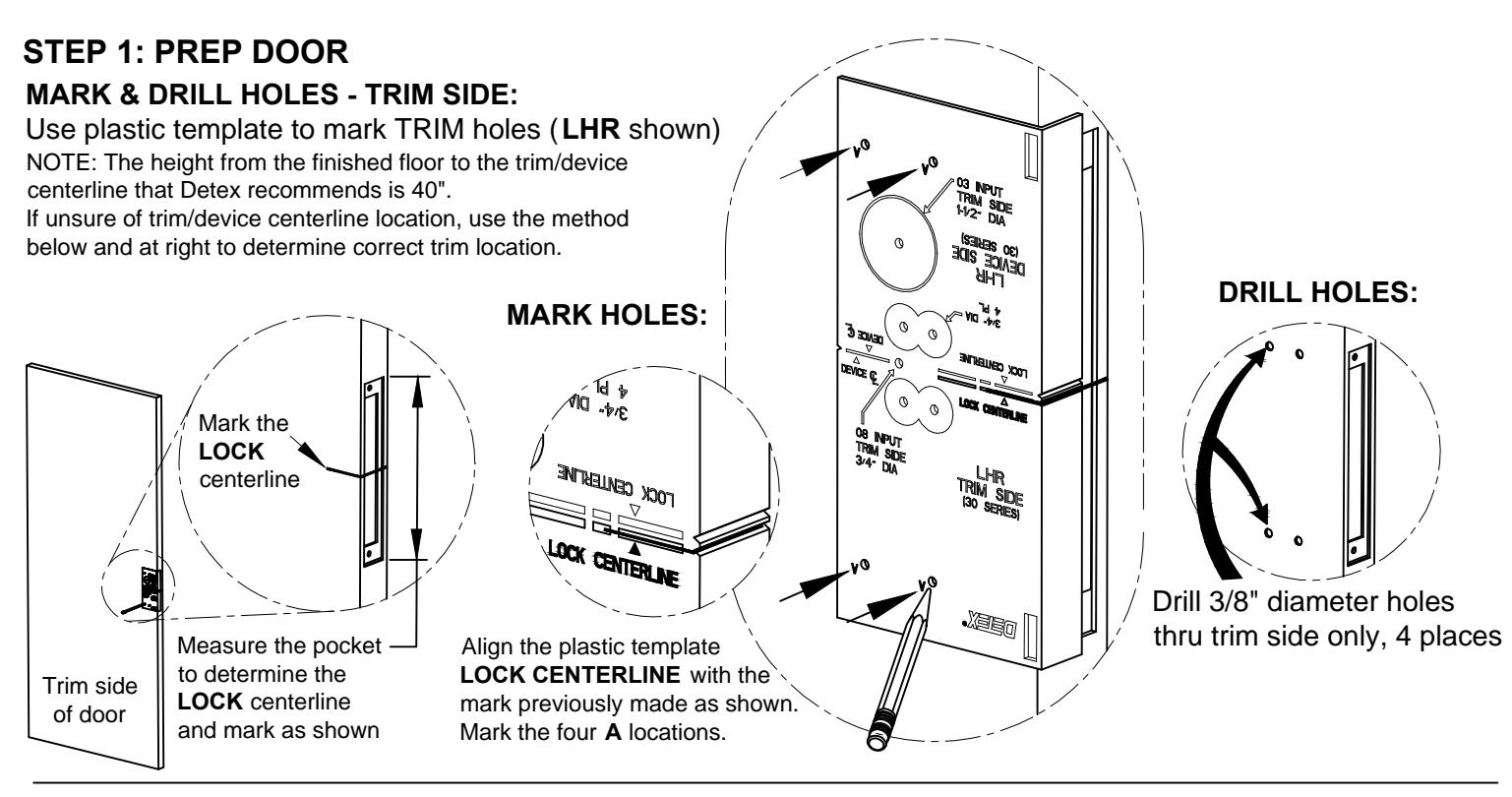

| Door Prep - Trim Side, Prep & Install Trim & Backplate | 3 |
TOOLS AND SUPPLIES
Safety Glasses (Always put on safety glasses prior to beginning installation of unit)
Pencil Center Punch Hammer Drill Motor Drill Bits & Taps Screw Driver (Phillips Drive) Tape Measure
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos
| ITEM | PART NO. | QTY | DESCRIPTION |
|---|---|---|---|
| 1 | 102219-9 | 1 | TRIM PULLPLATE, 01, (BLANK), BRUSHED STAINLESS STEEL FINISH (630) |
| ' | 102218-9 | TRIM PULLPLATE, 02 (W/PULL), BRUSHED STAINLESS STEEL FINISH (630) | |
| 102271-116 | SCREW, MACH, 1/4-20 X 1", PFH, STAINLESS STEEL (01) | ||
| 2 | 102271-136 | 1 | SCREW, MACH, 1/4-20 X 2-1/4", PFH, STAINLESS STEEL (02) |
| 102271-144 | SCREW, MACH, 1/4-20 X 2-3/4", PFH, STAINLESS STEEL (02) | ||
| 3 | 102272-2 | 1 | WASHER, #14, FINISHED, STAINLESS STEEL |
| 4 | 102235-9 | 1 | PULL, 02C |
| 5 | 102264-1 | 1 | SCREW, MACH, 1/4-20 X 1/2" UNDERCUT, PFH (02) |

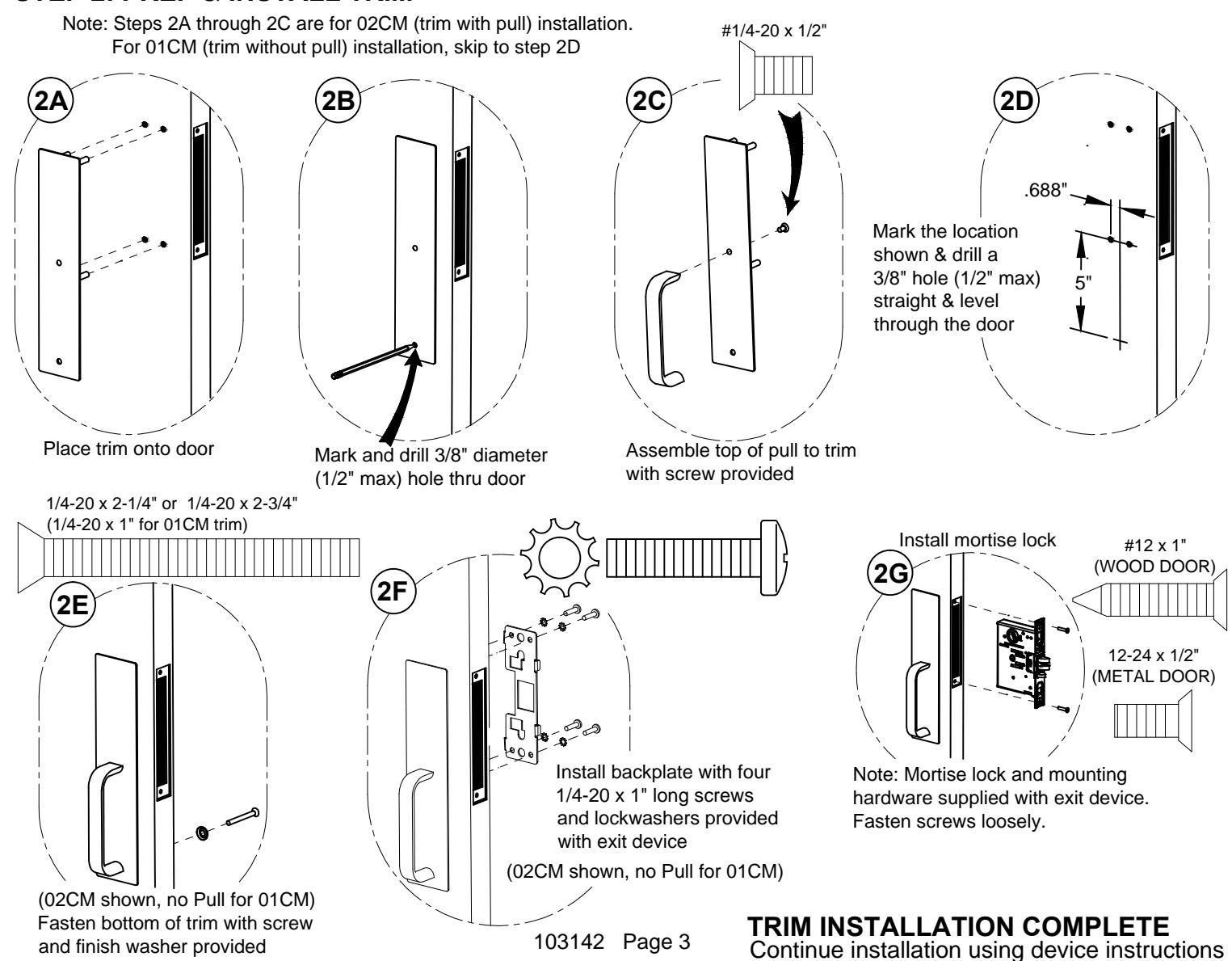

STEP 2: PREP & INSTALL TRIM
