MINI CONSOLES FOR CONTROL FOR ONE OR TWO DOORS

DESKTOP MINI CONSOLES

CONSOLES

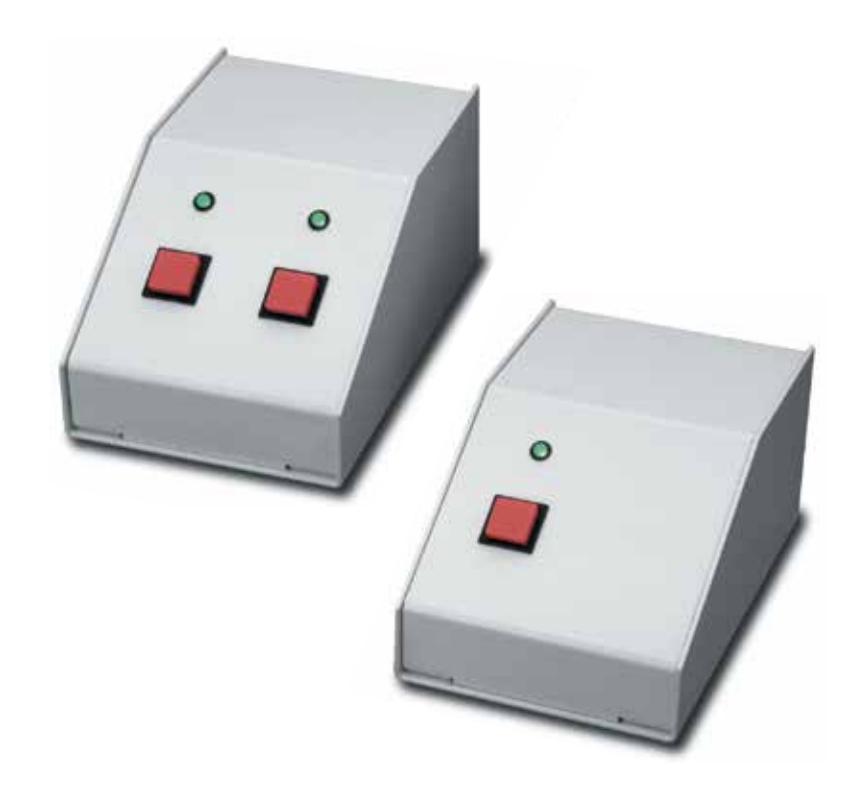

Mini Consoles for Control of One or Two Doors

The IDC Mini Desktop Consoles provide an economical method of controlling one or two doors. They are available in three switch configurations with Tri-Color LED indicators. When used with a door status or lock status sensor the LED's allow monitoring of door and lock modes. The switches can provide an On / Off function or momentary access control for electromagnetic EMLocks, Shear Locks, Bolt Locks, Delayed Egress Systems, Electrical Exit System, or Electric Strikes.

Features

  • The momentary switch can be used to release a single opening. The maintained (On / Off) switch is used as a bypass for keeping the door unlocked for an extended period of time. The tri-color LED displays Green, Red and Amber colors to indicate up to three lock status conditions.
  • Choice of heavy duty momentary or maintained operating switches accommodate lock control functions.
  • Tri-color LED indicators provide for immediate status indication of door position or lock status when used with lock monitors such as Door Position (DPS) or Bond Sensors (BAS).
  • Push button switches provide an aesthetically pleasing appearance and high operational reliability.

Model

DTMO-1 One momentary switch and one LED DTMO-2 Two momentary switches and two LED's DTMOMA-2 One momentary, one maintained switch and two LED's

DTMA-2 Two maintained switches and two LED's

Switch Controls

Common White Normally Open Yellow Normally Closed Orange

Bi-Color LED 12 to 24 V Negative

Black

Red Illumination Positive

Red

Green Illumination Positive

Green

Amber Illumination Positive

Power red & green simultaneously

Specifications

Dimensions 4.125"W x 3.125"H x 6.25"L Contact Rating 5Amp @ 30VDC Maximum

Input Power 24VDC @ 0.02Amp required for each LED

Color Beige
