49.00

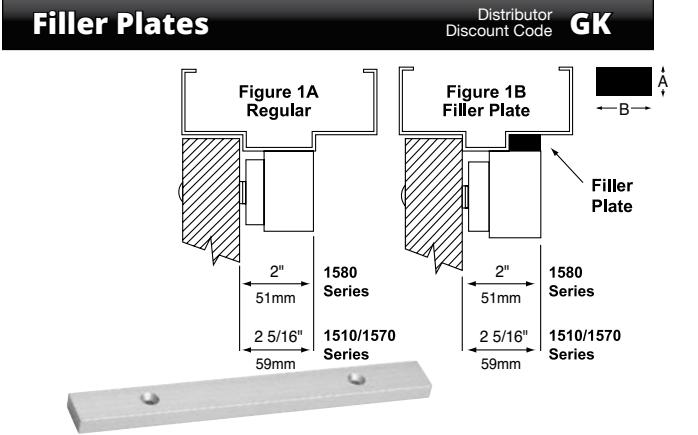

FILLER PLATES: For extension of the stop to provide a proper mounting surface on the underside of the header. See Figure 1B.

FOR 8-3/4" (222mm) SINGLE EMLOCK MODELS GK 1581, 1581DEV PART # LIST A x B FP01 1/8" x 1-1/4" (3 x 32mm) 34.00 FP02 1/4" x 1-1/4" (6 x 32mm) 37.00 FP03 39.00 3/8" x 1-1/4" (10 x 32mm) FP04 1/2" x 1-1/4" (13 x 32mm) 41.00

FOR 11" (279mm) SINGLE EMLOCK MODELS

5/8" x 1-1/4" (16 x 32mm)

FP05

1512

1572

1511	1571	1511S	1511DEV	1581S
1511T	1571DI	EV
PART #	ŧ	A x B			LIST
FP11		1/8" x 1-1/4	4" (3 x 32mm)		38.00
FP12		1/4" x 1-1/4	1" (6 x 32mm)		39.00
FP13		3/8" x 1-1/-	4" (10 x 32mm)		39.00
FP14		1/2" x 1-1/4	4" (13 x 32mm)		43.00
FP15		5/8" x 1-1/-	4" (16 x 32mm)		45.00

FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL 1582

PART #	A x B	LIST
FP30	1/8" x 1-1/4" (3 x 32mm)	43.00
FP31	1/4" x 1-1/4" (6 x 32mm)	45.00
FP32	3/8" x 1-1/4" (10 x 32mm)	47.00
FP33	1/2" x 1-1/4" (13 x 32mm)	49.00
FP34	5/8" x 1-1/4" (16 x 32mm)	52.00

FOR 22" (559mm) DOUBLE EMLOCK MODELS

PART #	АхВ	LIST
FP21	1/8" x 1-1/4" (3 x 32mm)	43.00
FP22	1/4" x 1-1/4" (6 x 32mm)	45.00
FP23	3/8" x 1-1/4" (10 x 32mm)	47.00
FP24	1/2" x 1-1/4" (13 x 32mm)	49.00
FP25	5/8" x 1-1/4" (16 x 32mm)	52.00

P 625 Bright Chrome

Angle Brackets Distributor GK

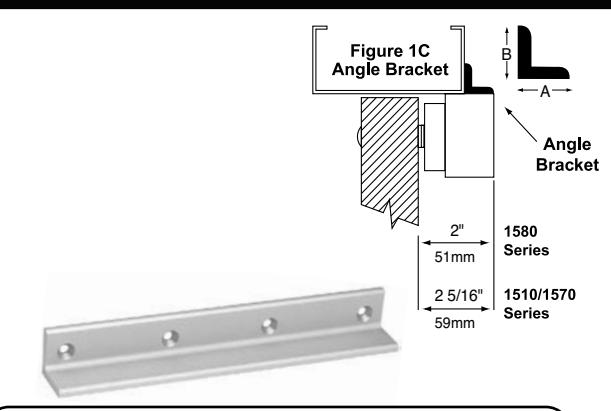

ANGLE BRACKETS: Used as extension on shallow door frames to provide adequate mounting surface. See Figure 1C.

FOR 8-3/4" (2	22mm) SINGLE EMLOCK MODELS	GK
1581, 1581DEV	1
PART #	АхВ	LIST
AB01	1" x 1" (25 x 25mm)	43.00
AB02	1" x 1-1/2" (25 x 38mm)	45.00
AB03	1-1/2" x 1-1/2" (38 x 38mm)	47.00

2" x 1-1/2" (51 x 38mm)

FOR 11" (279mm) SINGLE EMLOCK MODELS
1511	1571	1511S	1511DEV	1581S
1513	1511T	1571DEV
PART	#	A x B			LIST
AB11		1" x 1" (25	x 25mm)		45.00
AB12	2	1" x 1-1/2"	' (25 x 38mm)		47.00
AB13	;	1-1/2" x 1-1	/2" (38 x 38mm)		49.00
AB14		2" x 1-1/2" (	(51 x 38mm)		52.00

FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL 1582

PART #	АхВ	LIST
AB30	1" x 1" (25 x 25mm)	56.00
AB31	1" x 1-1/2" (25 x 38mm)	60.00
AB32	1-1/2" x 1-1/2" (38 x 38mm)	65.00
AB33	2" x 1-1/2" (51 x 38mm)	69.00

FOR 22" (559mm) DOUBLE EMLOCK MODELS 1512 1572

PART #	A x B	LIST
AB21	1" x 1" (25 x 25mm)	56.00
AB22	1" x 1-1/2" (25 x 38mm)	60.00
AB23	1-1/2" x 1-1/2" (38 x 38mm)	65.00
AB24	2" x 1-1/2" (51 x 38mm)	69.00

34.00

SPECIFY FINISH	_	Add to List
	Single EmLock	Double EmLock
V 628 Aluminum (standard)	N/C	N/C
Y 335 Black Anodized	34.00	67.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish	, that is tougher than	n conventional paint)
X Dark Bronze Powder Coat Painted	34.00	67.00
C Brass Powder Coat Painted	34.00	67.00
Plated Finishes - Special order, no cancellation, no returns

Q 626 Dull Chrome

AB04

41.00

67.00
