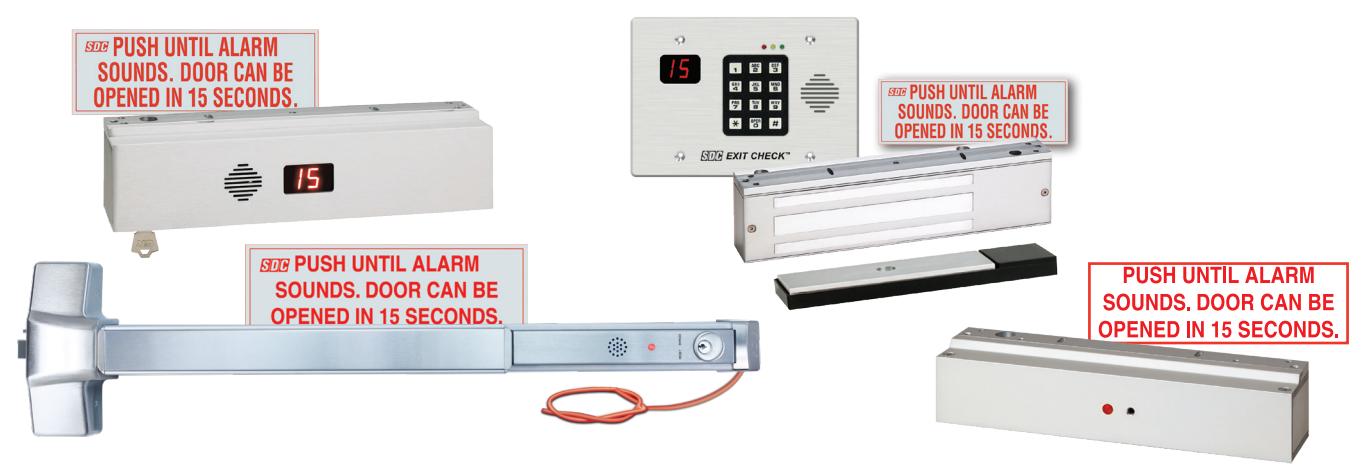

Code Compliance Operation Mode for Delayed Egress Devices

NA NFPA 101, IBC, IFC, UBC Compliant

• Field selectable 15 or 30 second exit delay and 1 or 2 second nuisance delay
• Field selectable automatic or manual reset on power-up
• Manual Reset after countdown release

NC NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant

• Fixed 15 second exit delay
• Field selectable 0 or 1 second nuisance delay
• Fixed manual reset on power-up
• Manual Reset after countdown release

ND & NFPA 101, IBC, IFC, UBC

NH

• ND Fixed 15 second exit delay and field selectable 0 or 1 second nuisance delay
• NH Fixed 30 second exit delay and field selectable 0 or 1 second nuisance delay
• Field selectable automatic or manual reset on power-up
• Manual Reset after countdown release

BD & BOCA Building Code

BH

• BD Fixed 15 second exit delay
• BH Fixed 30 second exit delay
• Field selectable 0 or 1 second nuisance delay
• Field selectable automatic or manual reset on power-up
• Manual Reset after countdown release or auto reset after countdown release and 30 seconds of continuous door closure

BC City of Chicago Building code

• Fixed 15 second exit delay
• Fixed 0 second nuisance delay
• Field selectable automatic or manual reset on power-up
• Manual Reset after countdown release or auto reset after countdown release and 30 seconds of continuous door closure

* NA is SDC standard mode if no mode is specified, however, not all devices are NA mode capable. If no NA mode available, standard mode becomes ND.
