Degree® Key System
Table of Contents
Degree® Key System Technical Manual
Table of Contents
| The Degree® Advantage 3 |
|---|
| DG1 Key Cuts 4 |
| DG2 & DG3 Key Cuts 5 |
| Key Cutting Machines 6 |
| Pinning Formula 7 |
| Construction Master Keying (21-Option) 8 |
| Visual Key Control Tamper Proof Packaging 9 |
| Degree Pin Kits 10 |

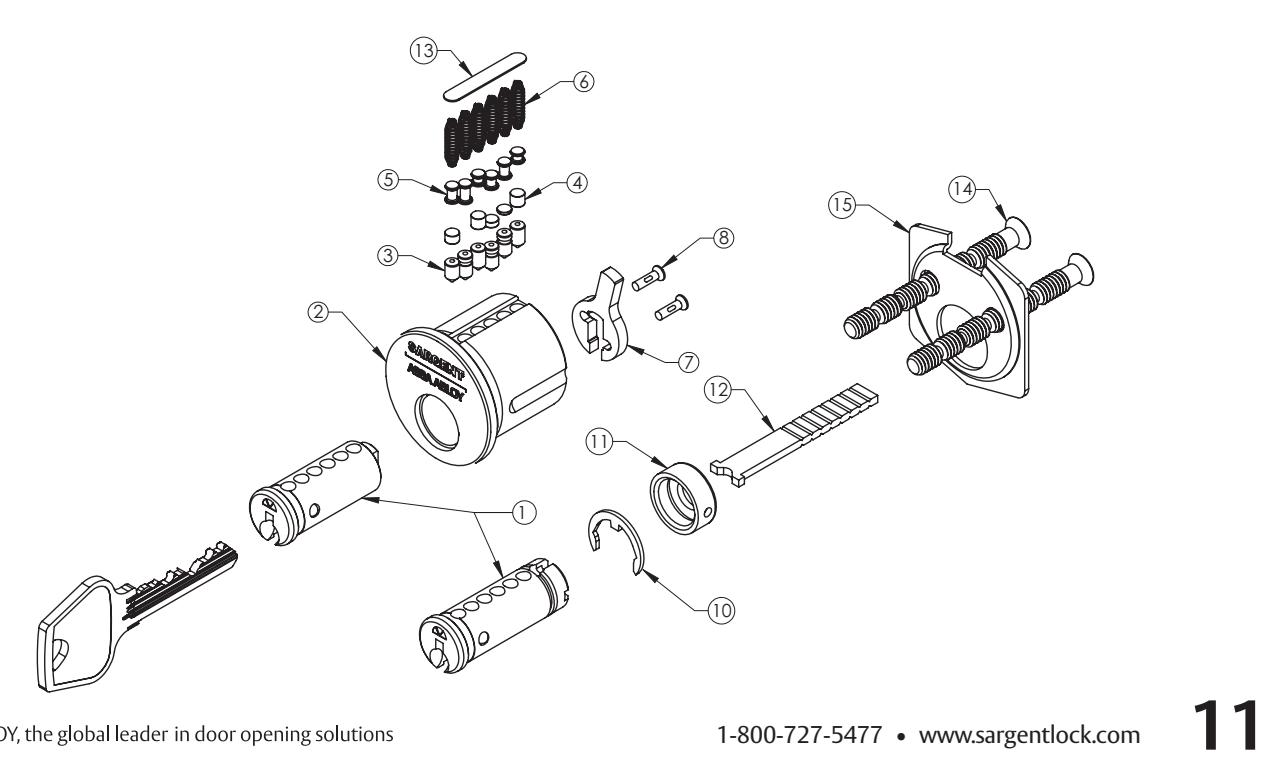

| Cylinder Parts: DG1-34 Rim/ DG1-40 Series Mortise 11 |
| Cylinder Parts: 50-DG1-40 Series Mortise - Hotel Function 12 |

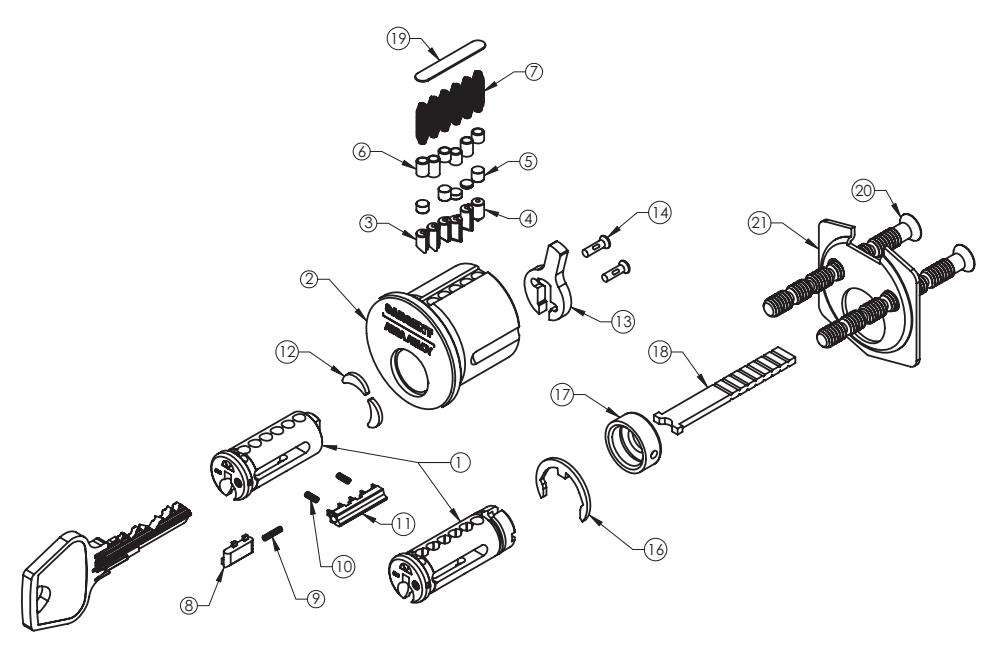

| Cylinder Parts: DG2-34 Rim/ DG2-40 Series Mortise 13 |
| Cylinder Parts: DG3-34 Rim/ DG3-40 Series Mortise 14 |

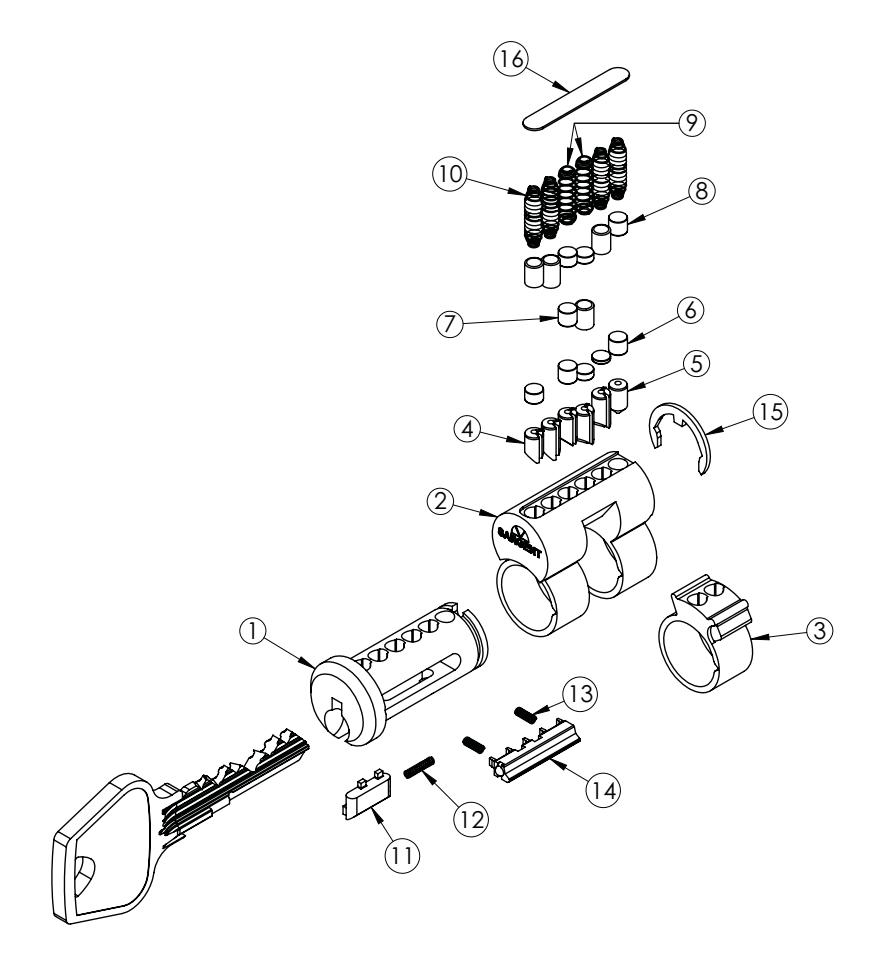

| Cylinder Parts: DG1-6300 LFIC Cores 15 |

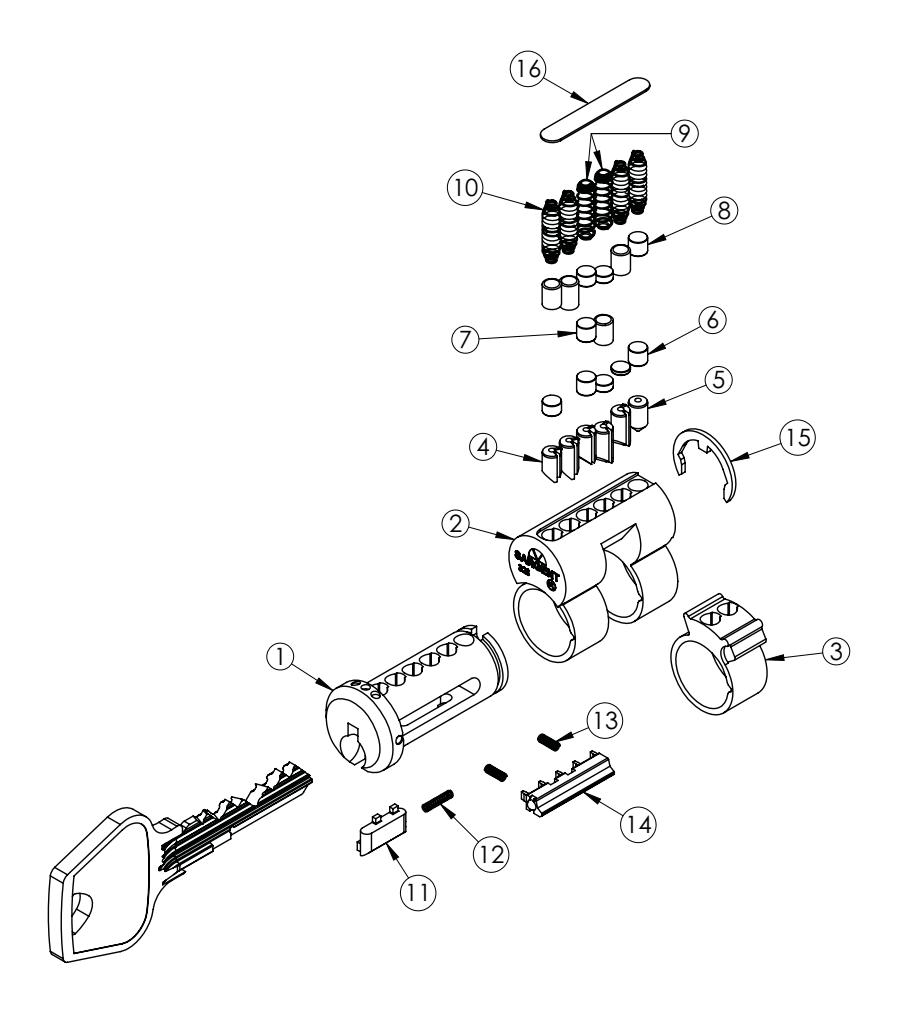

| Cylinder Parts: DG2-6300 LFIC Cores 16 |
| Cylinder Parts: DG3-6300 LFIC Cores 17 |

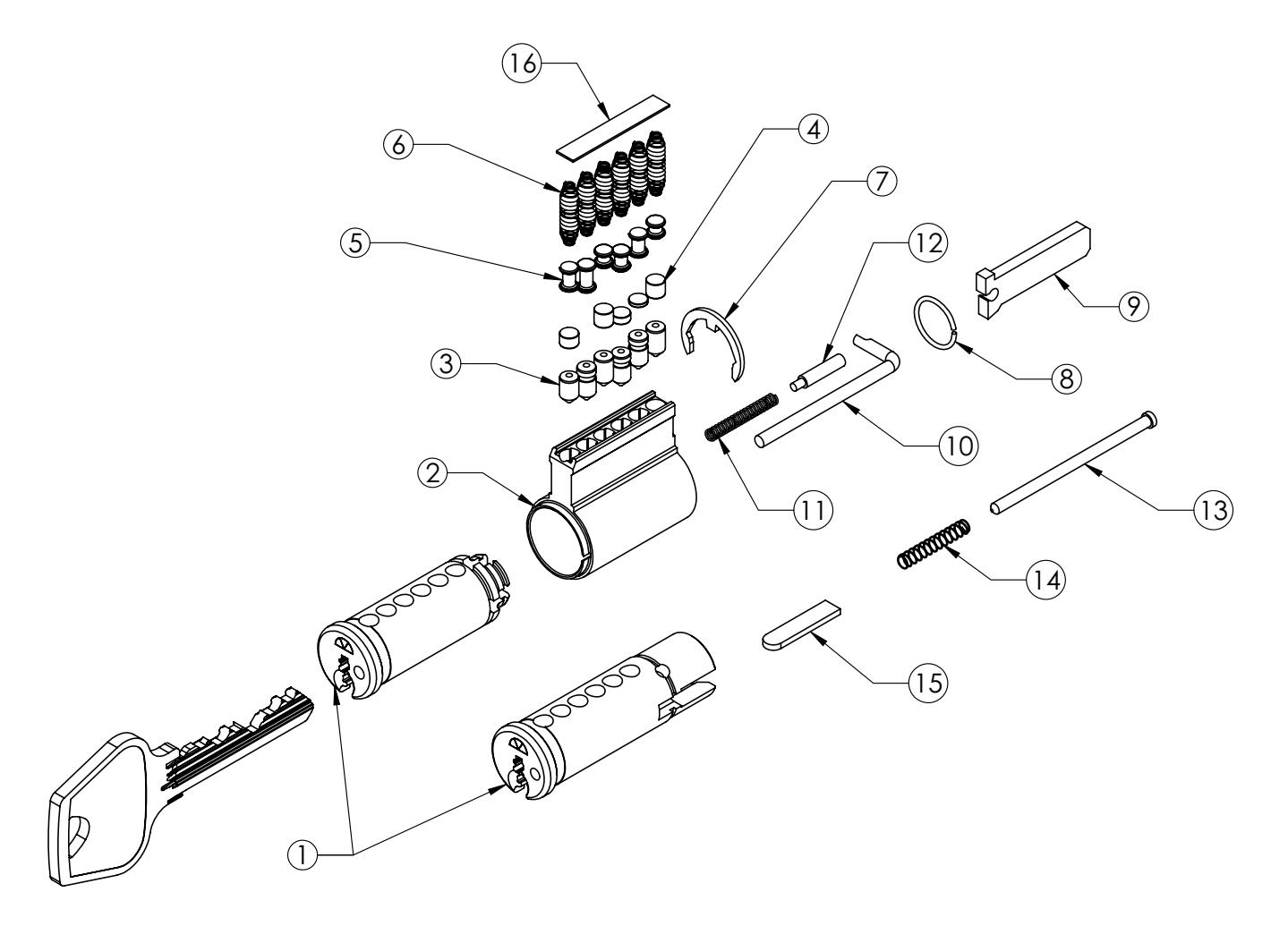

| Cylinder Parts: DG1 Bored, Auxiliary, & Integralock 18 |
| Cylinder Parts: 50-DG1 Bored - Hotel Function 19 |

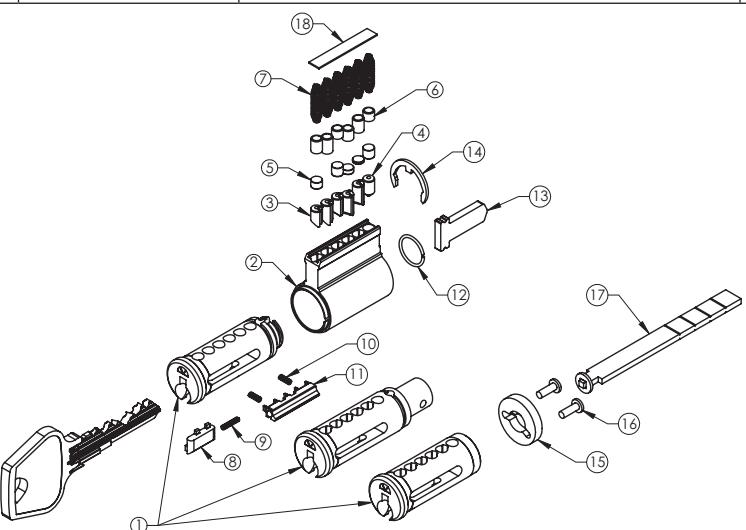

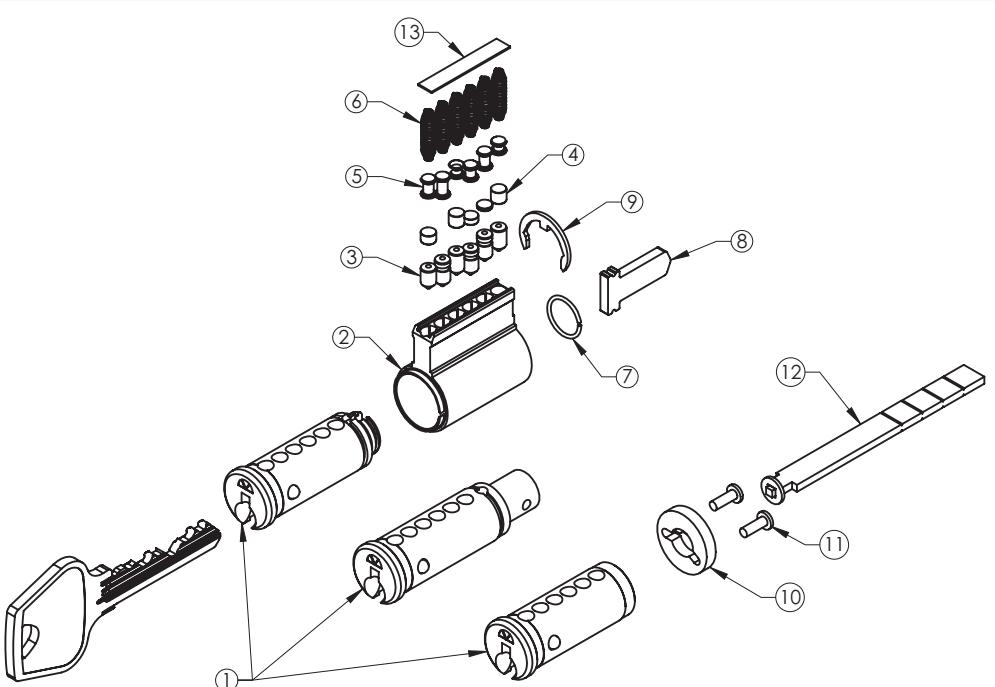

| Cylinder Parts: DG2 Bored, Auxiliary, & Integralock 20 |

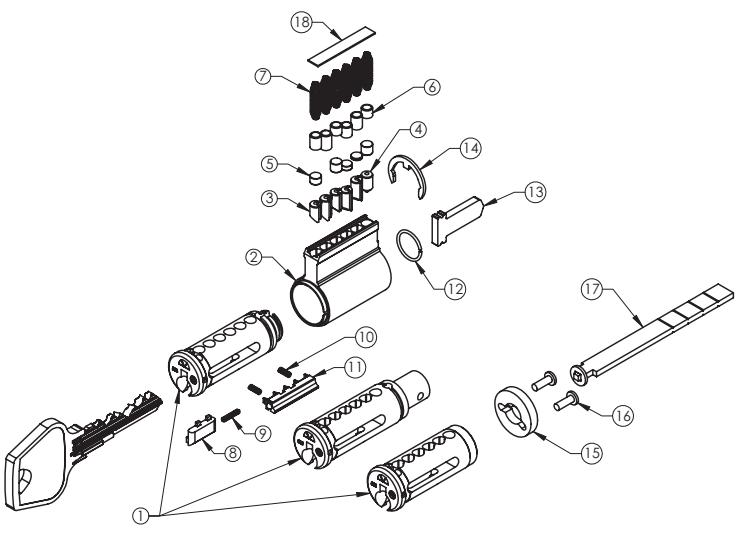

| Cylinder Parts: DG3 Bored, Auxiliary, & Integralock 21 |
The Degree® Advantage
Degree® Key System Technical Manual
The Degree Key System
The patented Degree system from SARGENT provides the right level of security for each opening in your facility. Three levels of ANSI/ BHMA Grade 1 protection, from patented keyway to UL437 certified, secures every opening. A common key for all three levels of security enhances key control and simplifies administrative procedures. Key blanks are controlled through authorized distribution and geographical protection is available. Available for mortise, rim, component and Large Format Interchangeable Core (LFIC) cylinders, SARGENT offers the right Degree of protection for every door in your facility.
Benefits
- Patent protection from unauthorized key duplication through 2027
- New keyway family protects system integrity from legacy systems
- Keys are significantly stronger than competitive systems
- User-friendly design with minimal components provides easy field service
- Availability in all existing SARGENT cylinder types provides cost-effective upgrade for SARGENT facilities
- Bump resistance for added protection
Degree Level 1 (DG1) features a utility patented keyway and provides protection against bumping for mortise, rim and component fixed cylinders. These cylinders easily retrofit into existing hardware and are appropriate for most applications. The keys for DG1 can only open DG1 cylinders.
Degree Level 2 (DG2) builds on the utility patented keyway of DG1 and adds patented side bar locking with unique angled bottom pins that provide end users with geographical exclusivity. Cylinders provide protection against bumping and picking. Because of its superior key control and patent protection until 2027, DG2 products are recommended for use in conjunction with DG3 for new installations or when retrofitting systems, including large format interchangeable core systems.
Degree Level 3 (DG3) combines the utility patented keyway and side bar locking with unique angled bottom pins that provide end users with geographical exclusivity, and adds certification to UL437. They are classified as high security because of their superior resistance to physical attack and protection against unauthorized key duplication. Because of its superior key control, patent protection until 2027, and physical strength, we recommend DG3 products for new high-security installations or when retrofitting systems, including large format interchangeable core systems. SARGENT also offers anti-vandal and high security locksets that complement DG3 cylinders for those openings most vulnerable to attack.
IMPORTANT: Sargent DG1 key systems are available with 7 depths of cut while DG2 and DG3 are only available with 6 depths of cut. DG1 systems can utilize all 7 depths in system design only if not integrated with DG2 and/or DG3 systems. If DG1 patent protection is the only requirement in the key system and there is no expectation of combining with DG2 or DG3 levels of security, then all 7 depths are available for use.

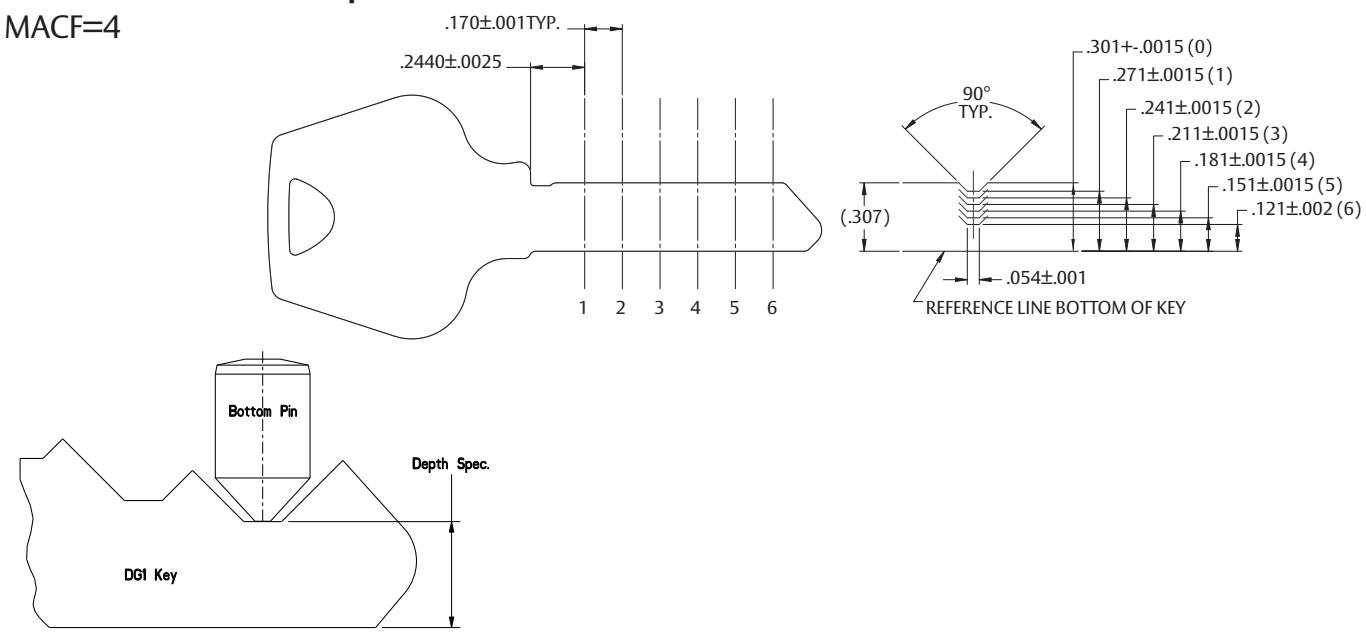

DG1 Key Cuts
Degree® Key System Technical Manual
SARGENT
ASSA ABLOY
DG1 cuts from Bow to Tip
Bottom Pins (BP) for DG1- cylinders
| Size# | Part No. | Length |
|---|---|---|
| 0 | DG-0027 | .201 |
| 1 | DG-0021 | .231 |
| 2 | DG-0022 | .261 |
| 3 | DG-0023 | .291 |
| 4 | DG-0024 | .321 |
| 5 | DG-0025 | .351 |
| 6 | DG-0026 | .381 |
Driver Pins (DP) All Degree 6300 cores
| Size# | Part No. | Length |
|---|---|---|
| 1 | DG-0051 | .030 |
| 2 | DG-0052 | .060 |
| 3 | DG-0053 | .090 |
| 4 | DG-0054 | .120 |
| 5 | DG-0045 | .150 |
| 6 | DG-0246 | .180 |
| 7 | DG-0247 | .210 |
| 8 | DG-0248 | .240 |
| 9 | DG-0249 | .270 |
| 10 | DG-0250 | .300 |
Master Wafers (MW) for all DG- series
| Size# | Part No. | Length |
|---|---|---|
| 1 | DG-0051 | .030 |
| 2 | DG-0052 | .060 |
| 3 | DG-0053 | .090 |
| 4 | DG-0054 | .120 |
| 5 | DG-0055 | .150 |
| 6 | DG-0246 | .180 |
Driver Pins (DP) For all Degree Standard Cylinders
| Size# | Part No. | Length |
|---|---|---|
| 1 | DG-0051 | .030 |
| 2 | DG-0052 | .060 |
| 3 | DG-0053 | .090 |
| 4 | DG-0054 | .120 |
| 5 | DG-0045 | .150 |
| 6 | DG-0044 | .180 |
| 7 | DG-0043 | .210 |
| 8 | DG-0042 | .240 |
| 9 | DG-0041 | .270 |
| 10 | DG-0250 | .300 |
Control Drivers (CD) for all DG- 6300 Large Format Interchangeable Cores (3 & 4 Chambers)
| Size# | Part No. | Length |
|---|---|---|
| 1 | DG-0051 | .030 |
| 2 | DG-0052 | .060 |
| 3 | DG-0053 | .090 |
| 4 | DG-0054 | .120 |
| 5 | DG-0045 | .150 |
| 6 | n/a | |
| 7 | DG-0247 | .210 |
| 8 | DG-0248 | .240 |
| 9 | DG-0249 | .270 |
| 10 | DG-0250 | .300 |
| 11 | DG-0251 | .330 |
| 12 | DG-0252 | .360 |
Driver Pins (DP) for Bump Resistance (DG1 Fixed Core Cylinder Only)*
| Size# | Part No. | Length |
|---|---|---|
| 4 | DG-0036 | .120 |
| 5 | DG-0035 | .150 |
| 6 | DG-0034 | .180 |
| 7 | DG-0033 | .210 |
| 8 | DG-0032 | .240 |
| 9 | DG-0031 | .270 |
| 10 | DG-0037 | .300 |
* Not to be used with 6300 series Large Format Interchangeable Cores

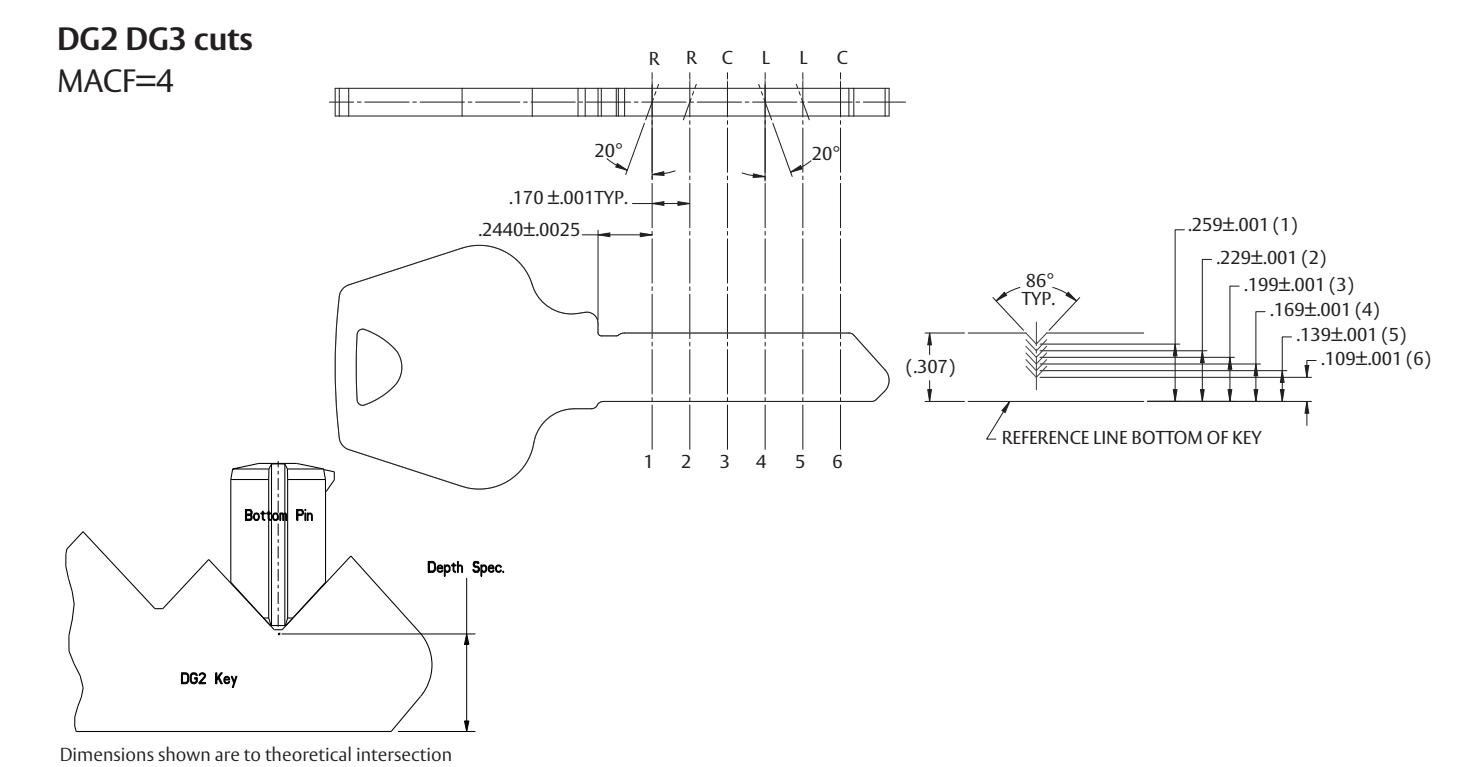

DG2 & DG3 Key Cuts Degree® Key System Technical Manual
Bottom Pins (BP) for DG2- & DG3- cylinders
| First 5 positions (Angled Pins) | |||
|---|---|---|---|
| Size # |
Angle
Part No. |
Length | |
| L | DG-0111 | ||
| 1 | C | DG-0121 | .231 |
| R | DG-0131 | ||
| L | DG-0112 | ||
| 2 | C | DG-0122 | .261 |
| R | DG-0132 | ||
| L | DG-0113 | ||
| 3 | C | DG-0123 | .291 |
| R | DG-0133 | ||
| L | DG-0114 | ||
| 4 | C | DG-0124 | .321 |
| R | DG-0134 | ||
| L | DG-0115 | ||
| 5 | C | DG-0125 | .351 |
| R | DG-0135 | ||
| L | DG-0116 | ||
| 6 | C | DG-0126 | .381 |
| R | DG-0136 | ||
Bottom Pins (BP) for DG2- & DG3- cylinders
| 6th (last) position | |||
|---|---|---|---|
| Size # | Part No. | Length | |
| 1 | DG-0021 | .231 | |
| 2 | DG-0022 | .261 | |
| 3 | DG-0023 | .291 | |
| 4 | DG-0024 | .321 | |
| 5 | DG-0025 | .351 | |
| 6 | DG-0026 | .381 | |
Control Drivers (CD) for all DG- 6300 Large Format Interchangeable Cores (3 & 4 Chambers)
| Size # | Part No. | Length |
|---|---|---|
| 1 | DG-0051 | .030 |
| 2 | DG-0052 | .060 |
| 3 | DG-0053 | .090 |
| 4 | DG-0054 | .120 |
| 5 | DG-0045 | .150 |
| 6 | n/a | |
| 7 | DG-0247 | .210 |
| 8 | DG-0248 | .240 |
| 9 | DG-0249 | .270 |
| 10 | DG-0250 | .300 |
| 11 | DG-0251 | .330 |
Master Wafers (MW) for all DG- series
| Size # | Part No. | Length |
|---|---|---|
| 1 | DG-0051 | .030 |
| 2 | DG-0052 | .060 |
| 3 | DG-0053 | .090 |
| 4 | DG-0054 | .120 |
| 5 | DG-0055 | .150 |
Driver Pins (DP) for DG2- & DG3- cylinders and all DG- 6300 Large Format Interchangeable Cores
| Size # | Part No. | Length |
|---|---|---|
| 1 | DG-0051 | .030 |
| 2 | DG-0052 | .060 |
| 3 | DG-0053 | .090 |
| 4 | DG-0054 | .120 |
| 5 | DG-0045 | .150 |
| 6 | DG-0044 | .180 |
| 7 | DG-0043 | .210 |
| 8 | DG-0042 | .240 |
| 9 | DG-0041 | .270 |
5
Key Cutting Machines
Degree® Key System Technical Manual
HPC Machines
| Degree level | Key Cutting Machine | Card # | DSD# | Cutter # | Jaw |
|---|---|---|---|---|---|
| DG1 | 1200 (Blitz) | C389 | N/A | CW-90MC | B |
| DG2/3 | 1200 (Blitz) | C390 | N/A | CW-1012 | DJ-1 |
| DG1 | Code Max | N/A | DSD389 | CW-90MC | B |
| DG2/3 | Code Max | N/A | DSD390 | CW-1012 | DJ-1 |
| DG1 | Tiger Shark | N/A | DSD389 | CW-90MC | STD |
| DG2/3 | Tiger Shark | N/A | DSD390 | CW-1012 | DJ-1S |
| DG1 | Blue Shark | N/A | DSD389 | CW-90MC | STD |
| DG2/3 | Blue Shark | N/A | DSD390 | CW-1012 | DJ-1S |
ITL Machines
| Degree level | Key Cutting Machine | Vice Insert | Cutter # |
|---|---|---|---|
| DG1 | 9700A | 3 | CW-1012 |
| DG2/3 | 9700A | 3M3 | CW-1012 |
Framon Machines
|
Degree level
Key Cutting Machine |
Kit* | |
|---|---|---|
| DG1 | KX-1 | KX-DG104 |
| DG2/3 | KX-1 | KX-DG204 |
* Each kit comes complete with cam, cutter, and vice insert
Pinning Formula
Degree® Key System Technical Manual
Fixed Core Cylinders - All 6 Chambers Large Format Interchangeable Cores (Chambers 1-2-5-6)
6300 Large Format Interchangeable Core - Control Chambers (Chambers 3 and 4 Only)
Non-LFIC
Driver Pin (DP) 10 MINUS Plug Total
Master Wafer (MW) Pin = Deepest Minus Shallowest Operating Cut
Shallowest Operating Cut
Bottom Pin =
Example
| Master Key | 2 | 3 | 4 | 6 | 4 | |
| Change Key | 4 | 5 | 2 | 0 | 2 | |
| Driver Pin (DP) | 7 | 6 | 5 | 6 | 4 | 6 |
| Master Wafer (MW) | 2 | 2 | 2 | 6 | 2 | |
| Bottom Pin (BP) | 1 | 2 | 3 | 2 | 0 | 2 |
Plug Total (MW + BP)
LFIC
Driver Pin (DP) 13 MINUS Plug Total and Control Driver
Control Driver (CD) = Control Cut PLUS 6 MINUS Plug Total
Example
| Control Key | 5 | 5 | 4 | 3 | 2 | |
| Master Key | 1 | 5 | 2 | 6 | 3 | 2 |
| Change Key | 3 | 1 | 4 | 3 | 1 | 5 |
| Driver Pin (DP) | 7 | 5 | 2 | 3 | 7 | 5 |
| Control Driver (CD) | x | 7 | 4 | x | x | |
| Master Wafer (MW) | 4 | 2 | 3 | 2 | 3 | |
| Bottom Pin (BP) | 1 | 1 | 2 | 3 | 1 | 2 |
Master Wafer (MW) Pin =
Deepest MINUS Shallowest Operating Cut
Bottom Pin =
Shallowest Operating Cut
Plug Total (MW +BP)
Instructions
Bottom Pin = shallowest operating cut
Master Wafer (if required) = Deepest minus shallowest operating cut
(Plug Total = Bottom Pin + Master Wafer)
Driver Pin = 10 MINUS Plug Total
Note: "0" depth of cut only available for DG1 key systems. Not used with DG2 or DG3.
Instructions
Bottom Pin = shallowest operating cut
Master Wafer (if required) = Deepest minus shallowest operating cut
(Plug Total = Bottom Pin + Master Wafer)
Control Driver (CD) = Control cut PLUS 6 MINUS Plug Total
Driver Pin = 13 MINUS Plug Total and CD# = DP
Note: "0" depth of cut only available for DG1 key systems. Not used with DG2 or DG3.
Note: The 50-DG1 hotel mortise cylinder uses 6 pin change/master keys but with a # 5 depth cut in what would be the 7th position at the tip of the key. The 7th chamber is always loaded with a # 5 bottom pin and # 8 driver.
All other chambers are loaded as if a standard fixed core cylinder
For DG1- standard fixed cylinders use spool drivers (DG-0031 through DG-0037) in all chambers where sizes are offered for Bump Resistance.
Construction Master Keying (21- Option)
Degree® Key System Technical Manual
Construction Master Keying (Lost/Wafer Design) for DG1-, DG2- & DG3-
SARGENT Degree cylinders when master keyed are offered with the convenience of construction keying when specified with the 21- option. This is not recommended with DG3 key systems or any system where strict key control and management is enforced.
Construction keying simplifies the process when the building gets turned over. With this feature, the 21- cylinder is master keyed with a special construction feature in one of the chambers. The plug is prepped in two places along both sides of the same chamber containing the construction feature. This allows the construction master key to be used during the construction phases.
It is highly recommended that all construction keys are collected and accounted for once the project is complete to protect the integrity of the key system. This is not recommended with DG3 key systems or any system where strict key control & management is enforced.
New systems supplied with six construction master keys unless otherwise specified. Orders to existing key systems that require additional construction keys are to be specified and ordered separately.
Orders with 21- will have all change keys shipped separately from hardware. Six construction master keys provided per system unless otherwise specified.
The 21- is not available with hotel function cylinders or large format interchangeable cores (6300 series). If construction keying is required for LFIC, specify 64-DG- construction keyed cores.

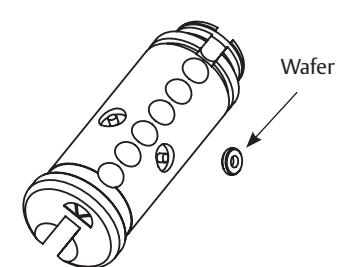

Cutaway cylinder showing construction master key being used, putting the wafer below the shear line while key is turned. Note the two empty "donut" holes on either side of the chamber.
Change key inserted in cylinder putting the wafer at the shear line.
As change key rotates, construction wafer falls into "donut" hole in the side of plug. Only construction wafer will fall due to hole through its center. This voids the construction feature.
Change key rotated to position for extraction.
Construction key inserted after wafer is trapped. Driver now extends into plug chamber. Construction key if used will not rotate.
Visual Key Control Tamper Proof Packaging
Degree® Key System Technical Manual

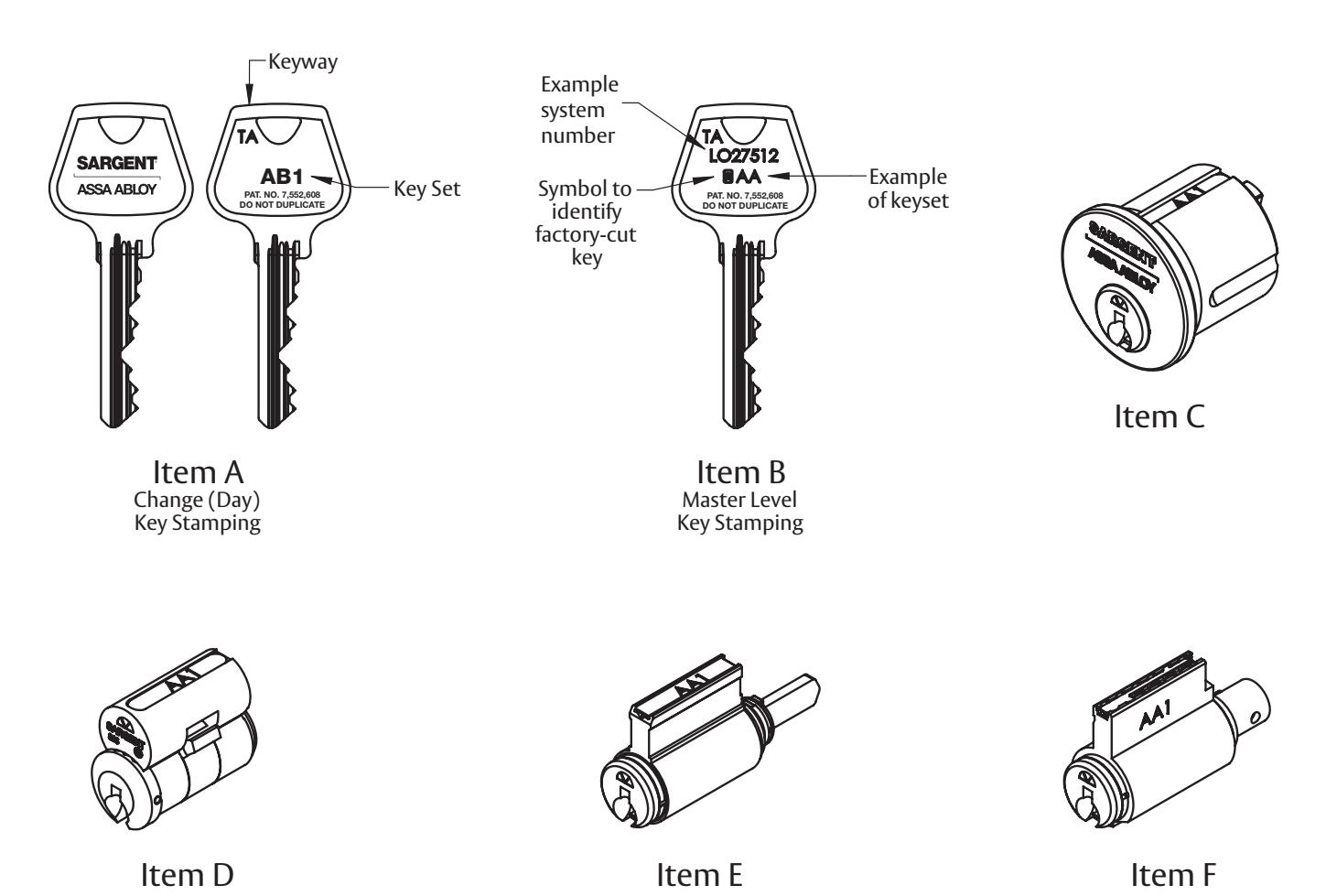

Visual Key Control (Stamping)
To allow for easier key and cylinder identification, SARGENT offers permanent stamping of keys and/or optional cylinder concealed stamping with industry standard alpha-numeric key set symbols.
All DG keys are stamped with key set symbol and "DO NOT DUPLICATE" as standard.
All DG master and control keys are stamped with the key set symbol and the key system register # cylinders as standard, (Item B) unless alternate stamping is requested on the order.
Master level keys do not include bitting numbers. Master level keys include system register numbers stamped on the first line and the standard visual key control designations on the second line (Item B).
Change keys have one line for up to 7 characters for key set stamping available for permanent Visual Key Control
- Key and cylinder identified by industry standard alpha-numeric keyset symbols
- Cylinder-slide stamping available on mortise, rim, LFIC and all bored cylinders except for 8-Line and 7600 (Items C, D, & E)
- Core side engraving available for 8-Line and 7600 (Item F)
Tamper Proof Packaging
For the highest level of security for the end user, tamper proof packaging is used on all Degree master keys and key blanks. This heat sealed shrink wrap identified with "SARGENT Sealed For Your Security" provides assurance of the integrity of the factory generated key system.
Degree Pin Kits
Degree® Key System Technical Manual
437 DG1 Standard Pinning Kit
The 437 DG1 Kit is used to pin DG1 fixed and LFIC cylinders. The heavy duty steel kit prevents pins from mixing. The kit includes:
- 100 each of bottom pins sizes 0-6
- 100 each of control drivers sizes 1-12
- 100 each of driver pins sizes 1-10
- 100 each of bump resistant pins sizes 4-10
- 25 sidebar springs part number DG-0059
- 100 KIK spring cover part number 13-1341
- 25 KIL/MRT/RIM/LFIC spring cover DG-0040
- 10 each Sidebar (LFIC only) part number DG-2818
- 100 each compression spring part number DG-0017
- 100 each compression spring (LFIC only) part number DG-0097
- Tweezer
- DG1 key key gauge part number 435DG
See pages 4 and 5 for individual pin part #s.
The kit has additional empty compartments for future upgrades to DG2 and DG3 cylinders.
The 437 DGM "Master Kit" has all pins needed for pinning DG1, DG2 and DG3 cylinders.

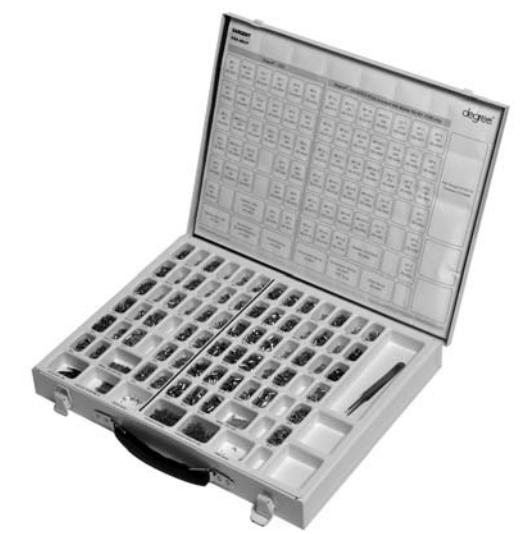

437 DGM Master Shown
437 DGM Master Pinning Kit
The 437 DGM "Master Kit" includes all pins needed to re-pin DG1, DG2 and DG3 cylinders.
Kit includes all the same components as in the 437 DG1 kit, with the additional parts to service DG2 and DG3 cylinders.
- 10 each Side bar part number DG 0056
- 25 each slider spring part number DG 0060
- 100 each of Left, Center and Right "Chisel Bottom Pins" sizes 1 thru 6
See pages 4 and 5 for individual part numbers.
Cylinder Spray Lubricant
Degree cylinders are mechanical devices and require preventive maintenance. At a minimum, Degree cylinders should be lubricated twice a year; more if installed in extreme installations.
Degree cylinders should not be exposed to chemical washes or painted.
3.0 oz aerosol part number 18-0070.
Cylinder Spray Cleaner/Deicer: 3.0 oz aerosol part number 18-0435.
Cylinder Parts: DG1-34 Rim/ DG1-40 Series Mortise
Degree® Key System Technical Manual
DG1-34 Rim/ DG1-40 Series Mortise Cylinder Parts
| Item | Description | Part Number | Where Used / Cylinder Length | ||
|---|---|---|---|---|---|
| DG-2894 | DG1-34 | – | |||
| DG-2911 | DG1-41 & 78-DG1-41 | 1-1/8" (29mm) | |||
| DG-2912 | DG1-42 & 78-DG1-42 | 1-1/4" (32mm) | |||
|
1
Plug |
DG-2913 | DG1-43 & 78-DG1-43 | 1-3/8" (35mm | Plug finishes: 04, 15 | |
| DG-2914 | DG1-44 | 1-1/2" (38mm) | |||
| DG-2915 | DG1-46 | 1-3/4" (44mm) | |||
| DG-0621 | DG1-41 & DG1-34 | 1-1/8" (29mm) | |||
| DG-0622 | DG1-42 | 1-1/4" (32mm) | Shell finishes: 03, 04, 09, | ||
| DG-0623 | DG1-43 | 1-3/8" (35mm) | 10, 10B, 10BE, 10BL, 14, 15, | ||
| DG-0624 | DG1-44 | 1-1/2" (38mm) | 20D, 26, 26D, BSP, WSP | ||
| 2 | Cylinder Shell | DG-0625 | DG1-46 | 1-3/4" (44mm) | |
| DG-0221 | 78-DG1-41 | 1-1/8" (29mm) | No finish. | ||
| DG-0222 | 78-DG1-42 | 1-1/4" (32mm) | For use with mortise locks | ||
| DG-0223 | 78-DG1-43 | 1-3/8" (35mm) | with LE3 or LE4 trim only. | ||
| 3 | Conical Bottom Pin | See Page 4 and 5 | DG1-40 Series Mortise & DG1-34 Rim | ||
| 4 | Master Wafer | See Page 4 and 5 | DG1-40 Series Mortise & DG1-34 Rim | ||
| 5 | Bump-Resistant Driver Pin | See Page 4 and 5 | DG1-40 Series Mortise & DG1-34 Rim | ||
| 6 | Compression Spring | DG-0017 | DG1-40 Series Mortise & DG1-34 Rim | ||
| 7 | Cam | See Degree Catalog | DG1-40 Series Mortise | ||
| 8 | Screw | DG-0016 | DG1-40 Series Mortise | # 2-56 x 5/16" (8mm) PH. FL. | |
| 10 | Retainer | DG-0090 | DG1-34 Rim | ||
| 11 | Tailpiece Retainer | DG-0195 | DG1-34 Rim | ||
| 12 | Tailpiece | DG-0196 | DG1-34 Rim | ||
| 13 | Spring Cover | DG-0040 | DG1-40 Series Mortise & DG1-34 Rim | ||
| 14 | Standard Connecting Screws | 13-0074 | DG1-34 Rim | # 12-24 x 2-1/8" (54mm) | |
| 15 | Rim Cylinder Back Plate | 13-0086 | DG1-34 Rim | ||
Degree® Key System Technical Manual

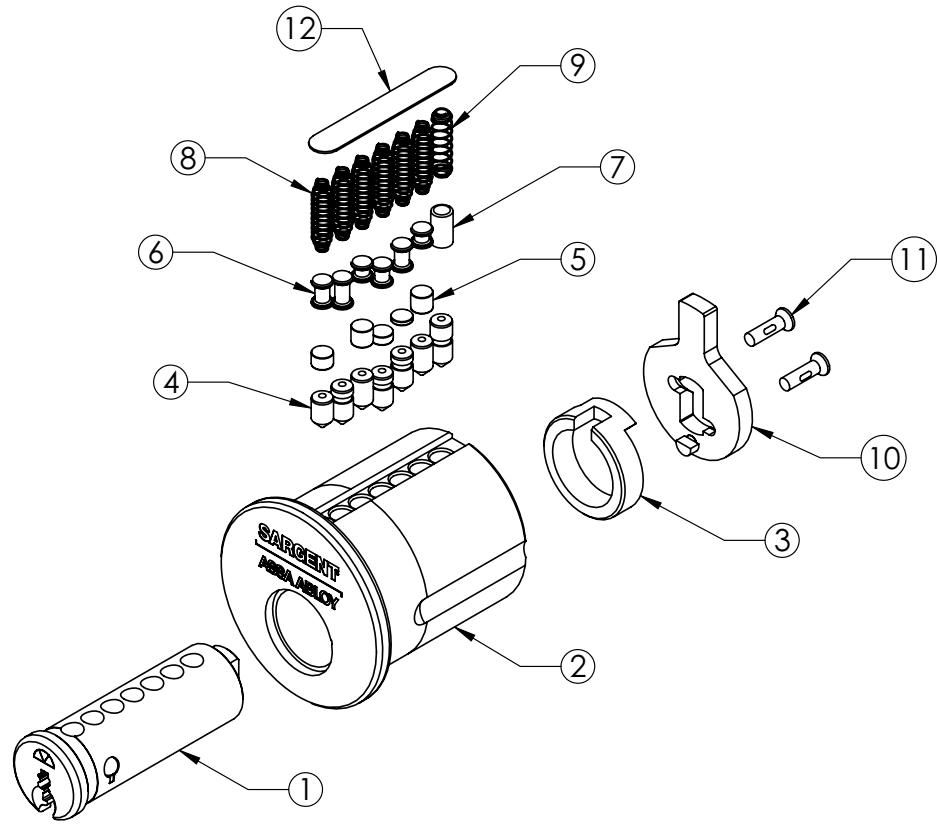

50-DG1-40 Series Mortise Cylinder Parts For use with 78/8250 lock sets only
| Item | Description | Part Number | Where Used / Cylinder Length | Comment | |
|---|---|---|---|---|---|
| DG-2923 | 50-DG1-43 | 1-3/8" (35mm) | |||
| 1 | Plug | DG-2924 | 50-DG1-44 | 1-1/2" (38mm) | Plug finishes: 04, 15 |
| 2 | Cylinder Shell | DG-0310 | 50-DG1-43 | 1-3/8" (35mm) |
Shell finishes: 03, 04, 09, 10,
10B, 10BE, 10BL, 14, 15, 20D, 26, |
| DG-0311 | 50-DG1-44 | 1-1/2" (38mm) | 26D, BSP, WSP | ||
| DG-0314 | 50-DG1-43 | 1-3/8" (35mm) | |||
| 3 | Hotel Function Sleeve | DG-0315 | 50-DG1-44 | 1-1/2" (38mm) | |
| 4 | Conical Bottom Pin | See Page 4 and 5 | All Cylinders |
7th chamber always uses
#5 bottom pin |
|
| 5 | Master Wafer | See Page 4 and 7 | All Cylinders | ||
| 6 | Bump-Resistant Driver Pin | See Page 4 and 8 | All Cylinders | ||
| 7 | Driver Pin | DG-0042 | All Cylinders |
7th chamber always uses
#8 driver |
|
| 8 | Compression Spring | DG-0017 | All Cylinders | Front six pin chambers | |
| 9 | Compression Spring, LFIC | DG-0097 | All Cylinders | Unique to the 7th chamber only | |
| 10 | Cam | DG-2808 | 50-DG1-43/44 cylinders only | ||
| 11 | Screw | DG-0016 | All Cylinders | #2-56 x 5/16" (8mm) PH. FL. | |
| 12 | Spring Cover (7-pin) | DG-0038 | 50-DG1-43/44 cylinders only | ||
Note: Hotel function cylinders require planing in the on set of design of a key system, consult key records for compatibility of existing systems
Cylinder Parts: DG2-34 Rim/ DG2-40 Series Mortise
Degree® Key System Technical Manual

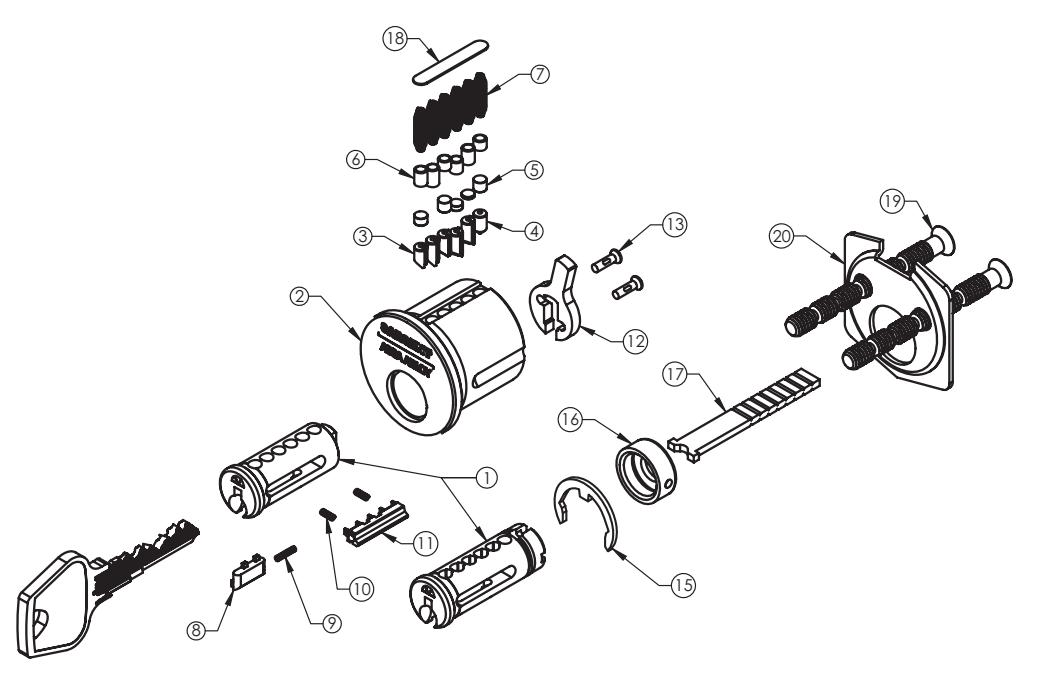

DG2-34 Rim / DG2-40 Series Mortise Cylinder Parts
| Item | Description | Part Number | Where Used / Cylinder Length | Comment | |
|---|---|---|---|---|---|
| DG-0191 | DG2-34 | – | |||
| DG-0411 | DG2-41 & 78-DG2-41 | 1-1/8" (29mm) | |||
| DG-0412 | DG2-42 & 78-DG2-42 | 1-1/4' (32mm) | |||
| 1 | Plug | DG-0413 | DG2-43 & 78-DG2-43 | 1-3/8" (35mm | Plug finishes: 04, 15 |
| DG-0414 | DG2-44 | 1-1/2" (38mm) | |||
| DG-0415 | DG2-46 | 1-3/4" (44mm) | |||
| DG-0631 | DG2-41 & DG2-34 | 1-1/8" (29mm) | |||
| DG-0632 | DG2-42 | 1-1/4" (32mm) | Shell finishes: 03, 04, 09, | ||
| DG-0633 | DG2-43 | 1-3/8" (35mm) | 10, 10B, 10BE, 10BL, 14, 15, | ||
| DG-0634 | DG2-44 | 1-1/2" (38mm) | 20D, 26, 26D, BSP, WSP | ||
| 2 | Cylinder Shell | DG-0635 | DG2-46 | 1-3/4" (44mm) | |
| DG-0231 | 78-DG2-41 | 1-1/8" (29mm) | No finish. | ||
| DG-0232 | 78-DG2-42 | 1-1/4" (32mm) | For use with mortise locks | ||
| DG-0233 | 78-DG2-43 | 1-3/8" (35mm) | with LE3 or LE4 trim only. | ||
| 3 | Chisel Tipped Bottom Pin | See Page 4 and 5 | DG2-40 Series Mortise & DG2-34 Rim | In pin chambers 1 through 5 | |
| 4 | Conical Bottom Pin | See Page 4 and 5 | DG2-40 Series Mortise & DG2-34 Rim | In pin chamber 6 only | |
| 5 | Master Wafer | See Page 4 and 5 | DG2-40 Series Mortise & DG2-34 Rim | ||
| 6 | Driver Pin | See Page 4 and 5 | DG2-40 Series Mortise & DG2-34 Rim | ||
| 7 | Compression Spring | DG-0017 | DG2-40 Series Mortise & DG2-34 Rim | ||
| 8 | Slider C6M6 | DG-0087 | DG2-40 Series Mortise & DG2-34 Rim | For keys with a #6 slider cut | |
| 9 | Slider Spring | DG-0060 | DG2-40 Series Mortise & DG2-34 Rim | ||
| 10 | Sidebar Spring | DG-0059 | DG2-40 Series Mortise & DG2-34 Rim | ||
| 11 | Sidebar | DG -2818 | DG2-40 Series Mortise & DG2-34 Rim | ||
| 12 | Cam | See Degree Catalog | DG2-40 Series Mortise | ||
| 13 | Screw | DG-0016 | DG2-40 Series Mortise | # 2-56 x 5/16" (8mm) PH. FL. | |
| 15 | Retainer | DG-0090 | DG2-34 Rim | ||
| 16 | Tailpiece Retainer | DG-0195 | DG2-34 Rim | ||
| 17 | Tailpiece | DG-0196 | DG2-34 Rim | ||
| 18 | Spring Cover | DG-0040 | DG2-40 Series Mortise & DG2-34 Rim | ||
| 19 | Standard Connecting Screws | 13-0074 | DG2-34 Rim | # 12-24 x 2-1/8" (54mm) | |
| 20 | Rim Cylinder Back Plate | 13-0086 | DG2-34 Rim | ||
Degree® Key System Technical Manual
DG3-34 Rim / DG3-40 Series Mortise Cylinder Parts
| Item | Description | Part Number | Where Used / Cylinder Length | Comment | |
|---|---|---|---|---|---|
| DG-2895 | DG3-34 | – | |||
| DG-2881 | DG3-41 & 78-DG3-41 | 1-1/8" (29mm) | |||
| DG-2882 | DG3-42 & 78-DG3-42 | 1-1" (32mm) | |||
| 1 | Plug | DG-2883 | DG3-43 & 78-DG3-43 | 1-3/8" (35mm | Plug finishes: 04, 15 |
| DG-2884 | DG3-44 | 1-1/2" (38mm) | |||
| DG-2885 | DG3-46 | 1-3/4" (44mm) | |||
| DG-0641 | DG3-41 & DG3-34 | 1-1/8" (29mm) | |||
| DG-0642 | DG3-42 | 1-1/4" (32mm) | Shell finishes: 03, 04, 09, | ||
| DG-0643 | DG3-43 | 1-3/8" (35mm) | 10, 10B, 10BE, 10BL, 14, 15, | ||
| DG-0644 | DG3-44 | 1-1/2" (38mm) | 20D, 26, 26D, BSP, WSP | ||
| 2 | Cylinder Shell | DG-0645 | DG3-46 | 1-3/4" (44mm) | |
| DG-0241 | 78-DG3-41 | 1-1/8" (29mm) | No finish. | ||
| DG-0242 | 78-DG3-42 | 1-1/4" (32mm) | For use with mortise locks | ||
| DG-0243 | 78-DG3-43 | 1-3/8" (35mm) | with LE3 or LE4 trim only. | ||
| 3 | Chisel Tipped Bottom Pin | See Page 4 and 5 | DG3-40 Series Mortise & DG3-34 Rim | In pin chambers 1 through 5 | |
| 4 | Conical Bottom Pin | See Page 4 and 5 | DG3-40 Series Mortise & DG3-34 Rim | In pin chamber 6 only | |
| 5 | Master Wafer | See Page 4 and 5 | DG3-40 Series Mortise & DG3-34 Rim | ||
| 6 | Driver Pin | See Page 4 and 5 | DG3-40 Series Mortise & DG3-34 Rim | ||
| 7 | Compression Spring | DG-0017 | DG3-40 Series Mortise & DG3-34 Rim | ||
| 8 | Slider C6M6 | DG-0087 | DG3-40 Series Mortise & DG3-34 Rim | For keys with a #6 slider cut | |
| 9 | Slider Spring | DG-0060 | DG3-40 Series Mortise & DG3-34 Rim | ||
| 10 | Sidebar Spring | DG-0059 | DG3-40 Series Mortise & DG3-34 Rim | ||
| 11 | Sidebar | DG -2818 | DG3-40 Series Mortise & DG3-34 Rim | ||
| 12 | Security Plate | DG-0057 | DG3-40 Series Mortise & DG3-34 Rim | Required for UL437 | |
| 13 | Cam | See Degree Catalog | DG3-40 Series Mortise | ||
| 14 | Screw | DG-0016 | DG3-40 Series Mortise | # 2-56 x 5/16" (8mm) PH. FL. | |
| 16 | Retainer | DG-0090 | DG3-34 Rim | ||
| 17 | Tailpiece Retainer | DG-0195 | DG3-34 Rim | ||
| 18 | Tailpiece | DG-0196 | DG3-34 Rim | ||
| 19 | Spring Cover | DG-0040 | DG3-40 Series Mortise & DG3-34 Rim | ||
| 20 | Standard Connecting Screws | 13-0074 | DG3-34 Rim | # 12-24 x 2-1/8" (54mm) | |
| 21 | Cylinder Back Plate | 13-0086 | DG3-34 Rim | ||
Cylinder Parts: DG1-LFIC Cores
Degree® Key System Technical Manual
DG1 LFIC Cores
| Item | Description | Part Number | Comment |
|---|---|---|---|
| 1 | Plug | DG-0200 | Plug finishes: 04, 15 |
| 2 | Cylinder Shell | DG-0290 | Shell finishes: 04, 15 |
| 3 | Control Sleeve | DG-0215 | |
| 4 | Conical Bottom Pin | See Page 4 and 5 | |
| 5 | Master Wafer | See Page 4 and 5 | |
| 6 | Control Pin | See Page 4 and 5 | |
| 7 | Driver Pin | See Page 4 and 5 | |
| 8 | Compression Spring, LFIC | DG-0097 | Control Sleeve Pin Chambers Only |
| 9 | Compression Spring | DG-0017 | All Other Pin Chambers |
| 10 | Plug Retainer | DG-0090 | |
| 11 | Sidebar Spring | DG-0059 | |
| 12 | Sidebar | DG-0056 | |
| 13 | Spring Cover | DG-0040 |

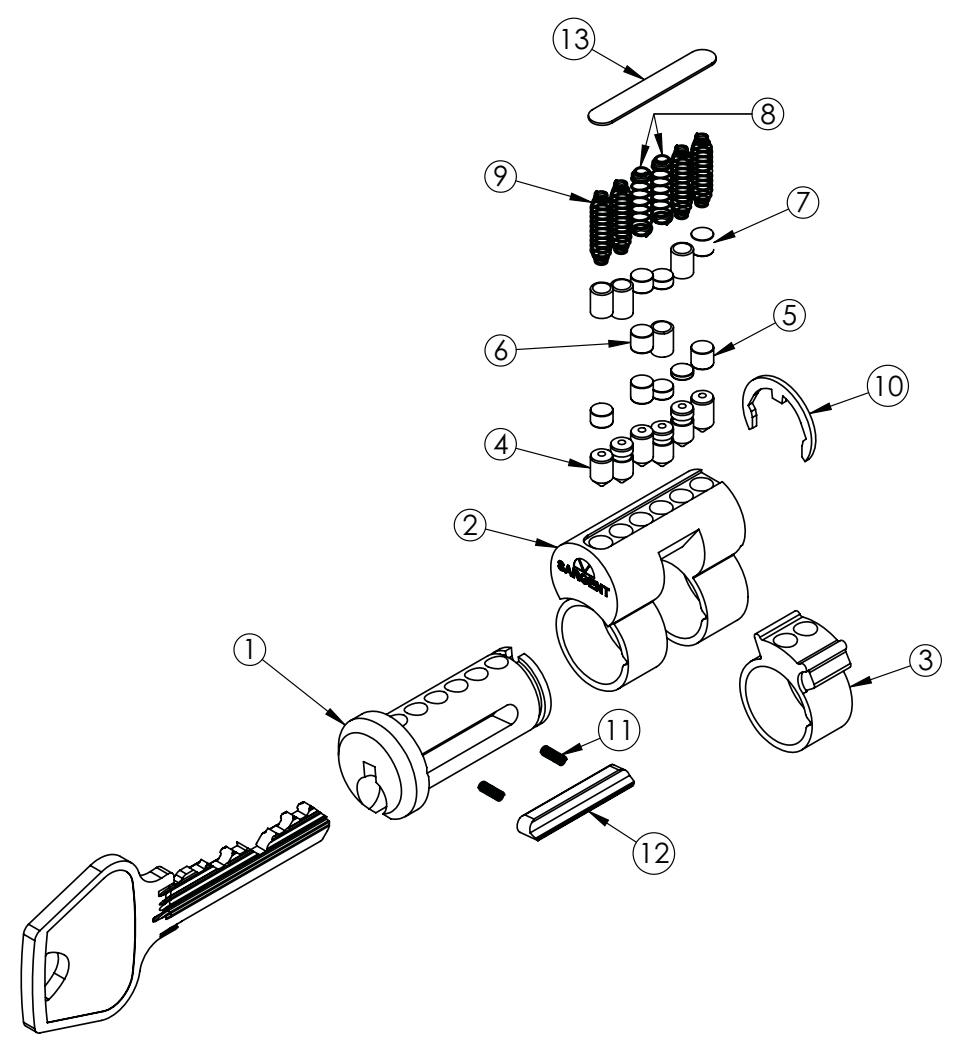

Cylinder Parts: DG2-LFIC Cores
Degree® Key System Technical Manual
DG2 LFIC Cores
| Item | Description | Part Number | Comment |
|---|---|---|---|
| 1 | Plug | DG-0201 | Plug finishes: 04, 15 |
| 2 | Cylinder Shell | DG-0291 | Shell finishes: 04, 15 |
| 3 | Control Sleeve | DG-0216 | |
| 4 | Chisel Tipped Bottom Pin | See Page 4 and 5 | In pin chambers 1 through 5 |
| 5 | Conical Bottom Pin | See Page 4 and 5 | In pin chamber 6 only |
| 6 | Master Wafer | See Page 4 and 5 | |
| 7 | Control Pin | See Page 4 and 5 | |
| 8 | Driver Pin | See Page 4 and 5 | |
| 9 | Compression Spring, LFIC | DG-0097 | Control Sleeve Pin Chambers Only |
| 10 | Compression Spring | DG-0017 | All Other Pin Chambers |
| 11 | Slider C6M6 | DG-0087 | For keys with a #6 slider cut |
| 12 | Slider Spring | DG-0060 | |
| 13 | Sidebar Spring | DG-0059 | |
| 14 | Sidebar | DG-2818 | |
|
15
Plug Retainer |
DG-0090 | ||
| 16 | Spring Cover | DG-0040 | |
Cylinder Parts: DG3-LFIC Cores
Degree® Key System Technical Manual
DG3 LFIC Cores
| Item | Description | Part Number | Comment |
|---|---|---|---|
| 1 | Plug | DG-2901 | Plug finishes: 04, 15 |
| 2 | Cylinder Shell | DG-0292 | Shell finishes: 04, 15 |
| 3 | Control Sleeve | DG-0216 | |
| 4 | Chisel Tipped Bottom Pin | See Page 4 and 5 | In pin chambers 1 through 5 |
| 5 | Conical Bottom Pin | See Page 4 and 5 | In pin chamber 6 only |
| 6 | Master Wafer | See Page 4 and 5 | |
| 7 | Control Pin | See Page 4 and 5 | |
| 8 | Driver Pin | See Page 4 and 5 | |
| 9 | Compression Spring, LFIC | DG-0097 | Control Sleeve Pin Chambers Only |
| 10 | Compression Spring | DG-0017 | All Other Pin Chambers |
| 11 | Slider C6M6 | DG-0087 | For keys with a #6 slider cut |
| 12 | Slider Spring | DG-0060 | |
| 13 | Sidebar Spring | DG-0059 | |
| 14 | Sidebar | DG-2818 | |
| 15 | Plug Retainer | DG-0090 | |
| 16 | Spring Cover | DG-0040 |
Cylinder Parts: DG1 Bored, Auxiliary & Integralock
Degree® Key System Technical Manual
DG1 Bored, Auxiliary, & Integralock Cylinder Parts
| Item | Description | Part Number | Where Used / Cylinder Length | Comment |
|---|---|---|---|---|
|
Plug with tailpiece retainer
(item 7) |
DG-3061 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders
(Lever Locks) |
||
| DG-3091 | 8X Line Cylinders (Knob Locks) | |||
| 1 | Plug with roll pin | DG-3071 | 7, 8, 9 Line Cylinders (Knob Locks) | Plug finishes: 04, 15 |
| Plug | DG-3029 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | ||
| Plug | DG-3043 | 7600 Integralock Cylinder | ||
| DG-0171 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
8X Line Cylinders (Knob Locks) |
|||
| 2 | Cylinder Shell | DG-0261 | 7, 8, 9 Line Cylinders (Knob Locks) | No finish |
| DG-0161 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | |||
| DG-0271 | 7600 Integralock Cylinder | |||
| 3 | Conical Bottom Pin | See Page 4 and 5 | All Cylinders | |
| 4 | Master Wafer | See Page 4 and 5 | All Cylinders | |
| 5 | Driver Pin | See Page 4 and 5 | All Cylinders | |
| 6 | Compression Spring | DG-0017 | All Cylinders | |
| 7 | Tailpiece Retainer | 13-0680 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
8X Line Cylinders (Knob Locks) |
|
| 13-0895 | 7, 8L, 10, 6500, 7500 Line Cylinders (Lever Locks) | |||
| 13-1385 | 11 Line Cylinders | |||
| 8 | Tailpiece | 13-0907 | 6 Line (S & N knobs) Cylinders | |
| 13-0908 | 6 Line (B knob) Cylinders | |||
| AC-0007 | 8X Line Cylinders (Knob Locks) | |||
| 9 | Plug Retainer | DG-0090 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
7, 8, 8X, 9 Line Cylinders (Knob Locks) 7600 Integralock Cylinder |
|
| 10 | Plug Retainer (Deadbolt) | DG-0150 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | |
| 11 | Retainer Screw | DG-0151 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | # 2-56 x 1/4" (6mm) PH. PAN |
| DG-2875 | Single-Cylinder Deadbolts | |||
| 12 | Tailpiece | DG-2876 | Double-Cylinder Deadbolts | |
| 13-1341 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
460, 470, 480, 7500DB Series Deadbolt Cylinders |
|||
| 13 | Spring Cover | DG-0039 |
7, 8, 9 Line Cylinders (Knob Locks)
7600 Integralock Cylinder |
Cylinder Parts: 50-DG1 Bored - Hotel Function
Degree® Key System Technical Manual
50-DG1 Bored Cylinder Parts
| Item | Description | Part Number | Where Used | Comment |
|---|---|---|---|---|
| DG-0179 | 50- 10 Line Cylinders | |||
| 1 | Plug | DG-0279 | 50- 8 Line & 50- 11 Line Cylinders | Plug finishes: 04, 15 |
| DG-0171 | 50- 10 Line Cylinders | |||
| 2 | Cylinder Shell | DG-0261 | 50- 8 Line Cylinders | No Finish |
| DG-0295 | 50- 11 Line Cylinders | |||
| 3 | Conical Bottom Pin | See Page 4 and 5 | All Cylinders | |
| 4 | Master Wafer | See Page 4 and 7 | All Cylinders | |
| 5 | Bump-Resistant Driver Pin | See Page 4 and 8 | All Cylinders | |
| 6 | Compression Spring | DG-0017 | All Cylinders | |
| 7 | Plug Retainer | DG-0090 | All Cylinders | |
| 8 | Tailpiece Retainer | 13-0680 | 50- 10 Line Cylinders | |
| 9 | Tailpiece | 13-0845 | 50- 10 Line Cylinders | |
| 10 | Indicator Button | 13-0675 | 50- 10 Line Cylinders | |
| 11 | Indicator Button Spring | 01-0502 | 50- 10 Line Cylinders | |
| 12 | Indicator Button Pin | 01-0503 | 50- 10 Line Cylinders | |
| 13 | Visual Indicator | 08-0183 | 50- 8 Line & 50- 11 Line Cylinders | |
| 14 | Visual Indicator Spring | 08-0213 | 50- 8 Line & 50- 11 Line Cylinders | Shipped with 50- Function Lockset |
| 15 | Key Block-Out | 08-0169 | 50- 8 Line & 50- 11 Line Cylinders | |
| 16 | Spring Cover | DG-0039 | All Cylinders |
Cylinder Parts: DG2 Bored, Auxiliary & Integralock
Degree® Key System Technical Manual
DG2 Bored, Auxiliary, & Integralock Cylinder Parts
| Item | Description | Part Number | Where Used / Cylinder Length | Comment |
|---|---|---|---|---|
|
Plug with tailpiece retainer
(item 12) |
DG-3062 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders
(Lever Locks) |
||
| DG-3092 | 8X Line Cylinders (Knob Locks) | |||
| 1 | Plug with roll pin | DG-3072 | 7, 8, 9 Line Cylinders (Knob Locks) | Plug finishes: 04, 15 |
| Plug | DG-0166 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | ||
| Plug | DG-0276 | 7600 Integralock Cylinder | ||
| DG-0172 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
8X Line Cylinders (Knob Locks) |
|||
| 2 | Cylinder Shell | DG-0262 | 7, 8, 9 Line Cylinders (Knob Locks) | No finish |
| DG-0162 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | |||
| DG-0272 | 7600 Integralock Cylinder | |||
| 3 | Chisel Tipped Bottom Pin | See Page 4 and 5 | All Cylinders | In pin chambers 1 through 5 |
| 4 | Conical Bottom Pin | See Page 4 and 5 | All Cylinders | In pin chamber 6 only |
| 5 | Master Wafer | See Page 4 and 5 | All Cylinders | |
| 6 | Driver Pin | See Page 4 and 5 | All Cylinders | |
| 7 | Compression Spring | DG-0017 | All Cylinders | |
| 8 | Slider C6M6 | DG-0087 | All Cylinders | For keys with a #6 slider cut |
| 9 | Slider Spring | DG-0060 | All Cylinders | |
| 10 | Sidebar Spring | DG-0059 | All Cylinders | |
| 11 | Sidebar | DG -2818 | All Cylinders | |
| 12 | Tailpiece Retainer | 13-0680 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
8X Line Cylinders (Knob Locks) |
|
| 13-0895 | 7, 8L, 10, 6500, 7500 Line Cylinders (Lever Locks) | |||
| 13-1385 | 11 Line Cylinders | |||
| 13 | Tailpiece | 13-0907 | 6 Line (S & N knobs) Cylinders | |
| 13-0908 | 6 Line (B knob) Cylinders | |||
| AC-0007 | 8X Line Cylinders (Knob Locks) | |||
| 14 | Plug Retainer | DG-0090 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
7, 8, 8X, 9 Line Cylinders (Knob Locks) 7600 Integralock Cylinder |
|
| 15 | Plug Retainer (Deadbolt) | DG-0150 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | |
| 16 | Retainer Screw | DG-0151 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | # 2-56 x 1/4" (6mm) PH. PAN |
| DG-2875 | Single-Cylinder Deadbolts | |||
| 17 | Tailpiece | DG-2876 | Double-Cylinder Deadbolts | |
| 13-1341 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
460, 470, 480, 7500DB Series Deadbolt Cylinders |
|||
| 18 | Spring Cover | DG-0039 |
7, 8, 9 Line Cylinders (Knob Locks)
7600 Integralock Cylinder |
90726 06/19 Copyright © 2013-2019, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Cylinder Parts: DG3 Bored, Auxiliary & Integralock
Degree® Key System Technical Manual
DG3 Bored, Auxiliary, & Integralock Cylinder Parts
| Item | Description | Part Number | Where Used / Cylinder Length | Comment |
|---|---|---|---|---|
|
Plug with tailpiece retainer
(item 12) |
DG-3063 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders
(Lever Locks) |
||
| DG-3093 | 8X Line Cylinders (Knob Locks) | |||
| 1 | Plug with roll pin | DG-3073 | 7, 8, 9 Line Cylinders (Knob Locks) | Plug finishes: 04, 15 |
| Plug | DG-3030 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | ||
| Plug | DG-3044 | 7600 Integralock Cylinder | ||
| DG-0172 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
8X Line Cylinders (Knob Lock) |
|||
| 2 | Cylinder Shell | DG-0262 | 7, 8, 9 Line Cylinders (Knob Locks) | No finish |
| DG-0162 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | |||
| DG-0272 | 7600 Integralock Cylinder | |||
| 3 | Chisel Tipped Bottom Pin | See Page 4 and 5 | All Cylinders | In pin chambers 1 through 5 |
| 4 | Conical Bottom Pin | See Page 4 and 5 | All Cylinders | In pin chamber 6 only |
| 5 | Master Wafer | See Page 4 and 5 | All Cylinders | |
| 6 | Driver Pin | See Page 4 and 5 | All Cylinders | |
| 7 | Compression Spring | DG-0017 | All Cylinders | |
| 8 | Slider C6M6 | DG-0087 | All Cylinders | For keys with a #6 slider cut |
| 9 | Slider Spring | DG-0060 | All Cylinders | |
| 10 | Sidebar Spring | DG-0059 | All Cylinders | |
| 11 | Sidebar | DG -2818 | All Cylinders | |
| 12 | Tailpiece Retainer | 13-0680 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
8X Line Cylinders (Knob Locks) |
|
| 13-0895 | 7, 8L, 10, 6500, 7500 Line Cylinders (Lever Locks) | |||
| 13-1385 | 11 Line Cylinders | |||
| 13 | Tailpiece | 13-0907 | 6 Line (S & N knobs) Cylinders | |
| 13-0908 | 6 Line (B knob) Cylinders | |||
| AC-0007 | 8X Line Cylinders (Knob Locks) | |||
| 14 | Plug Retainer | DG-0090 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
7, 8, 8X, 9 Line Cylinders (Knob Locks) 7600 Integralock Cylinder |
|
| 15 | Plug Retainer (Deadbolt) | DG-0150 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | |
| 16 | Retainer Screw | DG-0151 | 460, 470, 480, 7500DB Series Deadbolt Cylinders | # 2-56 x 1/4" (6mm) PH. PAN |
| DG-2875 | Single-Cylinder Deadbolts | |||
| 17 | Tailpiece | DG-2876 | Double-Cylinder Deadbolts | |
| 13-1341 |
6, 7, 8L, 10, 11, 6500, 7500 Line Cylinders (Lever Locks)
460, 470, 480, 7500DB Series Deadbolt Cylinders |
|||
| 18 | Spring Cover | DG-0039 |
7, 8, 9 Line Cylinders (Knob Locks)
7600 Integralock Cylinder |
Notes
Degree® Key System Technical Manual
90726 06/19 Copyright © 2013-2019, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Notes
Degree® Key System Technical Manual
SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com
