SWINGING DOOR HARDWARE • GRADE 2

Deadlocks & DeadLatches

DT-1850, DH-1820-H, DH-1820-S, DL-4510 & FACEPLATES

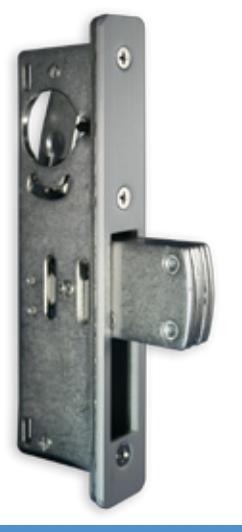

DT-1850

• DT-1850 "Long Throw" Deadlock
• CYLINDER BACKSET AVAILABLE: 31/32", 1-1/8" and 1-1/2"
• Bolt 1-3/8" throw, made of 5 ply laminated steel with a hardened roller pin in a case hardened center ply for maximum security.
• Lock accepts standard 1-5/32" Mortise Key or Thumbturn Cylinders with AR MS-Type cam
• SPECIFY: Cylinder Backset

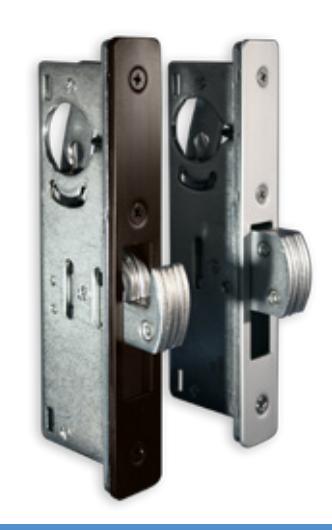

DH-1820-H • DH-1820-S

• DH-1820-H "Hook Bolt" Deadlock DH-1820-S "Short Throw" Deadlock
• CYLINDER BACKSET AVAILABLE:
  • DH-1820-H: 31/32",1-1/8" and 1-1/2" - DH-1820-S: 1-1/8"
• Bolt 1 3/16" throw, made of 5 ply laminated steel with a hardened roller pin in a case hardened center ply for maximum security.
• Lock accepts standard 1-5/32" Mortise Key or Thumbturn Cylinders with AR MS-Type cam
• SPECIFY: Cylinder Backset

DL-4510

• DL-4510 Deadlatch lock
• CYLINDER BACKSET AVAILABLE: 31/32" and 1-1/8"
• Field reversible for opposite hand
• Key controlled dogging
• Latch bolt 1/2" throw, Chrome plated with Delrin insert for smooth, quiet latching
• Lock accepts standard 1-5/32" Mortise Key or Thumbturn Cylinders with AR MS-Type cam
• SS-4510 Strike included, US 26D
• SPECIFY: Cylinder Backset Hand if pre-handing required

• FACEPLATE FINISHES:
  • AL Anodized Satin Aluminum
  • BK Anodized Black
  • DU Anodized Bronze
• SPECIFY: Part Number and Finish

For Use With:	Flat	Radius	Radius Weather-Stripping	Left Hand Beveled	Right Hand Beveled
DH-1820-H DH-1820-S	FP-1821	FP-1822	FP-1823	FP-1824	FP-1825
DT-1850	FP-1851	FP-1852	FP-1853	FP-1854	FP-1855
DL-4510	FP-4511	FP-4512	FP-4513	FP-4514	FP-4515

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737 www.intldoorclosers.com
