Desk Top Console

The DTC Series Desk Top Consoles by Command Access offer configurations for 1 to 4 zones. Each zone offers two relays (1-Momentary, 1-Maintained) that can be wired to work independently or together. Additionally, there are status LEDs that can to illuminate configured for Green (closed and secure), RED (unauthorized open) and YELLOW (authorized unlocked/open).

specifications

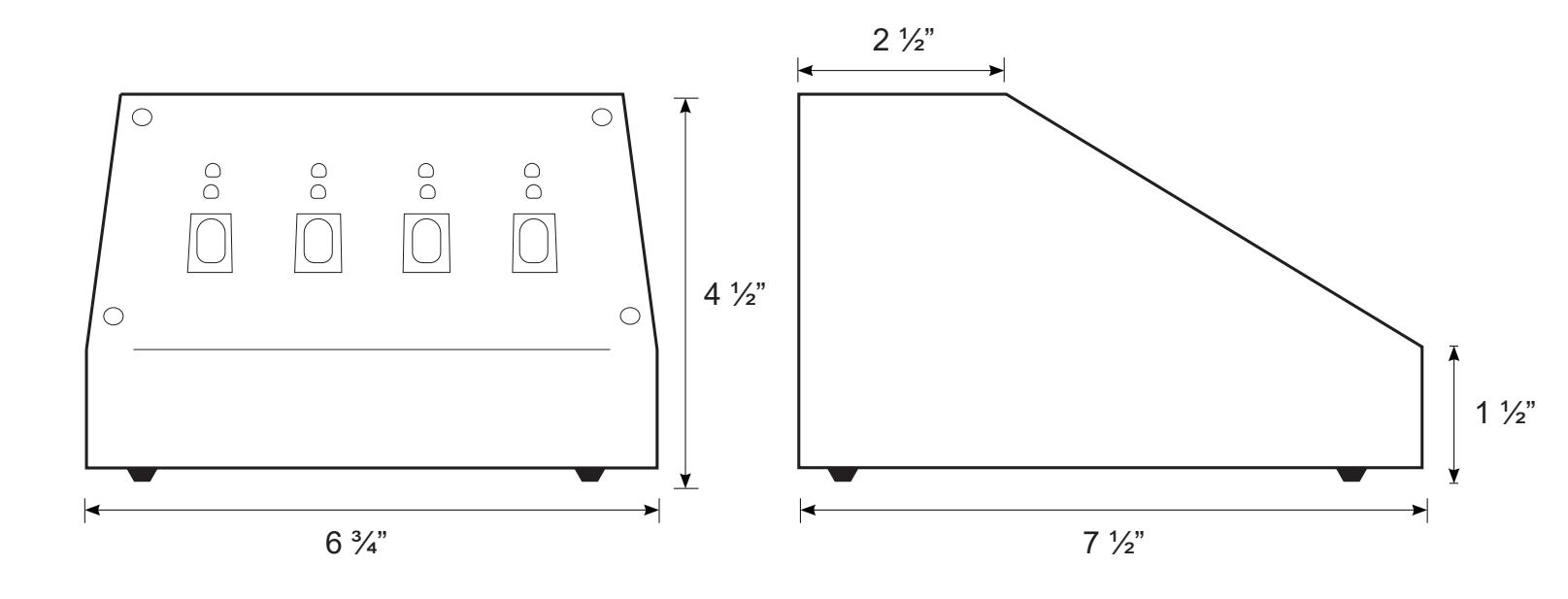

Dimensions: 6-3/4" Wide 4-1/2" Height

7-1/2" Deep

Power Requirments/zone: Momentary (MO) Relay: Maintained (MA) Relay: 12VDC or 24VDC, 0.100 Amps SPDT 2.0 Amps @ 30VDC SPDT 2.0 Amps @ 30VDC

LED Indicators: 1- Green

1- Red/Yellow Combination

Power Control Wiring: Signal Wiring: Minimum 18AWG Minimum 22AWG

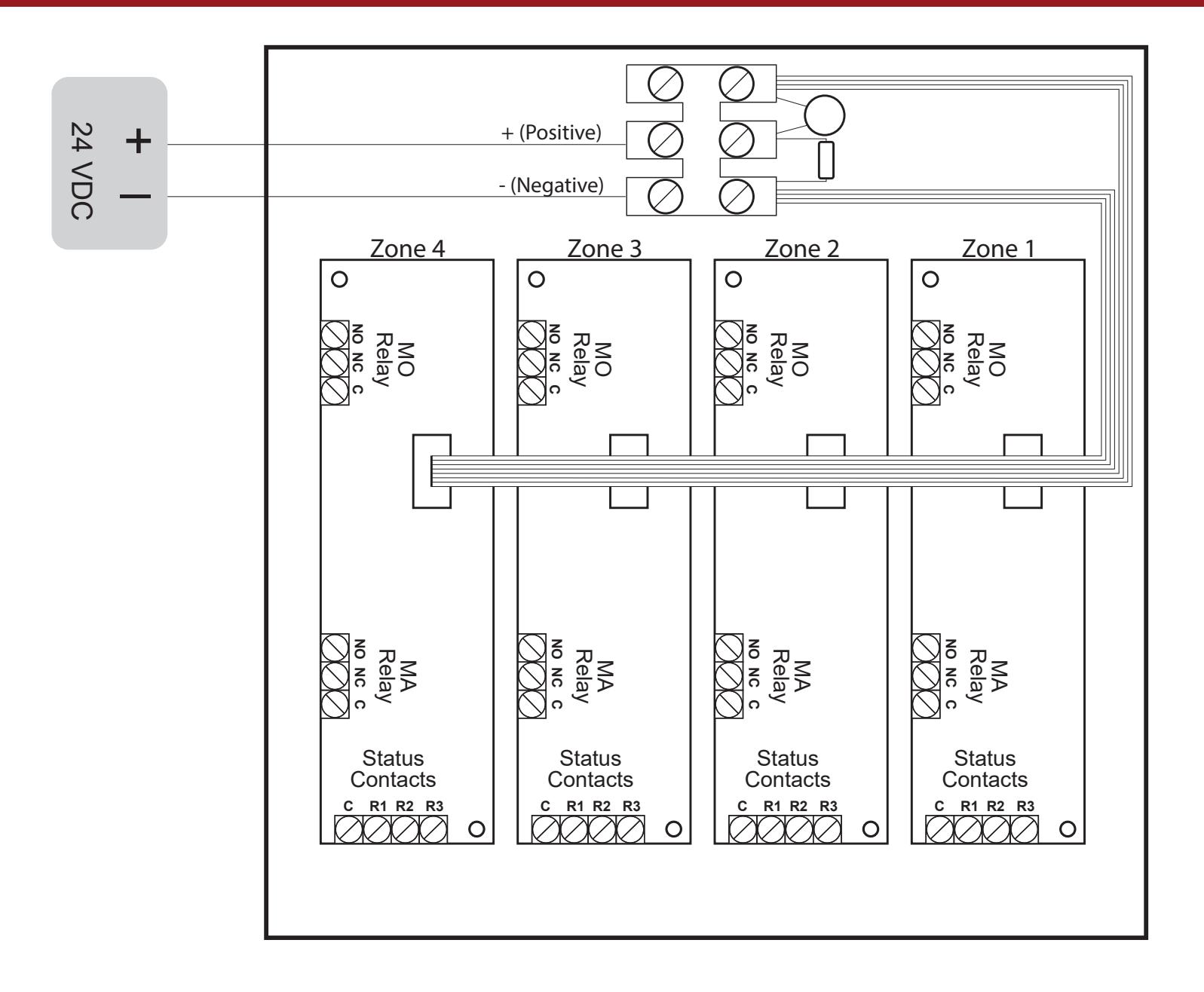

BACK SIDE OF DTC

MO Relay = Momentary Relay, SPDT, 2.0 Amp @ 30VDC MA Relay = Maintained Relay, SPDT, 2.0 Amp @ 30VDC

Status LED Contacts:

• C = Common (+)
• R1 = Yellow
• R2 = Green
• R3 = Red

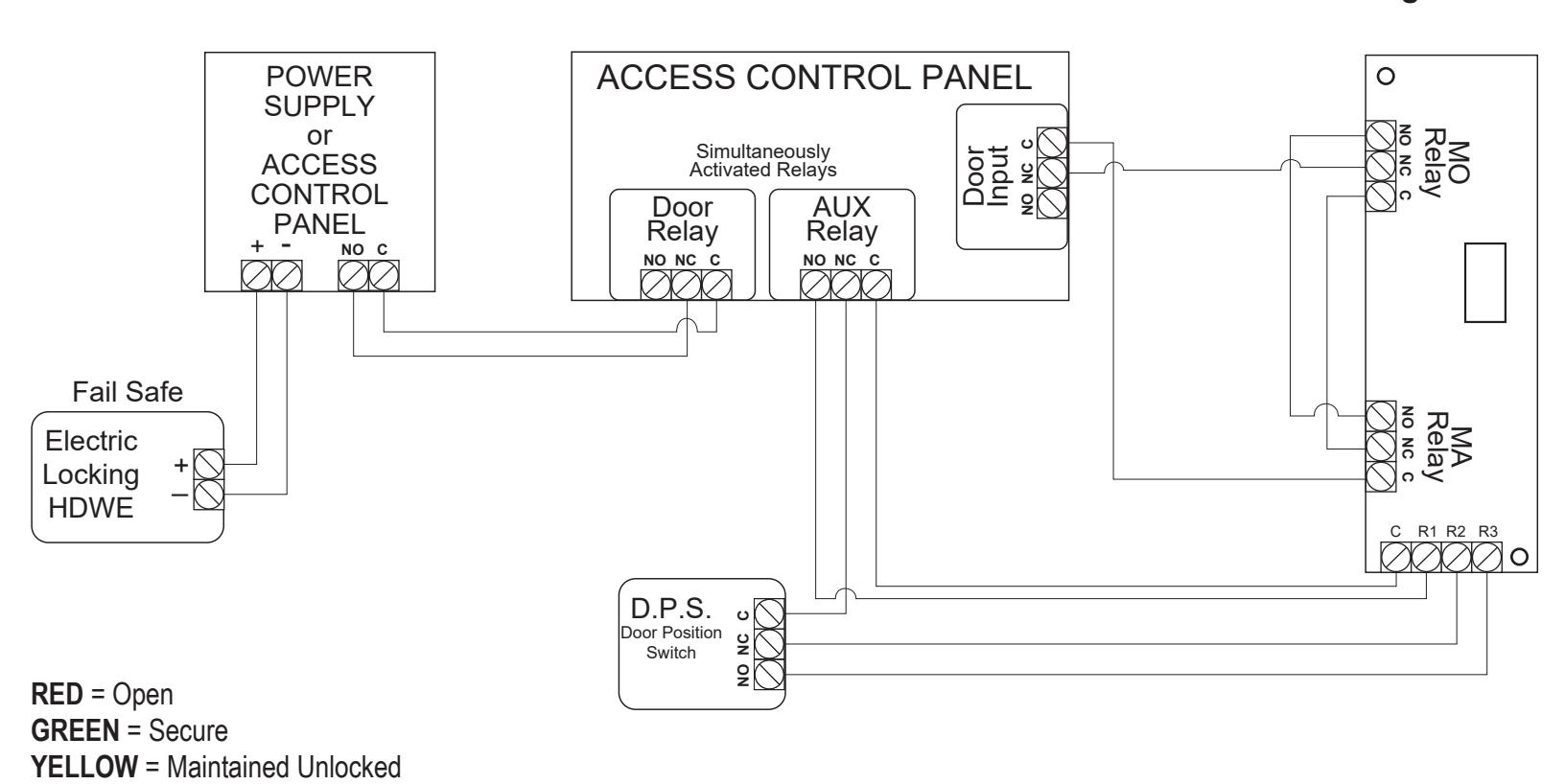

See sample wiring diagrams for typical per zone applications

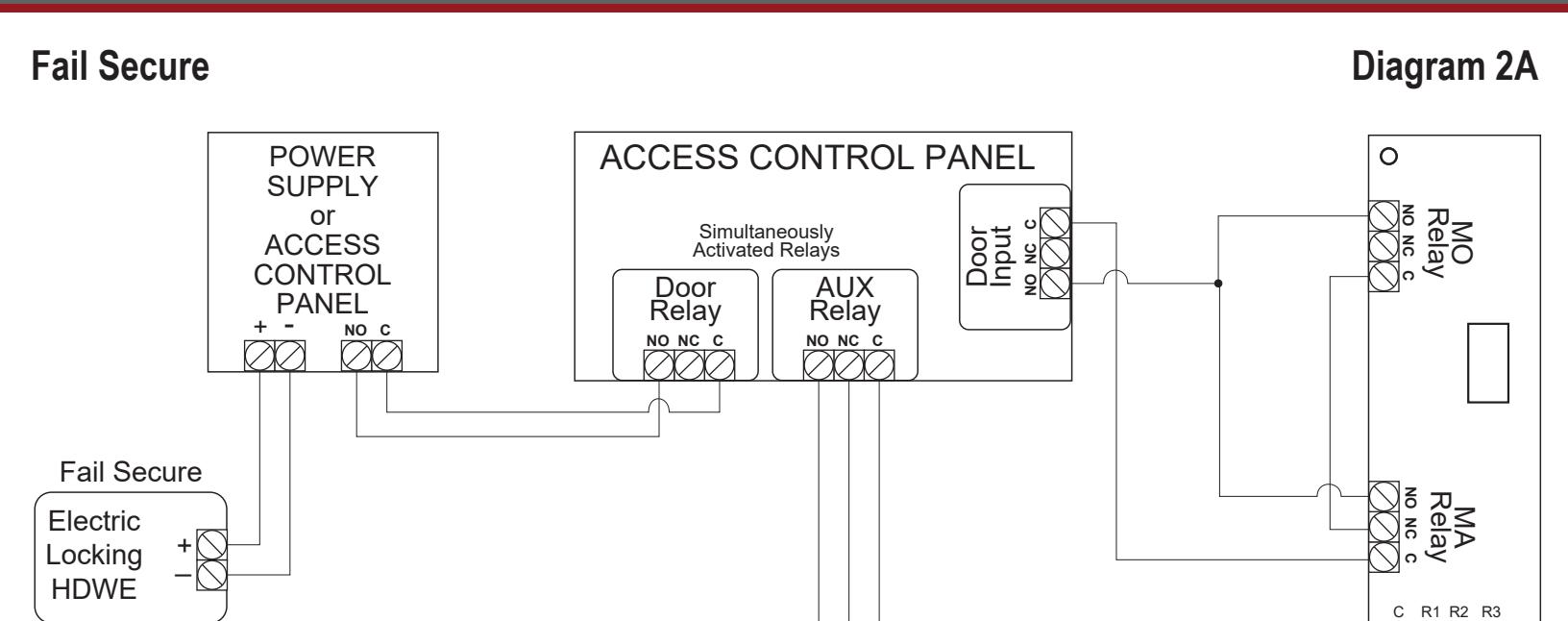

dry contact - 1 zone moma activation control

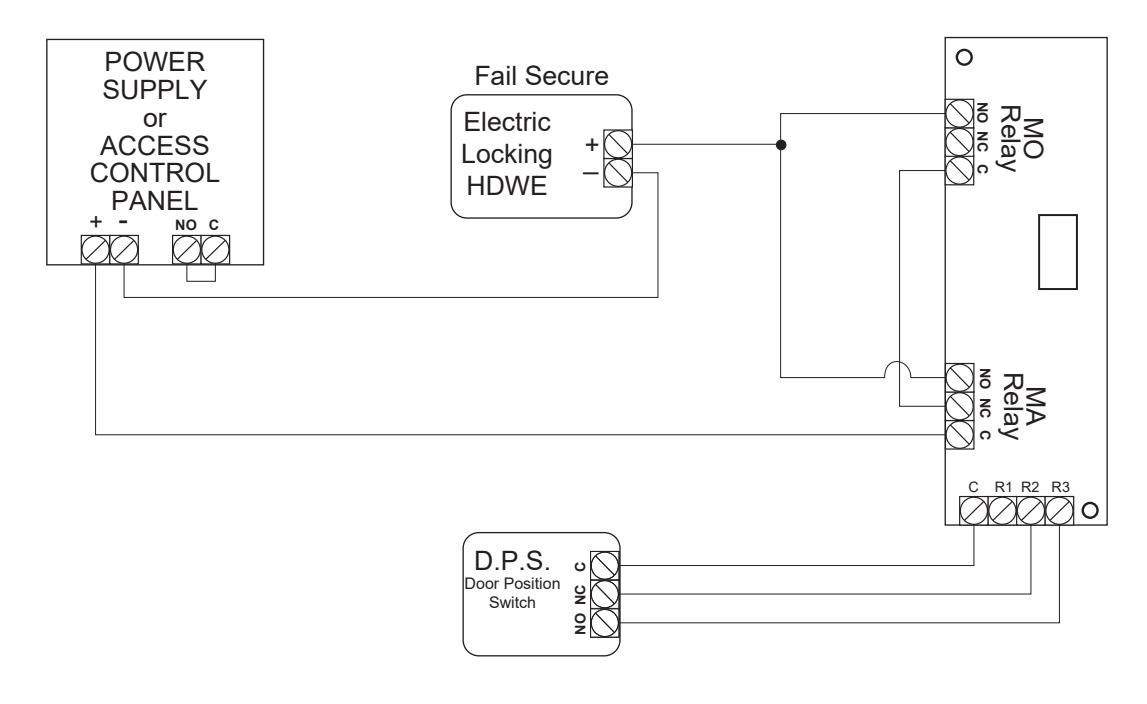

dry contact - 1 zone moma activation control w/feedback

RED = Open GREEN = Secure

YELLOW = Maintained Unlocked

NO NC C

D.P.S. Door Position Switch

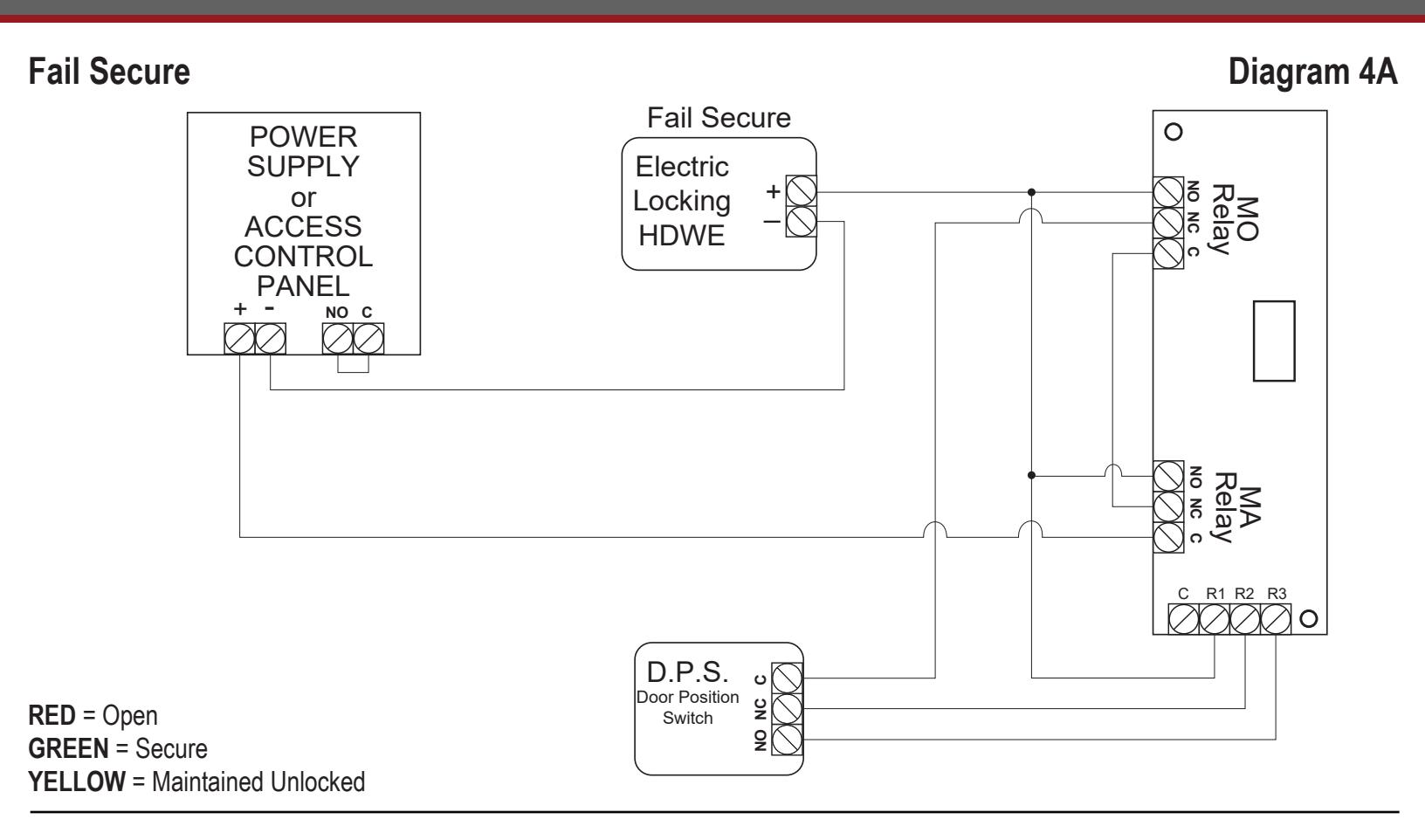

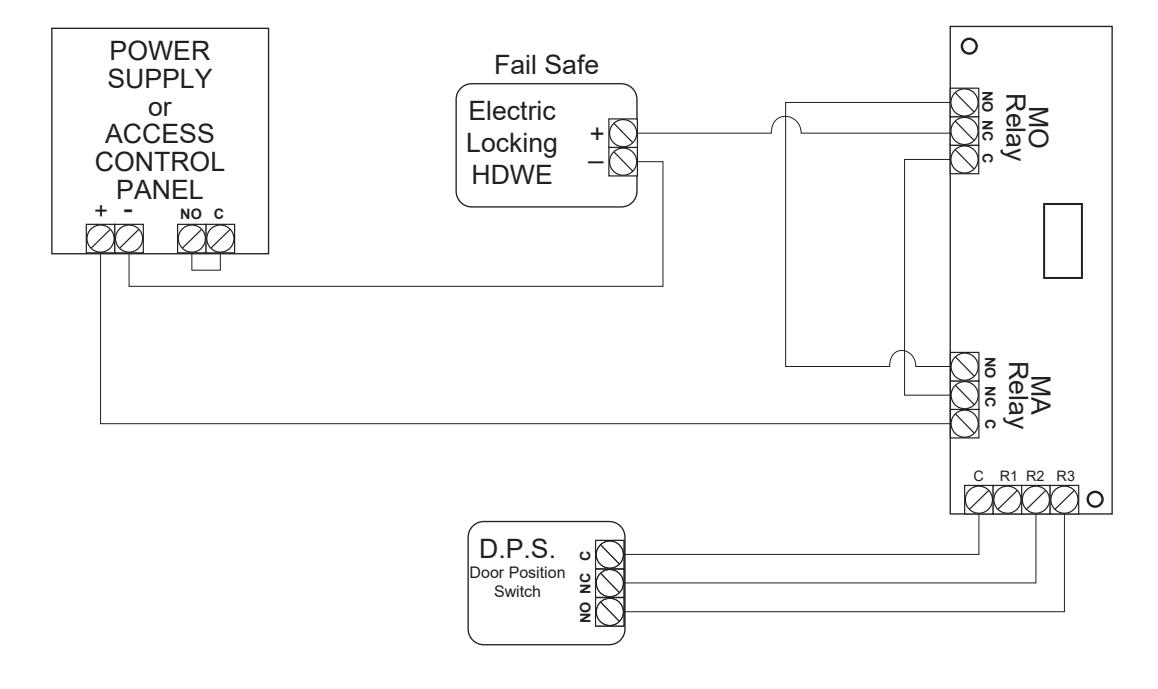

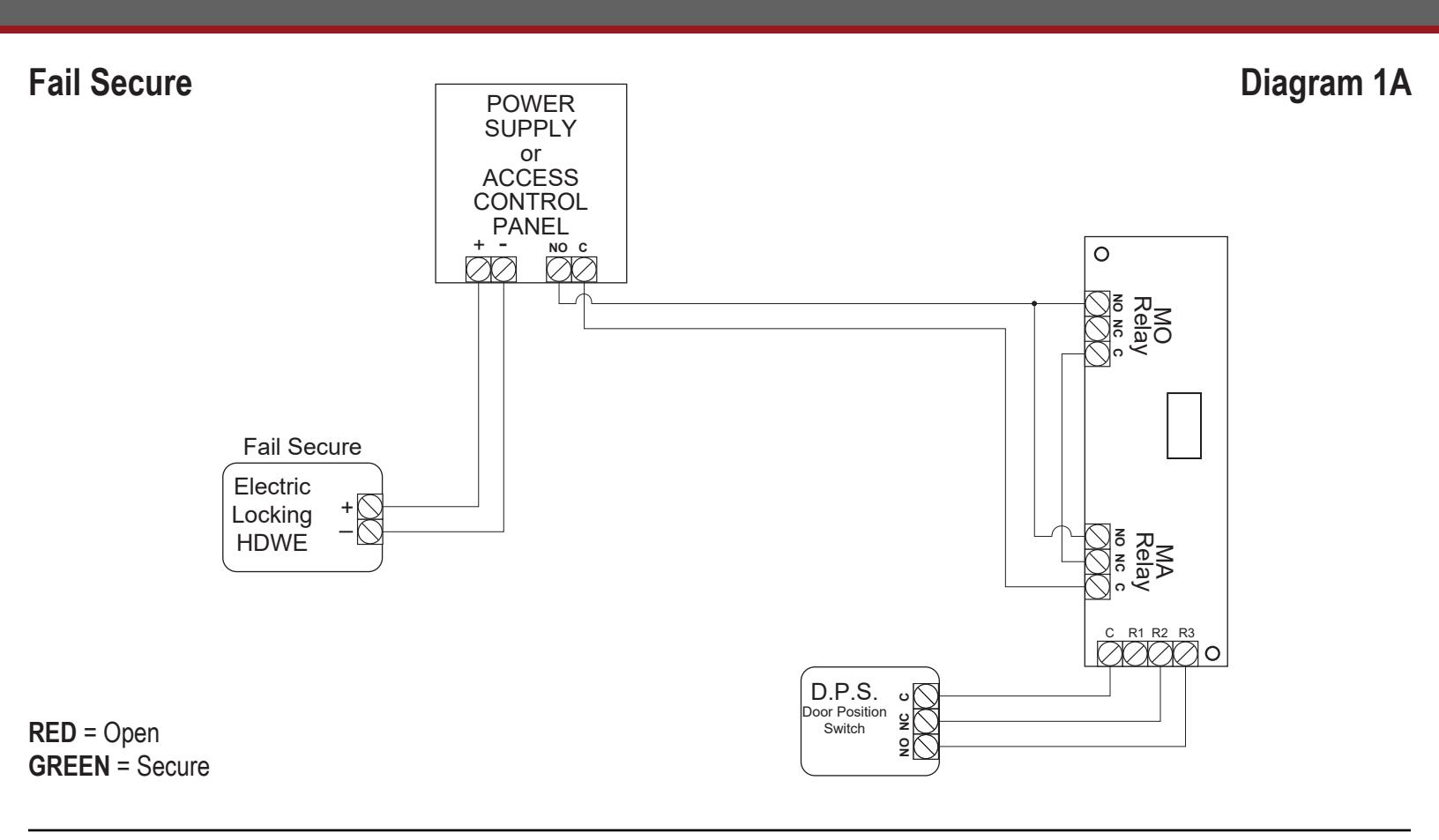

Fail Secure Diagram 3A

RED = Open GREEN = Secure

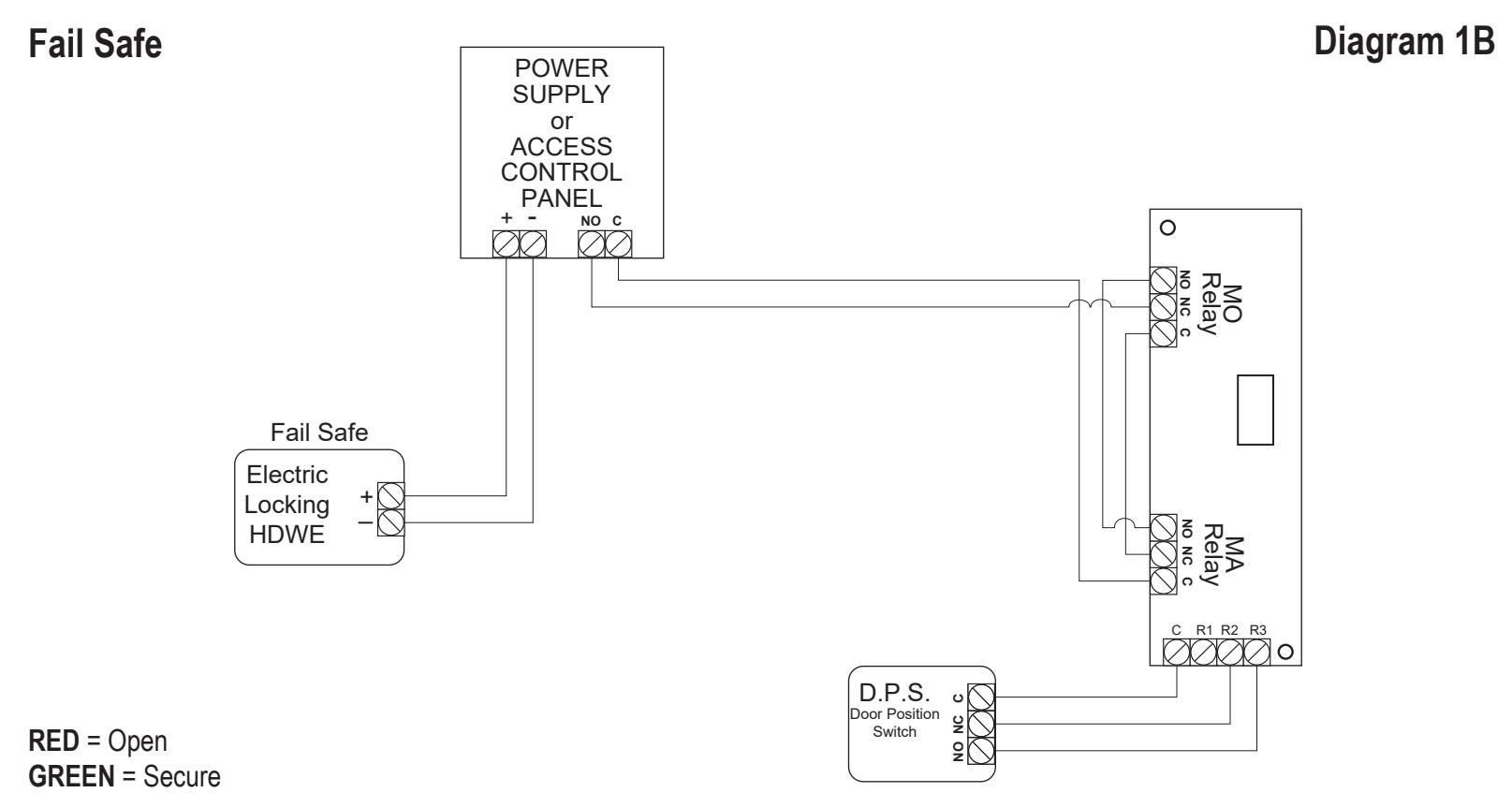

Fail Safe Diagram 3B

RED = Open GREEN = Secure

WET contact - 1 zone moma activation to power supply w/feedback

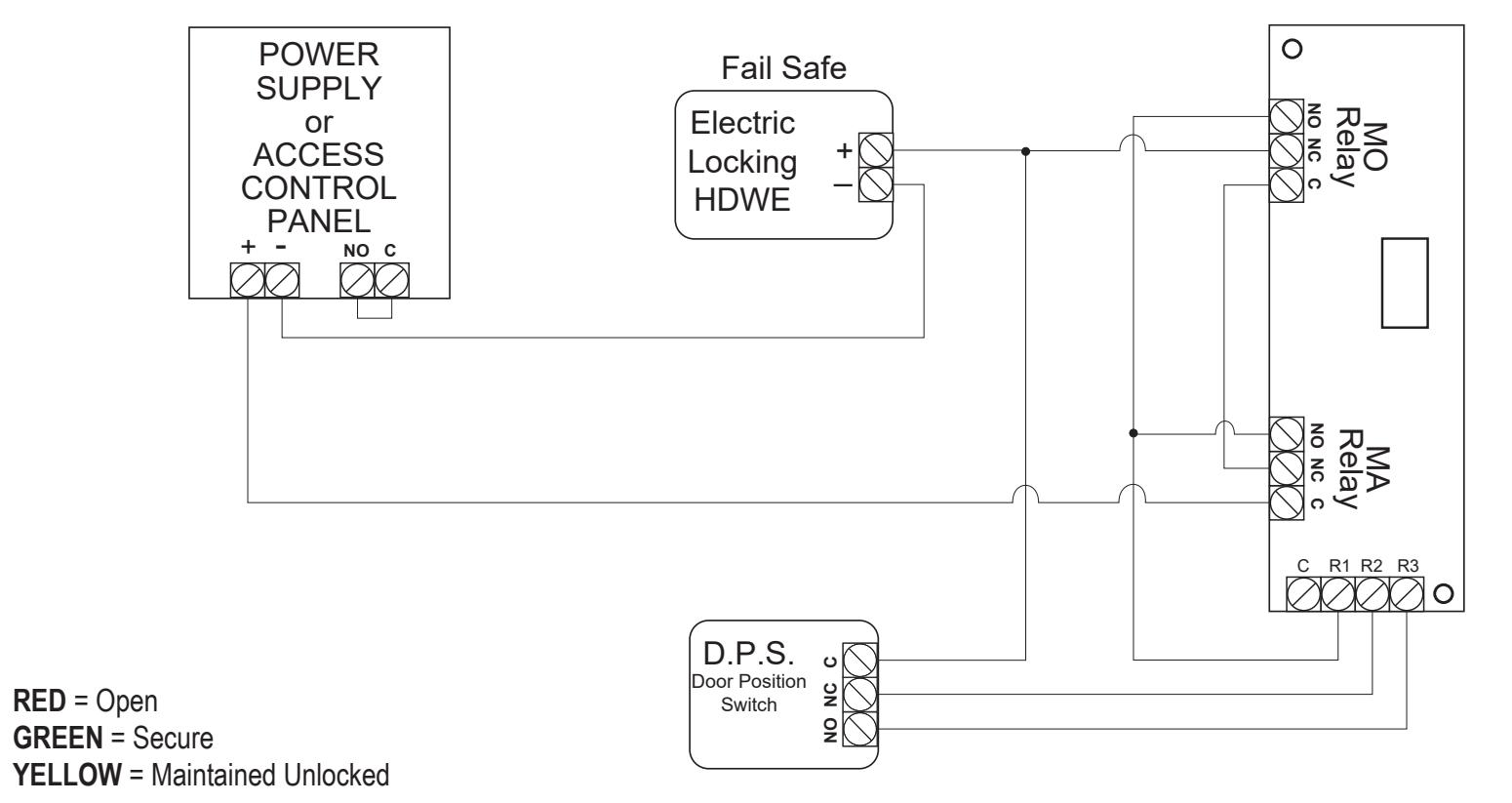

Fail Safe Diagram 4B
